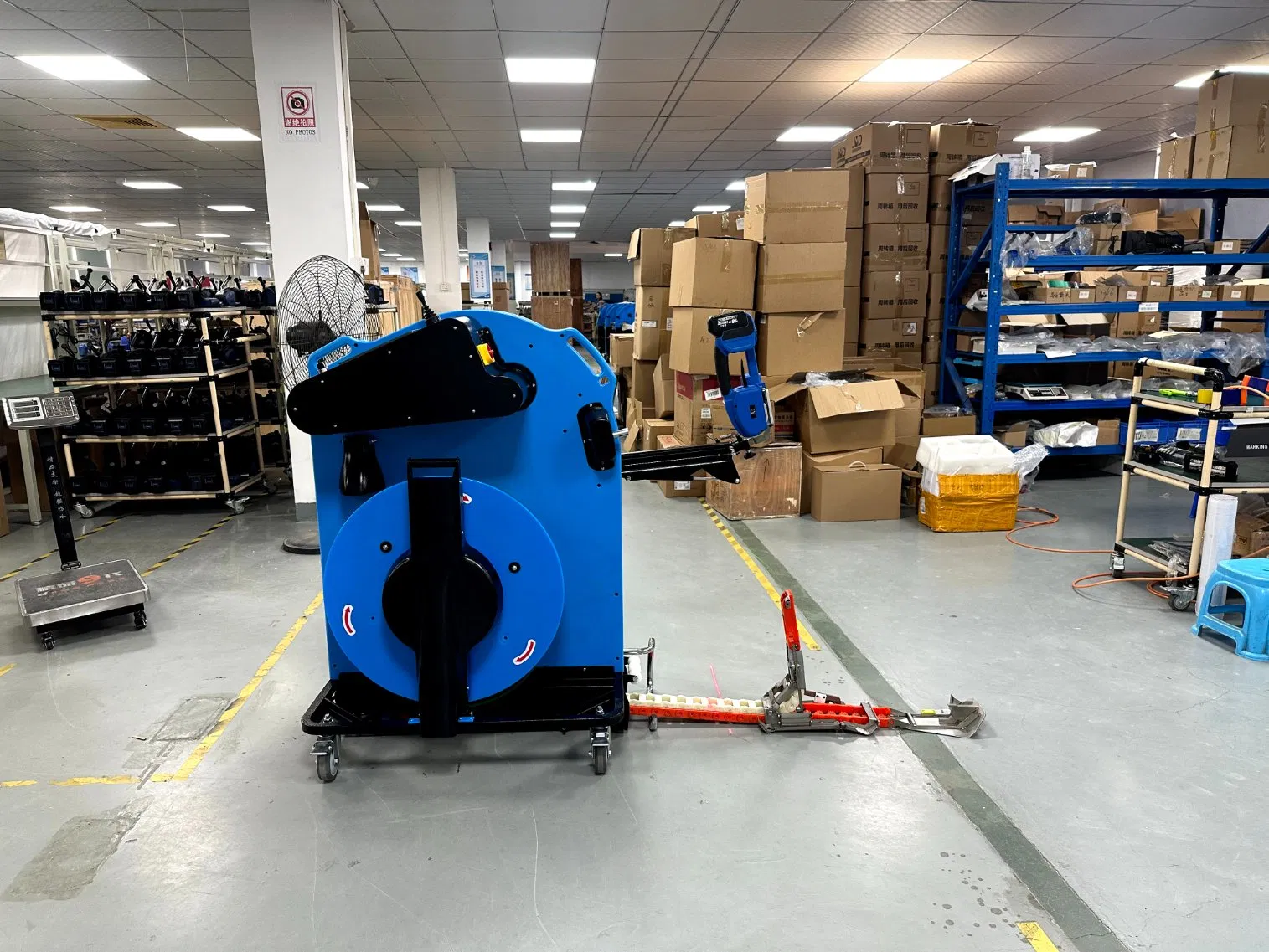

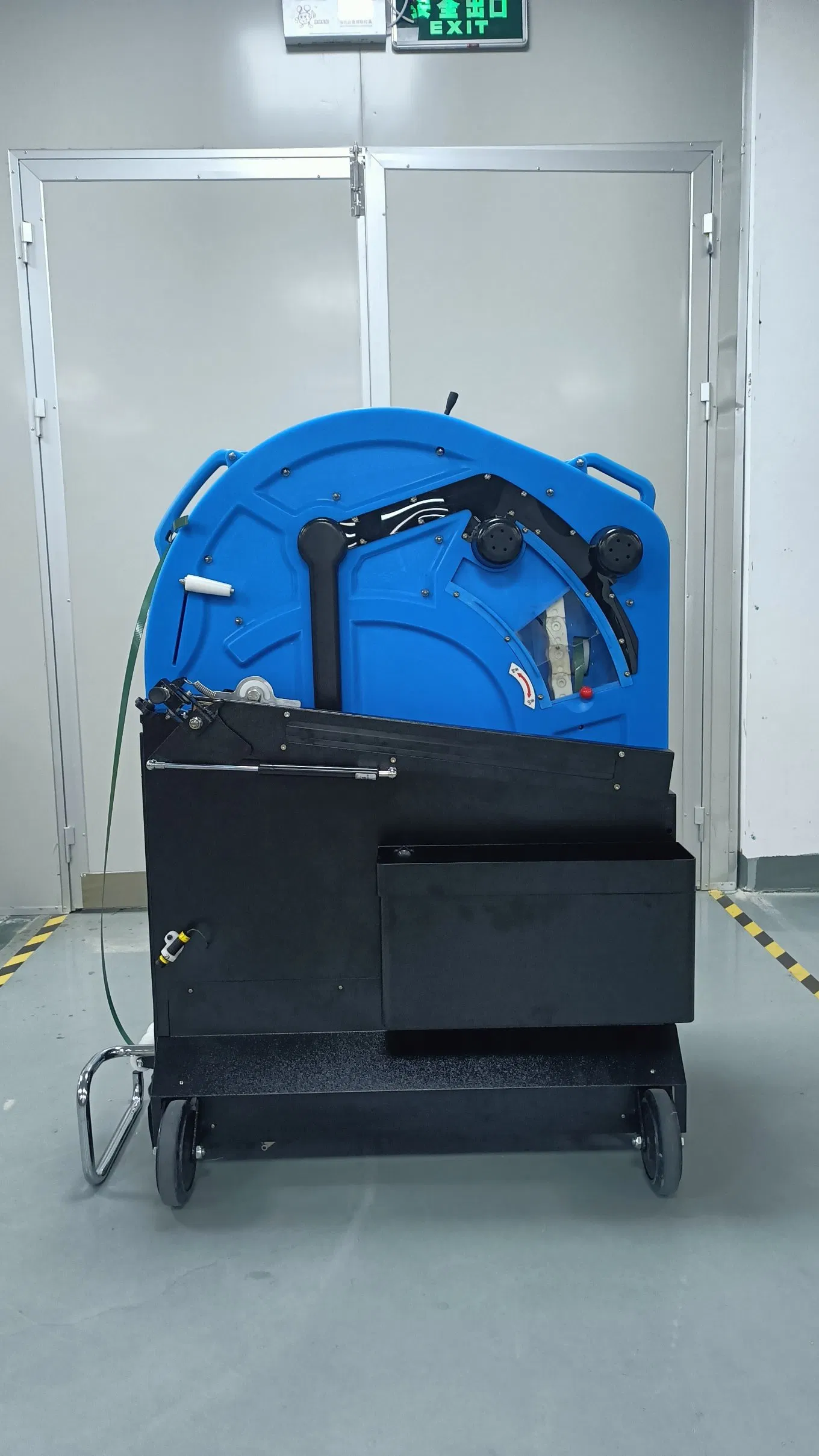

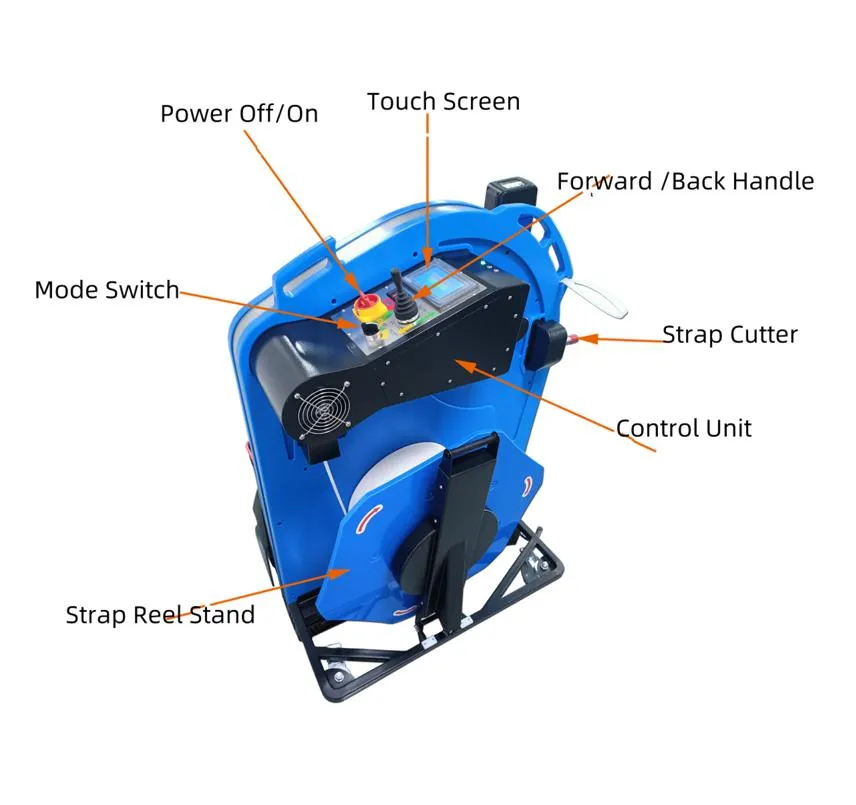

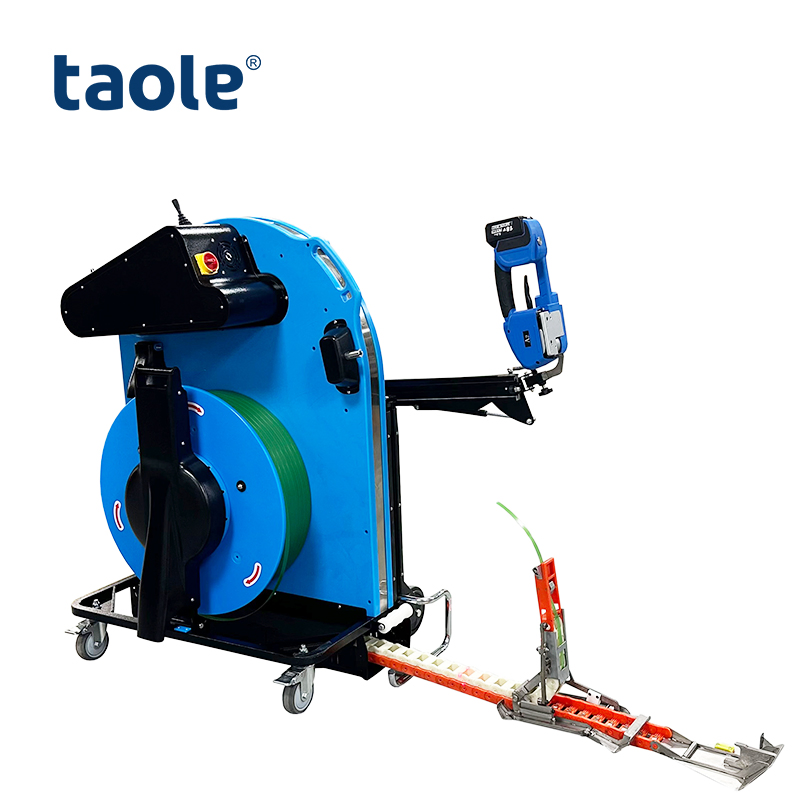

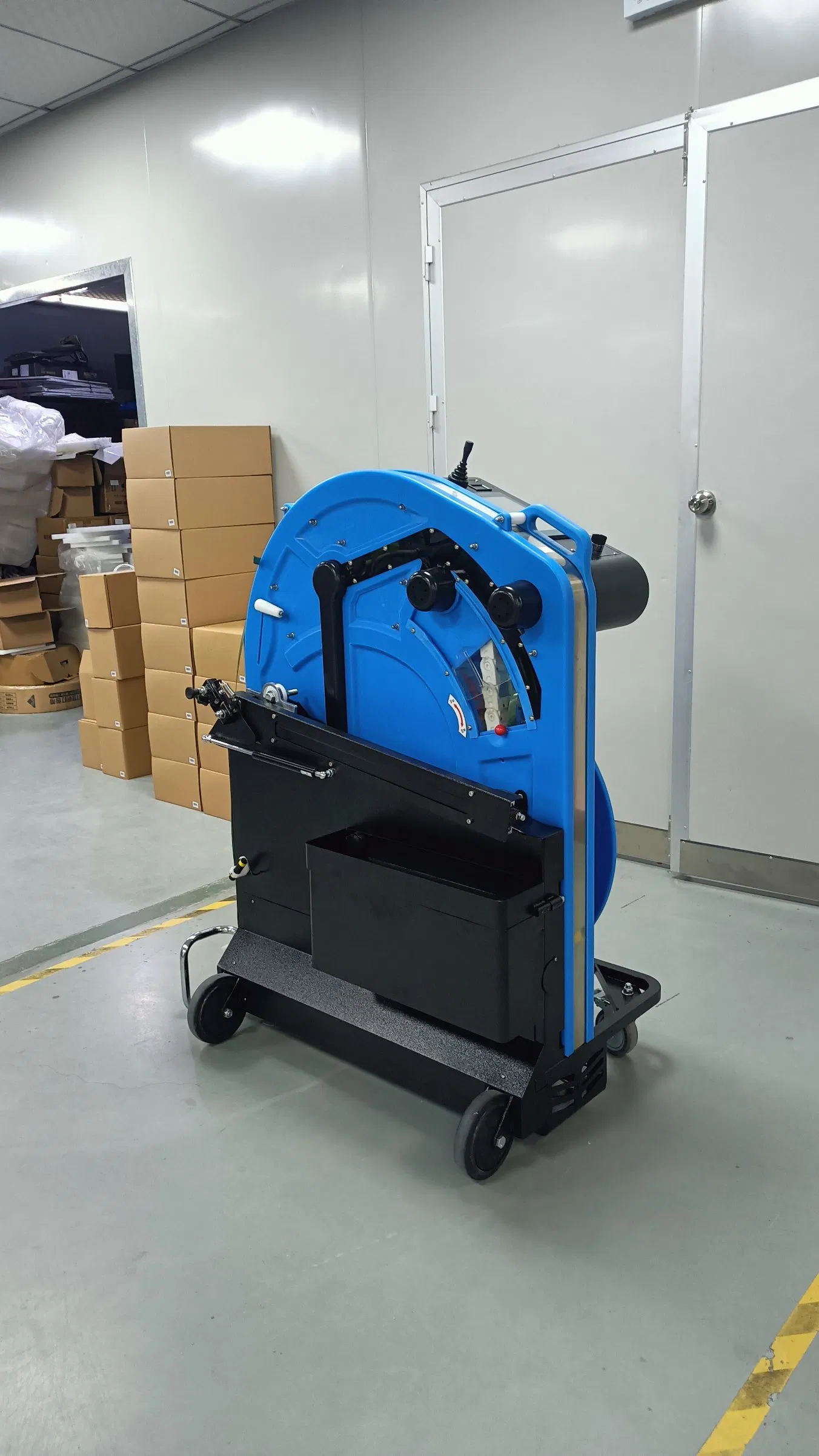

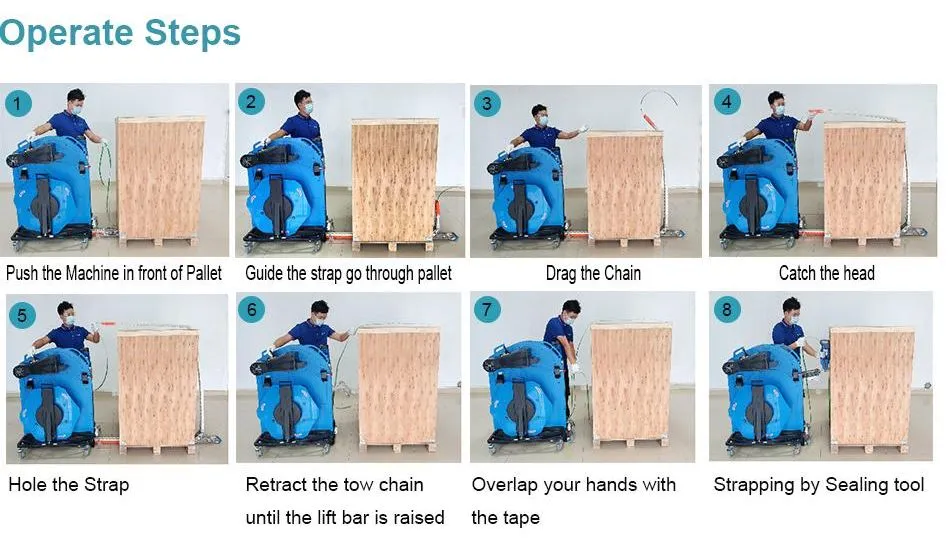

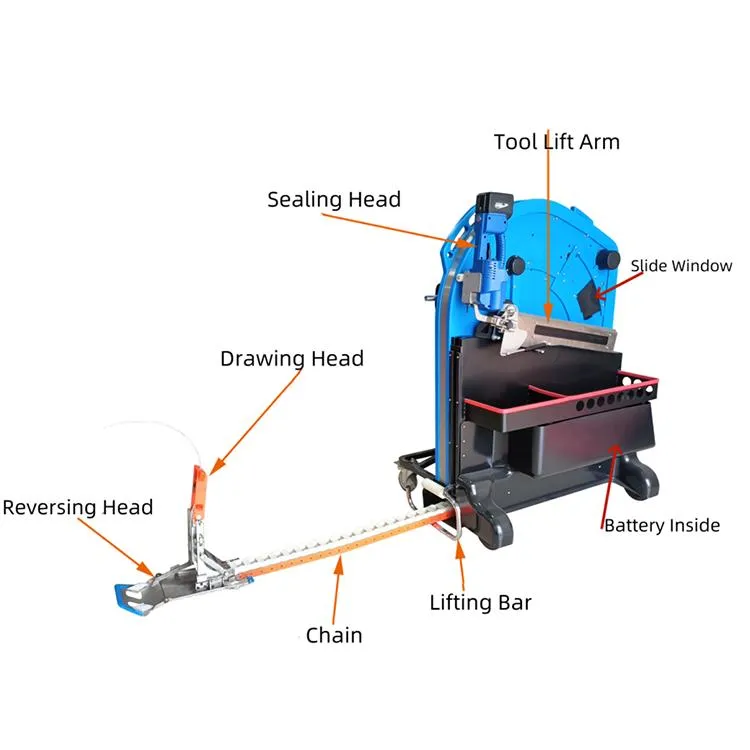

Ergonomic pallet strapping machine with electrically driven chain lance via motor is a hot product in packing industry. It can make you have an elegant way of strapping without bending down, which is a comfortable way by one person from one side only. Just roll the strapping machine in front of the pallet. Then the Chainlance pulls the strap through under the pallet and up again on the rear side and over the pallet. The strap is tensioned and welded securely by the sealing head. Mobile pallet strapping system is widely used for heavy duty products & pallets or high pallets which is reducing labor force.
| Model | TP-800 Pallet Strapper |
| Chain Length | 9.3 meters |
| Packing Size | 200mm ≤ Width, 75mm ≤ Height ≤ 2.6 meters (Customized for 3m) |

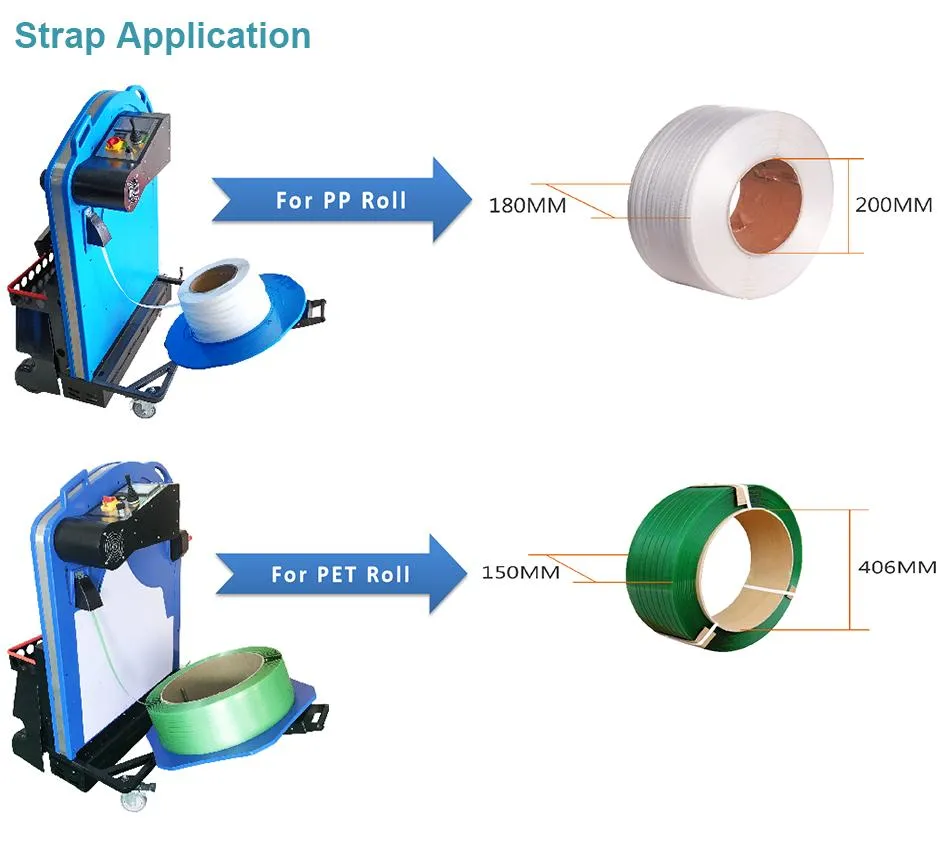

| Applicated Strap Width | 12-19mm |
| Applicated Strap Thickness | 0.6-1.3mm |
| Chain Speeds Horizontally | Out 40m/min, In 54m/min |
| Chain Speeds Vertically | Out 60m/min, In 44m/min |
| Machine Weight | N.W 105 KGS / G.W 210 KGS |
| Machine Size | L950 * W 750 * H 1250mm |
| Lithium Battery | 33.3V/ 32Ah, Approx 150-400 straps per charge |

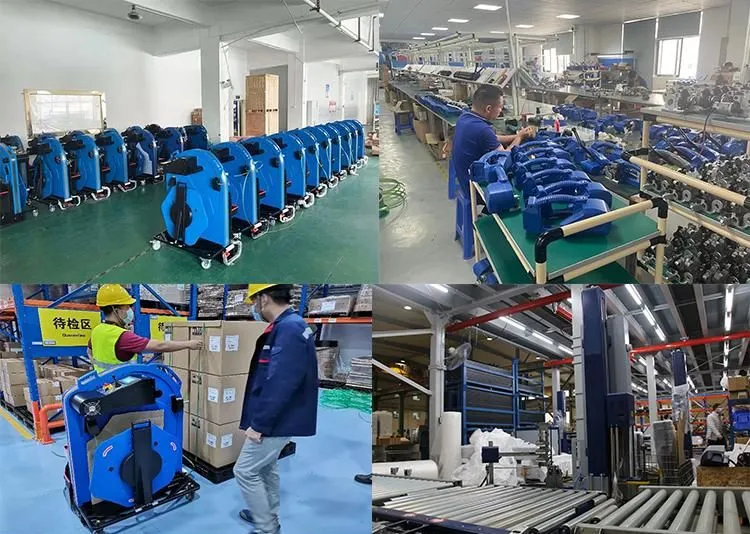

Founded in 2004, we are a comprehensive enterprise specializing in the manufacturing, research and development, and design of automatic packaging equipment. We have a standardized office building and a modern production workshop of 2000 square meters. Our machines have over 18 years of experience in both domestic and overseas markets, maintaining a high reputation in the industry. Our engineering team continuously develops and updates equipment for energy conservation, efficiency, and safety, providing complete packaging solutions from design to generation.
