Basic Information
High Precision
ISO 606 Precision Class
Load Capacity
Tensile Strength +20%
Wear Resistance
Wear Rate Reduced by 40%
Production Capacity
5,000,000 pieces
Application Scope: Metal Recycling Machine, Metal Cutting Machine, Metal Straightening Machinery, Metal Spinning Machinery, Metal Processing Machinery Parts, Metal forging Machinery, Metal Engraving Machinery, Metal Drawing Machinery, Metal Coating Machinery, Metal Casting Machinery.
⚙️
Product Introduction
From the perspective of the upstream and downstream of the sewage treatment industry chain, the upstream of sewage treatment mainly includes the production and manufacturing of various sewage treatment equipment, sewage discharge pipe networks, sewage treatment agents, water quality monitoring equipment, and sludge treatment equipment. The midstream mainly involves the construction and operation of sewage treatment facilities. The downstream of sewage treatment is the terminal market of sewage treatment, mainly referring to subsequent links such as reclaimed water reuse, sludge treatment, and sewage discharge.
📐

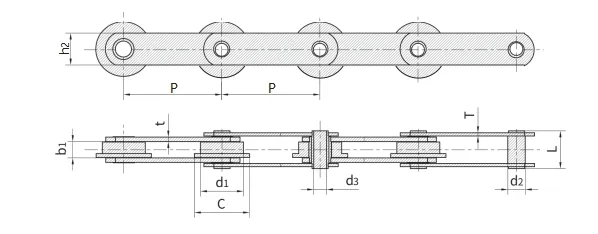

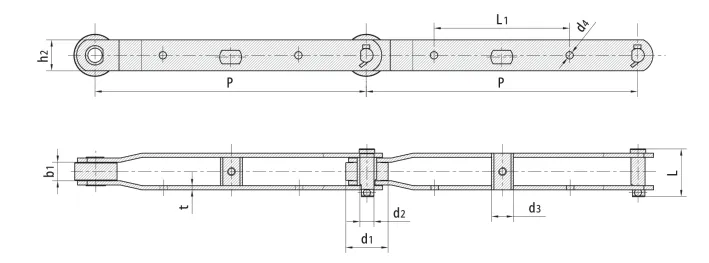

Technical Specifications
| Chain No. |
Pitch (P) |
Roller d1 max |
C max |
Width b1 min |
Pin d2 max |
Pin d3 min |
Pin L max |
Plate h2 max |
Plate T max |
Plate t max |
Tensile strength |
Weight |
| P152 |
152.4 mm |
66.7 mm |
85.7 mm |
25.4 mm |
27.1 mm |
20.0 mm |
58.8 mm |
50.0 mm |
5.0 mm |
7.0 mm |
122.1 kN |
10.78 kg/m |
| P609.6 |
609.6 mm |
95.25 mm |
41.65 mm |
31.75 mm |
49.20 mm |
107.80 mm |
69.85 mm |
9.5 mm |
304.8 mm |
16.66 mm |
230.0 kN |
10.78 kg/m |
🔗
Other Chain Products

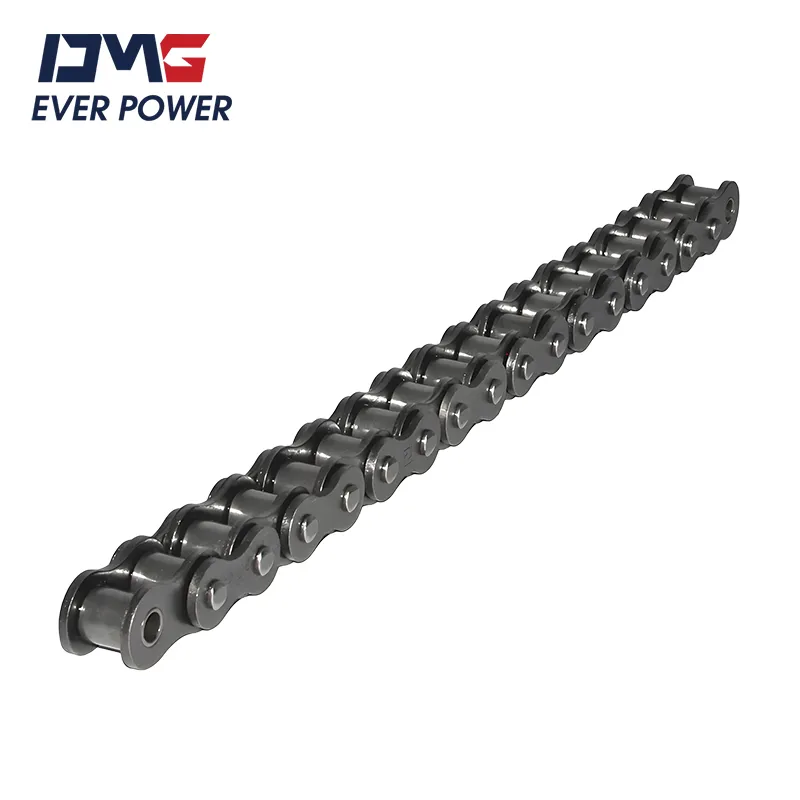

Transmission Chain: Used for transmitting power and motion in mechanical systems. It realizes the conversion of rotary motion or linear motion through the meshing of sprockets.

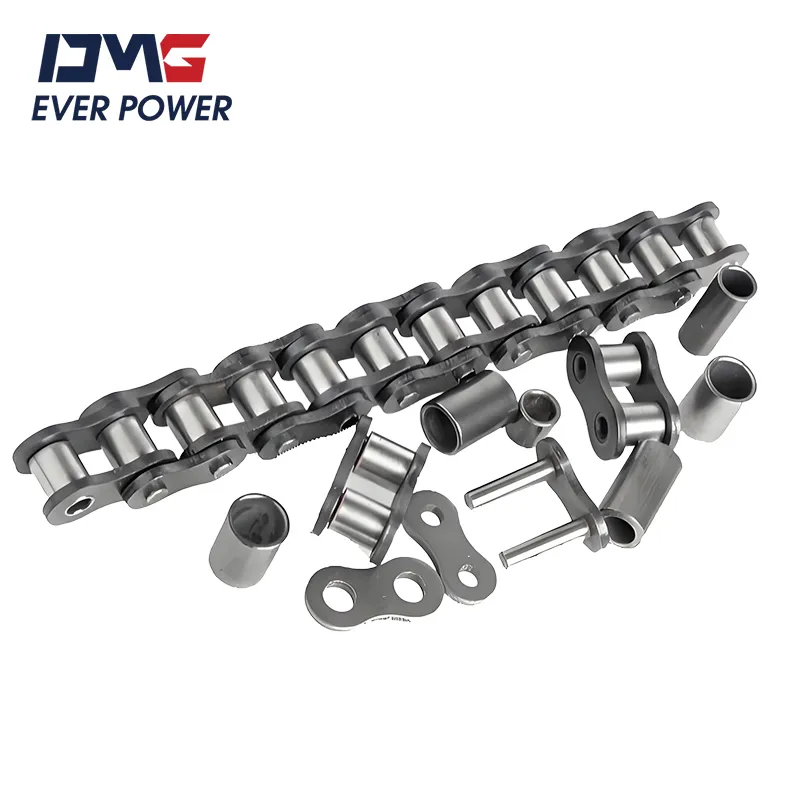

Precision Conveyor Chain: Composed of high-precision bearings fixed by constraining chain plates. Includes pin shafts, sleeves, and rollers for smooth rotation.

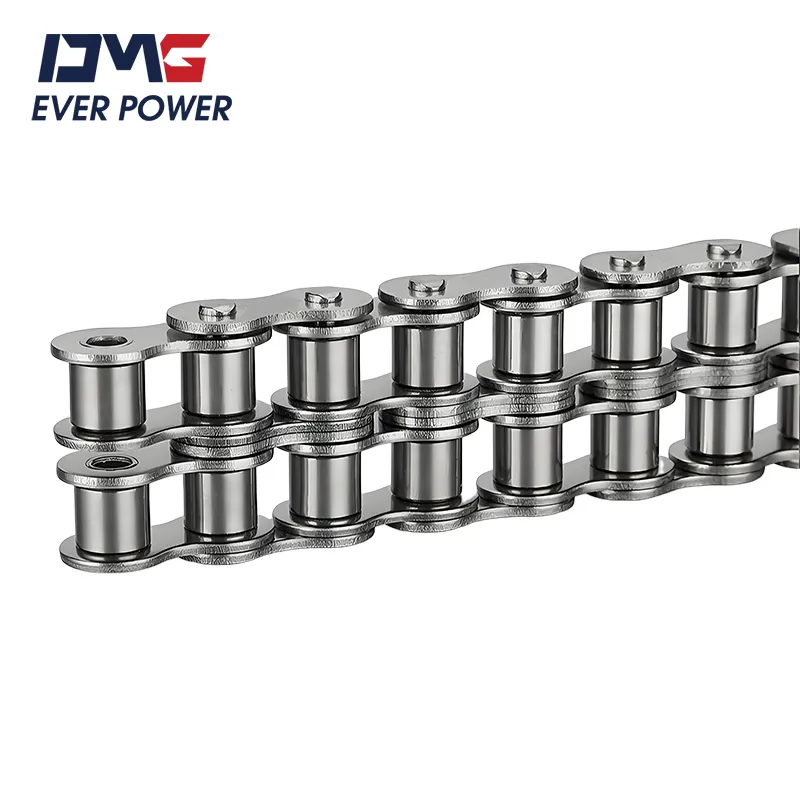

Stainless Steel Chain: Corrosion-resistant cables made of stainless steel wire or round steel, available in short-link and long-link variations.

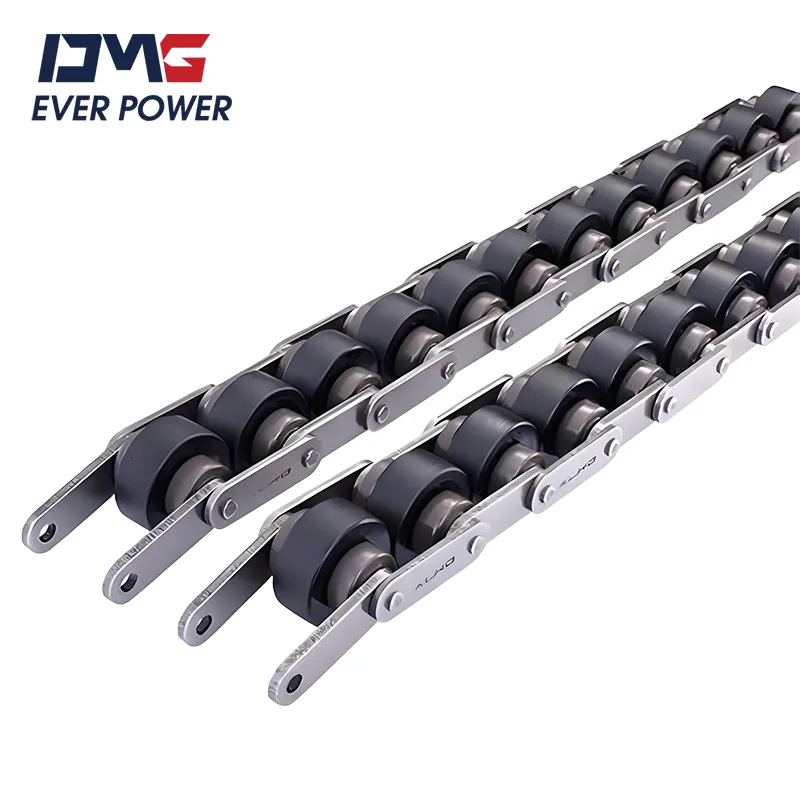

Agricultural Machinery Chain: Includes feeding chains (P2 type), lifting chains (Ld2 type), and specialized harvesting chains (WK type).
🏭
Manufacturing & Capability

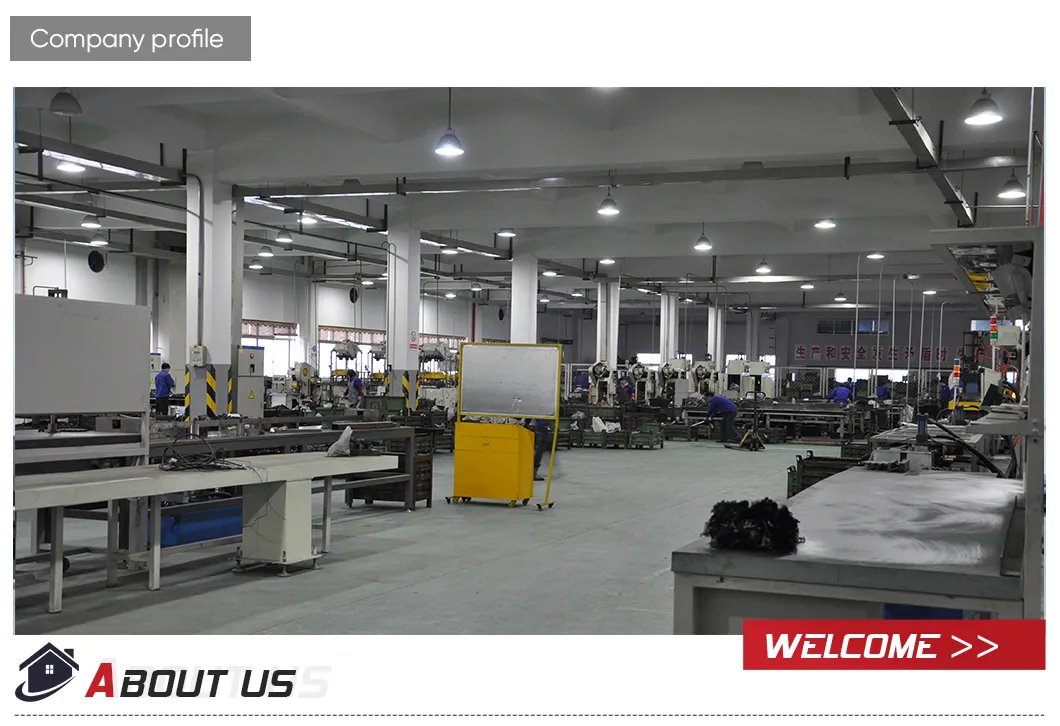

The factory covers more than 33,000 square meters of workshop space, equipped with over 100 sets of advanced processing machines and test equipment. Specializing in development, manufacture, and sales, the facility produces high-quality roller chains, sprockets, and pulleys.
Products are exported to more than 50 countries, serving industries such as food processing, engineering machinery, printing, woodworking, textile, rubber, and chemical machinery.
📦
Packaging & Shipping
❓
Frequently Asked Questions
Do you offer free samples?
Yes, we provide samples for quality evaluation upon request.
Is OEM service available?
Yes, we provide full OEM and customization services to meet specific mechanical requirements.
What is your manufacturing experience?
We have focused on producing and exporting industrial chains for over 37 years with a professional technical team.
What are your standard payment terms?
Commonly T/T 30% deposit and 70% against documents, Western Union, or L/C at sight.
Do you provide after-sales support?
Yes, we have a responsible after-sale service team to solve technical problems at any time.
What is your annual production capacity?
Our facility has a production capacity of approximately 5,000,000 pieces per year.
