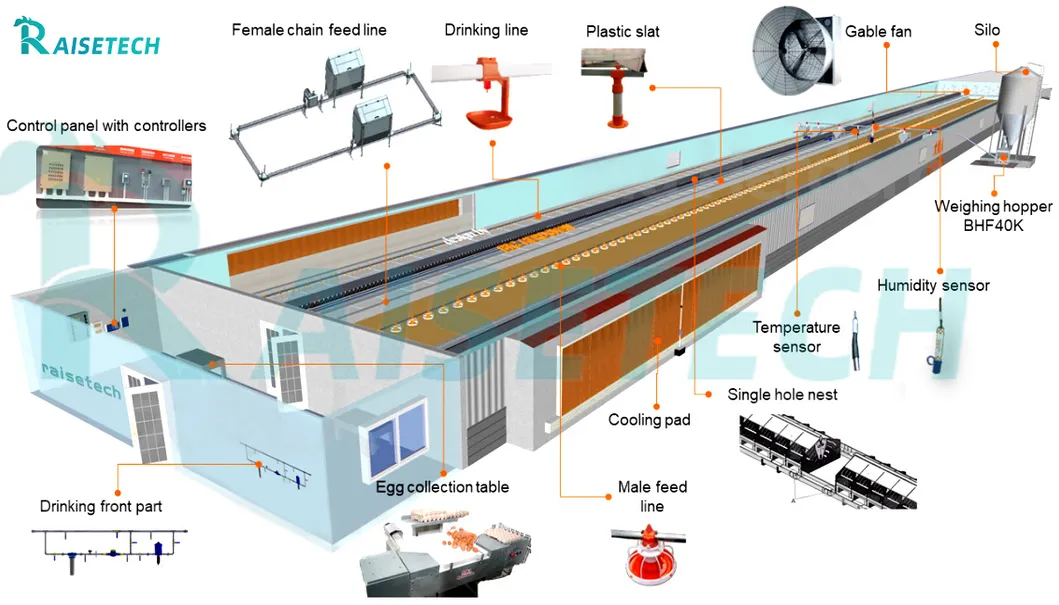

The Breeder Flat Raising System is meticulously crafted to revolutionize chicken farming. This sophisticated system prioritizes both efficiency and welfare, encompassing the following components:
| Model | Size(m) | Birds/House | Feeding System | Drinking System | EC system |
|---|---|---|---|---|---|
| RFBB 12015 | 120*15 | Female 10815 + Male 1082 | 3 loops | 4 Lines | 1 Set |

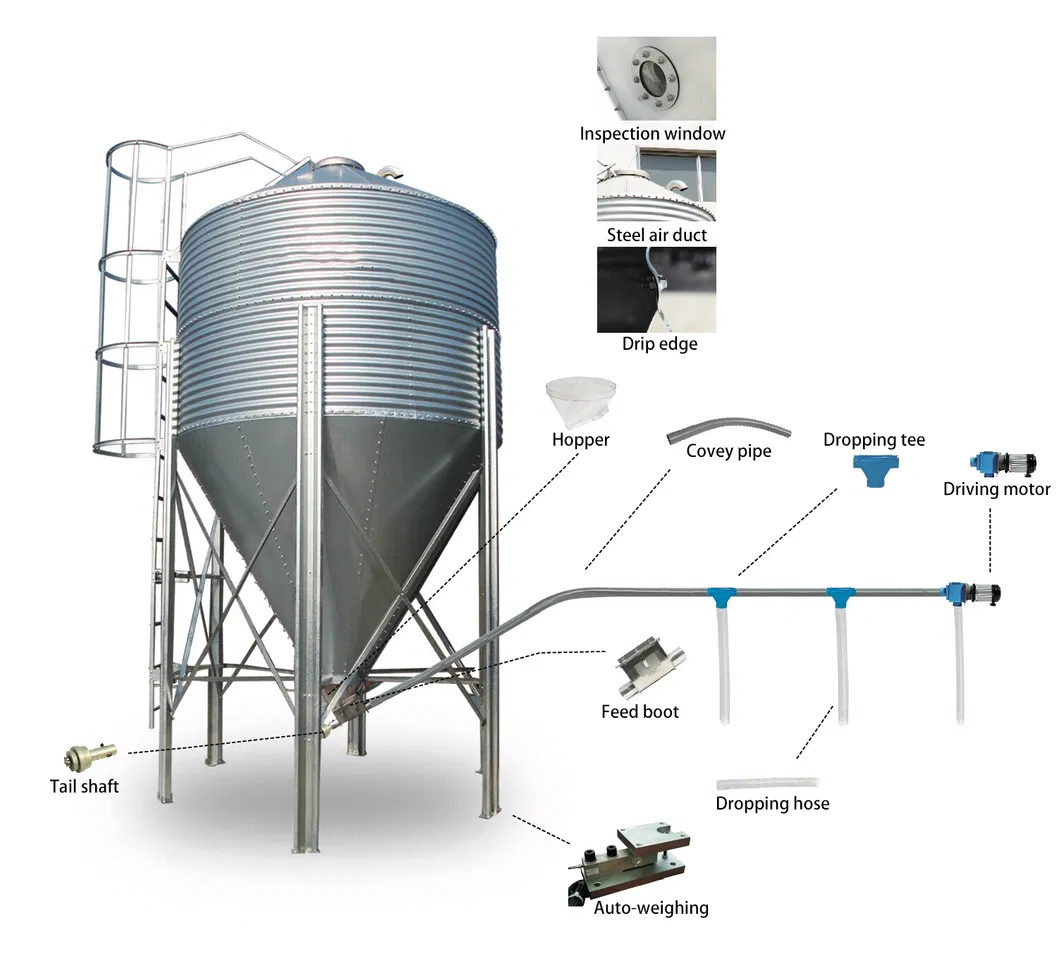

The silo is crafted from premium hot-dip galvanized steel (275g/m²). It features independent filling mechanisms with a transport capability of 73 kg/min. The assembly includes a drive motor (1.5KW/2.2KW) and a feed hopper (65kg), ensuring speed and uniformity.

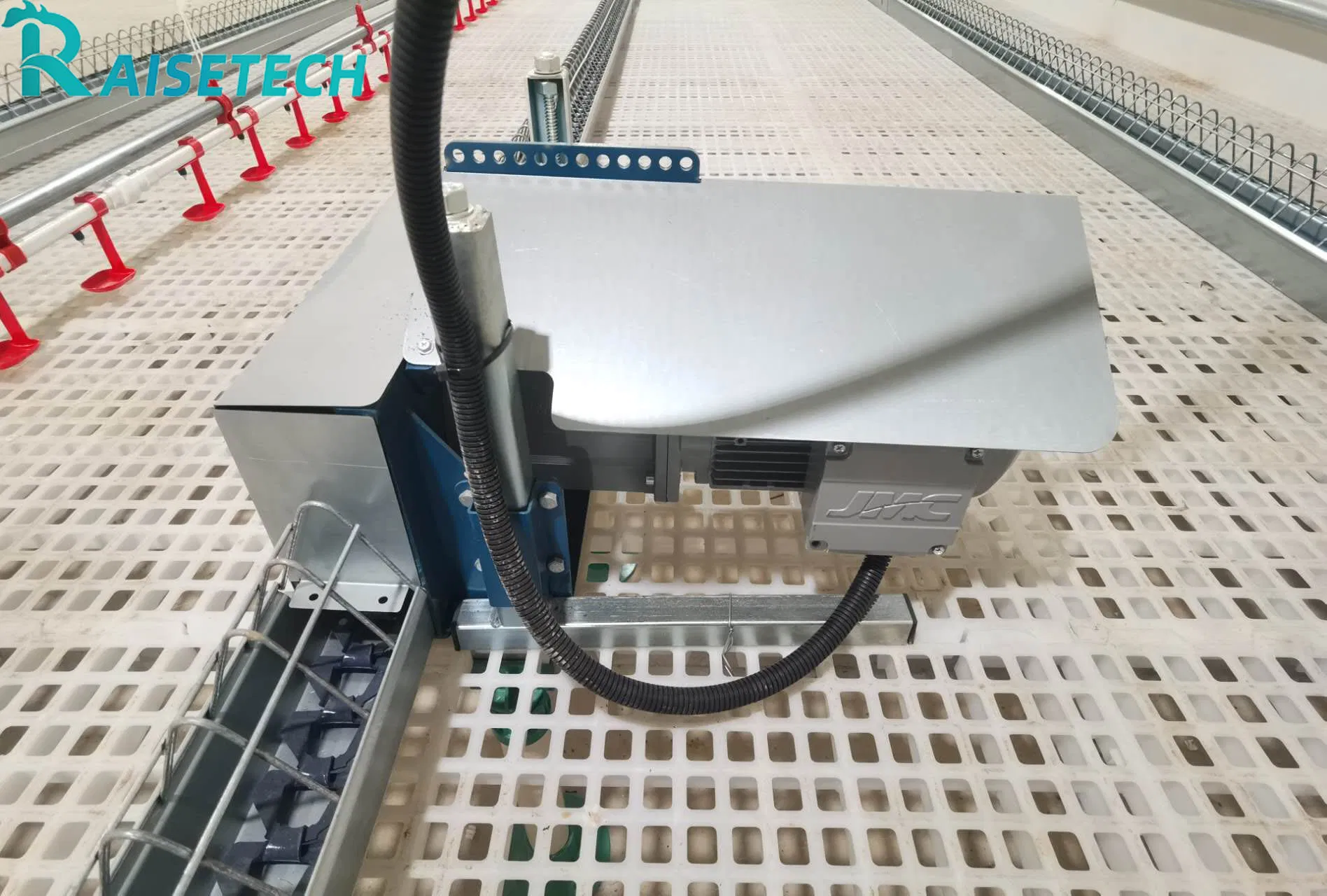

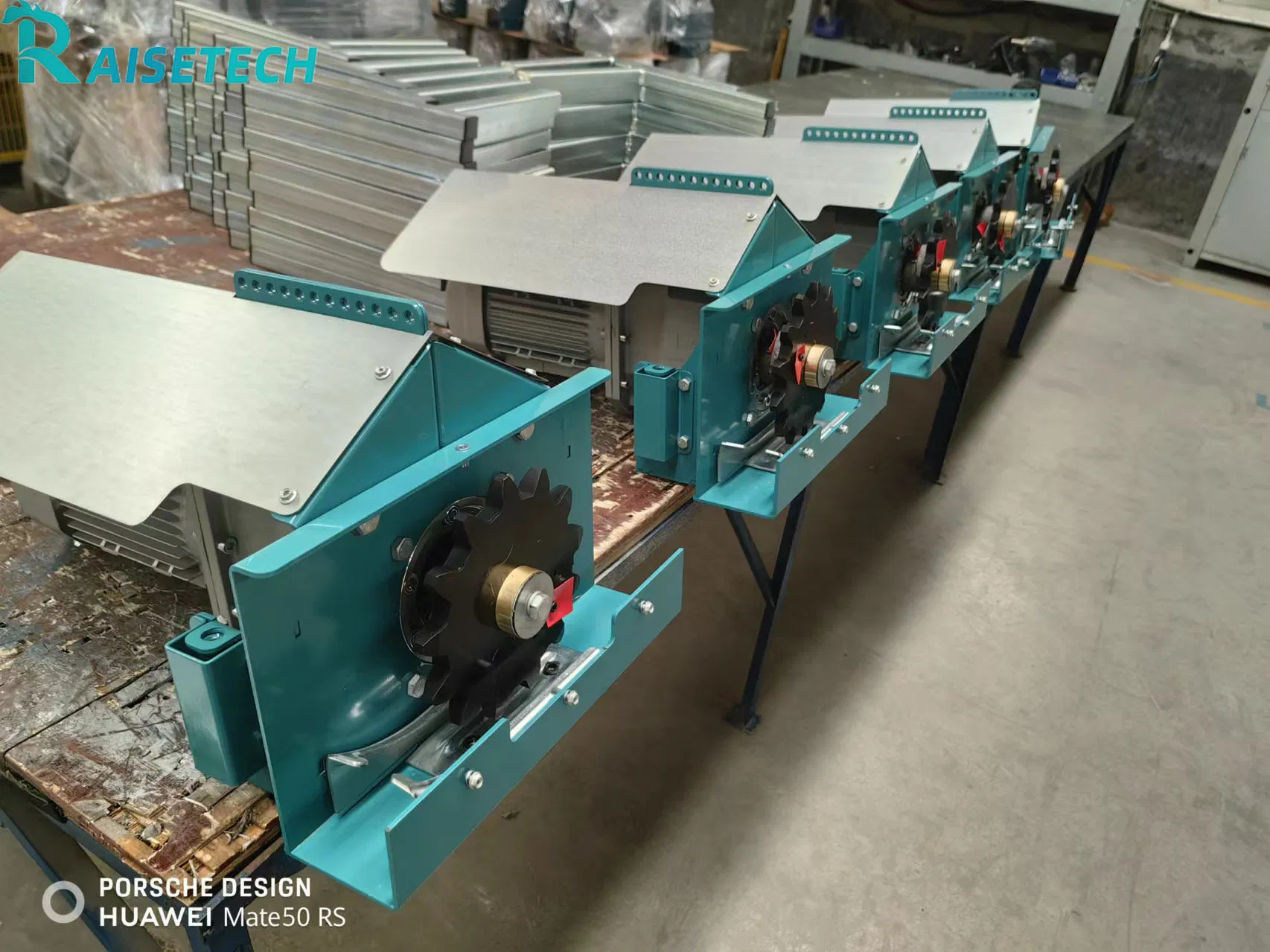

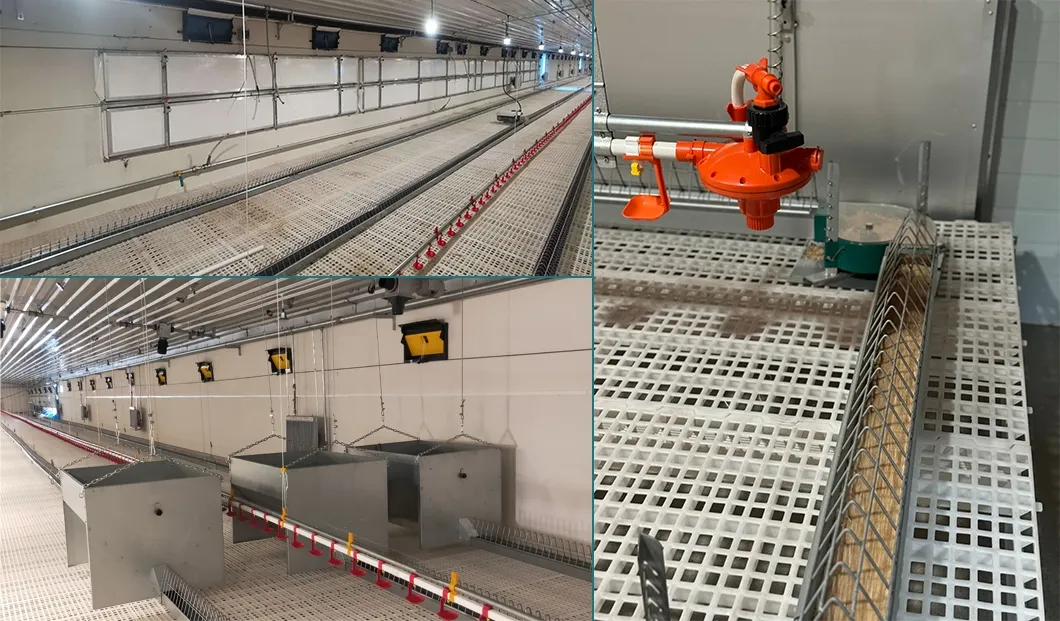

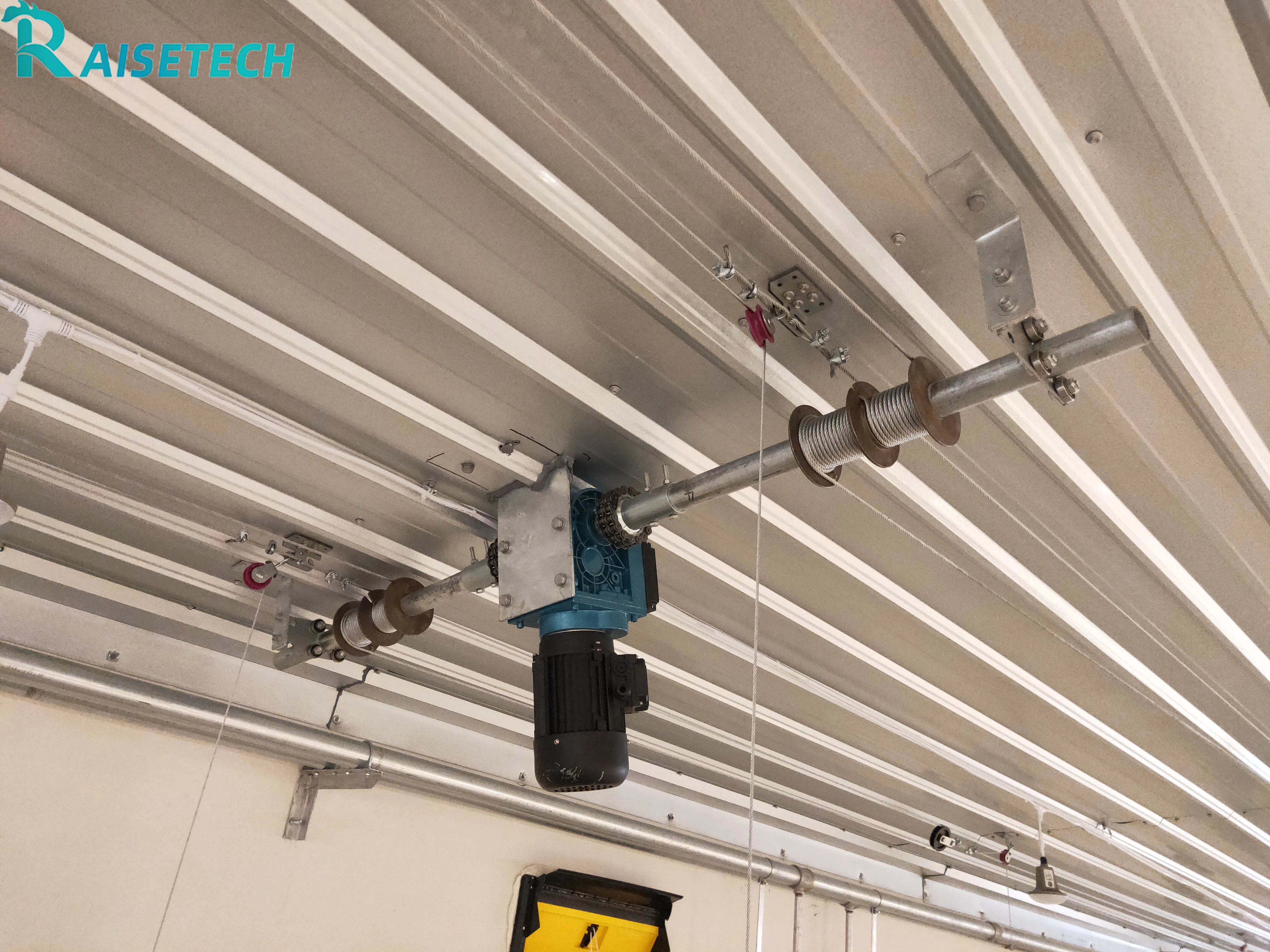

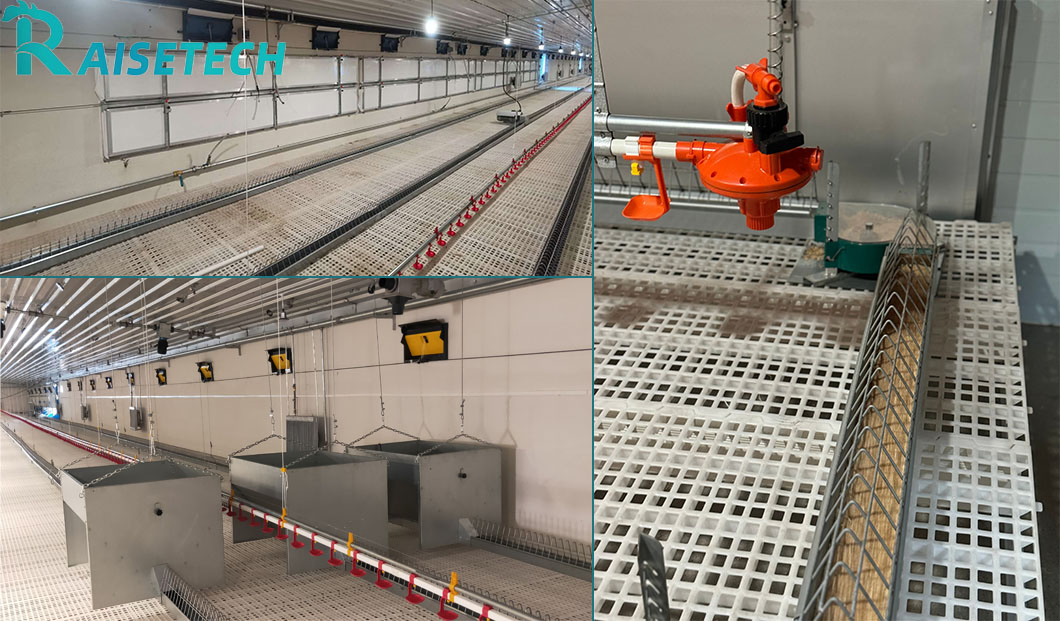

Featuring drive equipment, feed troughs, and lifting frames, this system creates a cohesive belt for efficient feed transfer. Adjustable height settings offer a customized environment suited to the age of the chickens.

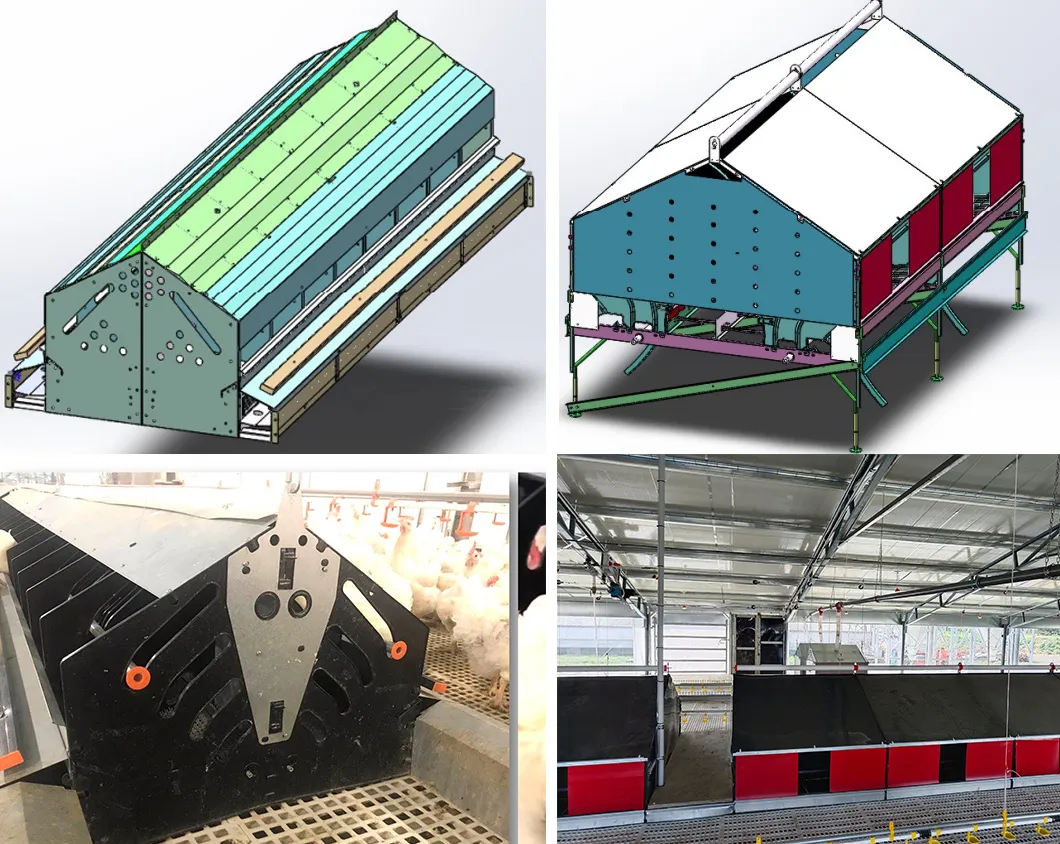

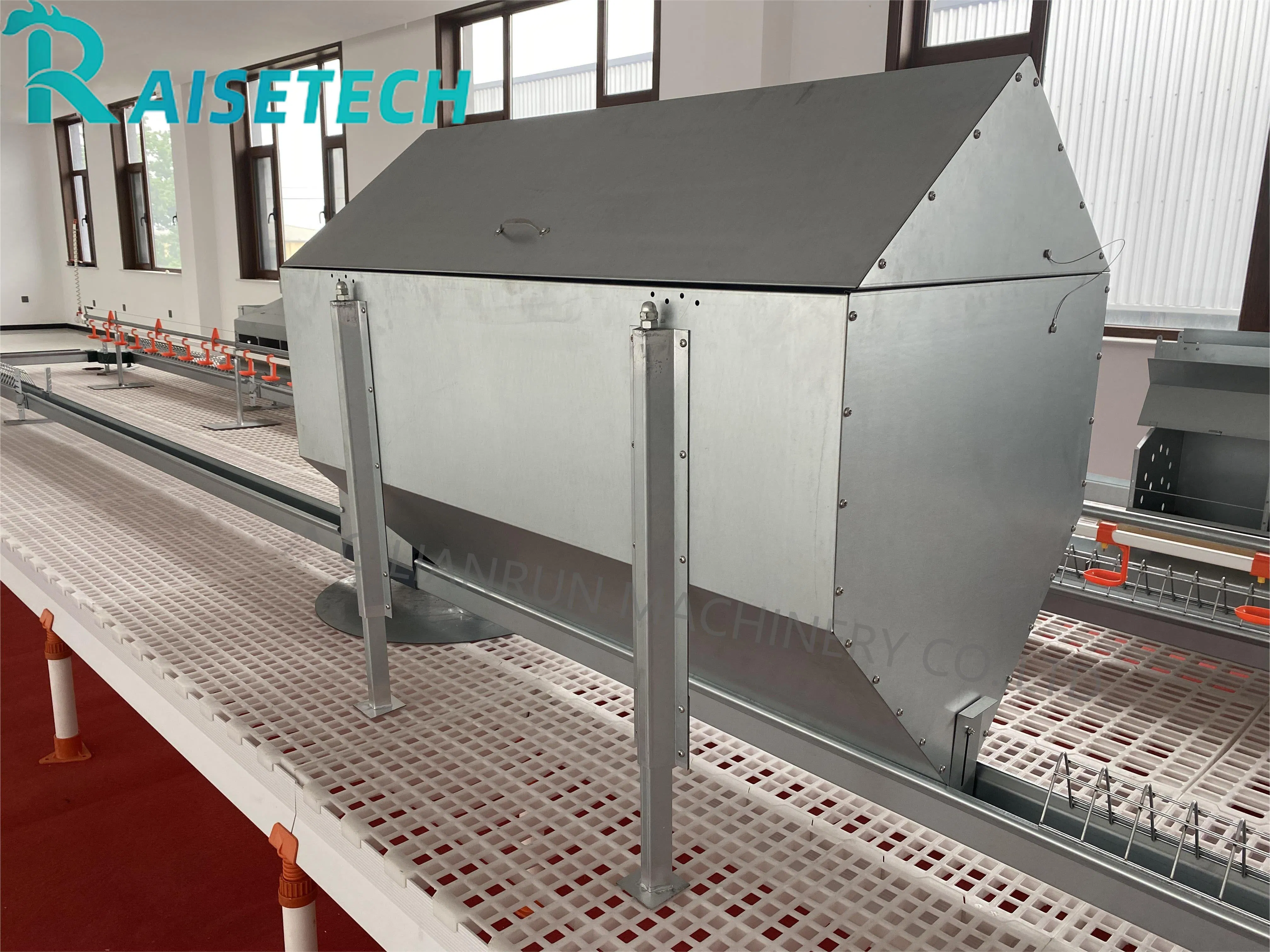

| Specification | Single hole nest | Group nest |
|---|---|---|
| Capacity | 88 chickens | 210 chickens |
| Holes dimension | 320*280mm | 1140*490mm |

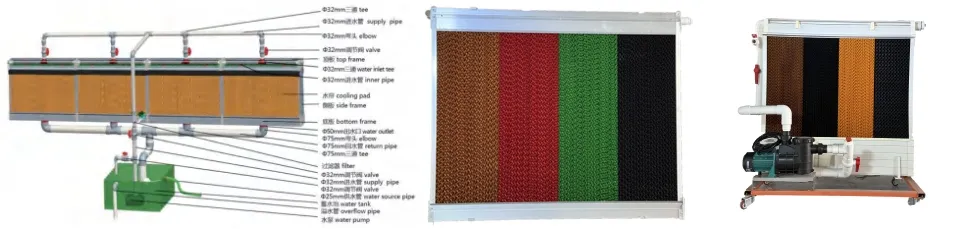

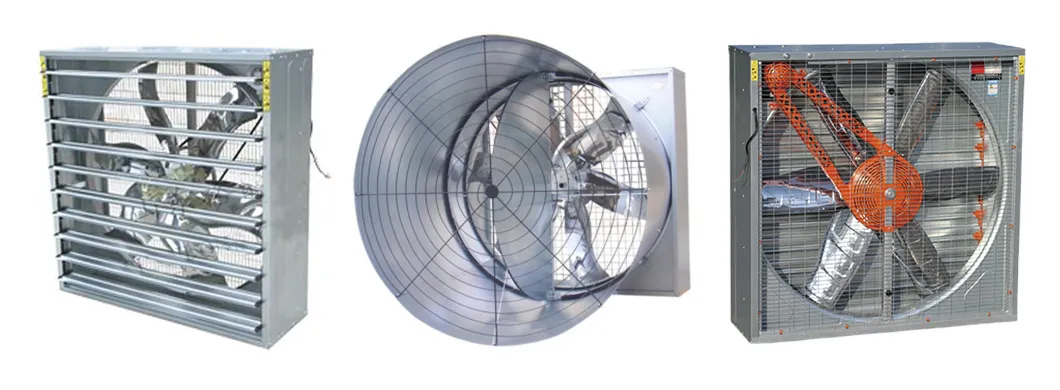

Includes 304 stainless steel exhaust fans, anti-UV air inlets, and high-efficiency cooling pads. The system also utilizes PU board panel doors for heat insulation and smart heaters for consistent temperature maintenance.

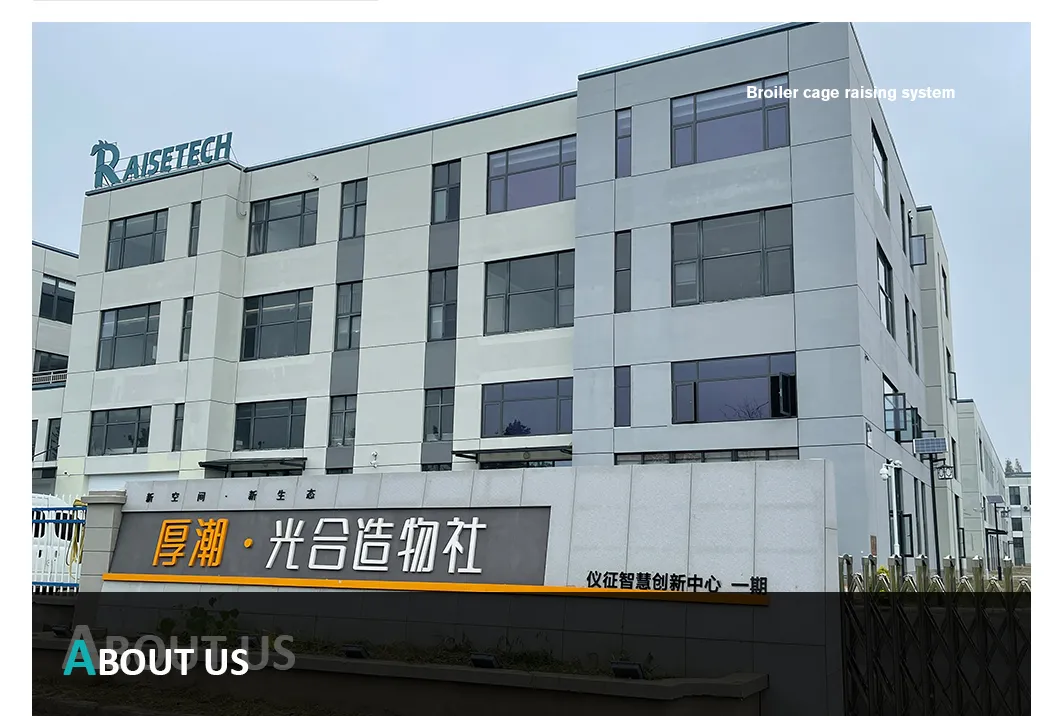

As a trailblazer in Intelligent Agriculture Industrial Chain Solutions, we offer all-encompassing project designs focusing on Poultry Equipment Production, Feed Mill Equipment Production, and Steel Silo Production. Our manufacturing bases are dedicated to delivering precision-engineered solutions for broiler and breeder floor raising, as well as cage systems.
