📋 Basic Info.
Material
Carbon Steel/304 Stainless Steel
Tracheal Length
2100mm/2500mm
Tracheal Diameter
φ160mm/φ180mm
Rauise The Height
1500mm/1800mm
Surface Treatment
Powder Coating
Specification
L3500*W800*800
🔍 Product Description
Experience the ultimate in versatility with our Reliable Vacuum Cup Lifter. Designed for steel plates with a variety of characteristics—whether they have oil stains or rust, large or small—our product features a user-friendly manually designed handle. Benefit from the simplicity and safety of local galvanizing, while our customizable main beams and crossbeams are precisely configured to match the dimensions of any workpiece.
Our cutting-edge vacuum lifting equipment exemplifies seamless modularization. Tailor the operating handle, load, main beam, and vacuum suction cup to your specific working conditions for optimum performance. Our advanced vacuum generating device delivers the essential suction needed for efficient handling, with the vacuum suction cup transferring this power directly to the workpiece. Prioritizing safety, our aluminum load-bearing main beam also functions as a reliable vacuum accumulator.

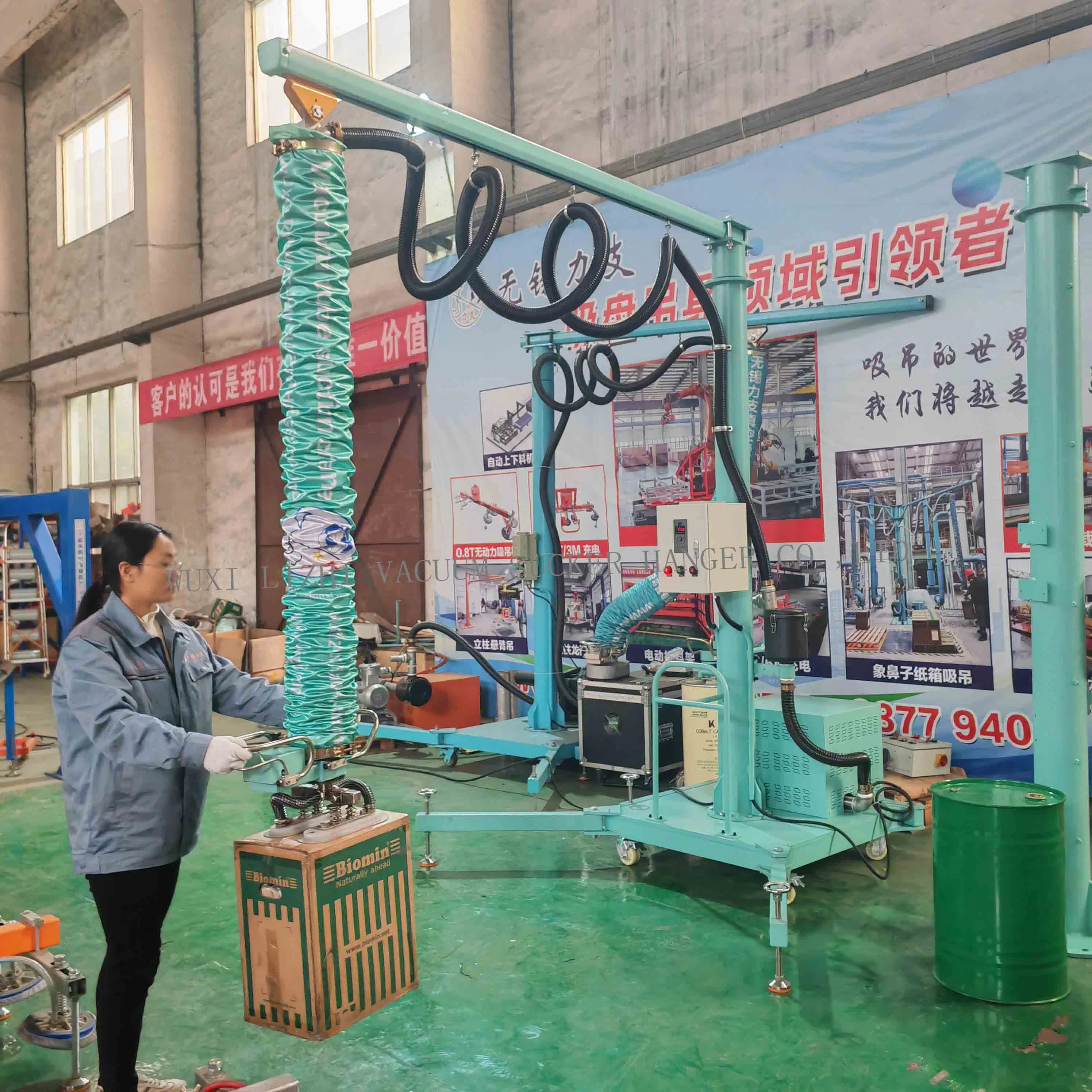

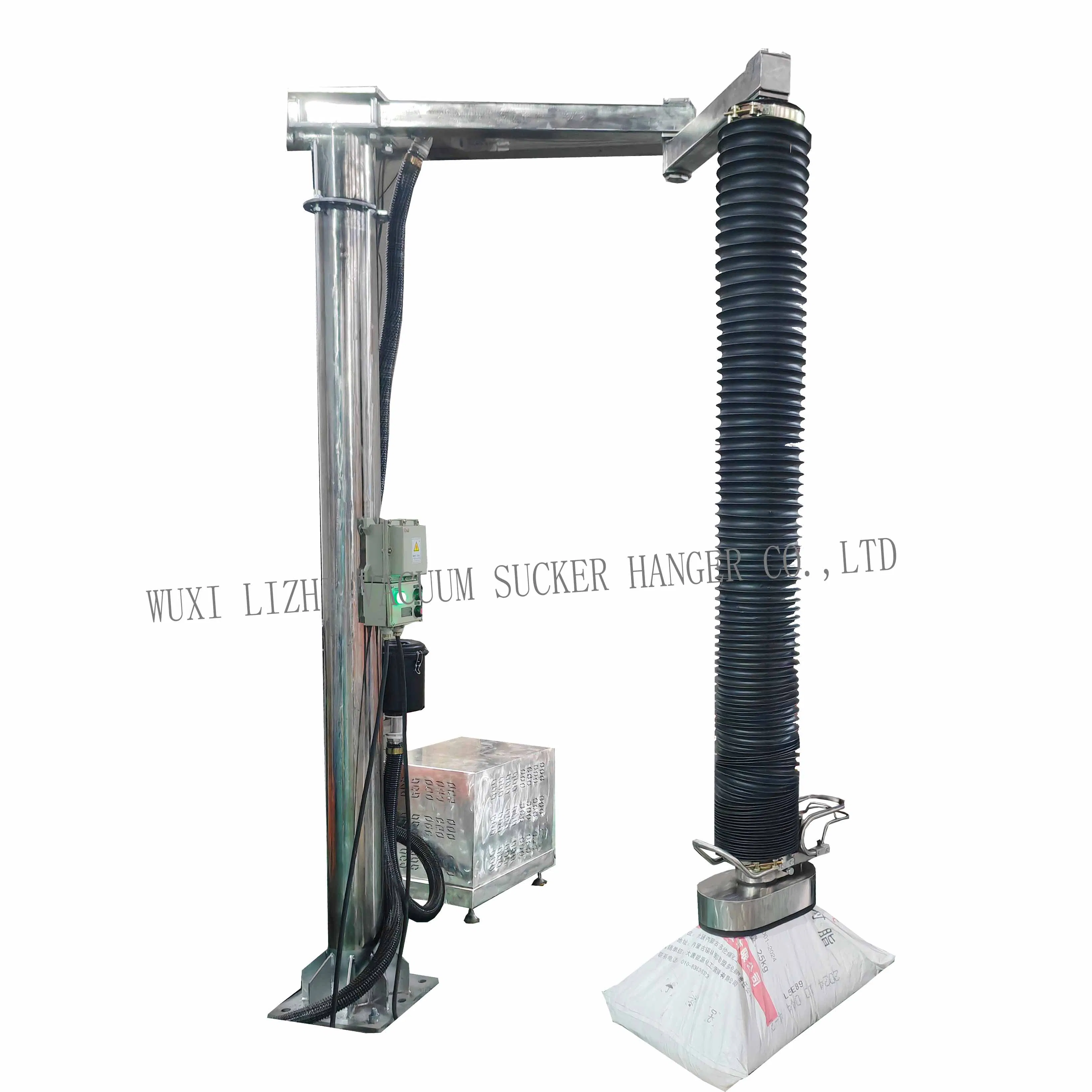

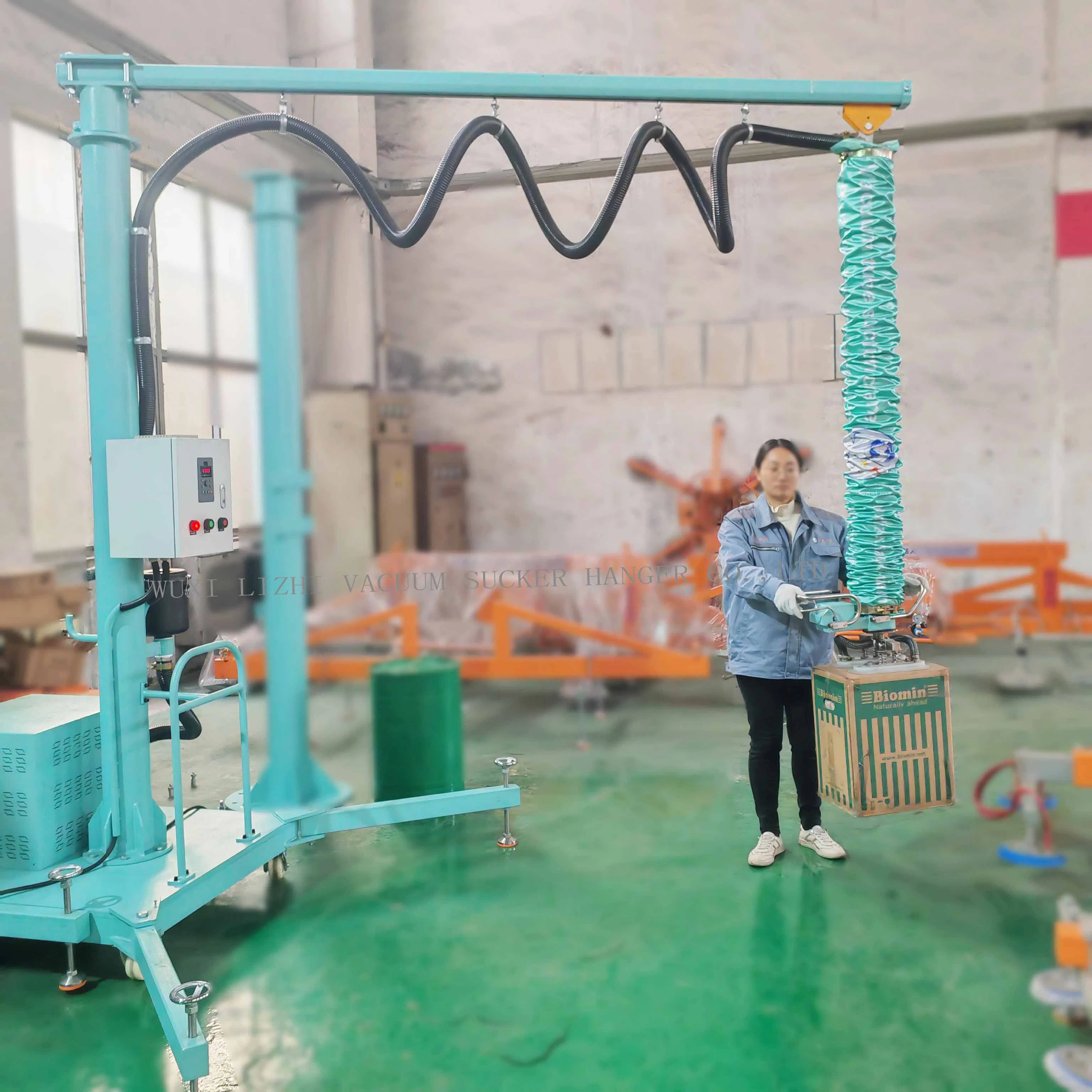

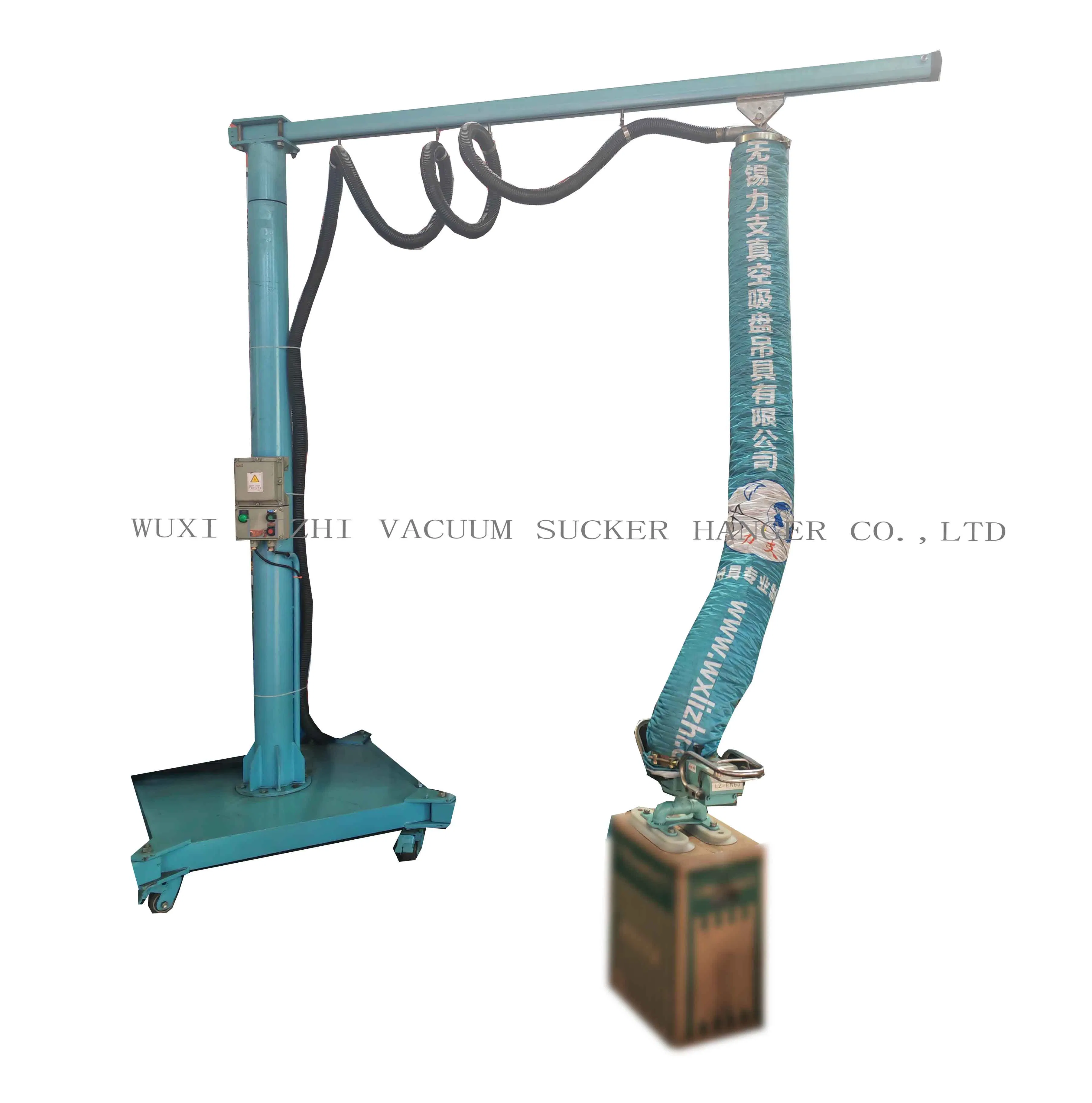

Enhance your lifting capabilities with our versatile suction hoist, compatible with on-site cranes or optionally equipped with a straightforward column electric hoist. Perfectly adapt to diverse workpiece dimensions by configuring main beams and crossbeams of varying lengths.
⭐ Key Advantages
1. Top-tier imported aluminum alloy track system with high hardness and corrosion resistance for long-lasting durability.
2. Smooth and effortless movement equipped with low-resistance sliding blocks for easy operation.
3. Constructed from robust carbon steel with surface oxidation treatment for superior longevity.
4. Motor protection switch installed on the column to protect valuable electrical components.
5. Built-in rotating head and external fixed bracket offering a smooth 270° rotation.
6. Force column equipped with a rotating motor for automatic rotation to adapt to heavy workpieces.
📐 Equipment Specifications
| Model |
Load capacity |
Size (mm) |
Parameter |
| Airtight |
Semi-breathable |
Breathable |
Tracheal length |
Tracheal diameter |
Handle size |
Raise height |
Boost speed |
Blower |
| EN20-2.5-F | 25 | 20 | 15 | 2100 | 80 | 450 | 450 | 1500 | 1.25KW |
| EN30-2.5-F | 35 | 30 | 20 | 2100 | 100 | 450 | 450 | 1500 | 1.25KW |
| EN50-2.5-F | 55 | 50 | 40 | 2100 | 120 | 450 | 450 | 1500 | 1.25KW |
| EN60-2.5-F | 102 | 77 | 52 | 2500 | 800+800 | 160 | 800+800 | 1800 | 3KW |
| EN80-2.5-F | 129 | 98 | 66 | 2500 | 800+800 | 180 | 800+800 | 1800 | 3KW |
| EN100-2.5-F | 129 | 98 | 66 | 2500 | 800+800 | 180 | 800+800 | 1800 | 3KW |
| EN200-2.5-F | 161 | 120 | 80 | 2500 | 800+800 | 200 | 800+800 | 1750 | 3KW |
📷 Product Gallery
❓ FAQ
Are you a factory or trading company?
We are a prestigious manufacturer specializing in the production of innovative vacuum suction solutions, including vacuum suction cups, cranes, column-type cantilever cranes, robotic arms, and integrated vacuum handling systems.
What size of board can the suction crane lift?
We offer a diverse range of suction cranes capable of lifting weights ranging from 0.5 tons to 20 tons, accommodating a wide array of board sizes.
Can we customize according to specific product needs?
Absolutely, we provide a multitude of types and specifications. If you do not find a suitable option, we can customize solutions tailored to your specific product requirements.
What fields can vacuum suction cranes be used in?
Our cranes cater to an extensive range of industries, including home appliances, 3C electronics, building materials, automotive parts, metallurgy, new energy, and logistics.
Does the equipment need to be assembled?
No assembly is required. Our equipment is thoroughly debugged before leaving the factory, enabling you to lift plates directly with the crane hook upon receipt.
What advanced safety features are integrated?
The suction crane is equipped with precise pressure detection, an alert system for pressure fluctuations, and meticulous control over suction and discharge load for optimal safety.
