| MORE PARAMETERS | |
|---|---|

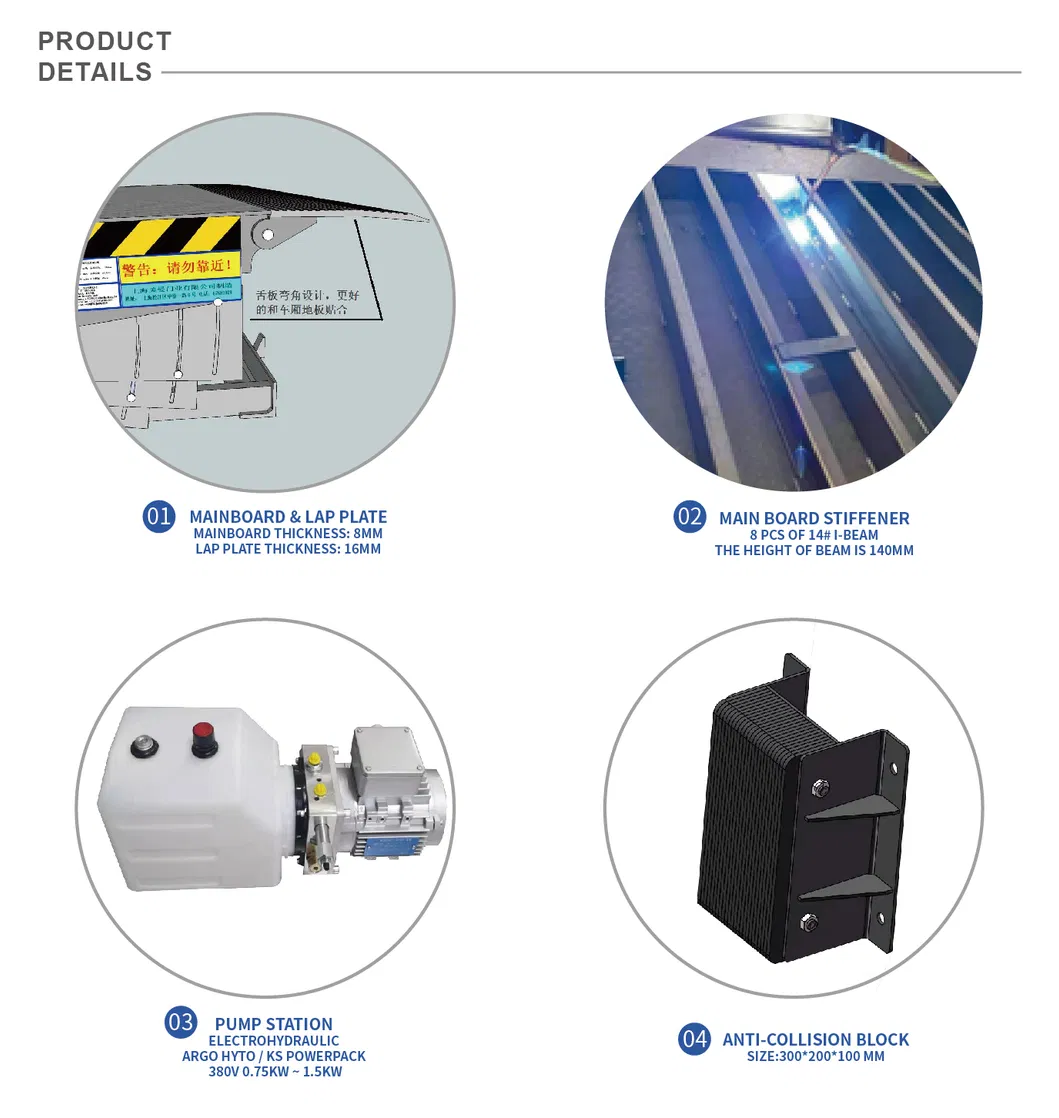

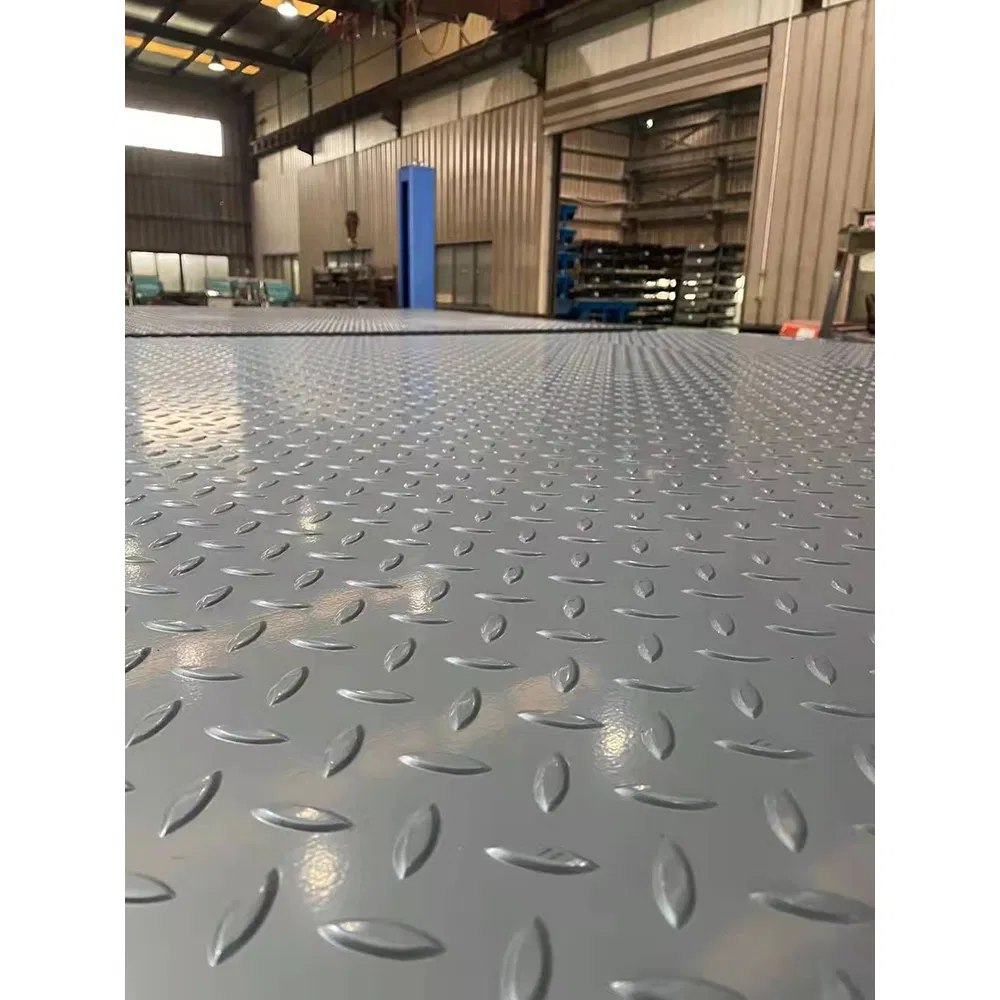

| Main Board | Q235B steel plate with anti-slide pattern,thickness:6 / 8 mm;blasting surface treatment and powder coating |
| Lap Plate | Q235B steel plate with anti-slide pattern,thickness:14 / 16mm;The surface treatment is blasting and powder coating |
| Hinge | Open type, 8*150mm |
| Loading Weight | Dynamic load:6T / 8T / 10T / 12 T / 15T |
| Driving | Electrohydraulic, Local brand / ARGO HYTO powerpack, 380V 0.75KW ~ 1.5KW |
| Control System | Standard 380V English interface |
| Adjust Scope | +400mm/-300mm |
| Adjust Time | Up ≤ 16S ; Down ≤ 10S |
| Sealing Parts | Brand:NOK A505 Complete set of seals for oil cylinder |
| Main cylinder | Single cylinder / double cylinders |
| Main Board Stiffener | 8 pcs of 14# I-Beam, the height of Beam is 140mm |
| Support Rod | Fold at the bottom of the panel |
| High Pressure Oil Pipe | T3683-2001; 60mpa |
| Side Baffles | Automatic retraction to ensure safety |
| Hydraulic Oil | 32# Antiwear hydraulic oil |
| Working Pressure | 8Mpa ±1Mpa |
| Working Temperature | -30ºC ~ +50ºC |
| Anti-collision Bumper | 300*200*100 mm |
| Base Frame | 10#channel steel welded frame structure |
| Safety Part | Explosion proof valve |
| Working Frequency | ≥ 200000 times |
This logistics docking system is designed for high-intensity industrial use, featuring advanced hydraulic technology and robust structural support to ensure efficient loading and unloading operations. The equipment complies with international safety standards including CE and ISO9001 certifications.
