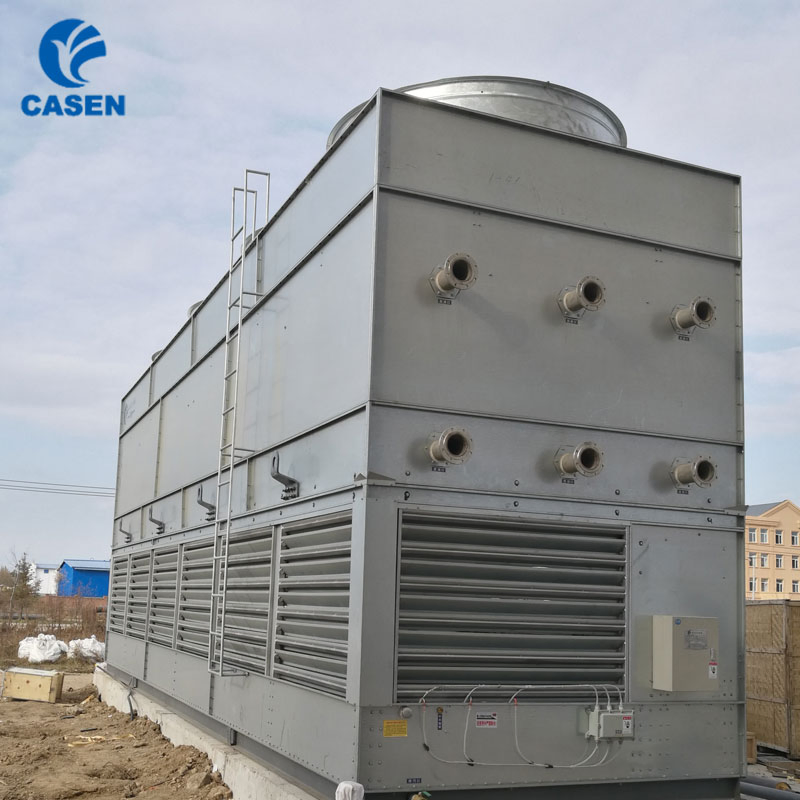

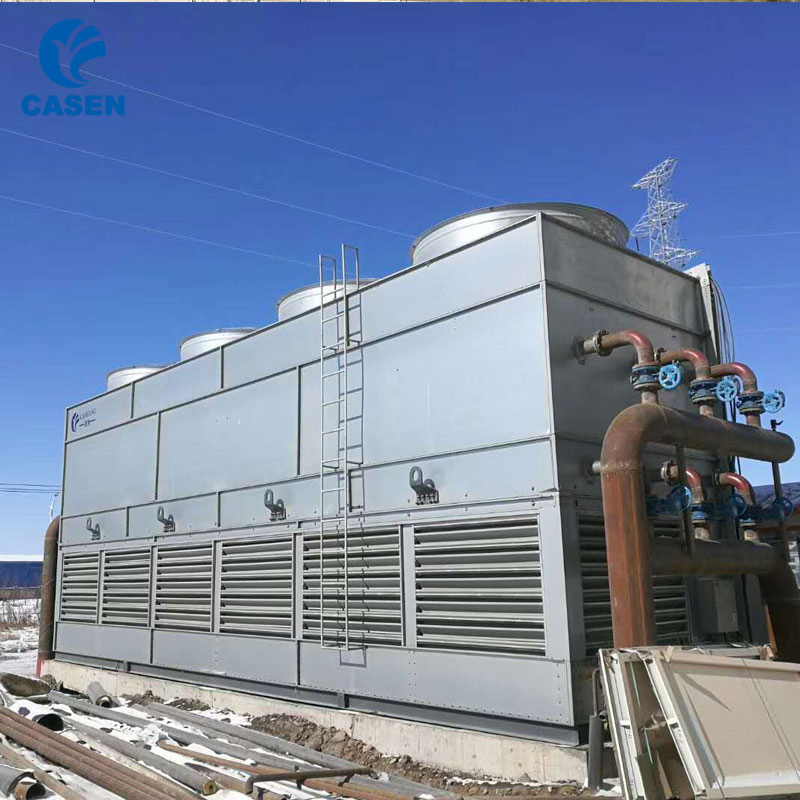

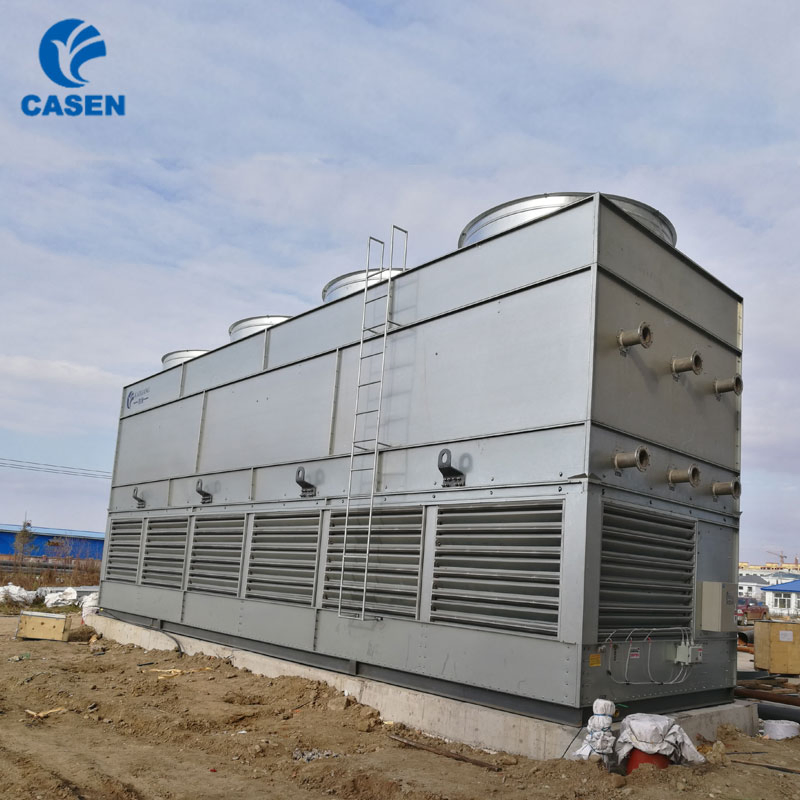

An evaporative condenser is a specialized heat exchanger designed for refrigerants or chemical processing. It functions by condensing gas into a liquid state or providing essential gas cooling. Due to its high efficiency, it is widely utilized across various refrigeration projects and the chemical industry.

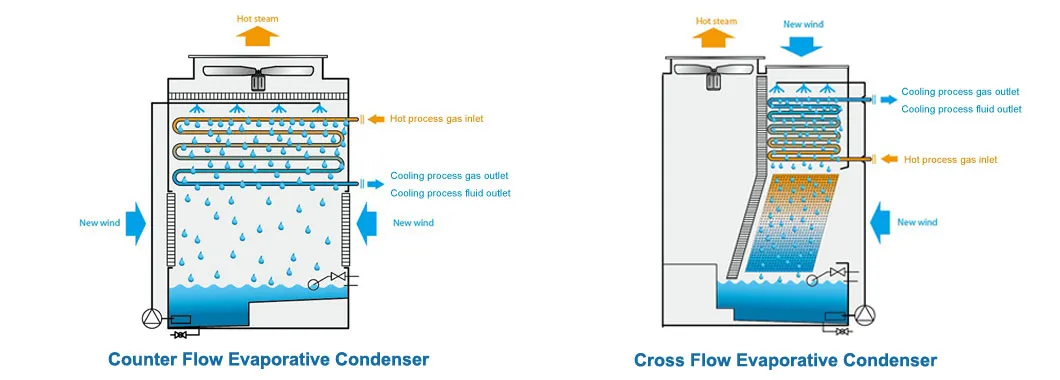

Depending on specific project requirements, we offer different configurations including crossflow type, counterflow type, and plate type to ensure the optimal cooling solution for your facility.

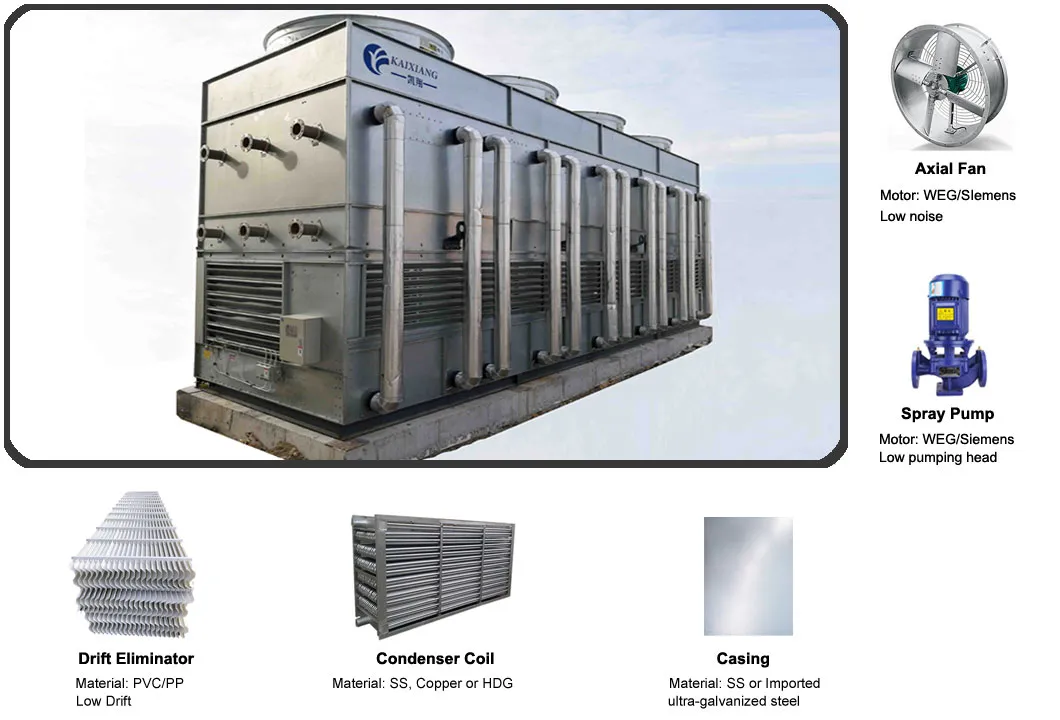

Detailed overview of our counterflow type evaporative condenser components:
| Model | Rated Capacity | Fan | Spraying Pump | Operation Weight | ||||
|---|---|---|---|---|---|---|---|---|
| Qty. | Power (KW) | Air Vol (m³/h) | Qty. | Power (KW) | Flow (m³/h) | |||
| KEN-100 | 100 | 1 | 1.1 | 15000 | 1 | 1.1 | 36 | 1280 |
| KEN-200 | 200 | 1 | 1.1 | 15000 | 1 | 1.1 | 36 | 2100 |
| KEN-430 | 430 | 2 | 1.5 | 18500 | 1 | 1.1 | 53 | 3200 |
| KEN-600 | 600 | 1 | 4.0 | 55000 | 1 | 1.5 | 70 | 3850 |
| KEN-800 | 800 | 1 | 7.5 | 90000 | 1 | 1.5 | 70 | 5800 |
| KEN-1000 | 1000 | 1 | 7.5 | 90000 | 1 | 2.2 | 100 | 7500 |
| KEN-1550 | 1550 | 2 | 5.5 | 80000 | 1 | 4.0 | 180 | 9400 |
| KEN-2000 | 2000 | 2 | 7.5 | 90000 | 2 | 5.5 | 233 | 15000 |
| KEN-2440 | 2440 | 4 | 4.0 | 55000 | 2 | 3.0 | 140 | 17400 |
| KEN-3100 | 3100 | 4 | 5.5 | 80000 | 2 | 4.0 | 180 | 18800 |
* Note: For R717 refrigerant, Rated Capacity based on standard conditions: condensing temp 35°C, wet bulb temp 24°C.
Our evaporative condensers are widely utilized in heavy industries including oil & chemical processing, power generation, and metallurgy. In the refrigeration sector, they are essential for:

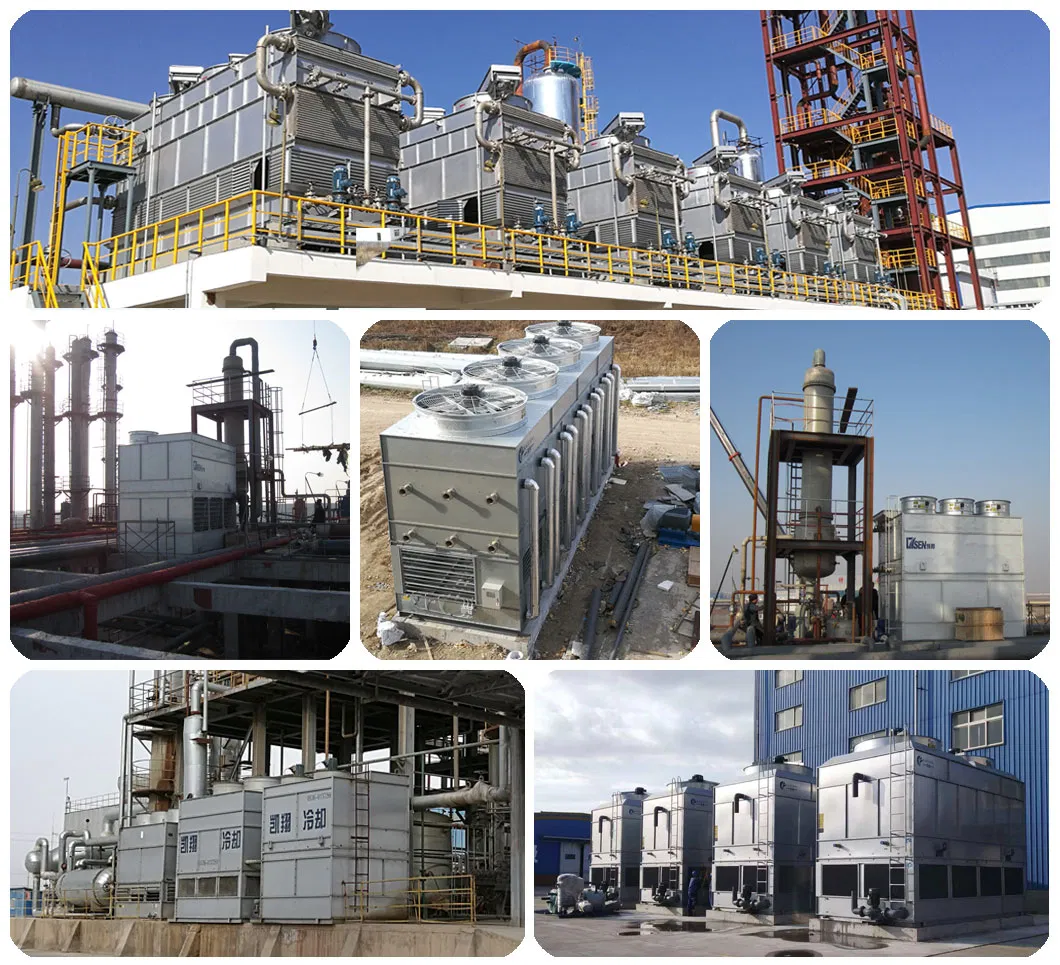

Project Cases

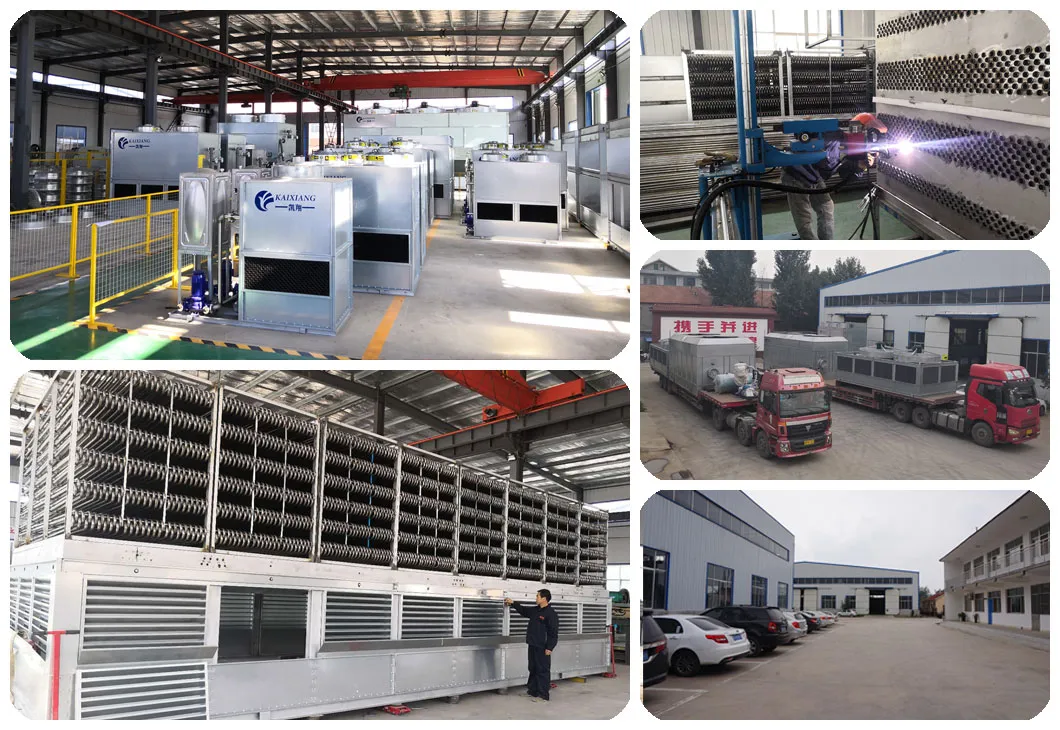

Factory Overview
Global Exhibitions
As a professional manufacturer and OEM/ODM supplier specializing in heat transfer since 2008, we maintain the highest industry standards. Our operations are certified under ISO9001, ISO14001, and OHSAS18001. With 21 proprietary patents and certifications including CE, PED, and SGS, our products are exported to over 30 countries worldwide.
