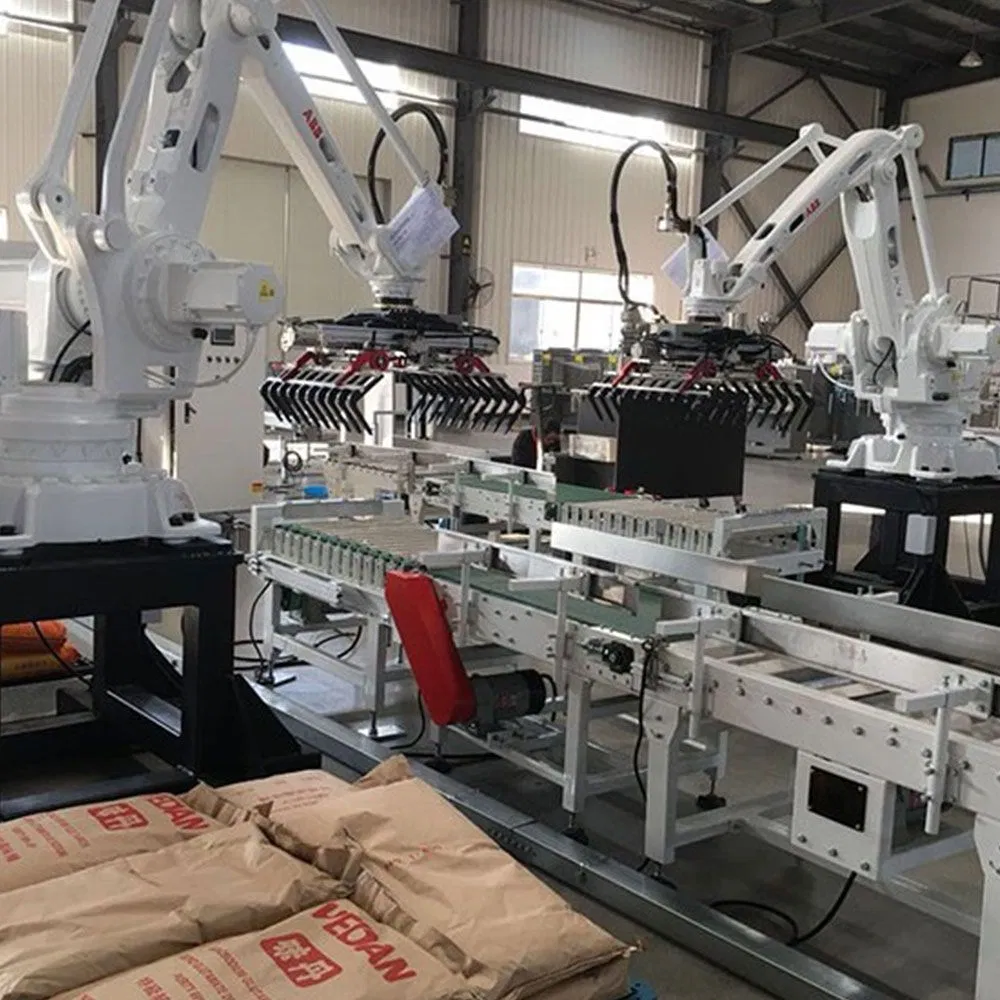

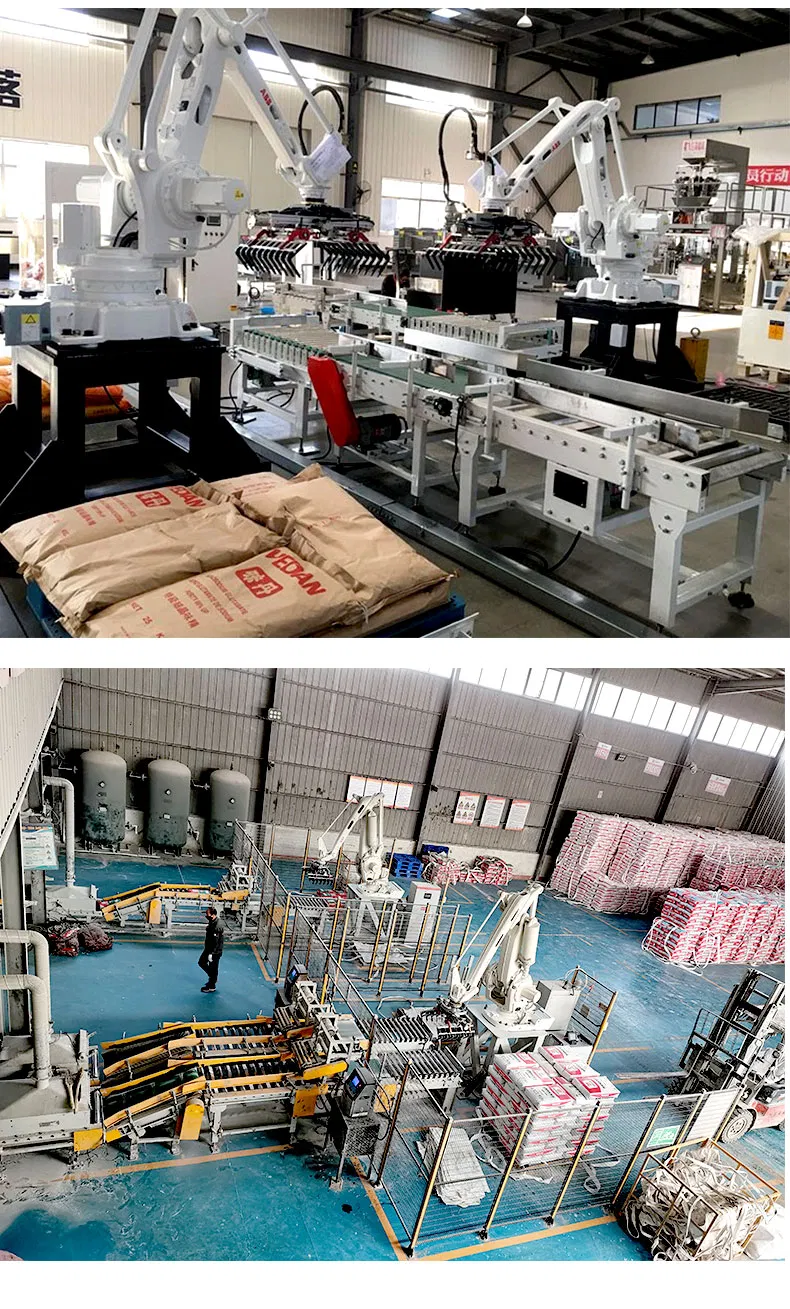

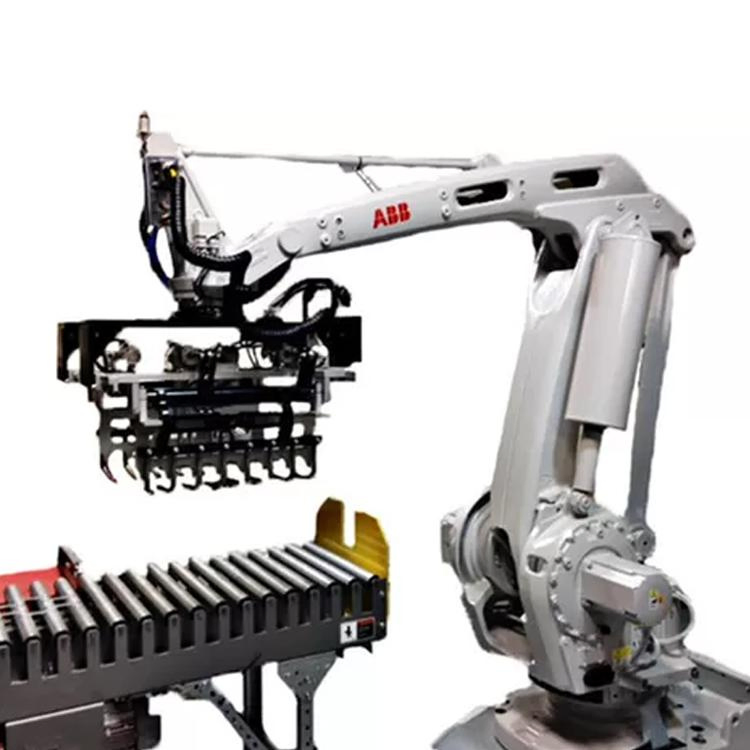

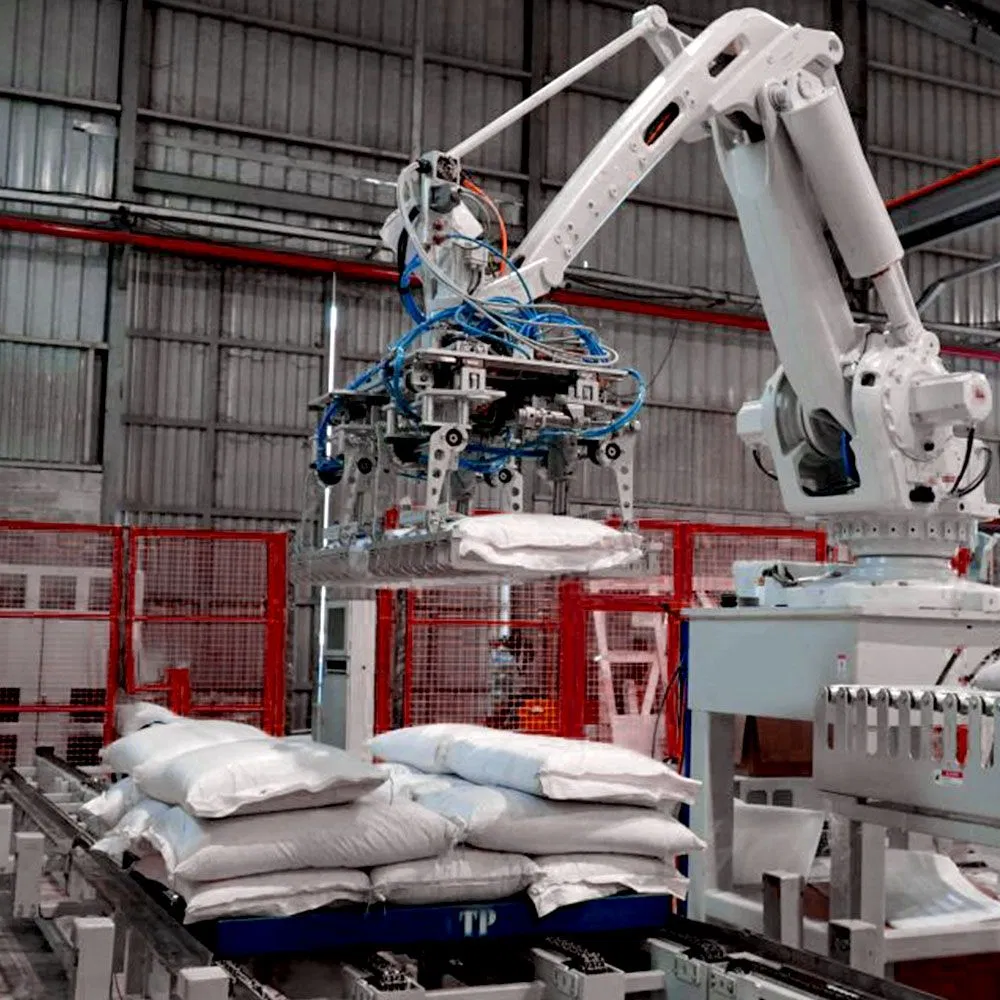

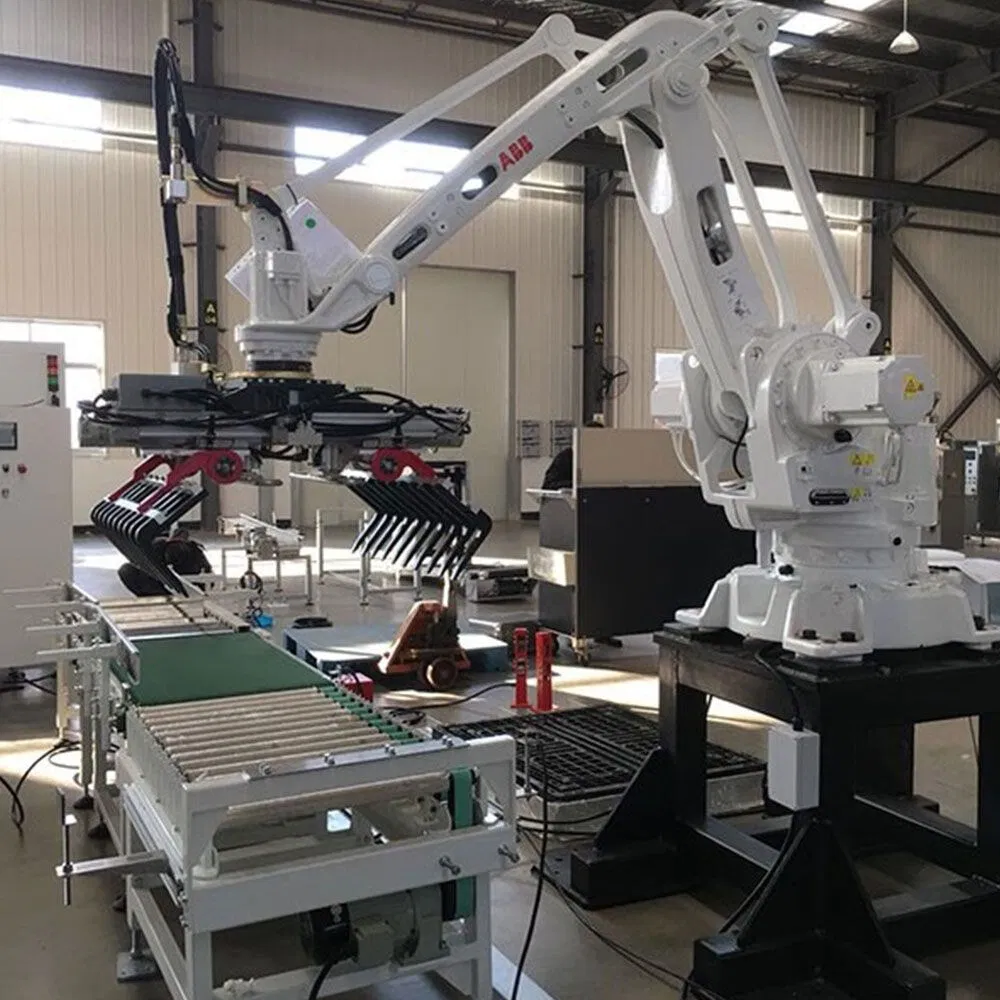

The Bag Palletizing System is a fully automated solution designed to handle and stack bags efficiently in industrial production environments. This system is engineered to transport, align, and palletize bags filled with powders, granules, or other bulk materials, significantly reducing manual labor and improving workplace safety. By automating the bag handling and stacking process, the system ensures consistent pallet formation, load stability, and optimized storage and transportation.
Equipped with advanced robotic or mechanical palletizing technology, the system can handle bags of various sizes, weights, and materials. The intelligent PLC control system with a user-friendly touch screen interface allows operators to easily adjust stacking patterns, pallet dimensions, and operating speed, ensuring flexible operation for different production requirements.
| Automatic Grade | Automatic |
| Application | Cosmetics, Drinks, Dairy Products, Hair Care Products, Oil, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning |
| Type | Palletizer |
| Driven Type | Electric |
| Material Type | Carbon Steel |
| Machine Size | L2000*W2100*H1800mm |
| Voltage | 380V 50Hz 3pH (Customizable) |
| Production Capacity | 50 Set per Month |
| Category | Parameter | Specification | Details |
|---|---|---|---|
| Performance | Palletizing Speed | 10-30 bags/minute | Adjustable based on complexity |
| Capacity | Load Capacity | 10-50kg/bag | Heavy-duty up to 100kg |
| Accuracy | Repositioning | ±0.5mm ~ ±1mm | Laser-assisted optimization |

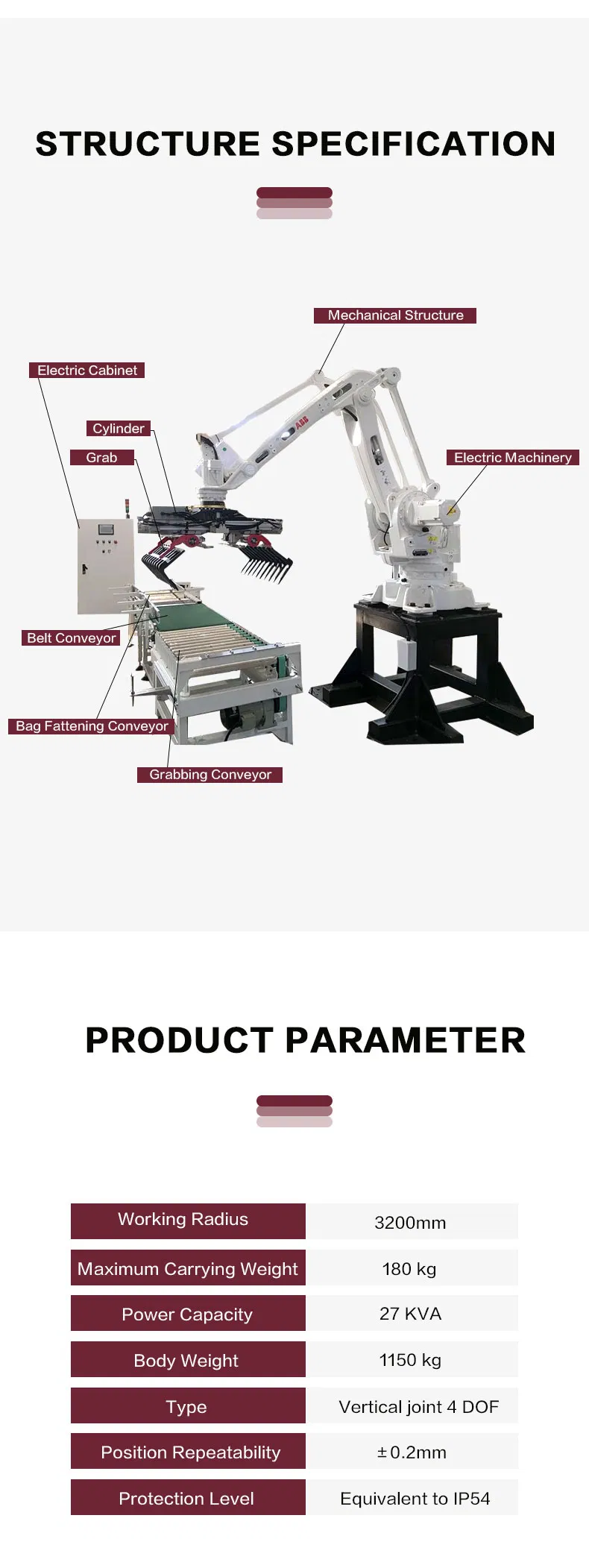

| Structure | Degrees of Freedom | 4-6 axes | Articulated or Gantry Type |
| Control | Programming | PLC / Teach Pendant | ROS Compatibility Supported |
| Size Range | Bag Compatibility | L:300-1000mm, W:200-600mm | Customizable Fixtures |
| Environment | Temperature | 0°C ~ 45°C | IP54 / IP65 Optional |
