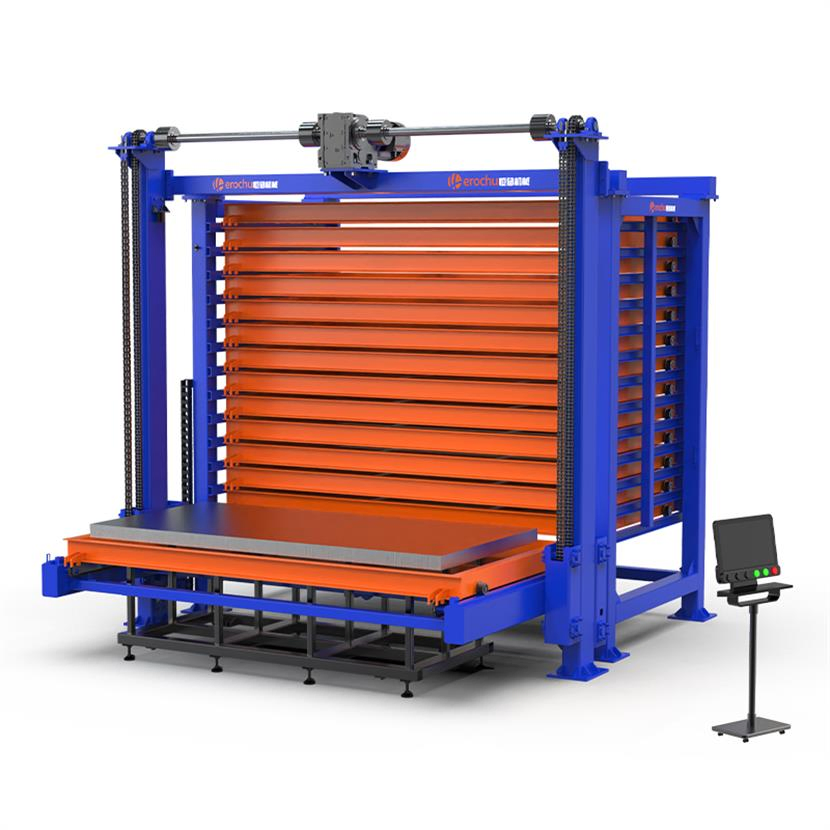

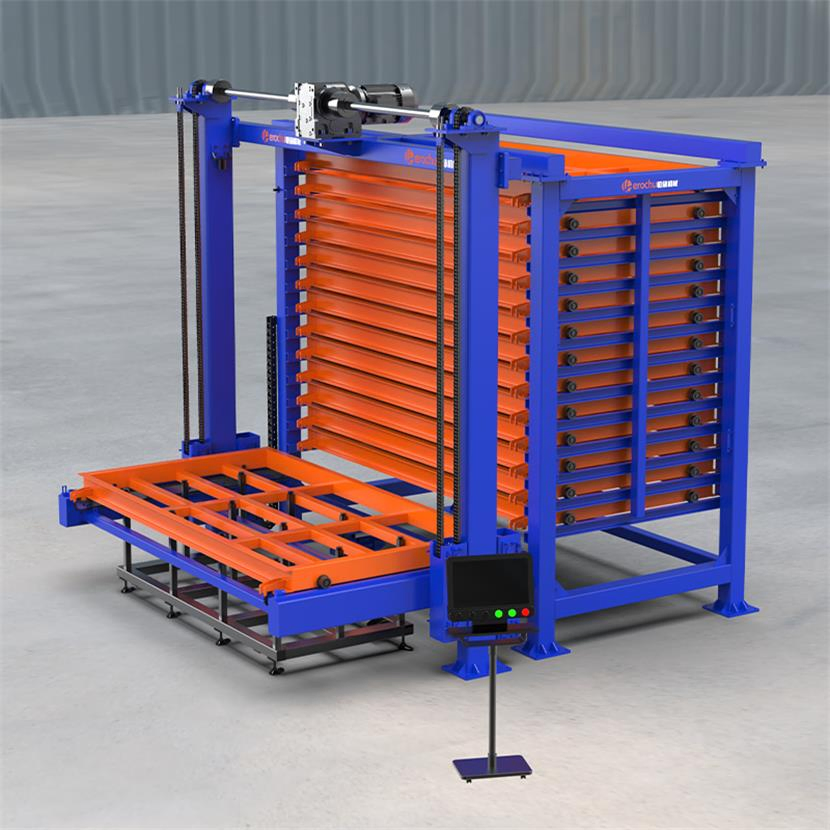

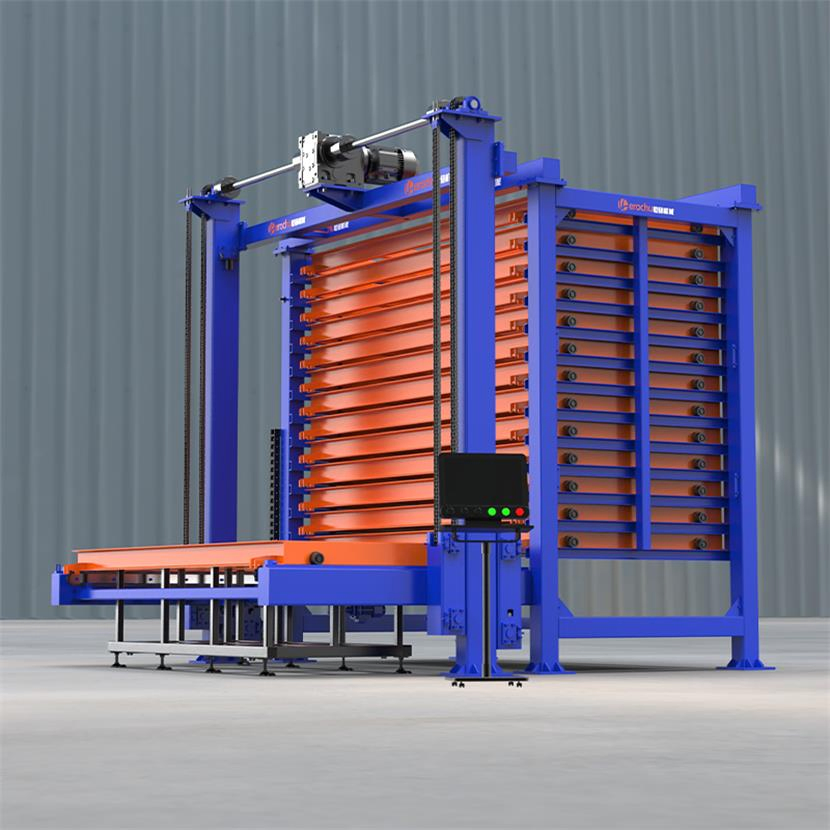

Multi-Functional Metal Sheet & Iron Plate Storage System for Factories, Warehouses and Metal Processing Workshops

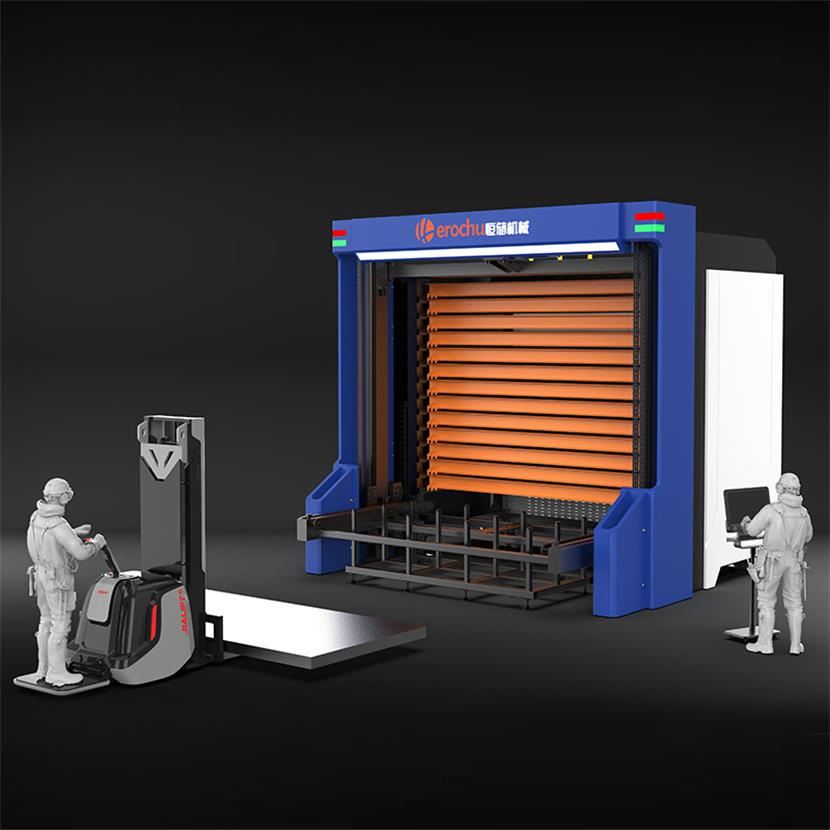

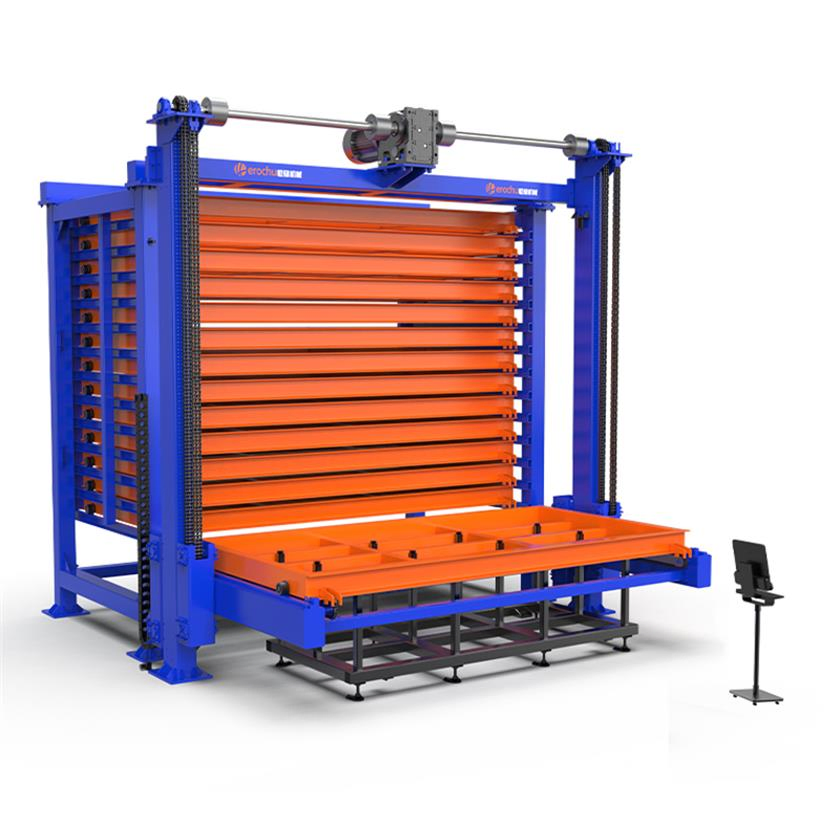

Sheet Metal Automatic Storage Unit

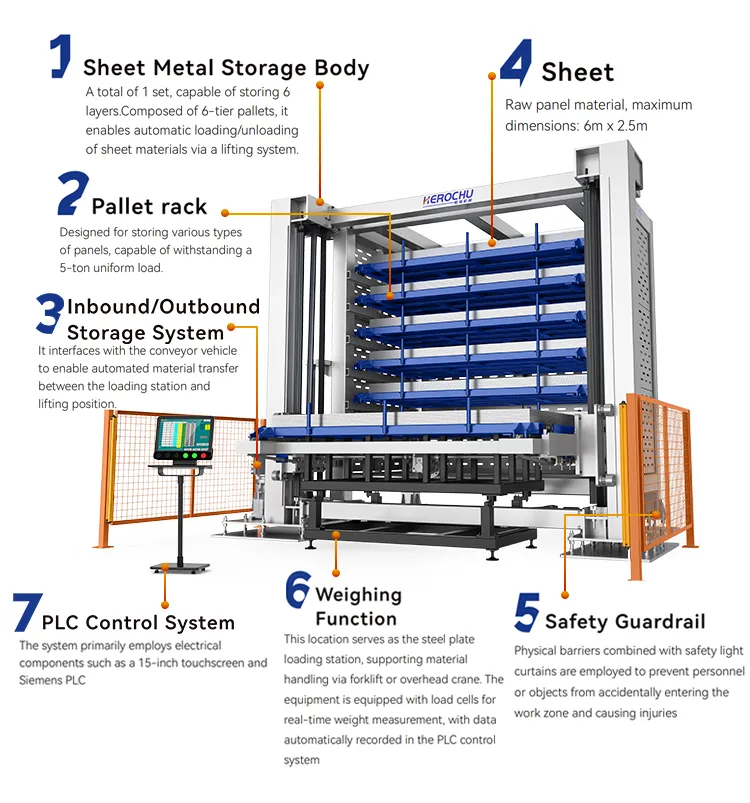

It enables centralized storage of plates, automatic weight detection, automatic warehousing, and automatic retrieval. Controlled by PLC and touch screen, it achieves classified visual management of plates, ensuring safety and efficiency. It effectively ensures product quality, improves production efficiency, and reduces production costs.
Technical Specifications
Specification Parameters
Details
Dimensions
3015 / 4015 / 4020 / 6015 / 6020 / 6025mm
Number of Floors
Customizable
Load Per Layer
3T / 5T
Mode of Movement
Linear Guide Rail + Chain
Transmission Mode
Chain Drive
Vertical Lifting Speed
9m/min
Inlet and Outlet Speed
12m/min
Plate Support
Optional Selection
Frequently Asked Questions
How can I proceed with procurement?
You can provide your specific parameters and requirements. We will provide a suitable technical solution and quotation based on your needs. Professional sales teams are available to assist with the process.
How do I determine the right shelf specifications?
Please provide details regarding the material type, dimensions, and the required number of storage layers. Our technical team will design a professional solution tailored to your warehouse space.
Is an integrated loading and unloading system available?
Yes. Loading and unloading systems depend on the laser cutting machine table size. We need to know your specific method (board rack, exchange platform, or material warehouse) to provide the correct configuration.
Do you provide on-site installation and debugging?
Yes, professional personnel can be dispatched to your facility to install and debug the system, including robotic arms, until a successful trial operation is achieved. Our team has extensive international service experience.
How is product quality ensured?
We employ professional mechanical engineers for debugging and a dedicated quality inspection department following ISO9001 standards. Load testing is conducted before equipment leaves the factory to ensure structural safety and stability.
Can we verify your technical strength?
We welcome video factory inspections and on-site visits to our facility to see our production processes and advanced equipment firsthand.
