Elixir Logistics
Elixir Logistics
| Model NO. | OKE-20240715-05 | Usage | Warehouse Rack, Industrial, Food, Beverage |

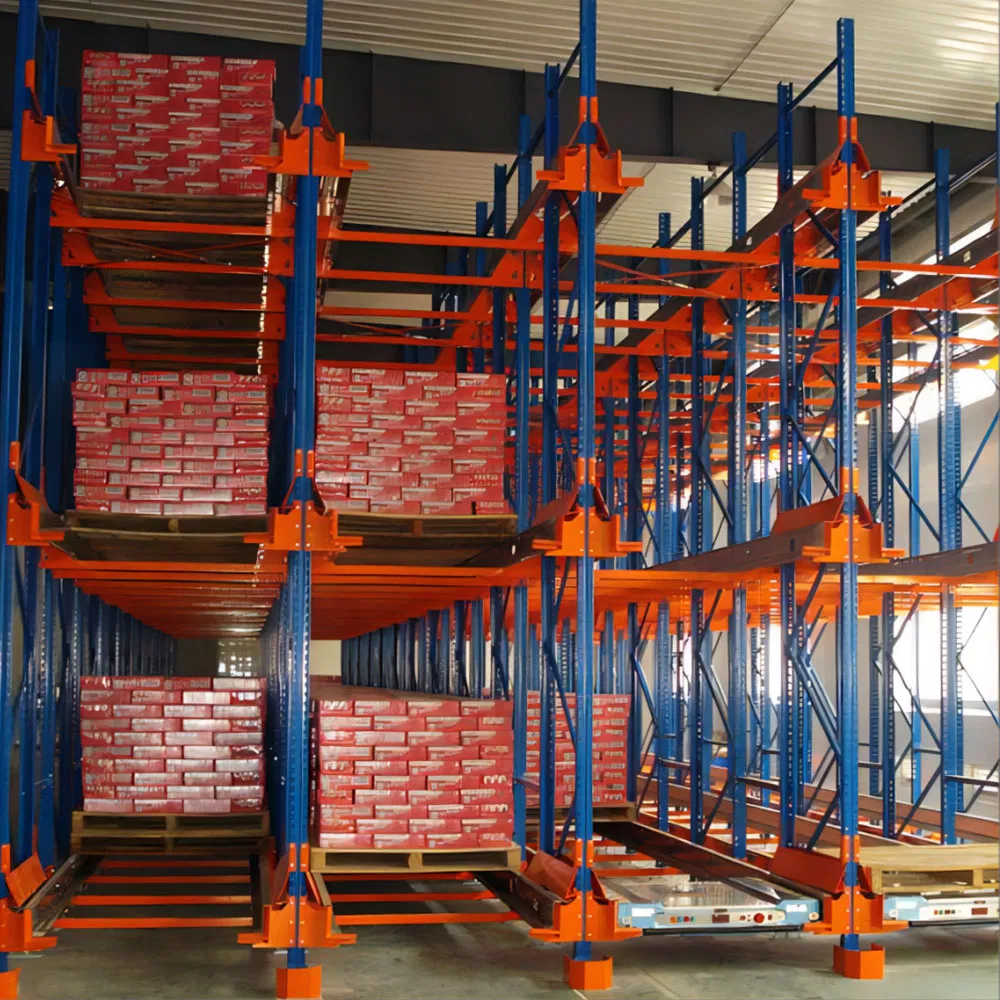

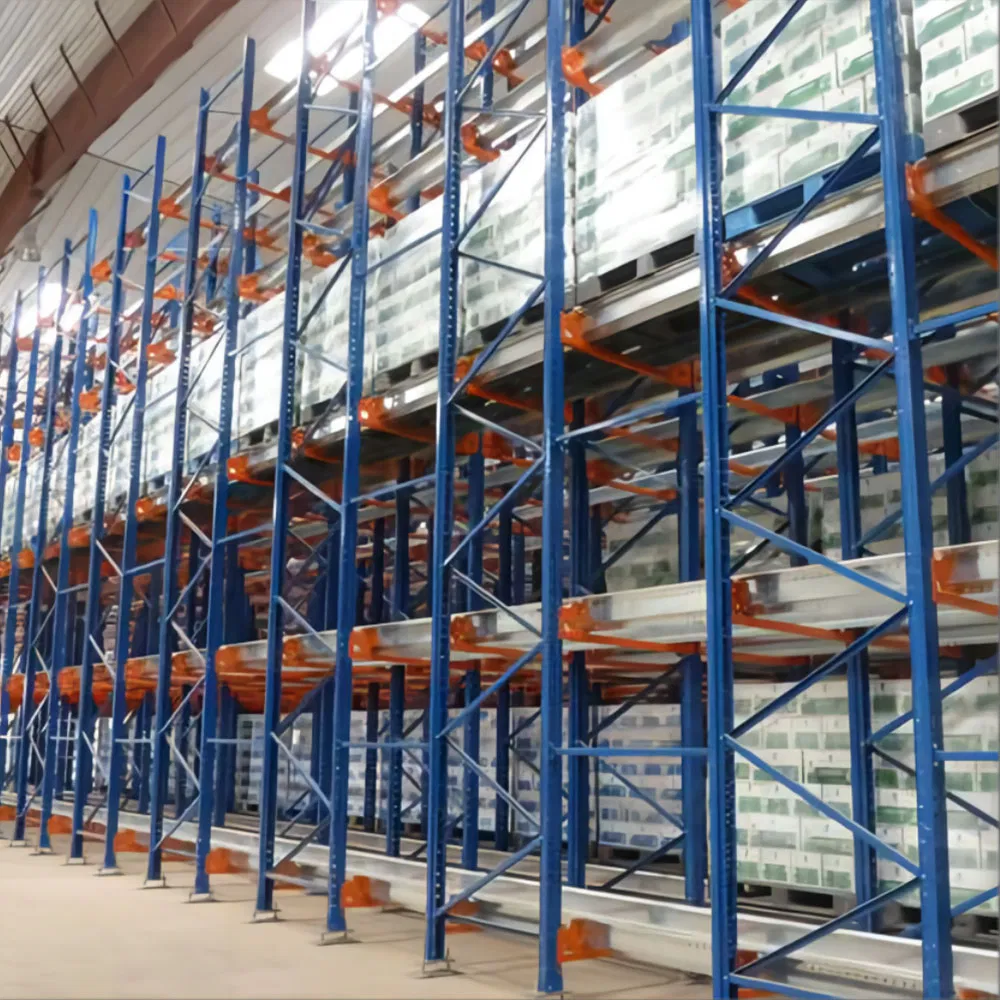

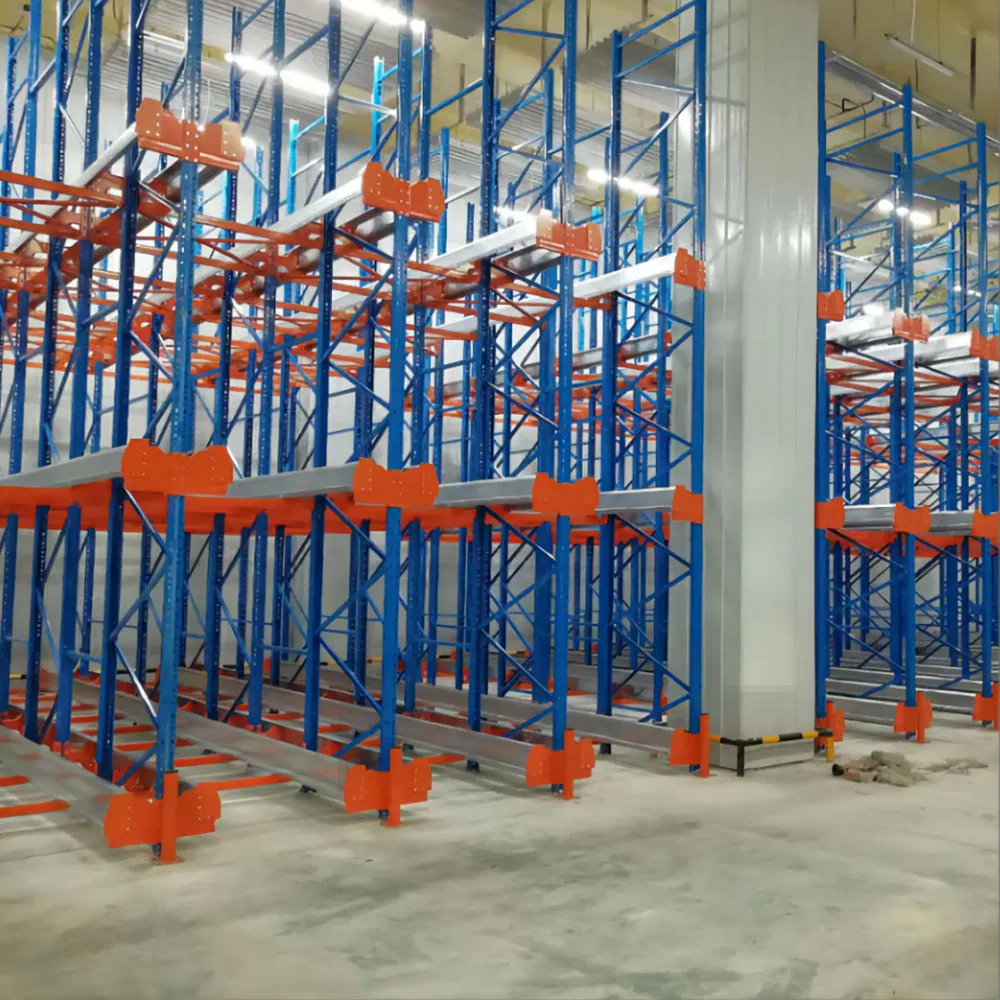

| Material | Steel | Type | Pallet Shuttle Racking |
| Height | Max 10m, Customizable | Weight Capacity | Max 1500 Kg/Level |
| Pallet Size | 1000 X 1200-1400 X 1500mm | Control Method | Remote Control |
| Motor | 480VDC 500W | Surface Finish | Powder Coated / Galvanized |
| Parameters | Economic Type | Standard Type | Advanced Type |
| Running Speed | Vmax_empty: 1.0m/s | Vmax_empty: 1.0m/s | Vmax_empty: 1.5m/s |
| Drive Motor | Domestic brush servo | Domestic brushless servo | Imported brushless servo |
| Control System | Siemens S7-200 PLC | ||
Racking Stability Measures:
Shuttle Safety Features:

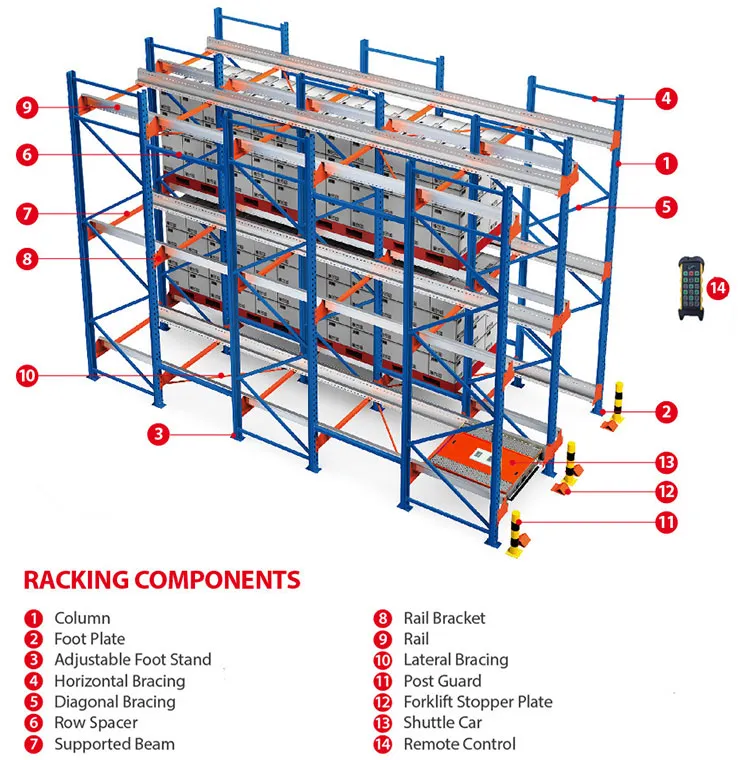

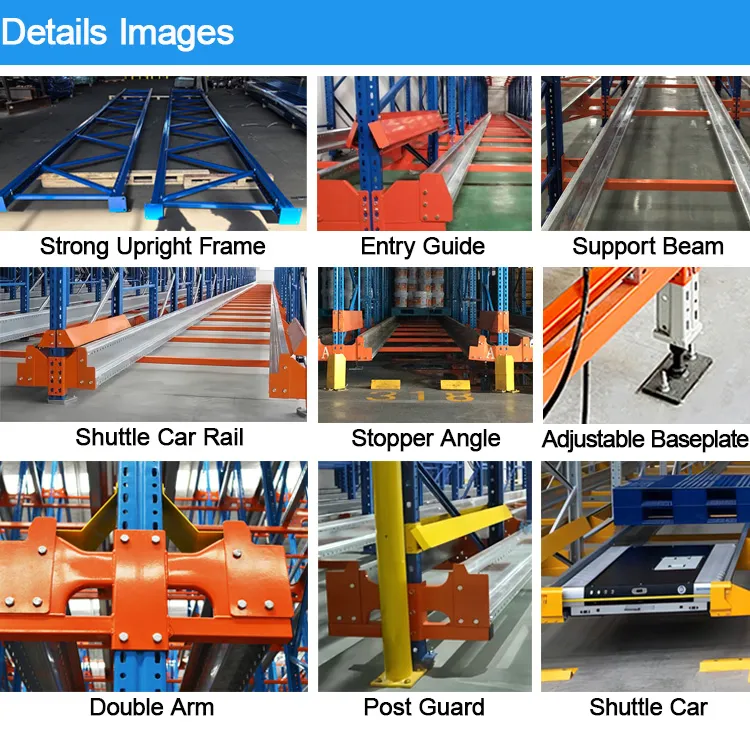

Electric Shuttle Components:
The system includes high-performance Lithium Batteries, Anti-Collision Bars, Laser Sensors for precise positioning, and a robust Lifting Mechanism for easy pallet handling. The remote control device can manage up to four shuttles simultaneously.

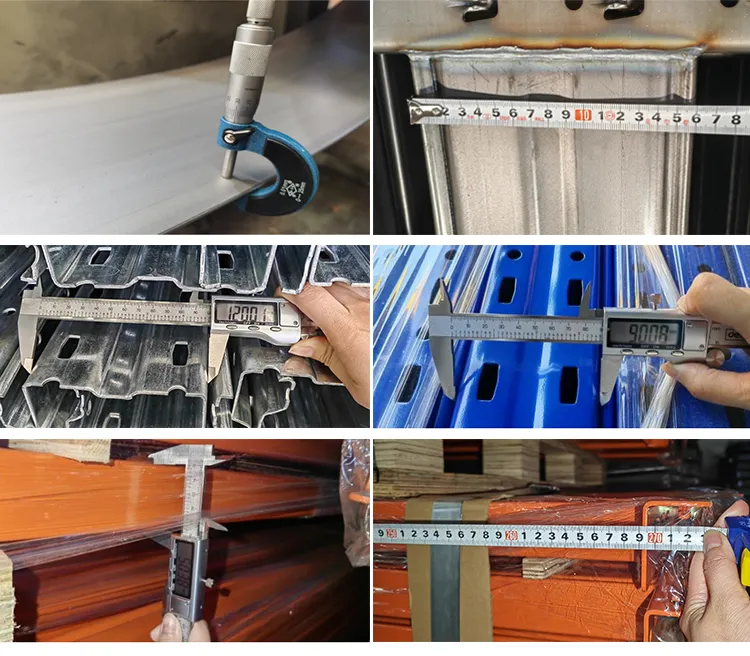

1. Strict Quality Inspection: A professional team of 15 people monitors every production step.

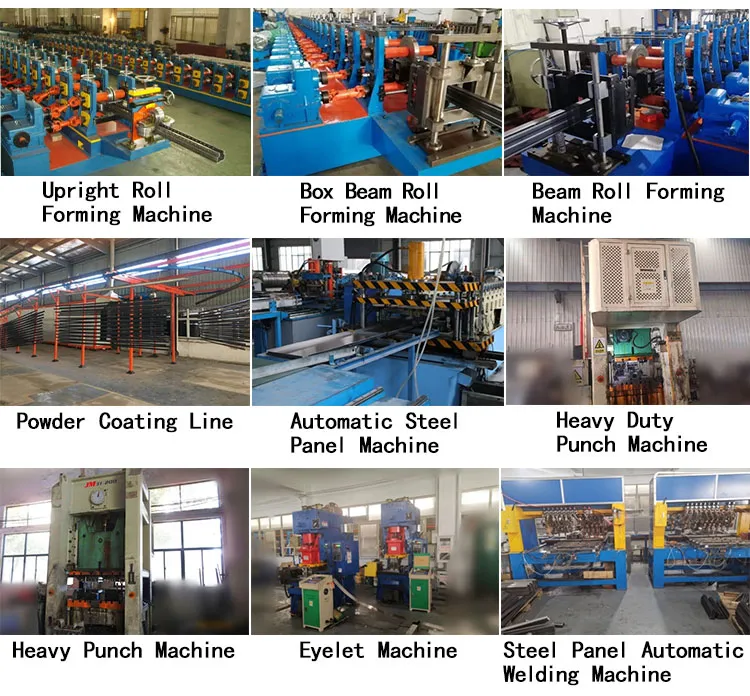

2. Advanced Equipment: Fully automated technology ensures precision and timely delivery.
3. Superior Powder Coating: Dual pickling technology creates an oxidation film for better resin adhesion, significantly extending racking life.
