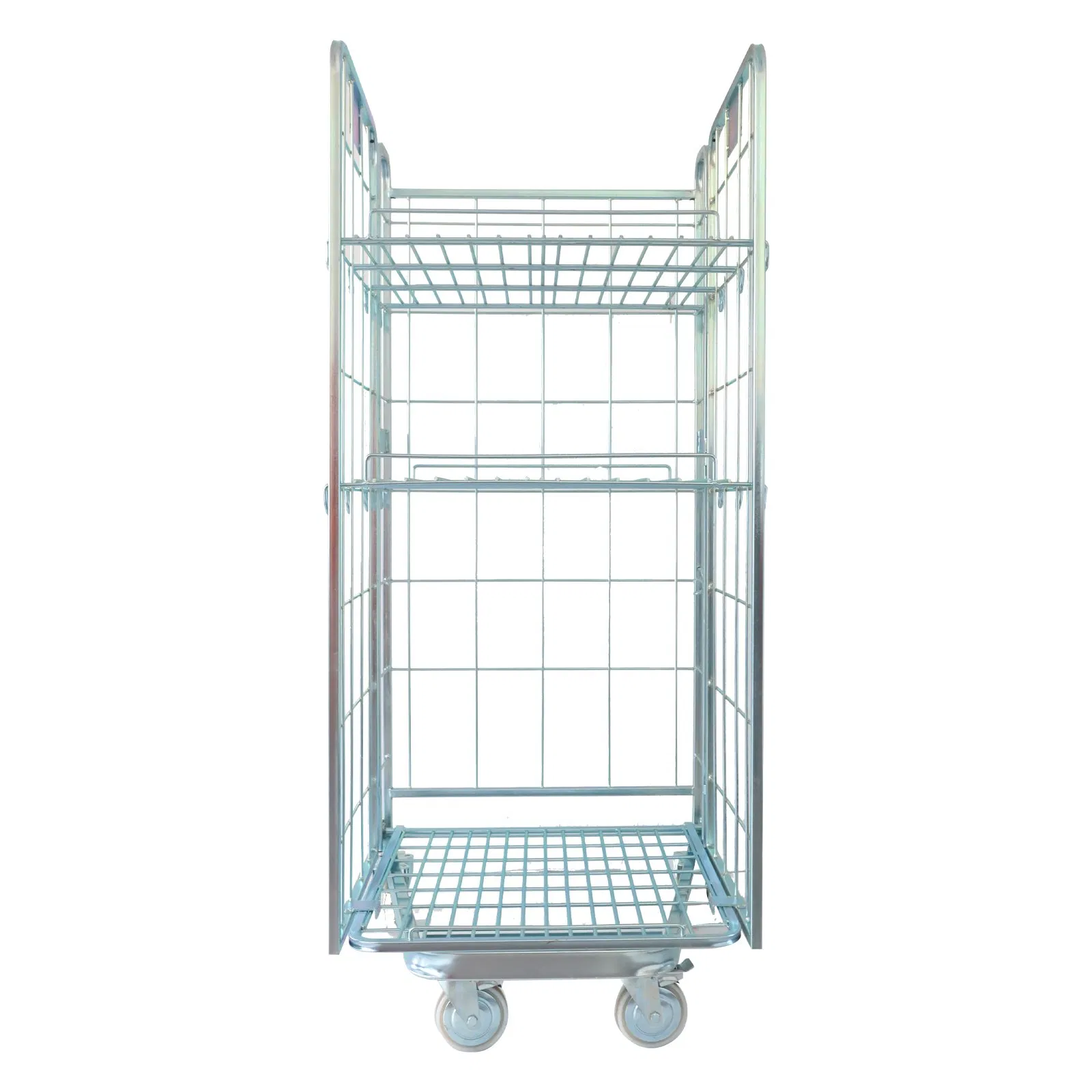

📋 Basic Specification
Size
734mm x 854mm x 1680mm
Load Capacity
500kg - 600kg

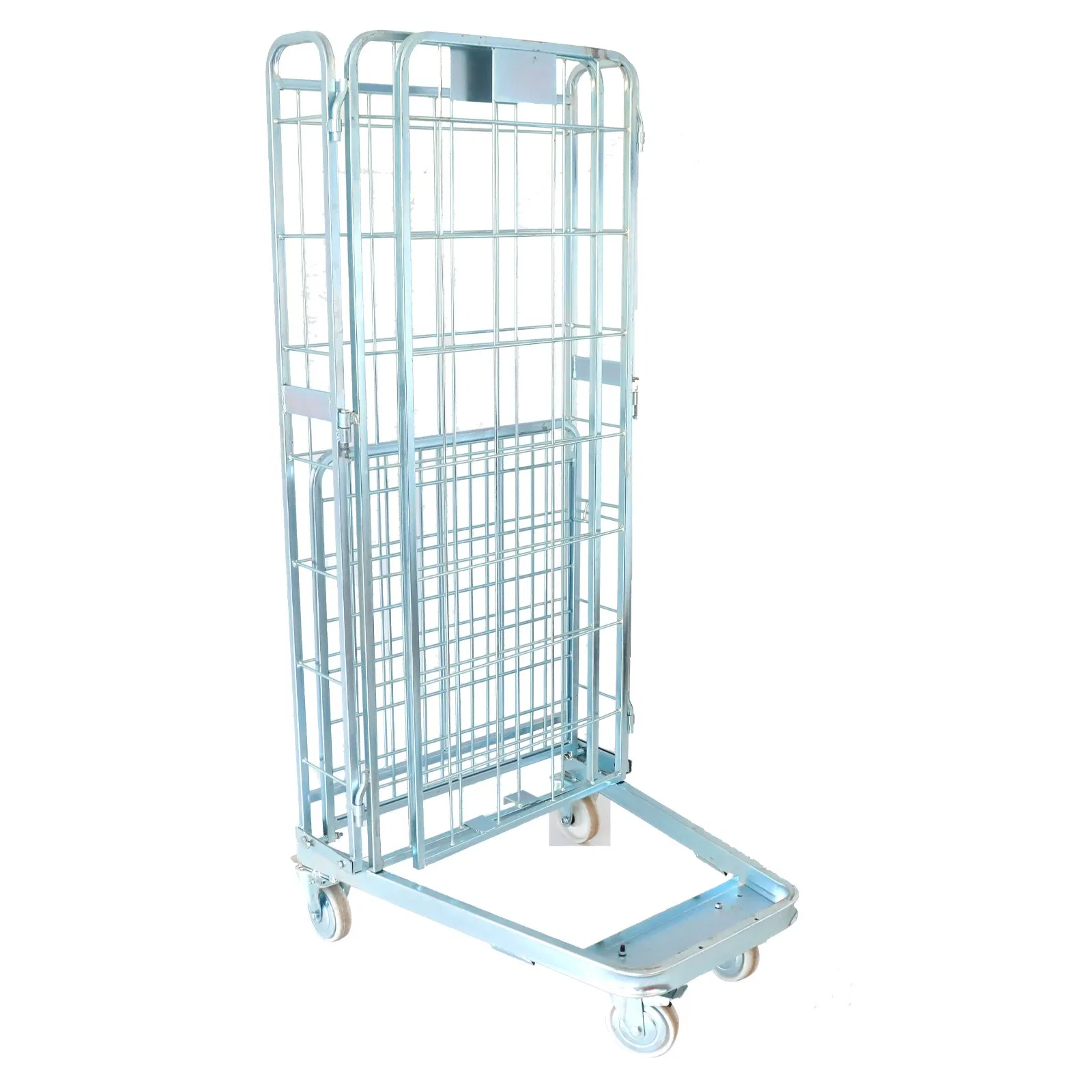

Folded
Yes (Foldable Design)
Finish
Zinc / Hot DIP Galvanized / Powder Coating

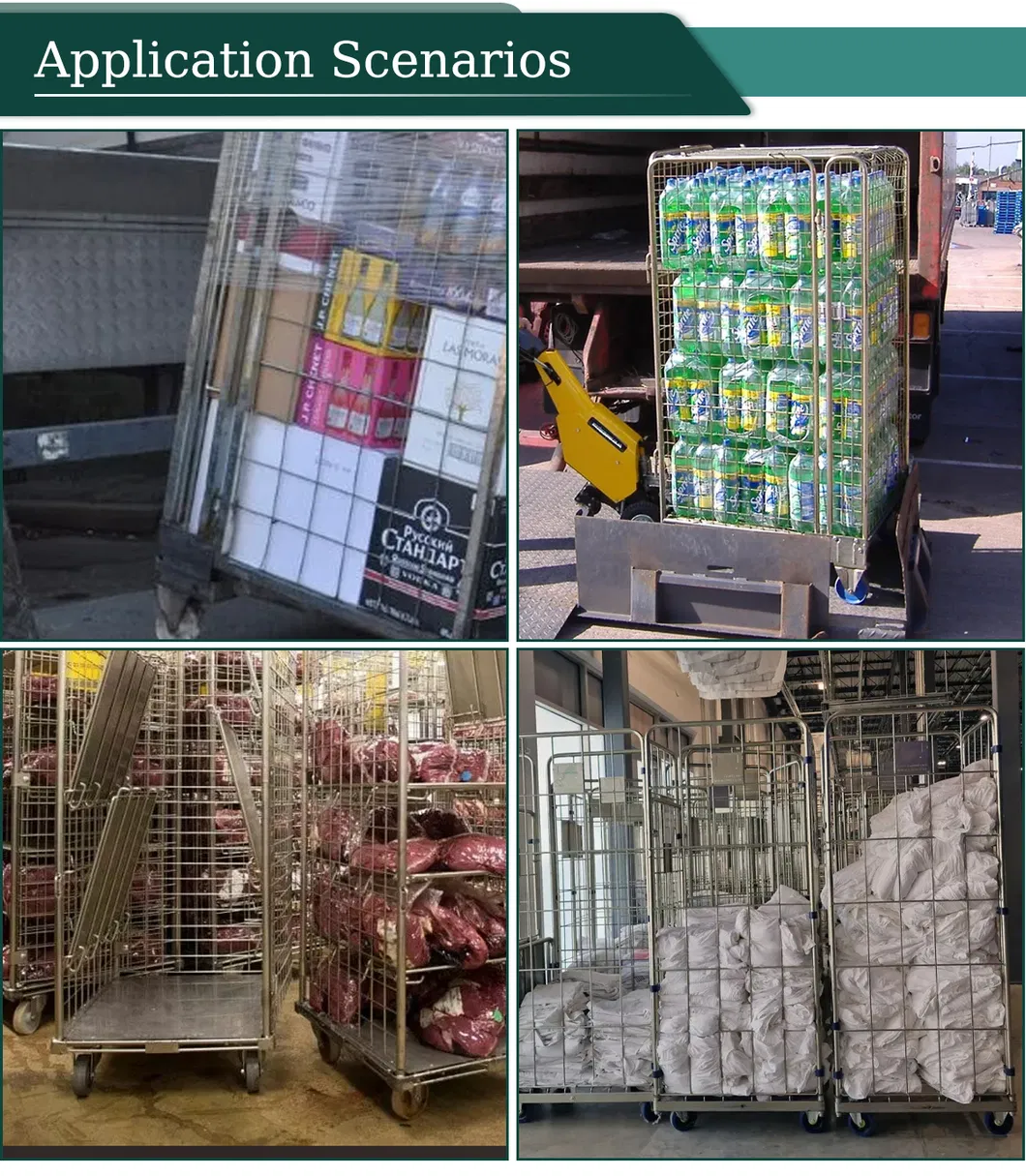

Usage
Warehouse, Supermarket, Logistic Transport
Castors
PP/PU/Nylon/Rubber Material
Production
5000 Sets/Month
📦 Packaging & Delivery
Package Size
73.00cm * 84.00cm * 168.00cm
Package Method
Plastic Banding + Stretch Film Wrapped
🛠️ Product Comparison & Features
| Model No. |
Exterior Dimension (LxWxH) |
Tube Dia. |
Wire Dia. |
Load (kg) |
40'HQ Load |
| JM-001 | 720x810x1650 | Φ20x2 | Φ8 & Φ6 | 300 | 450 |
| JM-002 | 734x854x1680 | Φ19&25x2 | Φ10 & Φ6 | 500 | 360 |
| JM-003 | 734x854x1680 | Φ19&25x2 | Φ10 & Φ6 | 500 | 320 |
| JM-004 | 734x854x1680 | Φ19&25x2 | Φ3 | 500 | 320 |

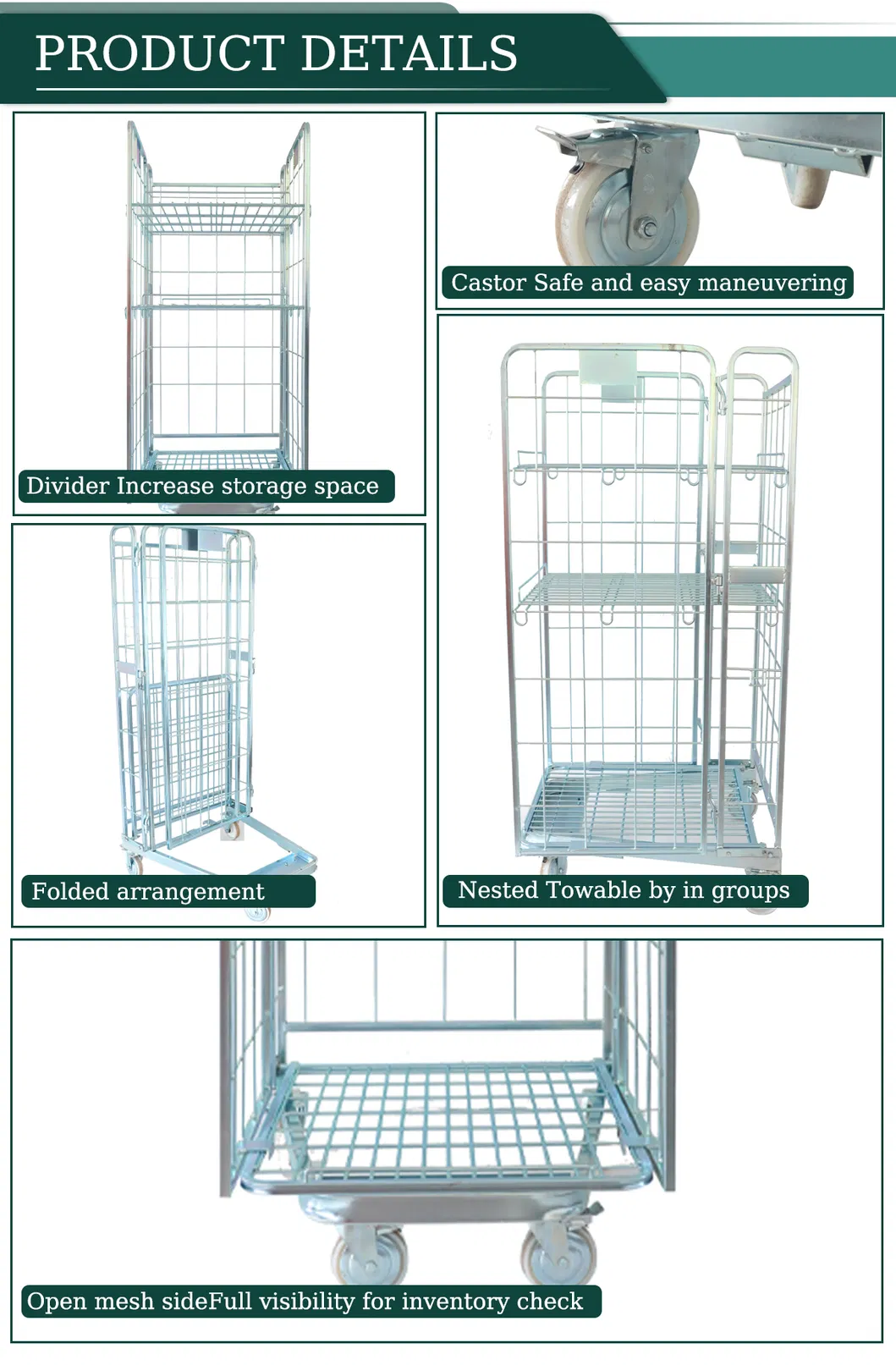

Key Features:
- Steel frame with wire mesh in-fill for maximum durability.
- Available in 2, 3, or 4 sided configurations with steel support rods.

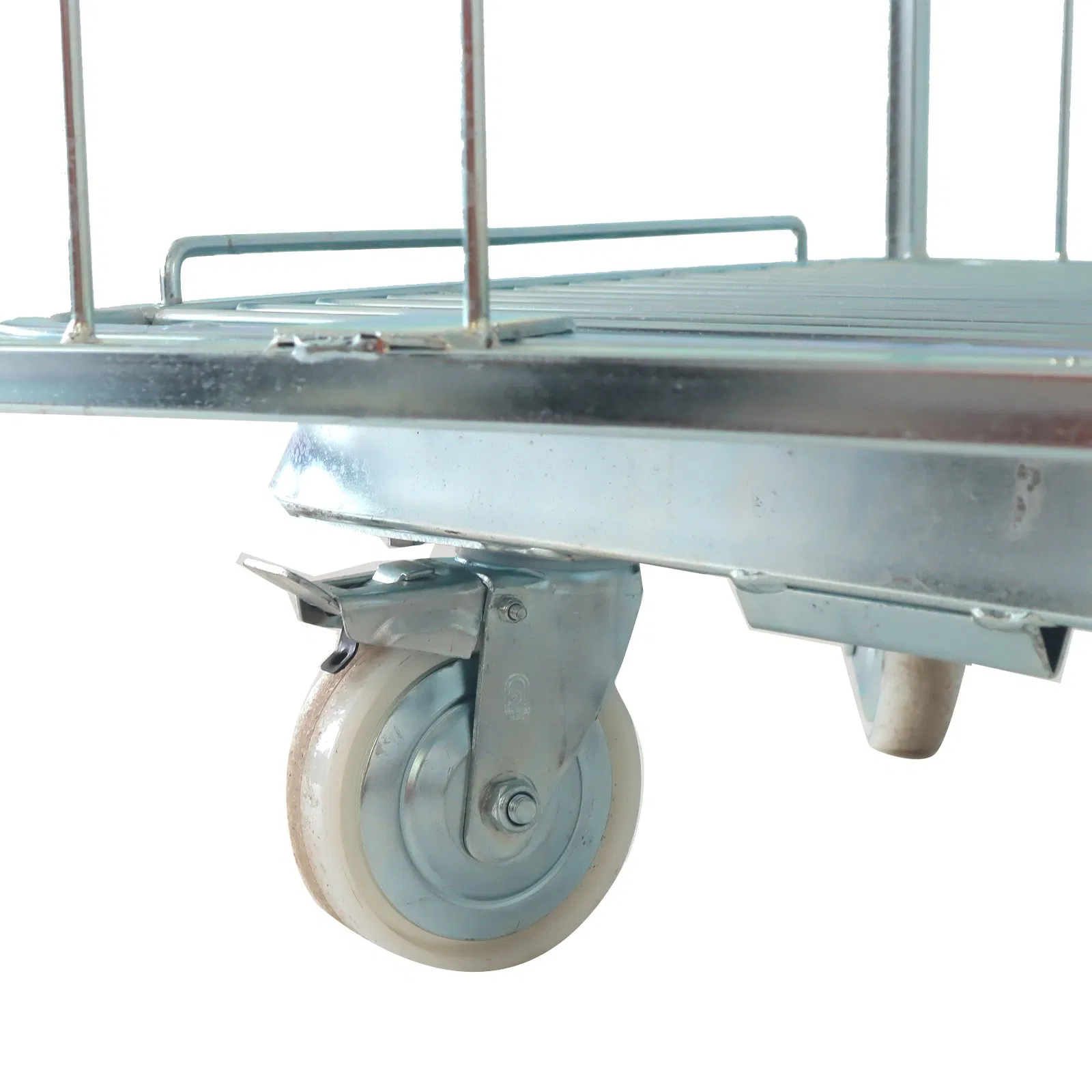

- Equipped with 2 fixed and 2 swivel castors (brakes optional).

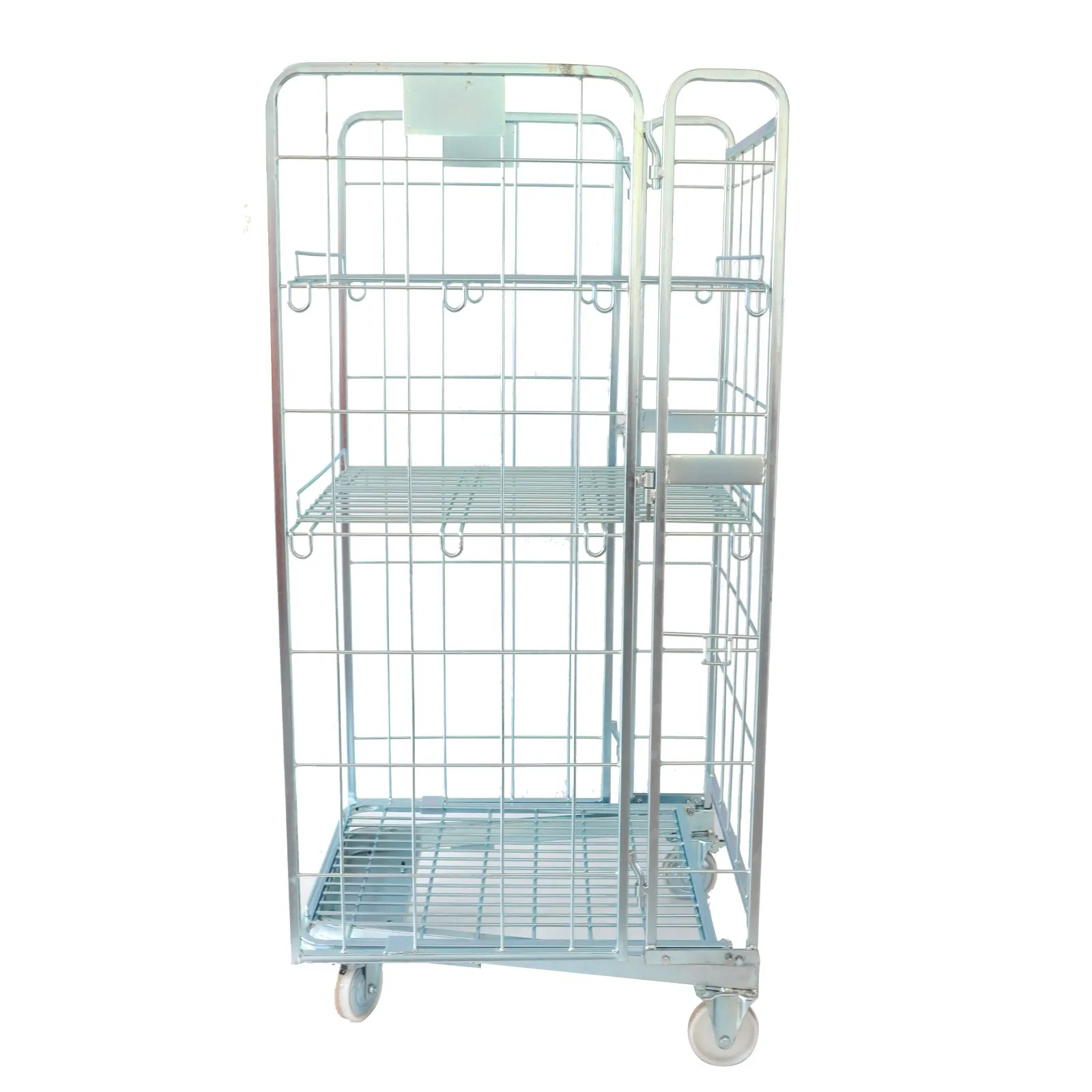

- Options for extra gates, removable shelves (60-80kg capacity), and top lids.
- Base designs available in Square, "A", or "Z" types.
🖼️ Product Gallery
❓ Frequently Asked Questions
1. What is the maximum load capacity of these roll containers?
Our standard roll containers are designed for medium-duty use with a loading capacity ranging from 300kg to 600kg depending on the specific model.
2. Are the roll trolleys foldable for space-saving storage?
Yes, these containers feature a foldable design that allows for efficient storage and return transport when not in use.
3. What surface finishes are available for rust prevention?
We offer three types of finishes: Zinc plating, Powder coating, and Hot-dip galvanization for superior corrosion resistance.
4. Can I customize the dimensions or add accessories?
Absolutely. We support OEM and customized orders. You can add extra gates, removable shelves, top lids, and choose from different castor materials.
5. What materials are used for the castors?
Depending on your flooring and noise requirements, you can choose from PP, PU, Nylon, or Rubber castors.
6. What is the typical lead time and production capacity?
Our production capacity is approximately 5,000 sets per month. Samples are also available upon request for quality verification.
