Manual Stationary Fixed Pit Dock Equipment for Logistics Warehouse Loading Dock
Manual Stationary Fixed Pit Dock Equipment for Logistics Warehouse Loading Dock
Manual Stationary Fixed Pit Dock Equipment for Logistics Warehouse Loading Dock
Manual Stationary Fixed Pit Dock Equipment for Logistics Warehouse Loading Dock
Manual Stationary Fixed Pit Dock Equipment for Logistics Warehouse Loading Dock
1 / 5
Manual Stationary Fixed Pit Dock Equipment for Logistics Warehouse Loading Dock
Manual Stationary Fixed Pit Dock Equipment for Logistics Warehouse Loading Dock
Manual Stationary Fixed Pit Dock Equipment for Logistics Warehouse Loading Dock
Manual Stationary Fixed Pit Dock Equipment for Logistics Warehouse Loading Dock
Manual Stationary Fixed Pit Dock Equipment for Logistics Warehouse Loading Dock

Manual Stationary Fixed Pit Dock Equipment for Logistics Warehouse Loading Dock

Customization: Available
After-sales Service: Spare Parts for Direct Replacement
Warranty: 18 Month Since Shipping Date, 18 Month
Send Inquiry

Product Description

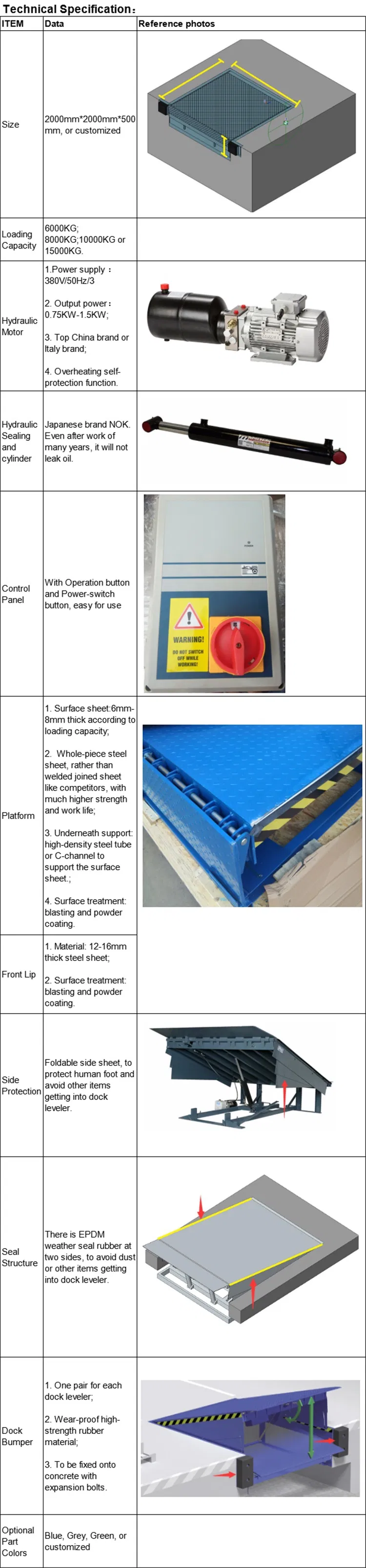

Basic Specifications

Model NO.
DL
Application
Warehouse Loading Dock
Lift Mechanism
Hydraulic Driving
Carrying Capacity
6-15 Ton
Moves
Stationary
Driven Type
Hydraulic
Certification
CE, RoHS, ISO 9001
Standard Size
2500*2000*500 (Customized)
Loading Capaticy
6 Ton, 10 Ton, 15 Ton
Up-Down Scope
Up +350mm, Down -300mm
Surface Treatment
Powder Coated
Power Supply
1-Phase 220V / 3-Phase 380V
Color
Blue, Grey, Black, Yellow
Package Size
200.00cm * 200.00cm * 60.00cm

Product Description

Automatic Stationary Fixed Hydraulic Dock Leveler: Used in loading bays or docks to facilitate forklifts entering truck containers directly. It significantly improves loading and unloading efficiency, making it essential for modern warehouses and factories.

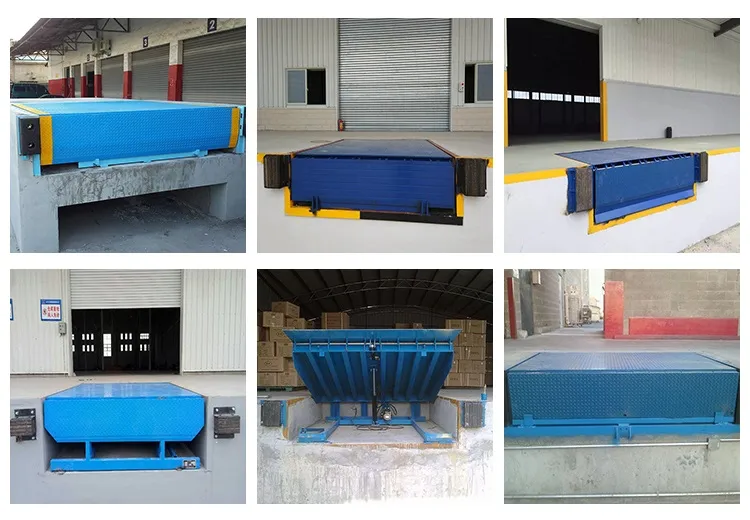

Stationary Fixed Pit Dock Leveler

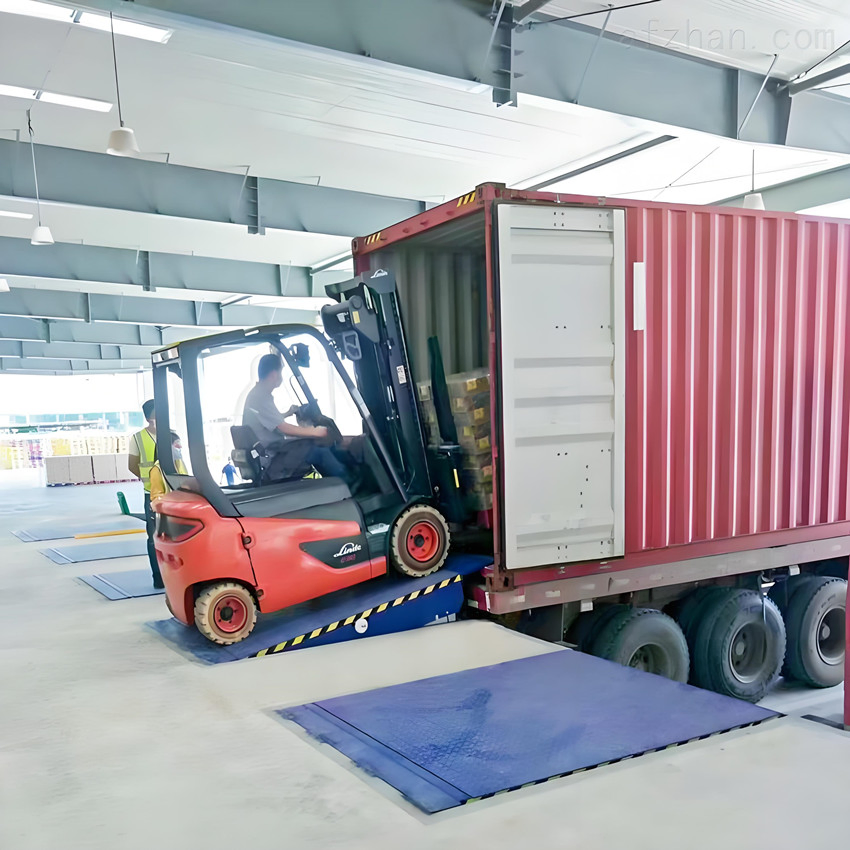

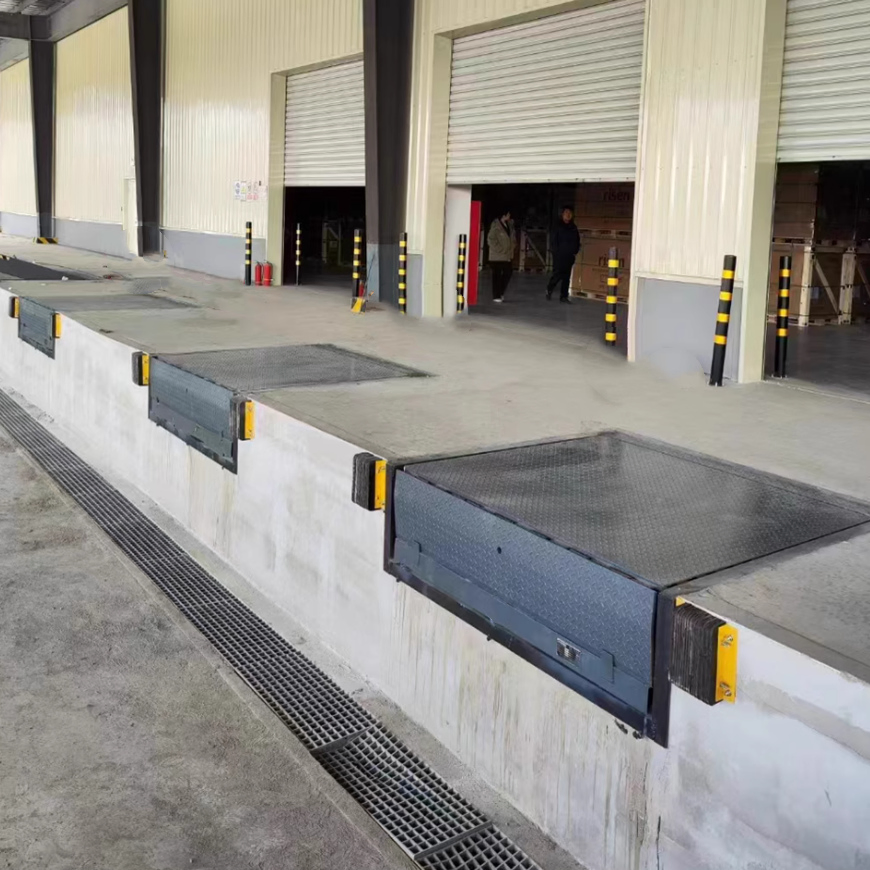

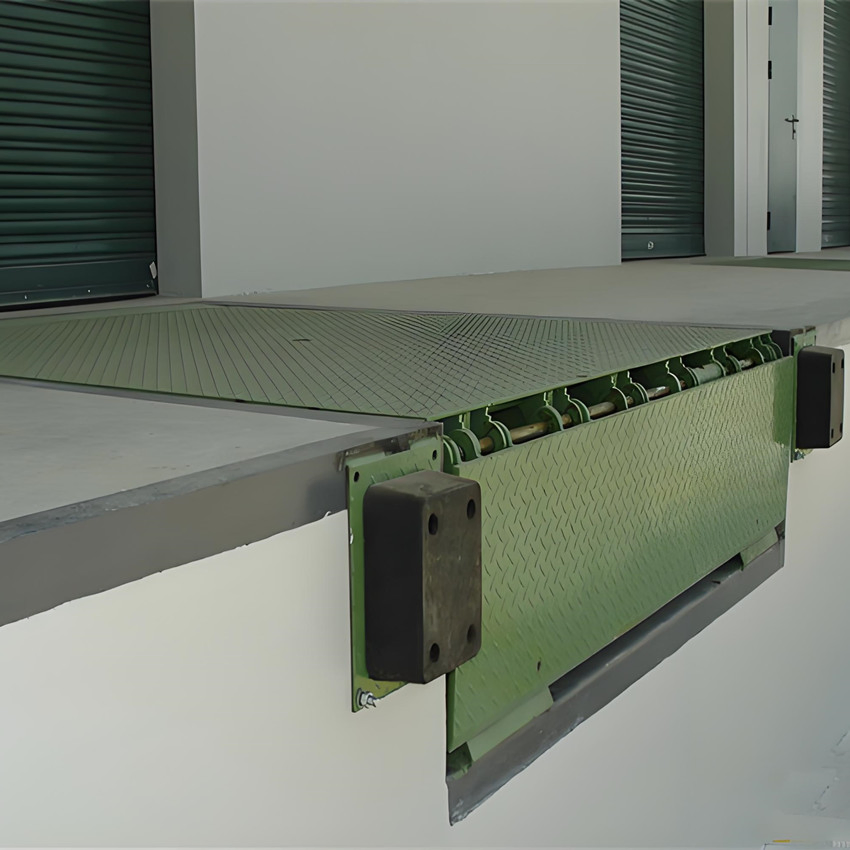

Operational Advantage: The stationary fixed dock leveler is placed into a pre-built concrete pit. A hydraulic motor drives the platform, creating a seamless joint between the facility floor and the truck bed, allowing for rapid transfer of goods via forklifts or trolleys.

Dock Ramp Operational Diagram

Key Features

  • The overall assembly can bear 120% of standard nominal load capacity.
  • Platform ground made from high-strength 8mm+ thick steel plate with anti-skid groove milling.
  • Super-High-Temperature heat-treated Hinge and Shaft to minimize deformation.
  • European imported hydraulic drive station with stable power output and high-standard seals.
  • Epoxy resin paint surface treatment for durability and anti-corrosion.

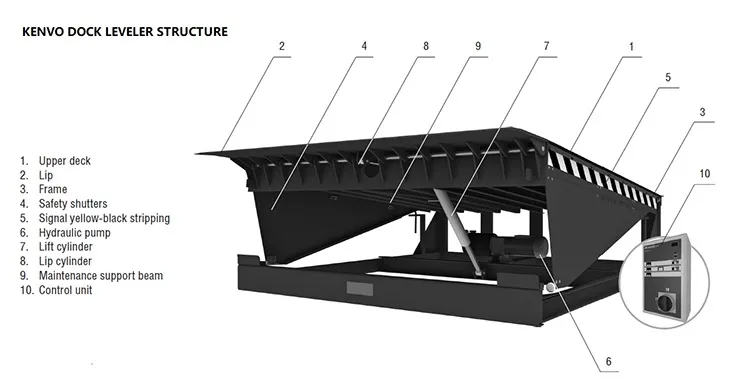

Dock Equipment Details
Hydraulic System
Installation View

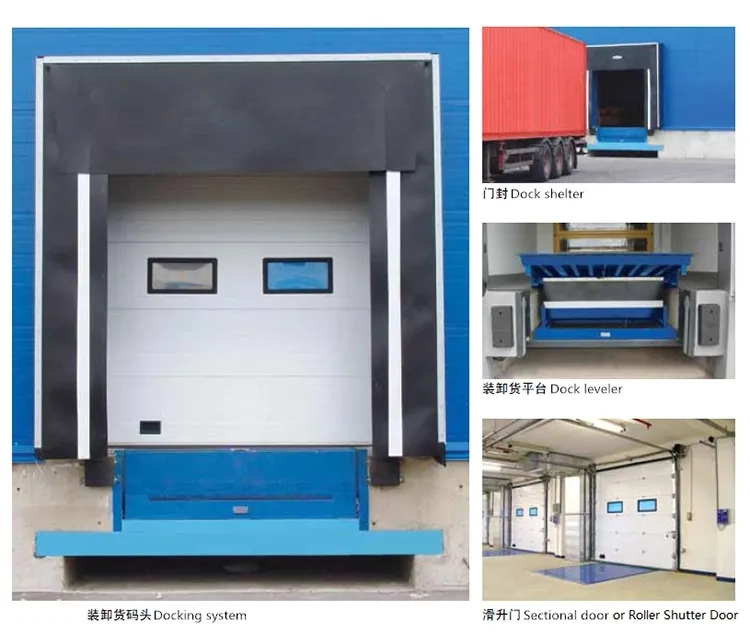

Complete Loading Bay Solutions

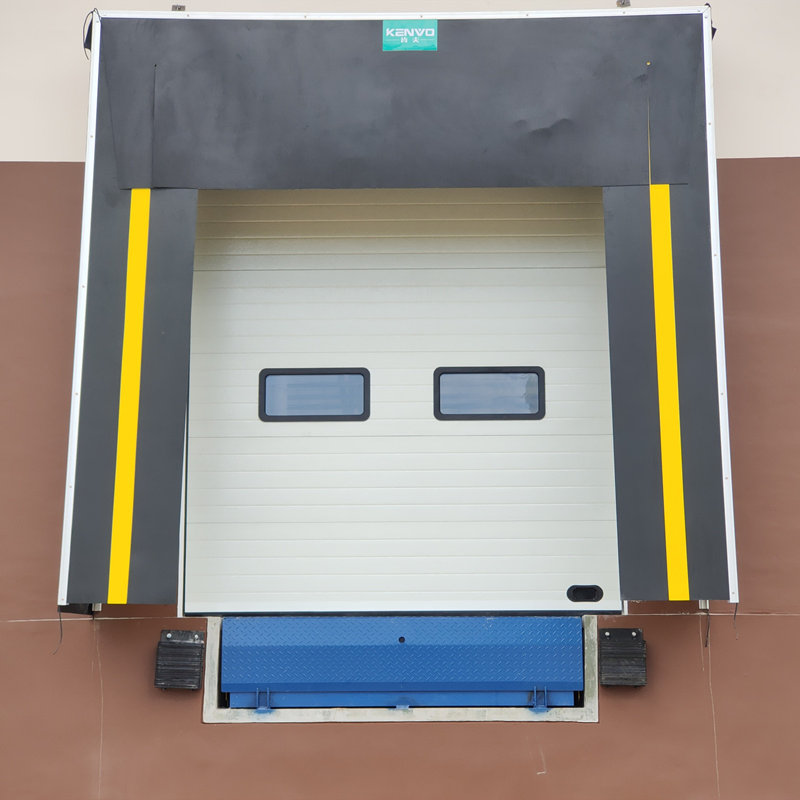

A complete Loading Bay assembly typically consists of an Overhead Door, Dock Leveler, and Dock Shelter/Seal. These components work together to maximize loading efficiency and protect the indoor environment from external elements.

Loading Bay Components
Dock Shelter Integration
Warehouse Logistics
Hydraulic Ramp Side View
Loading Dock Safety

Frequently Asked Questions

What is the standard loading capacity for this dock leveler?
The standard capacities are available in 6 Ton, 10 Ton, and 15 Ton options to suit various warehouse needs.
Can the size of the dock leveler be customized?
Yes, while the standard size is 2500*2000*500mm, we provide customization based on your specific pit requirements.
What kind of power supply is required?
It supports both 1-Phase 220V and 3-Phase 380V power supplies, with a work power ranging from 0.75kw to 1.5kw.
How does the dock leveler handle heavy pressure over time?
The platform is constructed from high-strength 8mm+ steel plate. Under a 24-hour static pressure test at 120% load, deformation is kept within 3mm and recovers after pressure is released.
What is the vertical adjustment range of the platform?
The hydraulic system allows an upward adjustment of +350mm and a downward adjustment of -300mm to accommodate different truck heights.
Is the surface treatment resistant to corrosion?
Yes, the surface is powder coated with epoxy resin paint, which is highly durable and offers excellent anti-corrosive properties for long-term industrial use.
