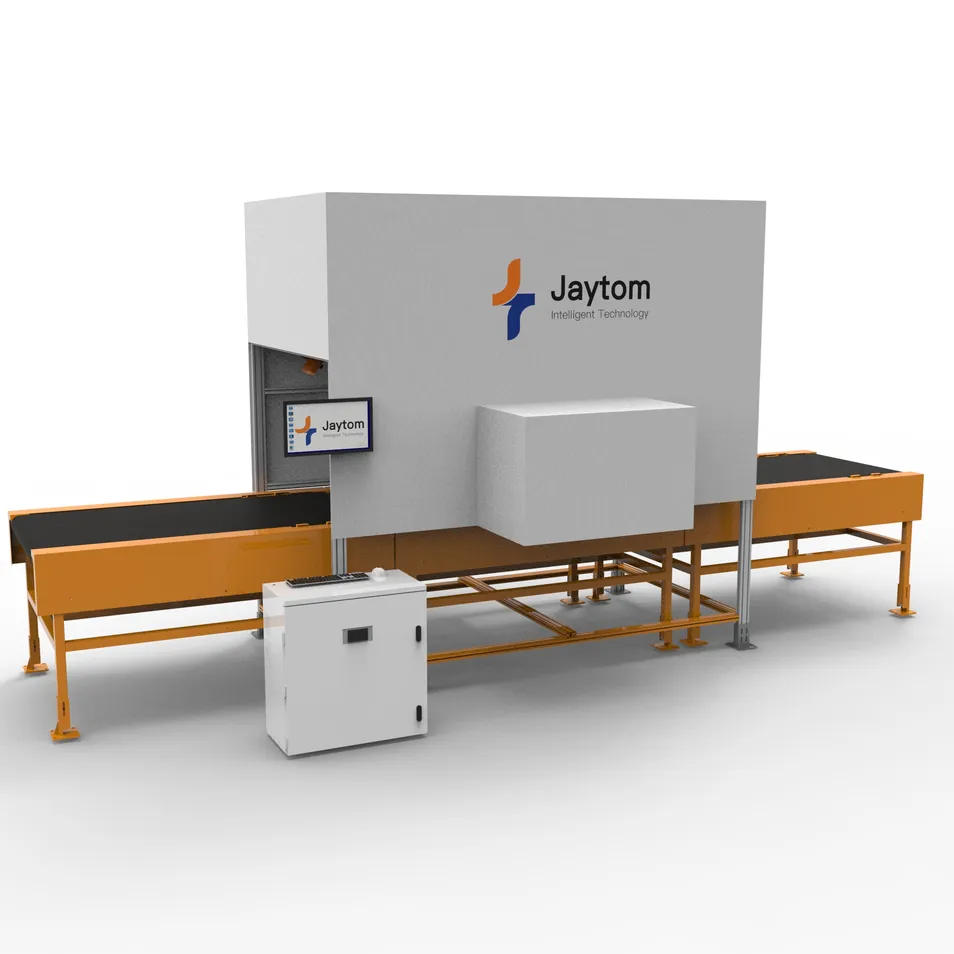

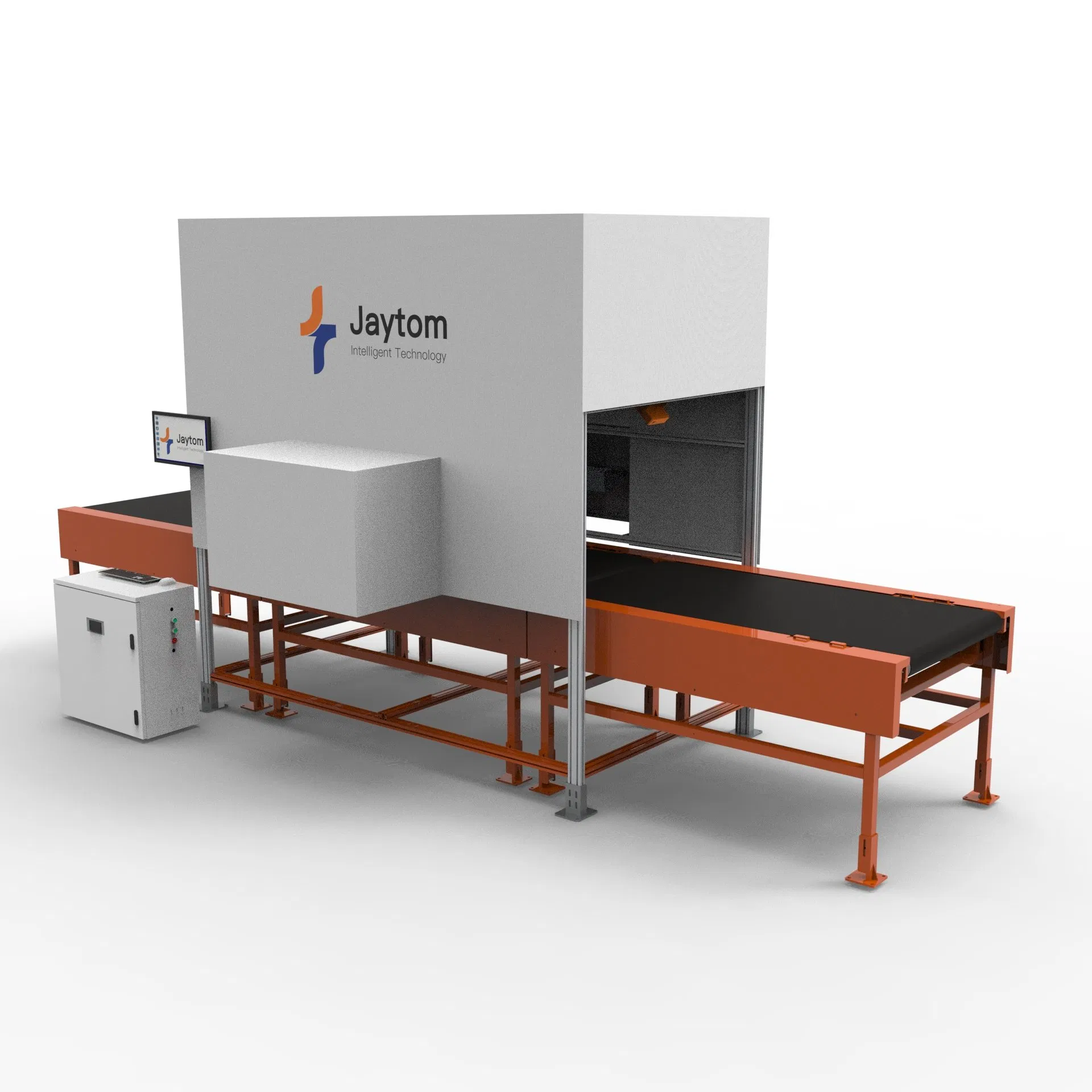

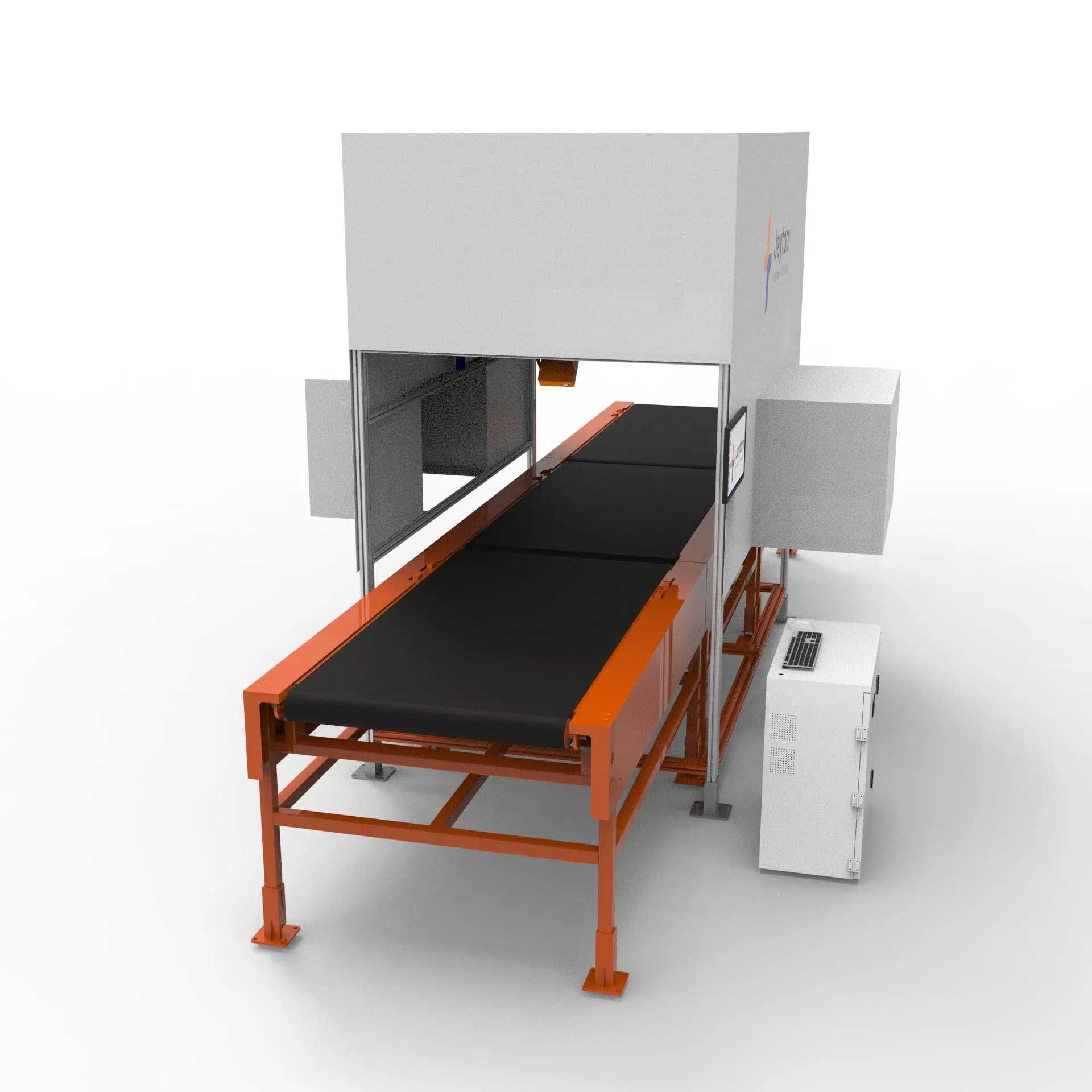

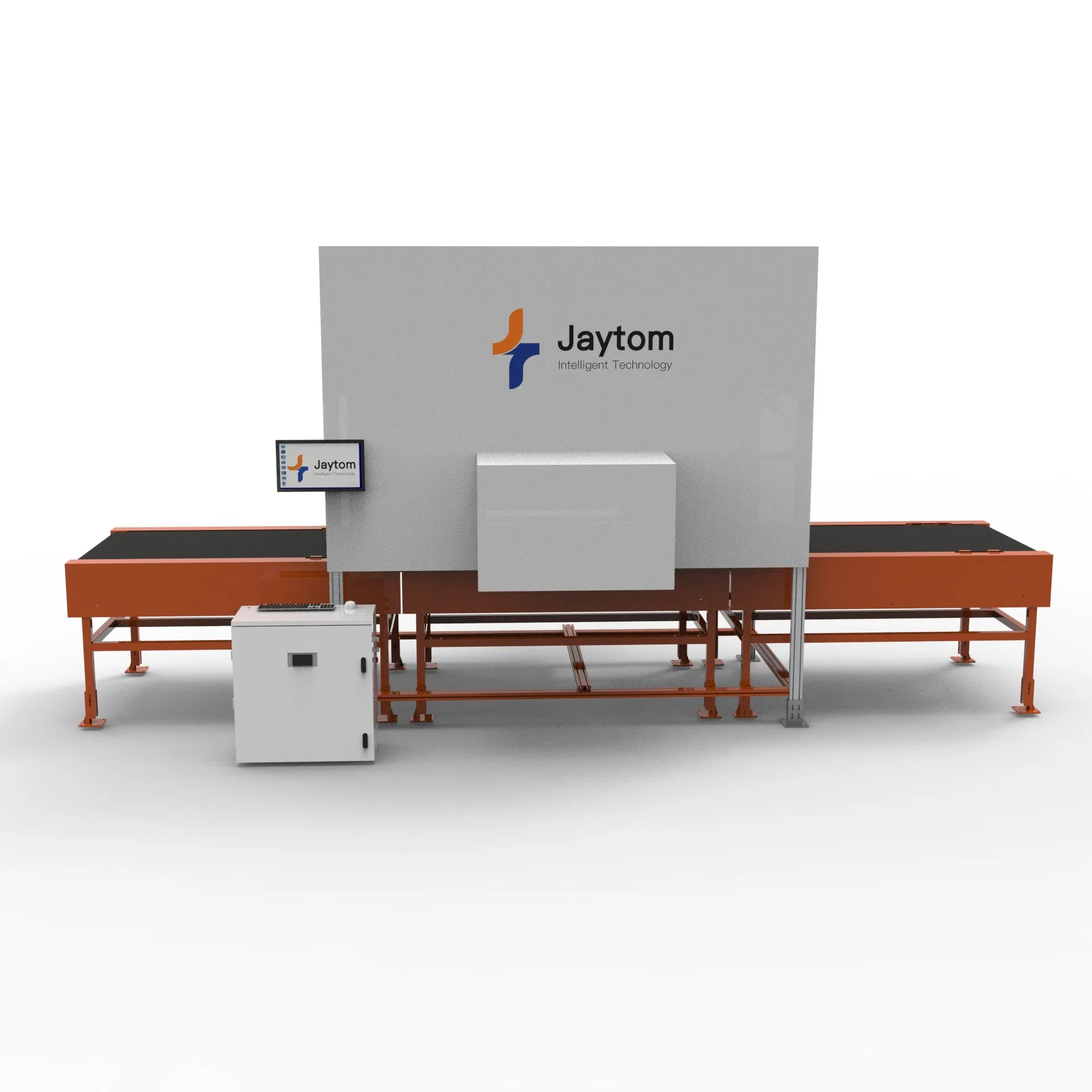

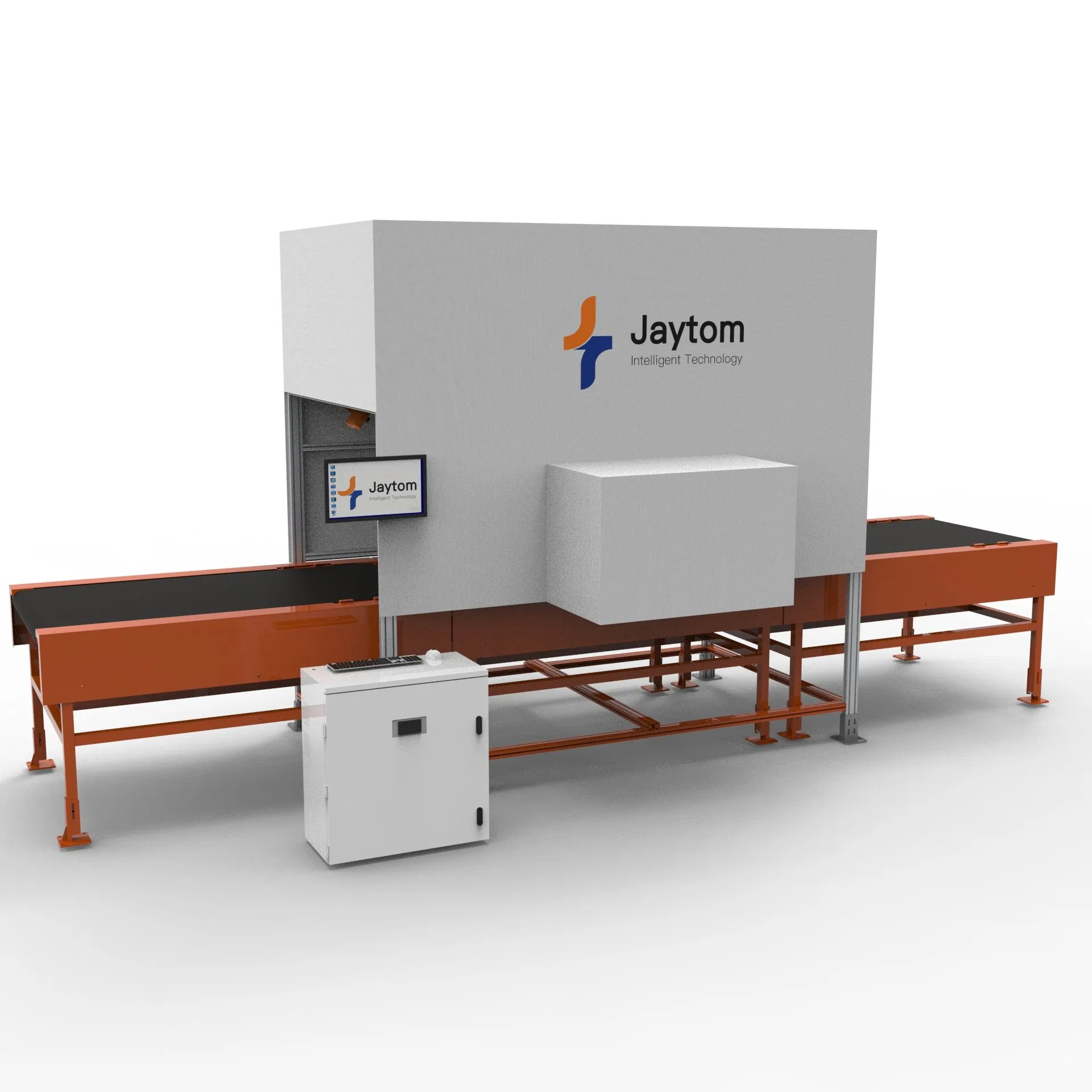

Logistics Dynamic Dws System Parcel Weight and Scanning Volume Sorting Dimension Automation Warehouse Order Picking Machine

1 / 5

Logistics Dynamic Dws System Parcel Weight and Scanning Volume Sorting Dimension Automation Warehouse Order Picking Machine

Customization:	Available
Type:	EP200
Material:	PU

Send Inquiry

Product Description

📋Basic Info.

Model NO.

DWS-M-100-3stage-Six sided Scanning

Inside Material

Polyester

Feature

Heat-Resistant

Tensile Strength

Strong

Transport Package

Box

Specification

100

Trademark

Jaytom

Origin

China

HS Code

8471419000

📦Product Description

🚀Application Introduction

✔

Fully automatic dynamic recognition sorting technology

✔

6-sided DWS system with all-round scanning (no dead angles) and no need for manual barcode surface flipping

✔

Automatic weighing and recognition system with an efficiency of over 5,000 pieces/hour

✔

High-speed recognition system, which can be arbitrarily paired with various sorting systems: swing wheel sorting system, linear high-speed sorter, cross-belt sorter, etc.

💡Core Value & Functions

01.

Core Function: The system completes one-time collection of parcel information (including barcode, dimension, and weight) through 6-sided dead-angle-free scanning, requiring no manual intervention.

02.

Efficiency Advantage: It eliminates the manual process of searching for and flipping to the barcode side, capable of handling thousands of parcels per hour. This significantly improves processing efficiency.

03.

Applicable Scenarios: Widely used in e-commerce warehouses, express transfer centers, and fresh produce distribution centers.

04.

Linkage Value: Collected data connects to backend sorting systems (e.g., swing wheel sorters, cross-belt sorters) for a fully automated closed-loop process.

📊Technical Specifications

Category	Component/Parameter	Detail	Function/Notes
Solution Introduction	DWS Parcel Pulling Section	Adjust parcel posture	Ensures suitable entry angle
	DWS Single-scale Weighing Section	Weight detection	Automatically records data
	DWS Buffer Section	Information processing	Processes scanned item data
	DWS Six-sided Scanning System	Barcode identification	Automatic collection
Working Parameters	Speed	1.5~2m/s
	Efficiency	6000 pieces/hour
	Parcel Control Spacing	1000mm
	Field of View	No Blind Area
Weighing & Measurement	Max Weight / Accuracy	≤50kg	Accuracy: ±20g (Class III)
Weighing & Measurement	Parcel Size Range	Min: 100x100x50mm \| Max: 800x1500x700mm
Identification	Barcode Type & Rate	1D/2D (QR, DM)	Reading Rate ≥99%

❓Frequently Asked Questions

Q1: What is the main advantage of a six-sided scanning system?

The system provides all-round scanning with zero dead angles, eliminating the need for staff to manually flip parcels to find the barcode, which significantly increases processing speed.

Q2: What types of barcodes can the DWS system identify?

It supports a wide range of 1D codes (Code128, Code39, EAN) and 2D codes (QR, DM) with a reading accuracy rate of over 99%.

Q3: Are there any types of parcels that are not suitable for this system?

Highly reflective or transparent parcels, severely damaged/wrinkled surfaces, and spherical or cylindrical packages may affect the accuracy of volume measurement.

Q4: Can this system be integrated with other warehouse automation?

Yes, it is designed to pair seamlessly with various sorting systems like swing wheel sorters, linear high-speed sorters, and cross-belt sorters for a fully automated workflow.

Q5: What is the maximum processing efficiency of the DWS-M-100?

The system is capable of achieving an efficiency of up to 6,000 pieces per hour depending on the parcel flow and spacing.

Q6: What is the weighing accuracy of the system?

The system provides high-precision weighing with an accuracy of ±20g for objects up to 50kg, meeting Class III precision standards.
