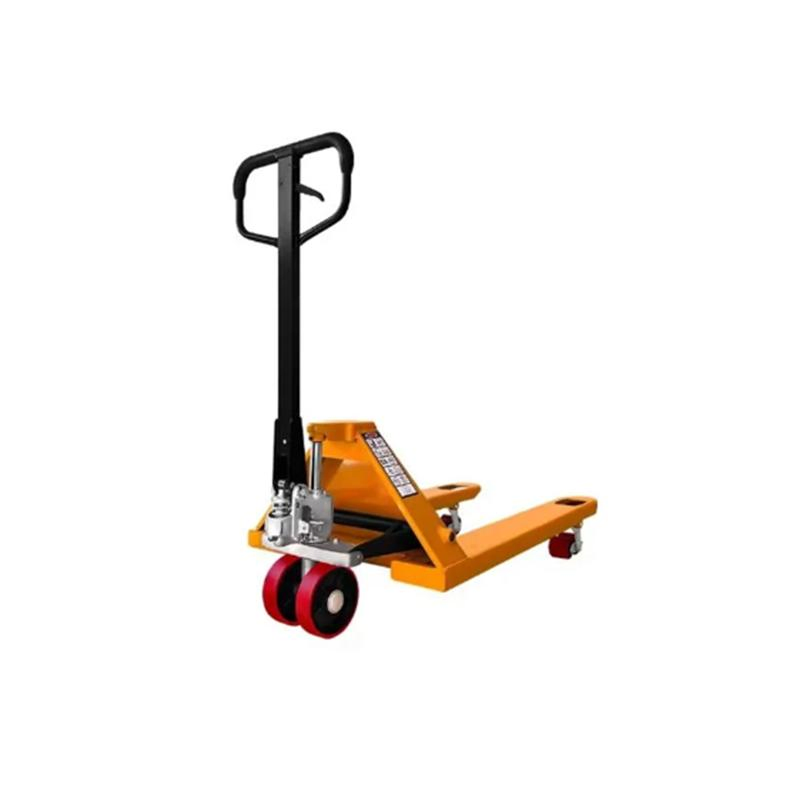

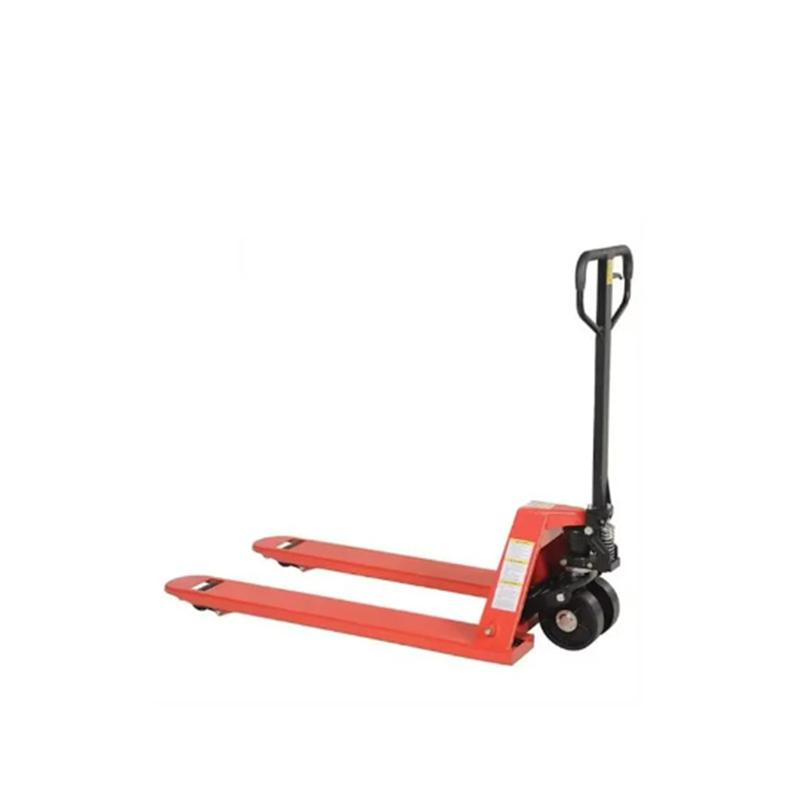

Industrial Material Handling Tool with Large Core Components and Durable Construction

Send Inquiry

Product Description

Load Capacity

1T - 5T

Lift height

>5000mm

Condition

New

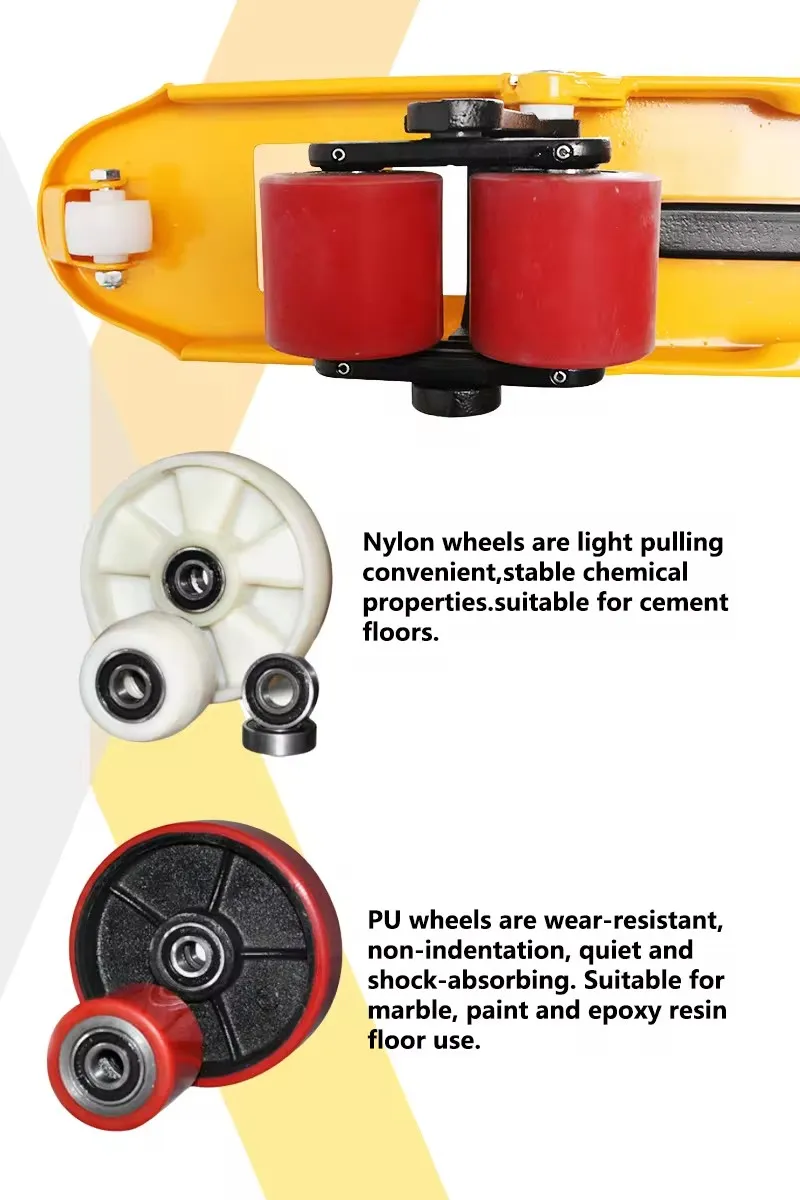

Big Wheel Size

180*50mm

Small Wheel Size

80mm

Fork Length

1150/1220mm

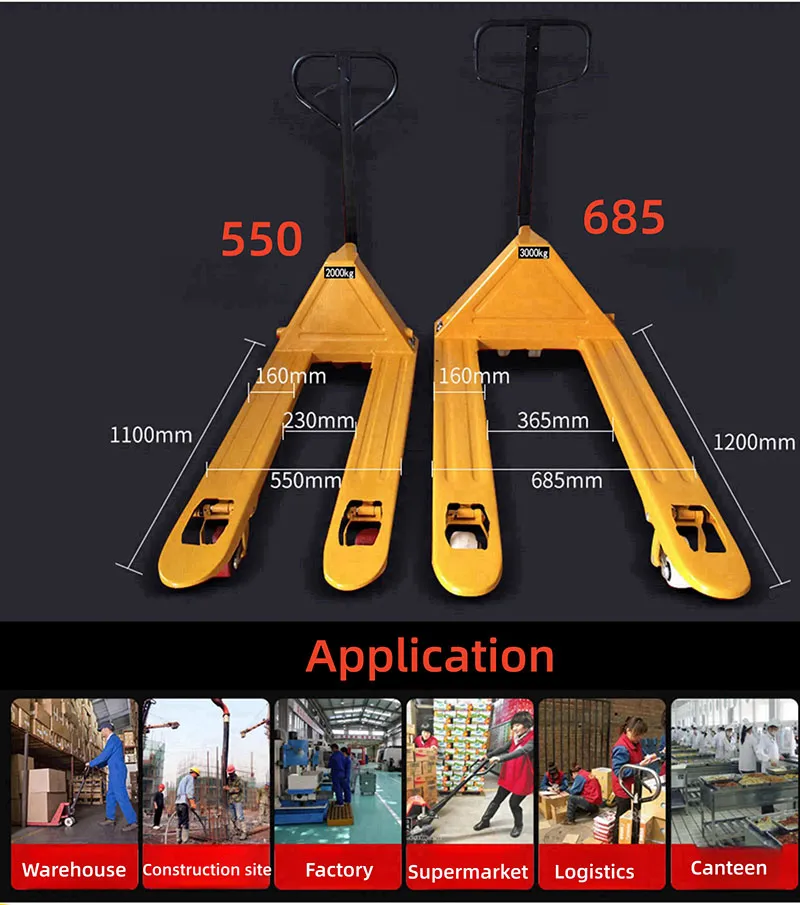

Fork Width

550/685mm

Core Components

Pressure Vessel, Motor, Bearing, Gear, Pump

Overall Dimensions

1533/1603mm

Turning Radius

1266/1366mm

Package

Carton Packaging

Specification

61.8-70KG

Origin

Made in China

HS Code

8427109000

Production Capacity

1000 Pieces Per Week

★

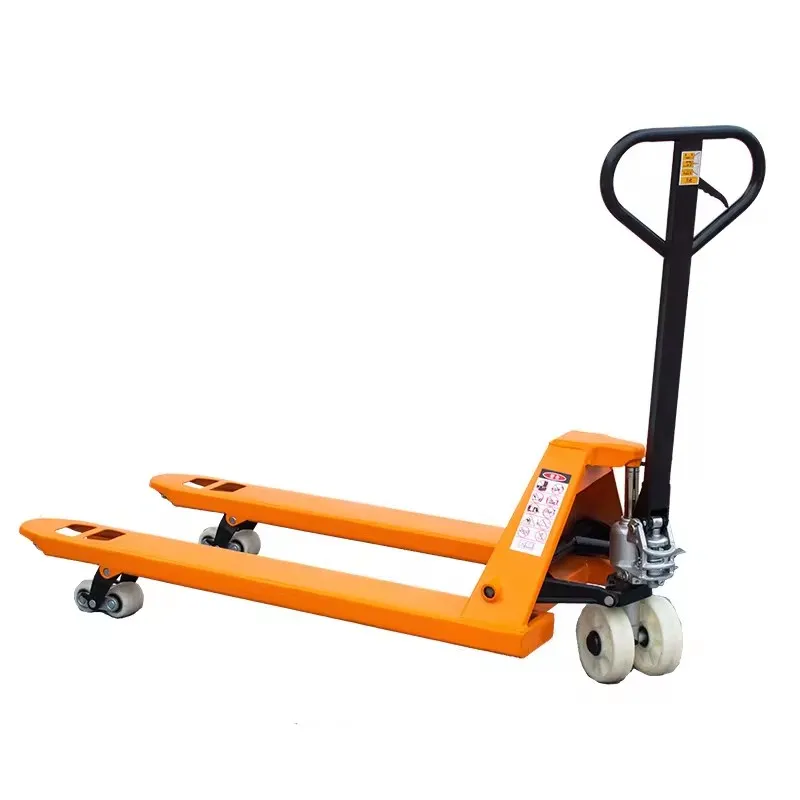

01The hand pallet truck is economical in design.

02Standard epoxy resin powder coating, anti-fragmentation and anti-corrosion.

03Extremely strong lightweight steel structure, body weight only 70kg.

04Solder joints and reinforced fork tips for enhanced durability.

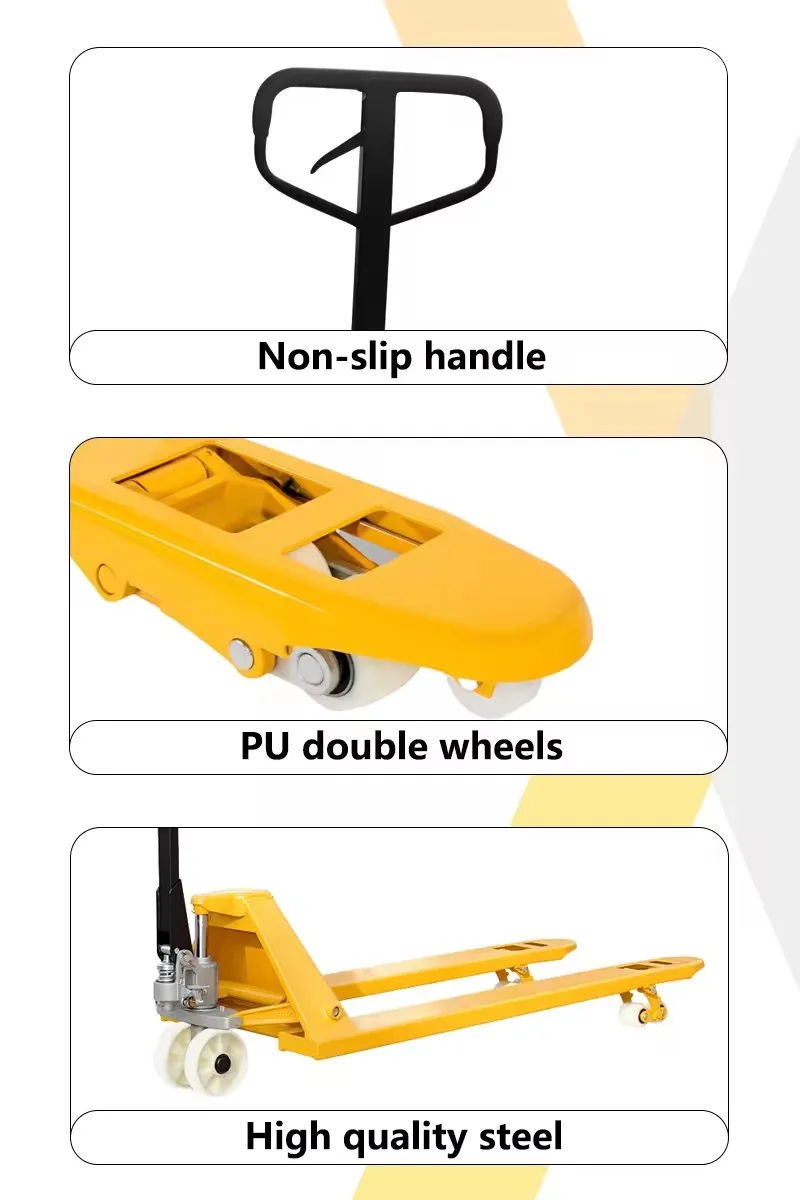

05Three-stage handle control: lifting, lowering, and neutral.

06High quality 190 degree corner setting for easy maneuverability.

07Efficient oil pump: up to 8 strokes with height of 11mm per stroke.

08Reliable anti-leakage hydraulic system for long-term use.

📋

Parameter	2.0 TON	2.5 TON	3.0 TON
Height at Lowering (mm)	80mm	80mm	80mm
Big wheel size (mm)	180*50mm	180*50mm	180*50mm
Small wheel size (mm)	80*70mm	80*70mm	80*70mm
Overall height (mm)	1224mm	1224mm	1224mm
Overall length (mm)	1533/1603mm	1533/1603mm	1533/1603mm
Fork length (mm)	1150/1220mm	1150/1220mm	1150/1220mm
Fork width (mm)	550/685mm	550/685mm	550/685mm
Turning radius (mm)	1266/1366mm	1266/1366mm	1266/1366mm
Net Weight (KG)	61.8/65.2KG	63.8/68.2KG	65.8/69.2KG
