Industrial Lifting Magnet Tool for Handling Scraps

1 / 5

Industrial Lifting Magnet Tool for Handling Scraps

Customization:	Available
After-sales Service:	Provided
Warranty:	12 Months

Send Inquiry

Product Description

ℹ️ Basic Information

Model NO.

MW5-210L/1

Shape

Round

Color

Red, Yellow, Orange or Others

Magnet Diameter

2100mm

Rated Voltage

220V DC

Duty Cycle

60%

Electric Current

129A

Cold-State Power

28.4kw

Weight

7000kg

Lifting Capacity (Cast Iron)

3500/2800kg

Lifting Capacity (Steel Ball)

21000kg

Production Capacity

100 Sets Per Month

📋 Product Description

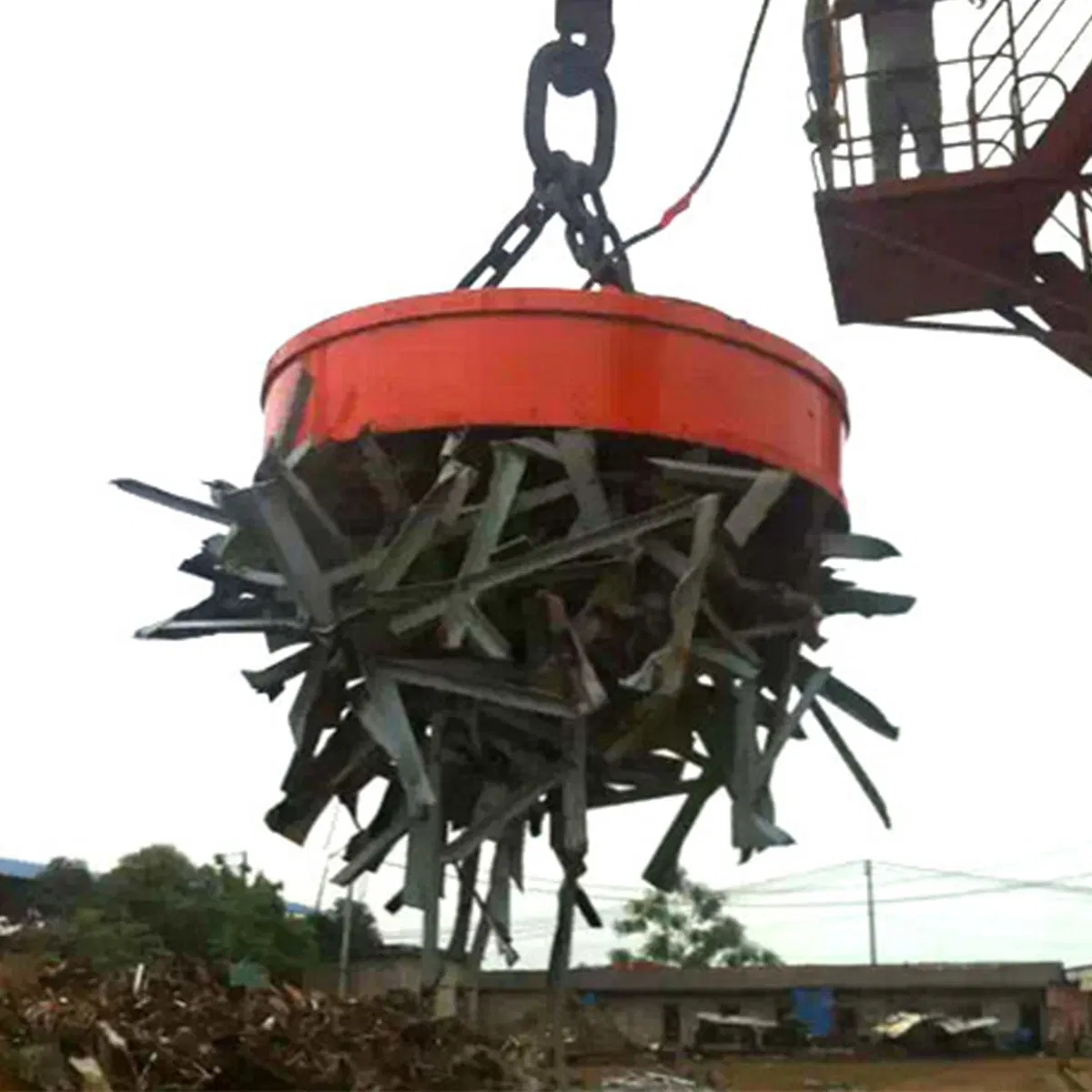

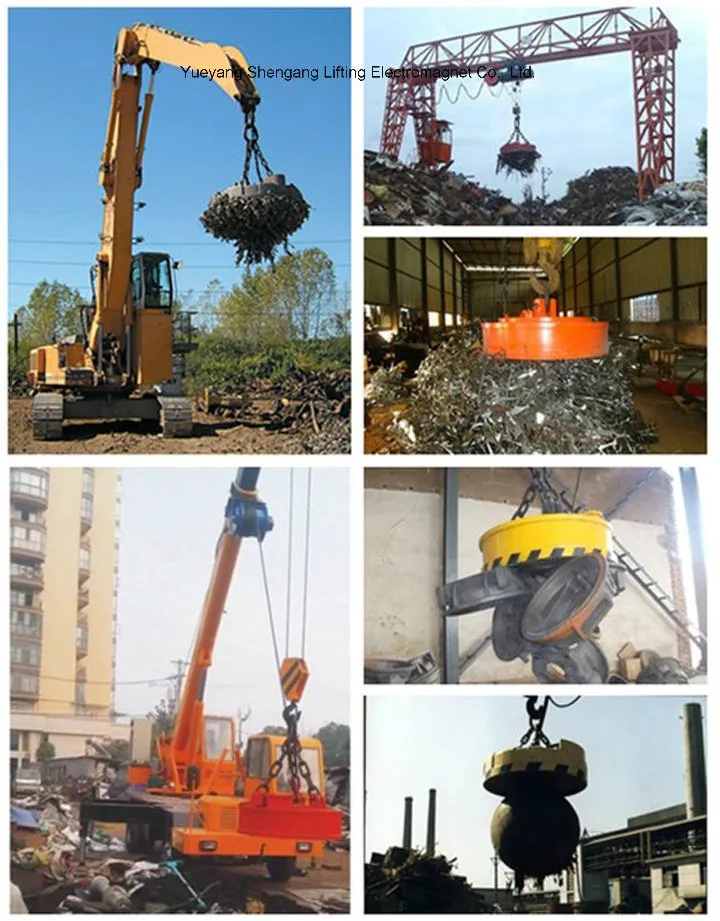

Lifting magnet is suitable for transporting ingots, steel chips, slabs, steel plates and various kinds of steel scraps. It can be installed on excavators and cranes.

Key Benefits:

75% or 60% Duty Cycle
All welded heavy duty construction
Cool operating design
Class H insulation
Powerful deep magnetic field design
Aluminum Coil, Copper optional
Quick disconnect lead assembly

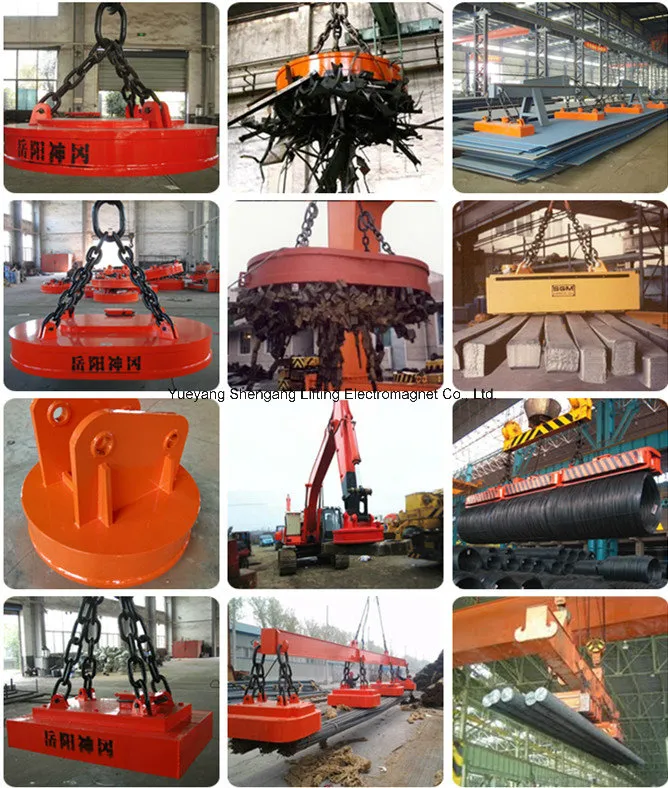

Available Magnet Types:

Circular: Available diameters from 500 mm up to 3000 mm
Square / Rectangular
Heat insulated magnets (for temperatures up to 700° C)
Magnets for any climatic requirements
Magnets comply with IP54 safety requirements

📊 Product Parameters

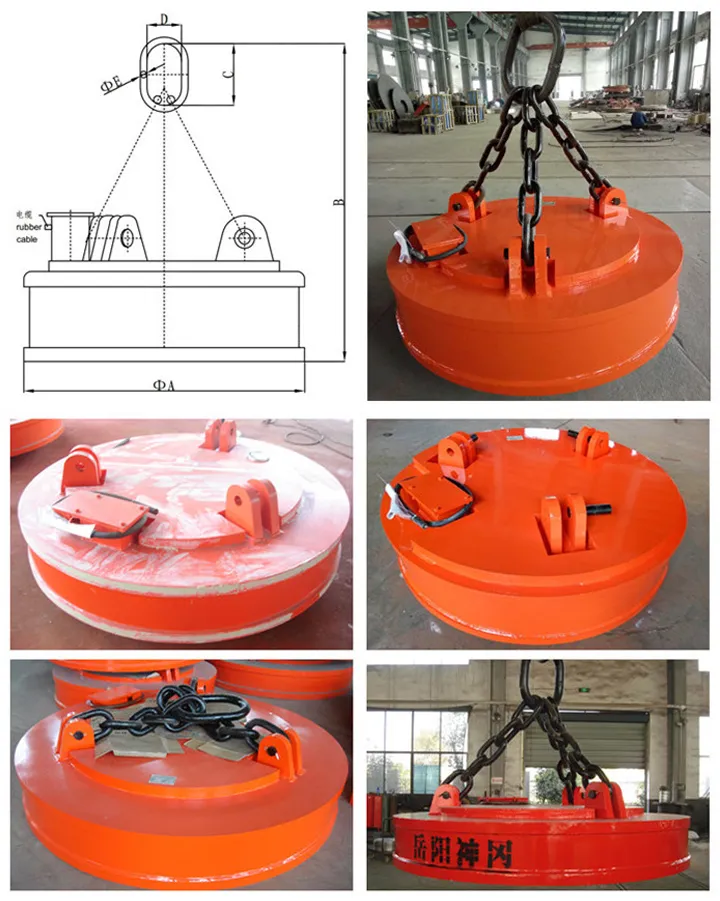

Model	Electric Current (A)	Cold Power (kw)	Lifting Capacity (kg)			Mass (kg)	Dimension (mm)
Model	Electric Current (A)	Cold Power (kw)	Steel Ball	Cast Iron	Steel Scrap	Mass (kg)	A	B	C	D	E
MW5-70L/1	15	3.3	2500	380/200	120/100	490	700	800	160	90	30
MW5-80L/1	18	3.96	3000	480/250	150/300	620	800	800	160	90	30
MW5-90L/1	26.6	5.9	4500	650/440	250/200	800	900	1090	200	125	40
MW5-110L/1	35	7.7	6500	1000/800	450/400	1350	1100	1140	220	150	45
MW5-120L/1	45.5	10	7500	1300/1000	600/500	1700	1200	1100	220	150	45
MW5-130L/1	54	12	8500	1400/1100	700/600	2010	1300	1240	250	175	50
MW5-150L/1	71.2	15.6	11000	1900/1500	1100/900	2830	1500	1250	350	210	60
MW5-165L/1	75	16.5	12500	2300/1800	1300/1100	3200	1650	1590	370	230	75
MW5-180L/1	102	22.5	14500	2750/2100	1600/1350	4230	1800	1490	370	230	75
MW5-210L/1	129	28.4	21000	3500/2800	2200/1850	7000	2100	1860	400	250	80
MW5-240L/1	154	33.9	28000	4800/3800	2850/2250	9000	2400	2020	450	280	90

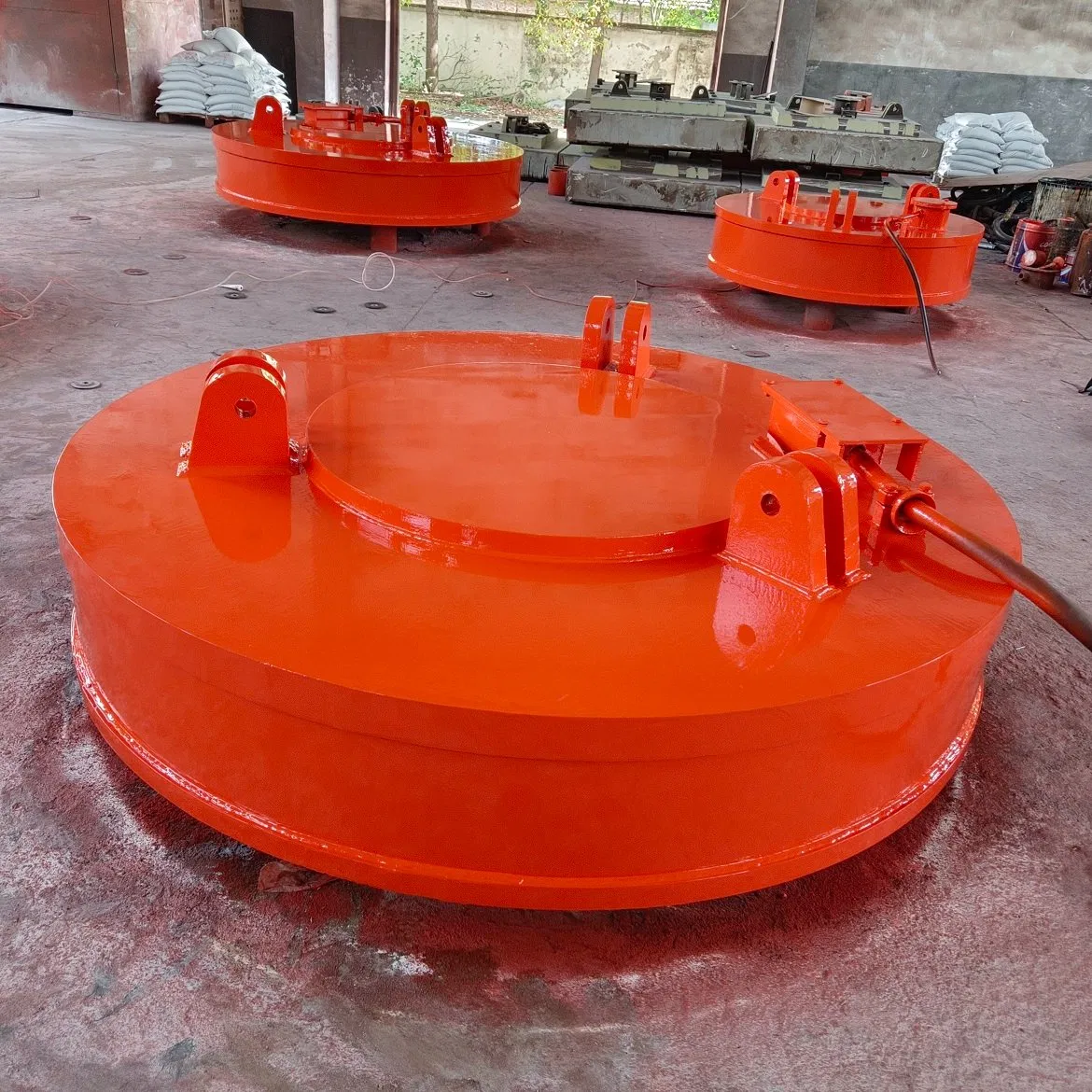

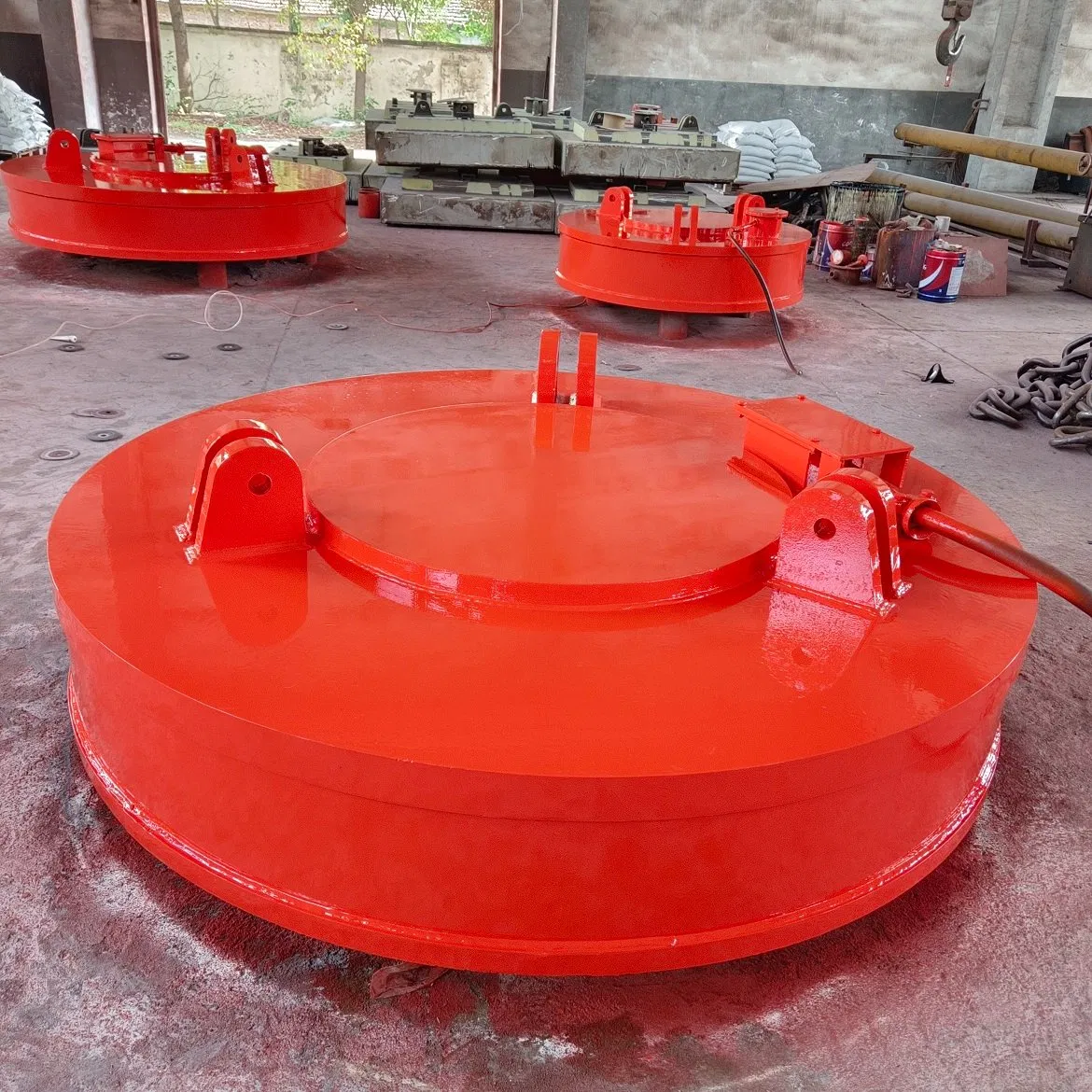

📷 Detailed Photos

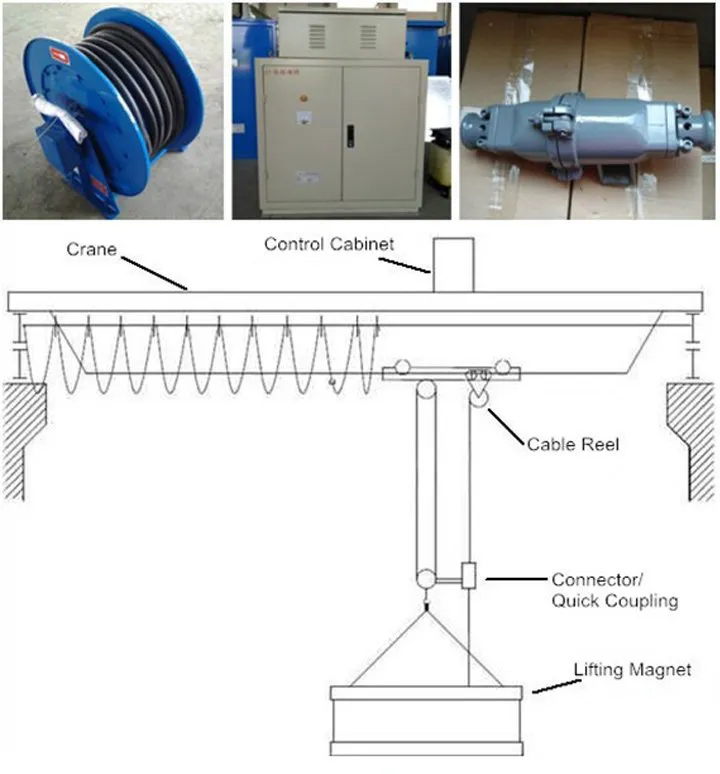

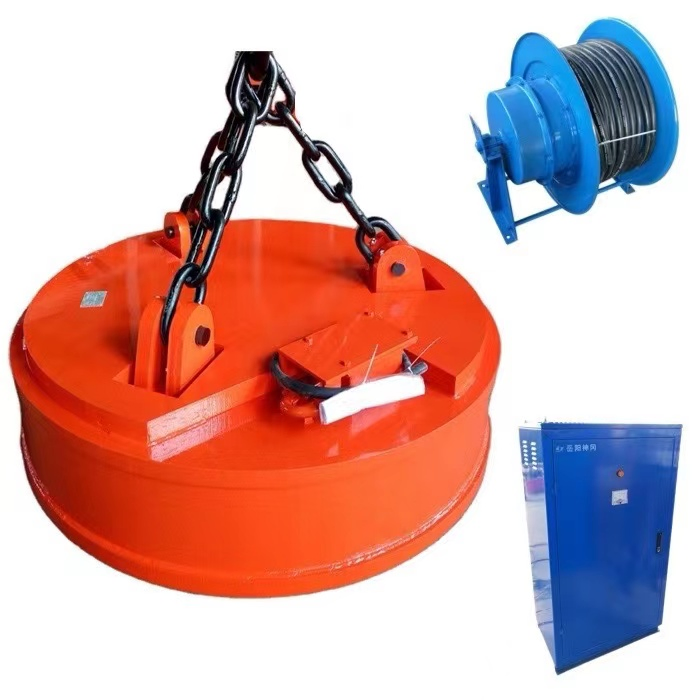

Complete set of equipment:
· Lifting electromagnet;
· Spring type cable reel with Cable;
· Rectifier control cabinet (Normal, Strong excitation, or Battery back-up type);
· Cable connector / Quick coupling.

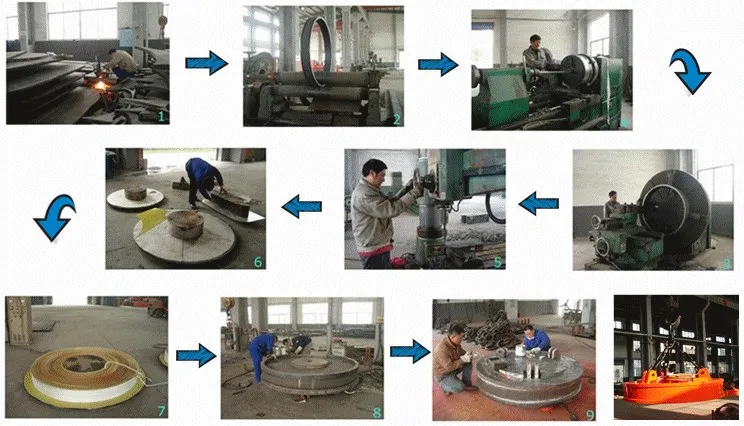

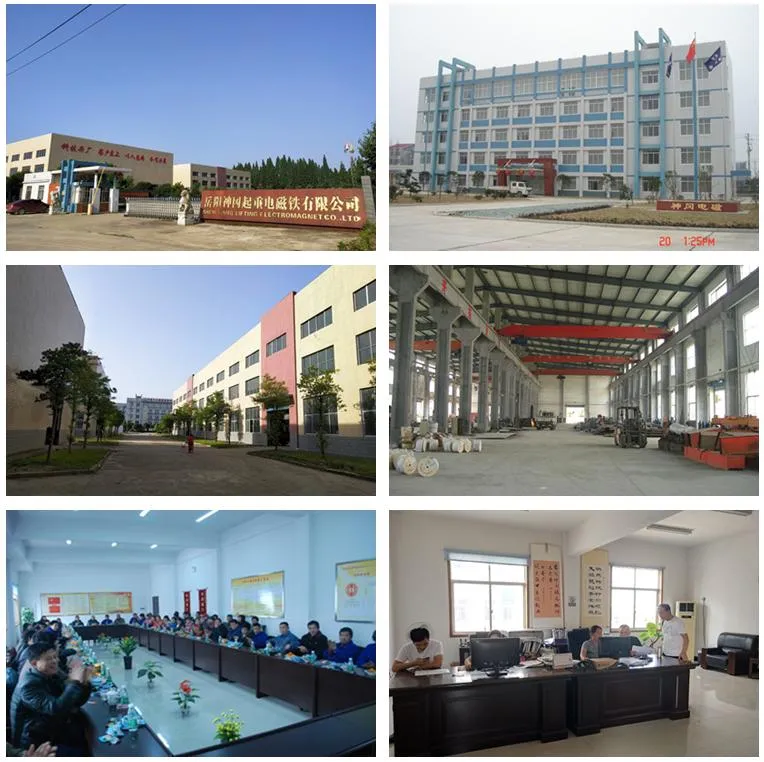

🏢 Other Models & Factory

📜 Certifications

📦 Packaging & Shipping

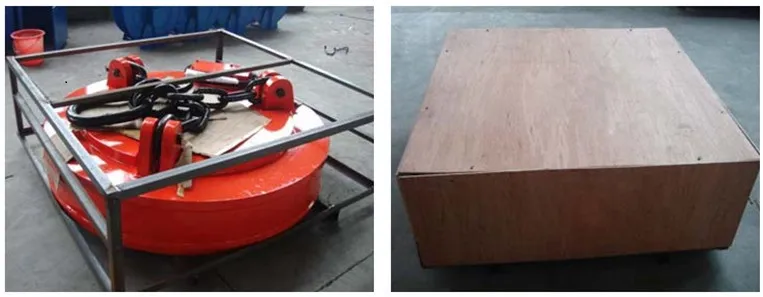

The package consists of an angle steel welded frame, fixed with five-layer plywood on the outside to ensure safety during long-distance transportation. Fumigation is not required.

❓ Frequently Asked Questions

Why should customers choose our lifting magnets?

We are a professional manufacturer with 19 years of experience. With our own factory, we provide competitive pricing, strict quality control, and reliable after-sales service.

What are the standard payment terms?

Our standard terms are a 30% T/T deposit, with the remaining 70% balance due before delivery from the factory.

How long does the delivery usually take?

Standard models are typically shipped within 10 working days after the deposit is confirmed. Customized models depend on specific production requirements.

How can I get an accurate freight cost?

Please provide your destination port so we can calculate and provide the most accurate shipping rates for your order.

Do you offer OEM or customized design services?

Yes, we welcome OEM and ODM orders. Our engineers will provide technical proposals based on your detailed application requirements and nameplate designs.

What is the warranty period and after-sales support?

Our products come with a 12-month warranty from the date of delivery. We also provide engineering support for international markets. Our modern technology ensures high durability and low maintenance.
