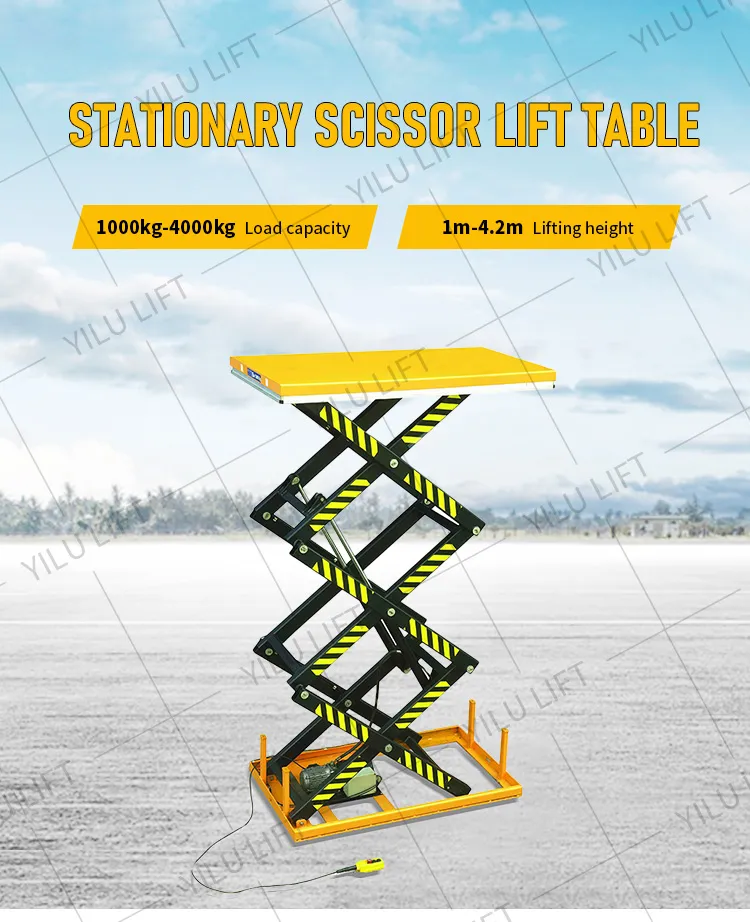

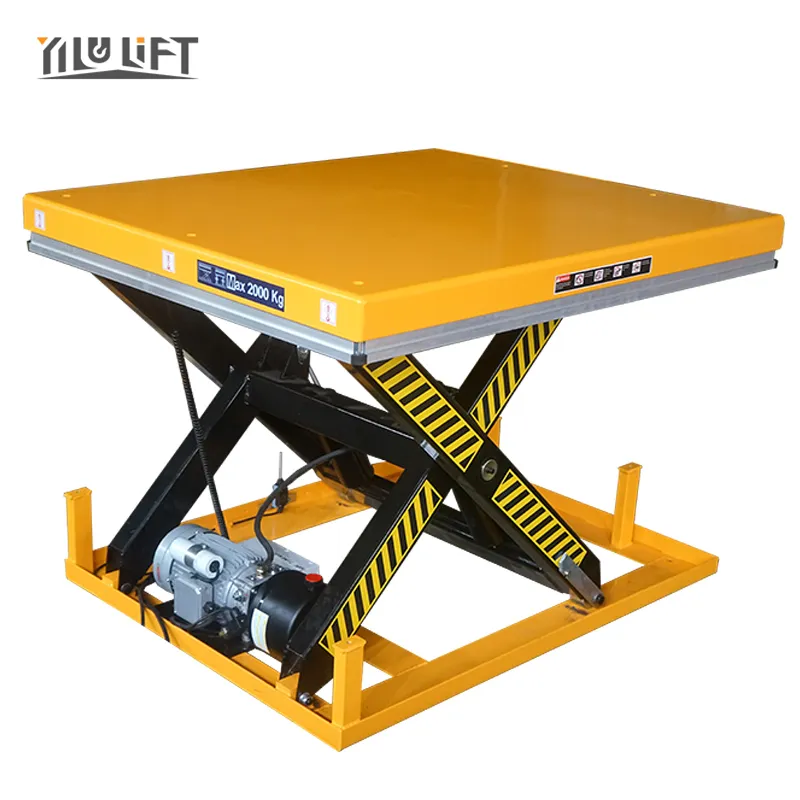

Stationary Electric Hydraulic Scissor Lift Table
The electric scissor lift table is a premier model for material handling, equipped with a robust hydraulic lifting system and precision electric controls. Designed for stability and ease of installation, it offers a low failure rate for intensive industrial use. Standard capacities range from 1,000kg to 4,000kg with platform heights up to 1.4m. It is widely utilized in warehouses, workshops, and construction sites for efficient cargo handling.

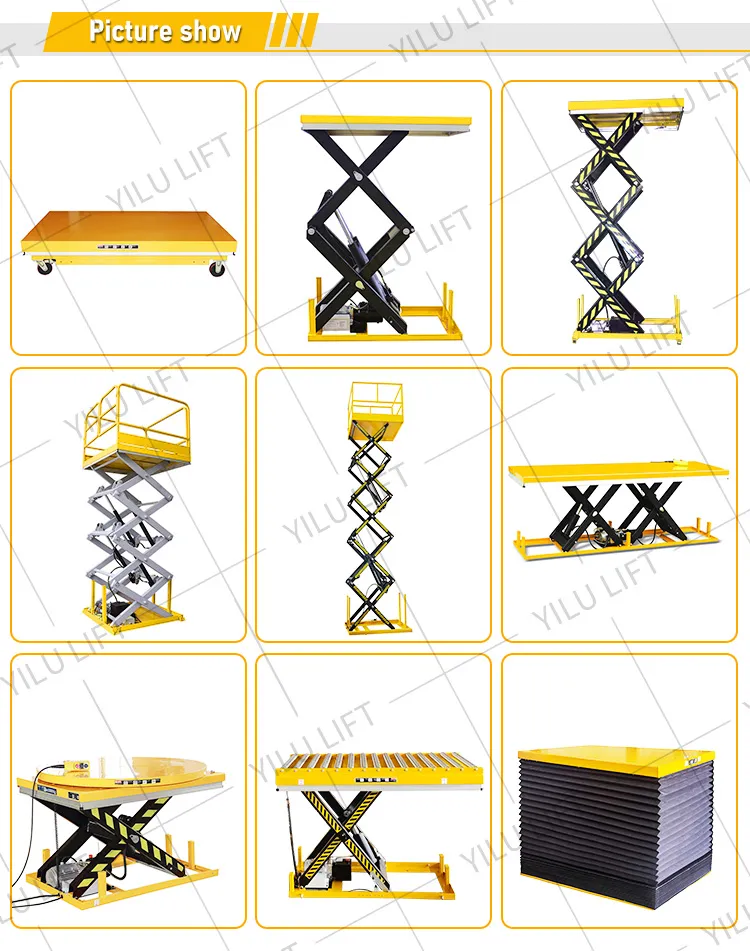

| Series | Model | Load (KG) | Self Height (MM) | Max Platform Height (MM) | Platform Size (MM) | Lifting Time (S) |
|---|---|---|---|---|---|---|

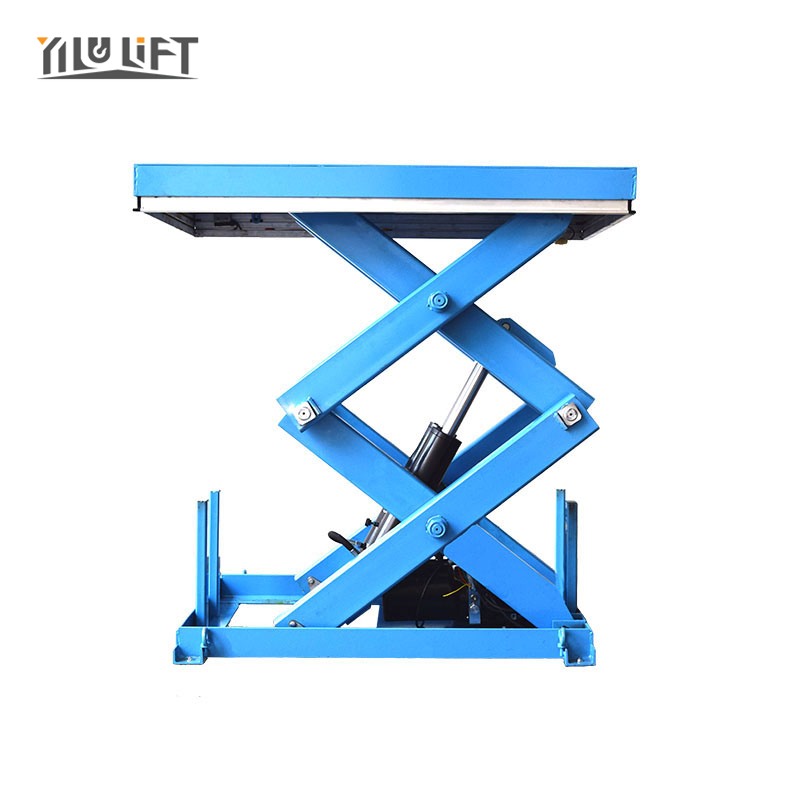

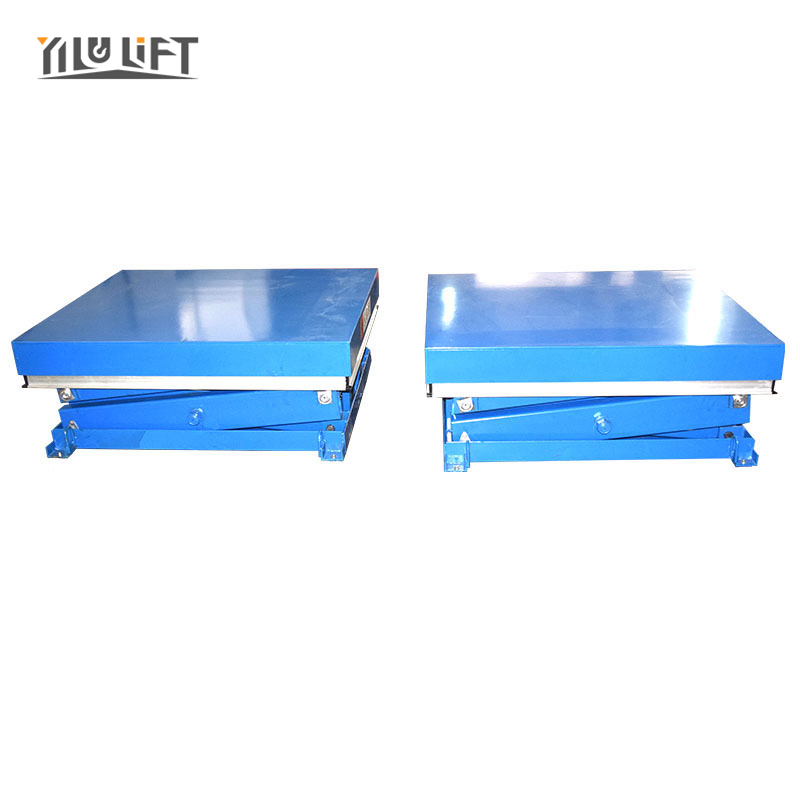

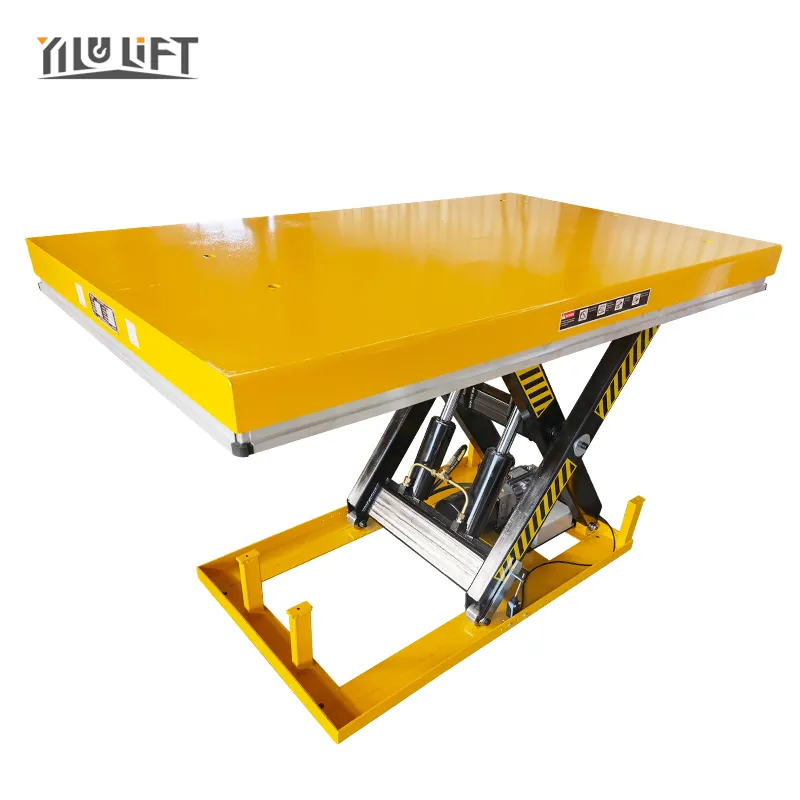

| Single Scissor | HW1001 | 1000 | 205 | 990 | 1300×820 | 20~25 |
| Single Scissor | HW2001 | 2000 | 230 | 1000 | 1300×850 | 20~25 |
| Single Scissor | HW4001 | 4000 | 240 | 1050 | 1700×1200 | 30~40 |

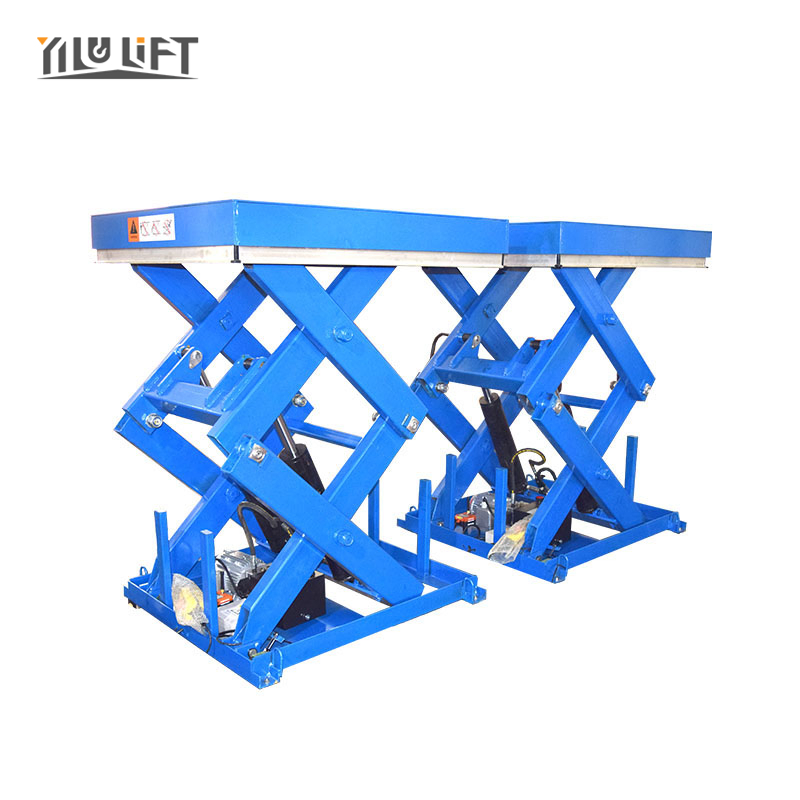

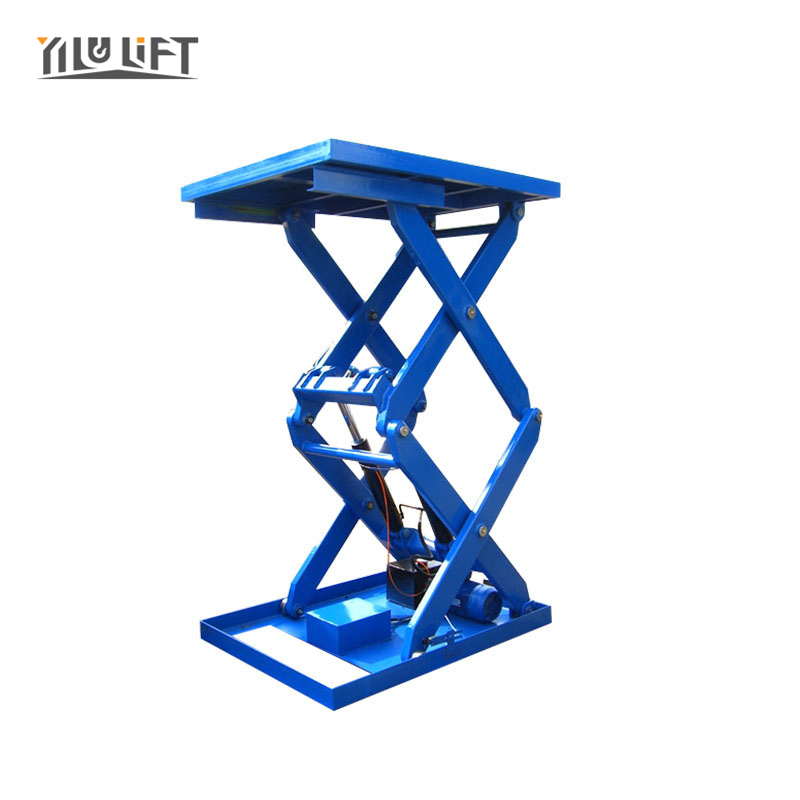

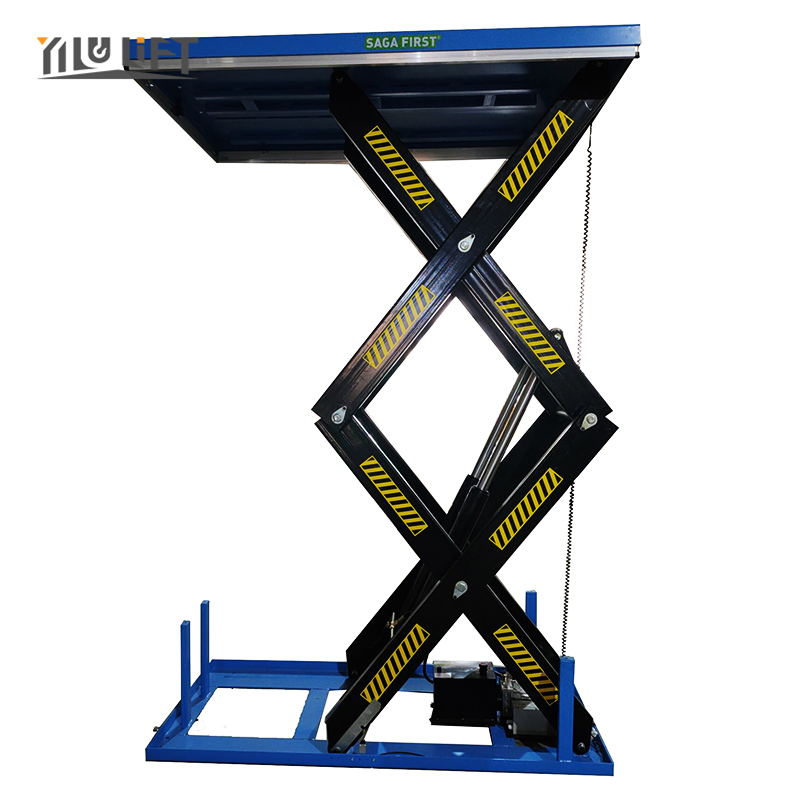

| Double Scissors | HD1000 | 1000 | 305 | 1780 | 1300×820 | 35-45 |
| Three Scissors | HT1000 | 1000 | 470 | 3000 | 1700×1000 | 35-45 |
| Four Scissors | HF2000 | 2000 | 850 | 4200 | 2500×1500 | 80-90 |
🚀 Stable Operation: High-quality pump stations ensure smooth lifting and lowering.
🛠️ Anti-Pinch Design: Safe clearance between scissors prevents damage during operation.
🛡️ Surface Protection: Shot blasting and stoving varnish provide superior anti-corrosion.
📐 Safety Sensors: Aluminum safety sensors under the platform stop movement upon contact with barriers.
🔧 Easy Maintenance: Brief structure allows for straightforward operation and servicing.
🌍 Standards: Fully compliant with ANSI/ASME (USA) and EN1570 (Europe).
