Hydraulic Loading Truck Dock Equipment for Warehouse Loading Bay

1 / 5

Hydraulic Loading Truck Dock Equipment for Warehouse Loading Bay

Customization:	Available
After-sales Service:	Spare Parts for Direct Replacement
Warranty:	18 Month Since Shipping Date

Send Inquiry

Product Description

📋

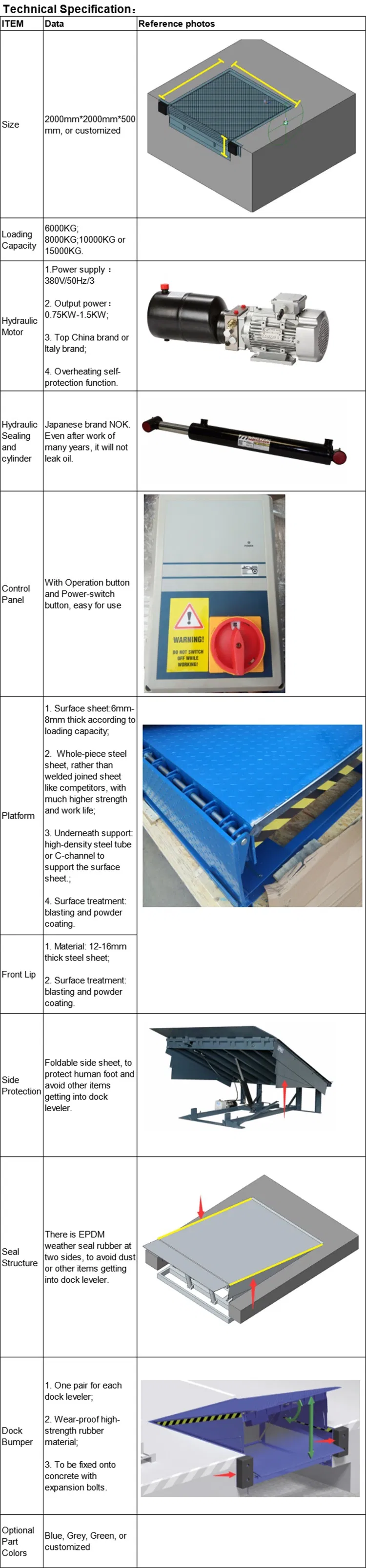

Basic Specifications

Model NO.

Application

Warehouse Loading Dock

Lift Mechanism

Hydraulic Driving

Carrying Capacity

6-15 Ton

Moves

Stationary

Driven Type

Hydraulic

Feature

Explosion-Proof, Automatic

Certification

CE, RoHS, ISO 9001

Standard Size

2500*2000*500 (Customized)

Up-Down Scope

Up+350mm, Down-300mm

Surface Treatment

Powder Coated

Power Supply

1-Phase 220V / 3-Phase 380V

Work Power

0.75kw-1.5kw

Color

Blue, Grey, Black, Yellow

📦

Packaging & Delivery

Package Size

200.00cm * 200.00cm * 60.00cm

Gross Weight

800.000kg

Transport Package

Plastic Film

🛠️

Product Description

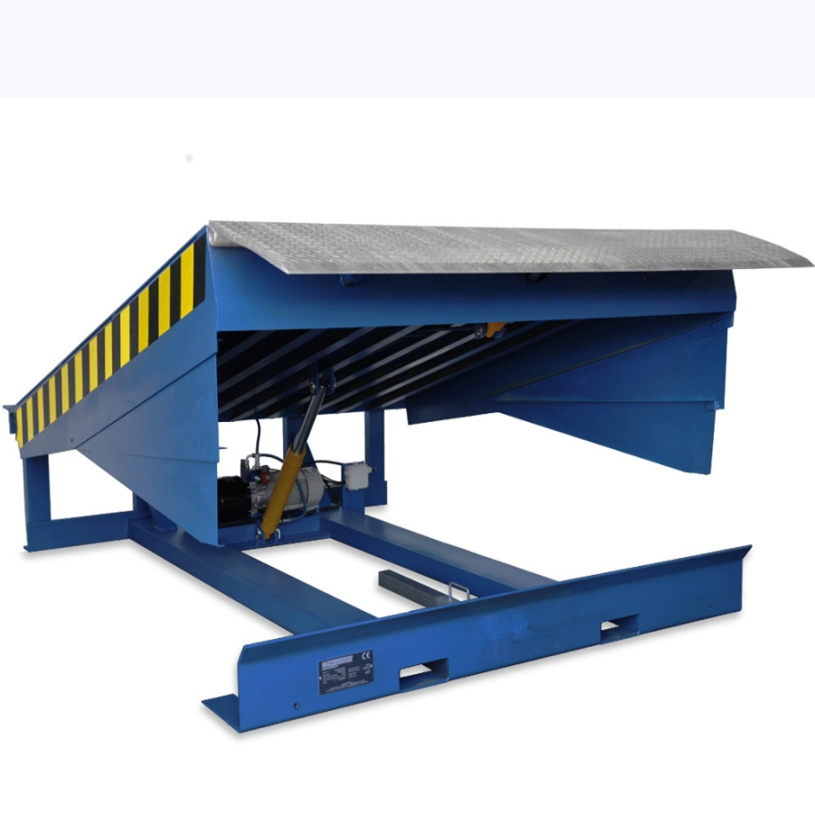

Automatic Stationary Fixed Hydraulic Dock Leveler: Designed for loading bays and docks, enabling forklifts to enter truck containers directly. This system significantly improves loading and unloading efficiency in modern warehouses and factories.

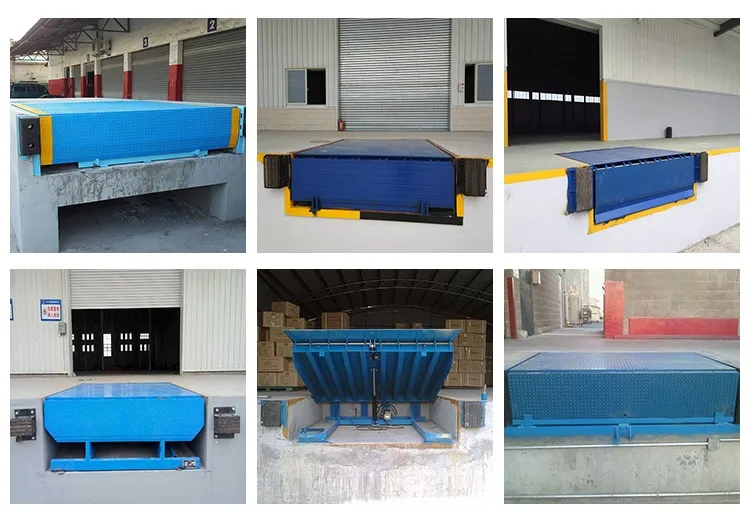

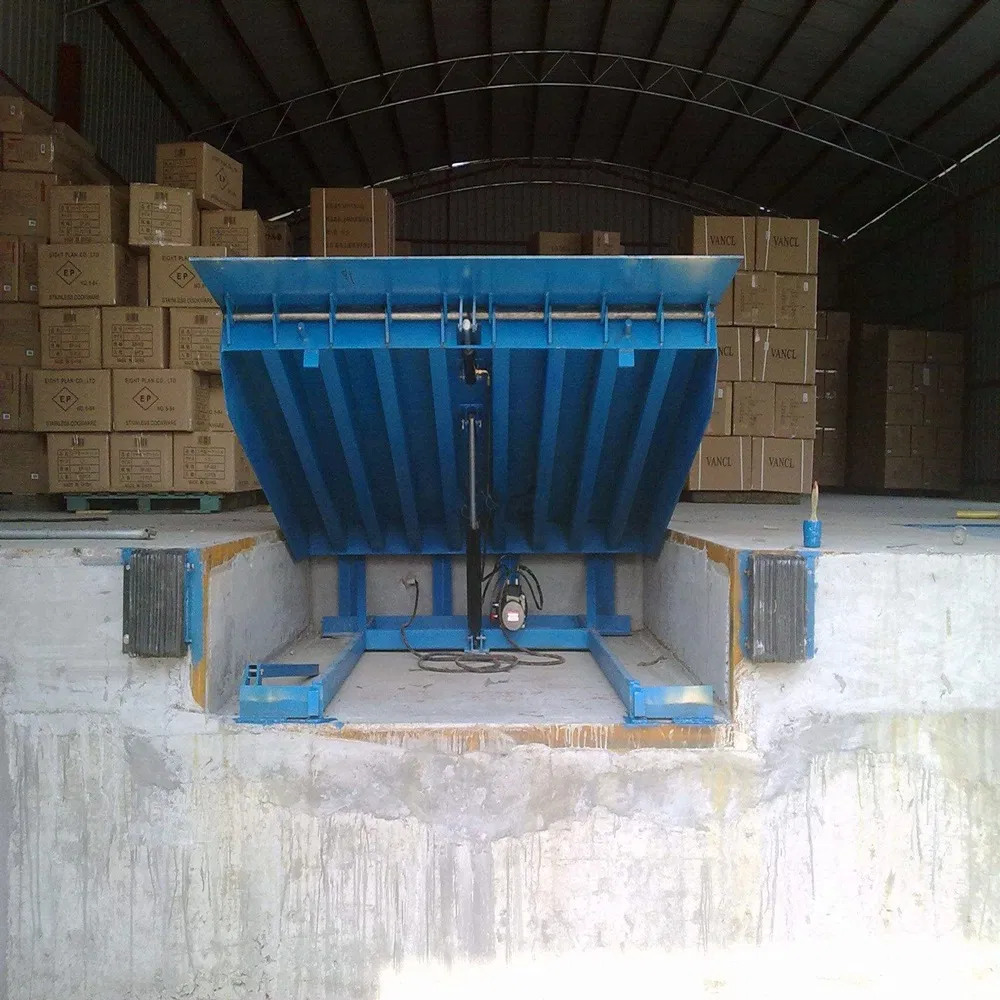

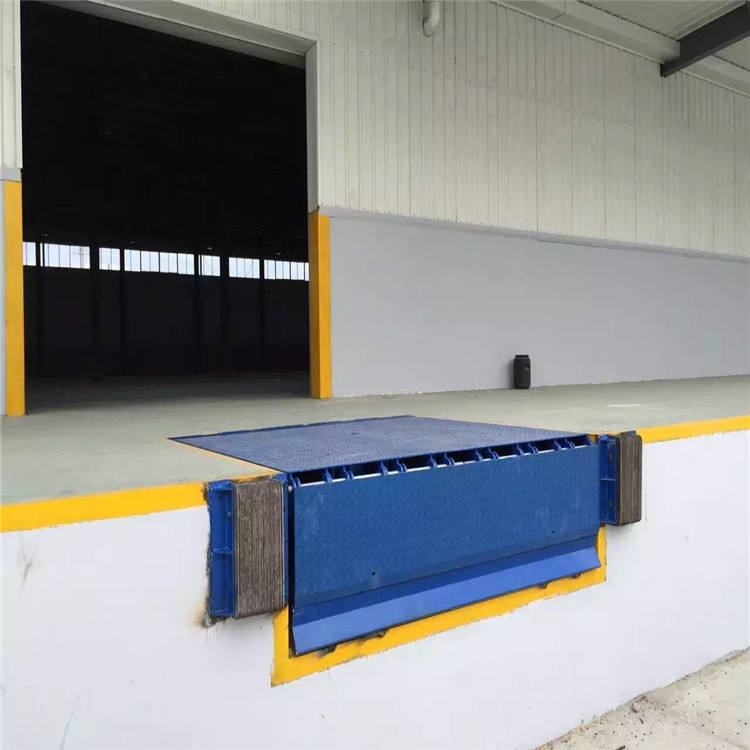

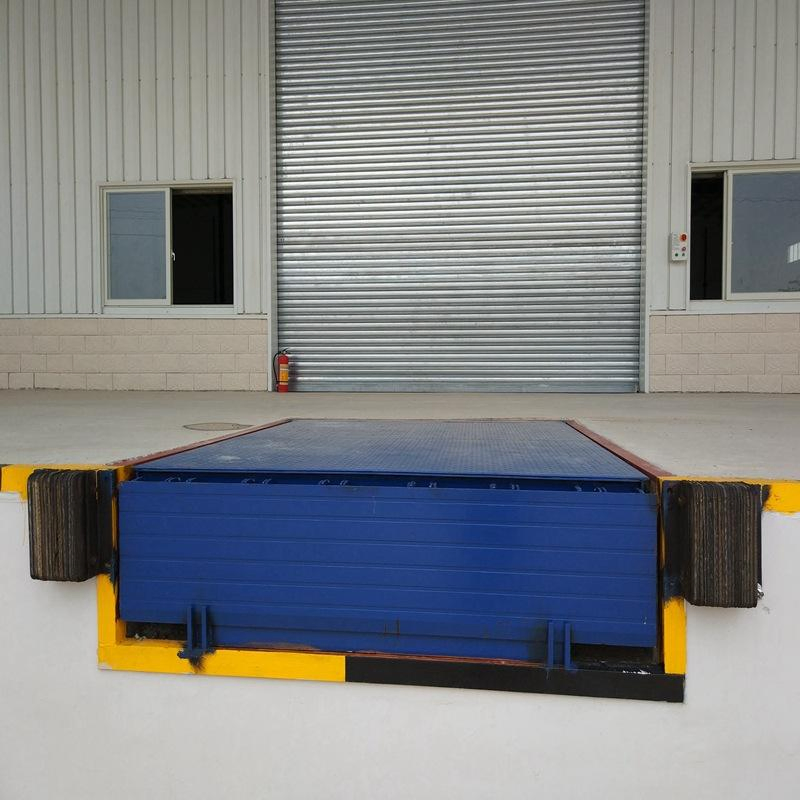

Operational Principle: The stationary fixed dock leveler is installed in a pre-built concrete pit. A high-performance hydraulic motor drives the platform, creating a seamless bridge between the warehouse floor and the truck bed.

🌟

Key Features

✔ High Load Capacity: Can bear 120% of standard nominal load. Static pressure tests show deformation within 3mm, with full recovery after release.

✔ Anti-skid Platform: Made from high-strength 8mm+ thick steel plate with groove milling for maximum safety.

✔ Durable Hardware: Hinges and shafts undergo heat treatment to minimize long-term deformation.

✔ European Standard Hydraulics: Imported drive station ensures stable power, low operating temperatures, and high-frequency reliability.

✔ Anti-Corrosive Finish: Coated with epoxy resin paint for extreme durability in harsh industrial environments.

🏗️

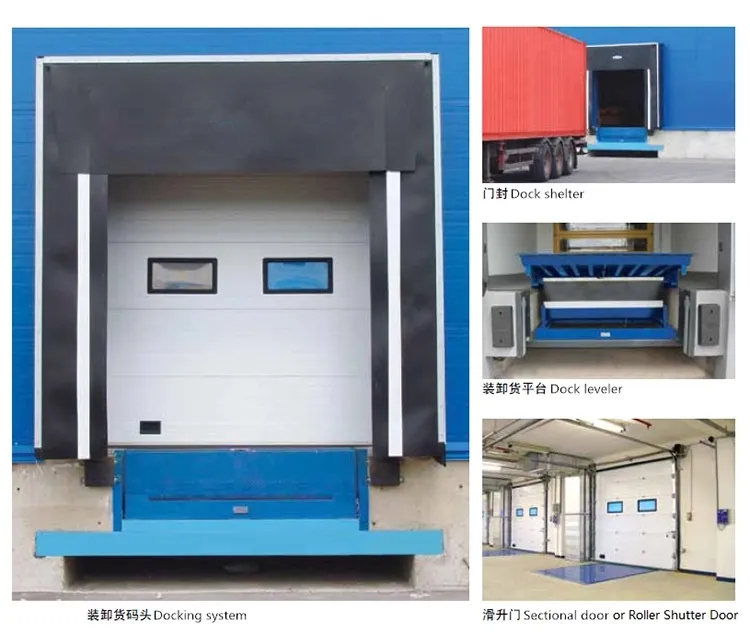

Complete Loading Bay Integration

A complete Loading Bay solution integrates an Overhead Door, Dock Leveler, and Dock Shelter/Seal. This assembly protects the indoor environment and optimizes logistical throughput.

Frequently Asked Questions

Q1: What is the main purpose of a stationary dock leveler?

It bridges the gap between the warehouse floor and the truck container bed, allowing forklifts to drive directly into the truck for efficient loading and unloading.

Q2: What is the maximum weight capacity supported?

Our dock levelers are available in 6 Ton, 10 Ton, and 15 Ton capacities, and are tested to withstand 120% of their nominal load.

Q3: Can the size of the dock leveler be customized?

Yes, while our standard size is 2500*2000*500mm, we provide customization options to fit specific pit dimensions and operational requirements.

Q4: What are the power requirements for the hydraulic system?

The system can be configured for either 1-Phase 220V or 3-Phase 380V power supplies, with a work power range of 0.75kw to 1.5kw.

Q5: How does the surface treatment protect against corrosion?

The equipment is treated with a high-durability epoxy resin powder coating, which provides excellent anti-corrosive properties and long-term wear resistance.

Q6: Is the platform safety-rated for forklifts?

Absolutely. The platform features high-strength 8mm+ thick steel with an anti-skid milled surface to ensure safe movement for forklifts and personnel.
