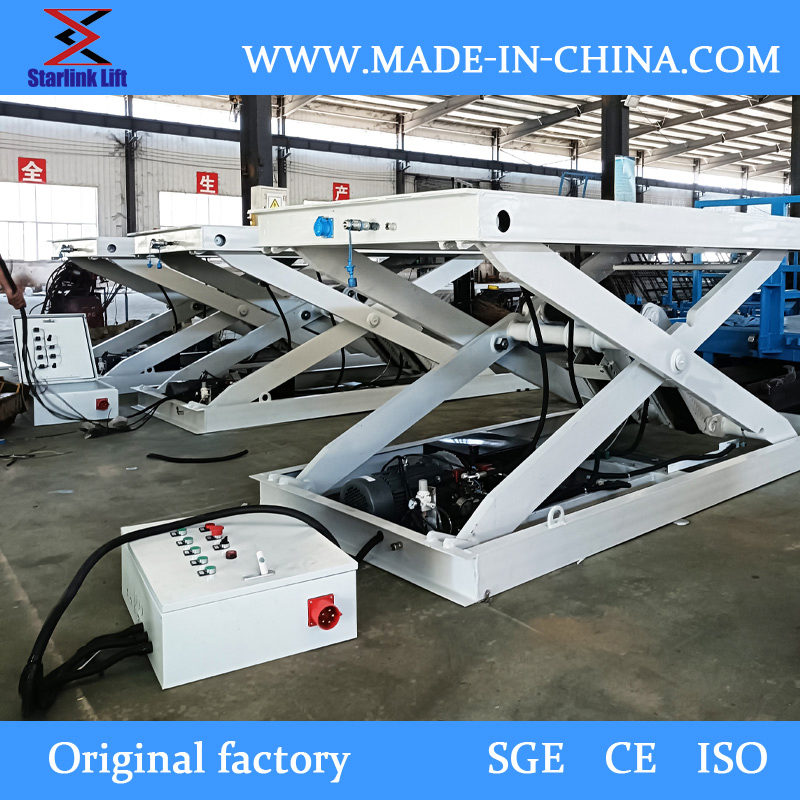

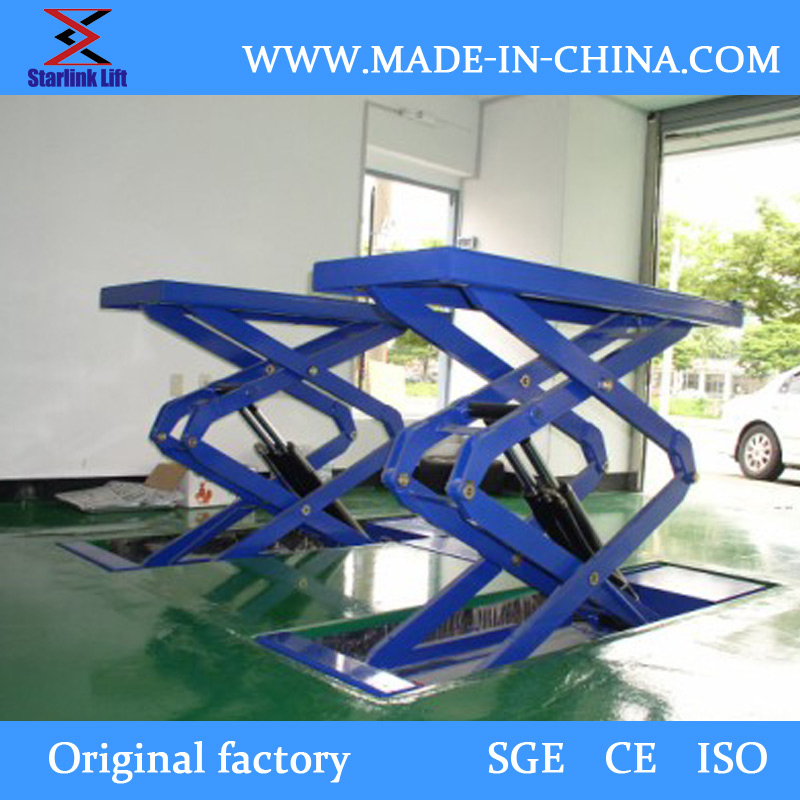

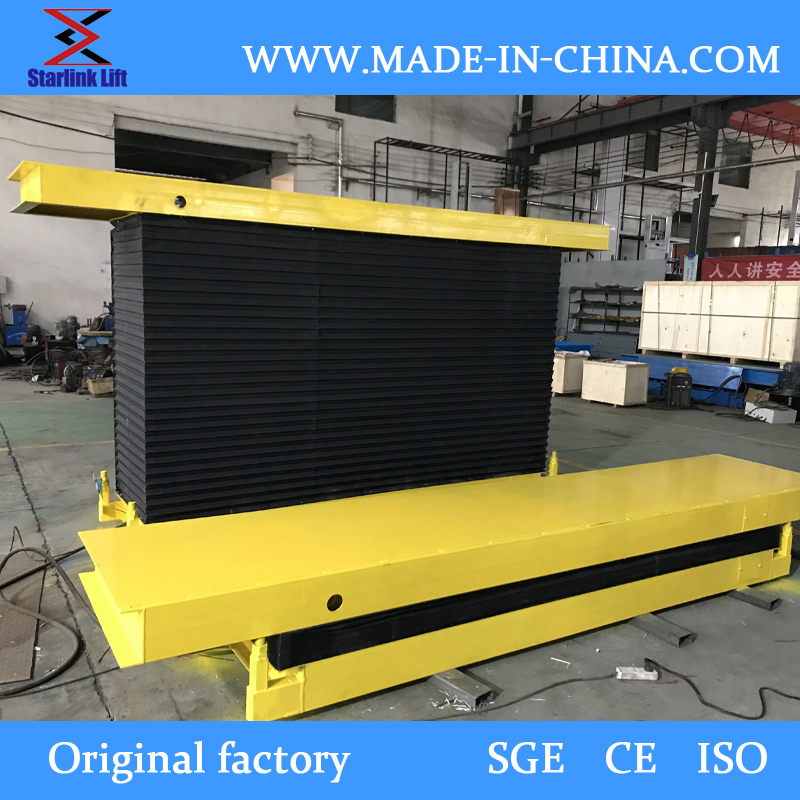

Hydraulic Scissor Lifting Equipment for Loading Bay Loading Dock Lift
Hydraulic Scissor Lifting Equipment for Loading Bay Loading Dock Lift
Hydraulic Scissor Lifting Equipment for Loading Bay Loading Dock Lift
Hydraulic Scissor Lifting Equipment for Loading Bay Loading Dock Lift
Hydraulic Scissor Lifting Equipment for Loading Bay Loading Dock Lift
1 / 5
Hydraulic Scissor Lifting Equipment for Loading Bay Loading Dock Lift
Hydraulic Scissor Lifting Equipment for Loading Bay Loading Dock Lift
Hydraulic Scissor Lifting Equipment for Loading Bay Loading Dock Lift
Hydraulic Scissor Lifting Equipment for Loading Bay Loading Dock Lift
Hydraulic Scissor Lifting Equipment for Loading Bay Loading Dock Lift

Hydraulic Scissor Lifting Equipment for Loading Bay Loading Dock Lift

Customization: Available
After-sales Service: 24-Hour Online24-Hour Online Service
Warranty: One Year
Send Inquiry

Product Description

📊

Basic Information

Model SJG / SLGJ Application Workshop, Warehouse, Building
Lift Mechanism Scissor Lift Driven Type AC Power
Running Mode Stationary Feature Insulating / High-Duty
Certification ISO 9001 Material High-Duty Steel Structure
📝

Product Description

Fixed hydraulic lift is a specialized stationary transportation equipment designed to lift goods between different heights. Known for its safety and high load capacity, it is an essential tool for material handling between building floors, loading bays, and basement garages.
Hydraulic Scissor Lifting Equipment
🔍

Key Features & Technical Details

Our lifting platforms are highly customizable based on lifting height, platform size, and bearing capacity to suit specific operational environments.

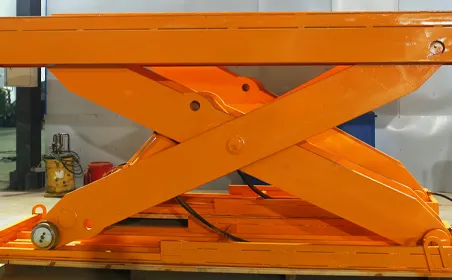

Thickened Scissors

Thickened Scissors

Anti-pinch design with high-quality steel for enhanced stability.

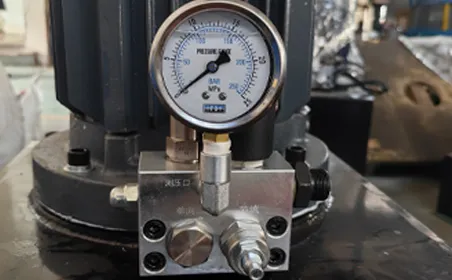

Emergency Descent

Emergency Descent

Manual adjustment system to ensure safety during power outages.

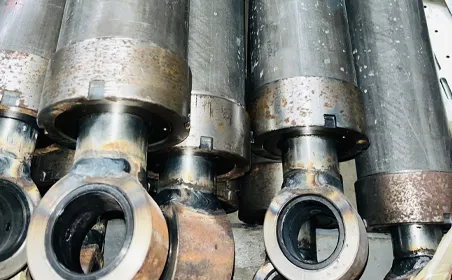

Hydraulic Cylinder

Hydraulic Cylinder

Optimized working pressure for extended component lifespan.

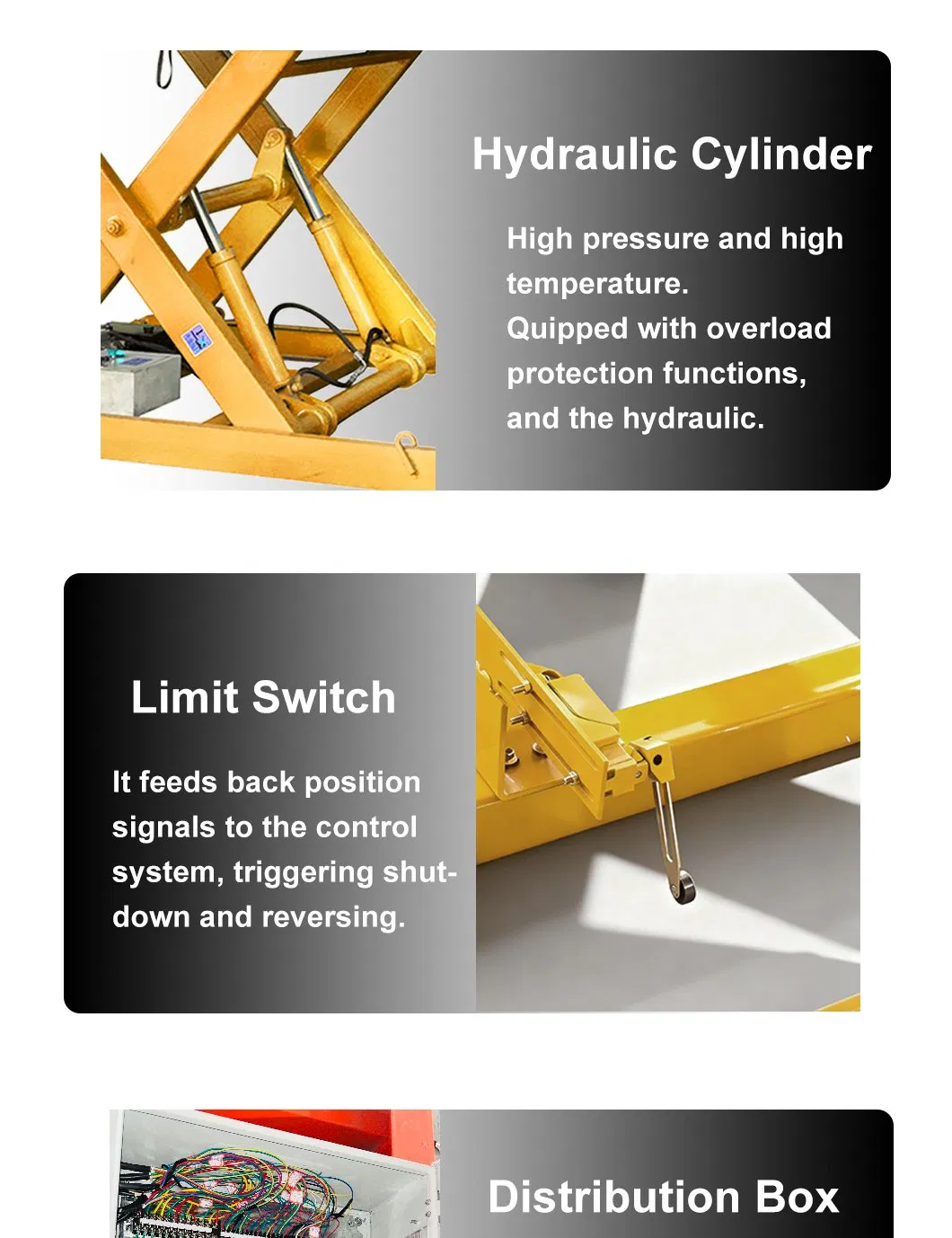

Heavy Duty Chain

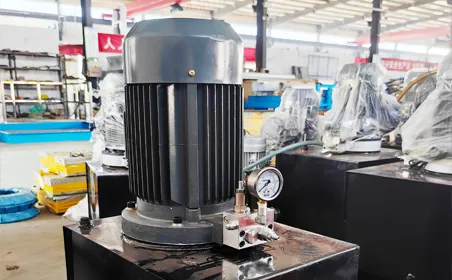

Pump Station

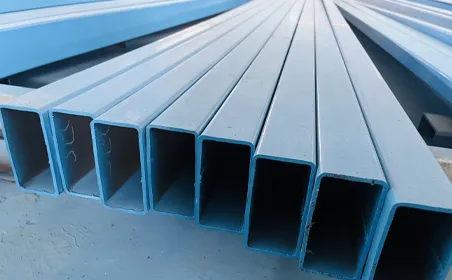

High Quality Steel
📏

Technical Parameters

Model Load (kg) CH (mm) Stroke (mm) L x W (mm) Voltage (V)
SLGJ2.5-3250050030002500*5500220/380/415
SLGJ3-3300050030002500*5500220/380/415
SLGJ4-3400060030002500*5500220/380/415
SLGJ5-3500060030002500*5500220/380/415
SLGJ3-6300080060002500*5500220/380/415
SLGJ4-6400080060002500*5500220/380/415
Note: Customizable solutions are available to meet specific load and dimension requirements.
🛠️

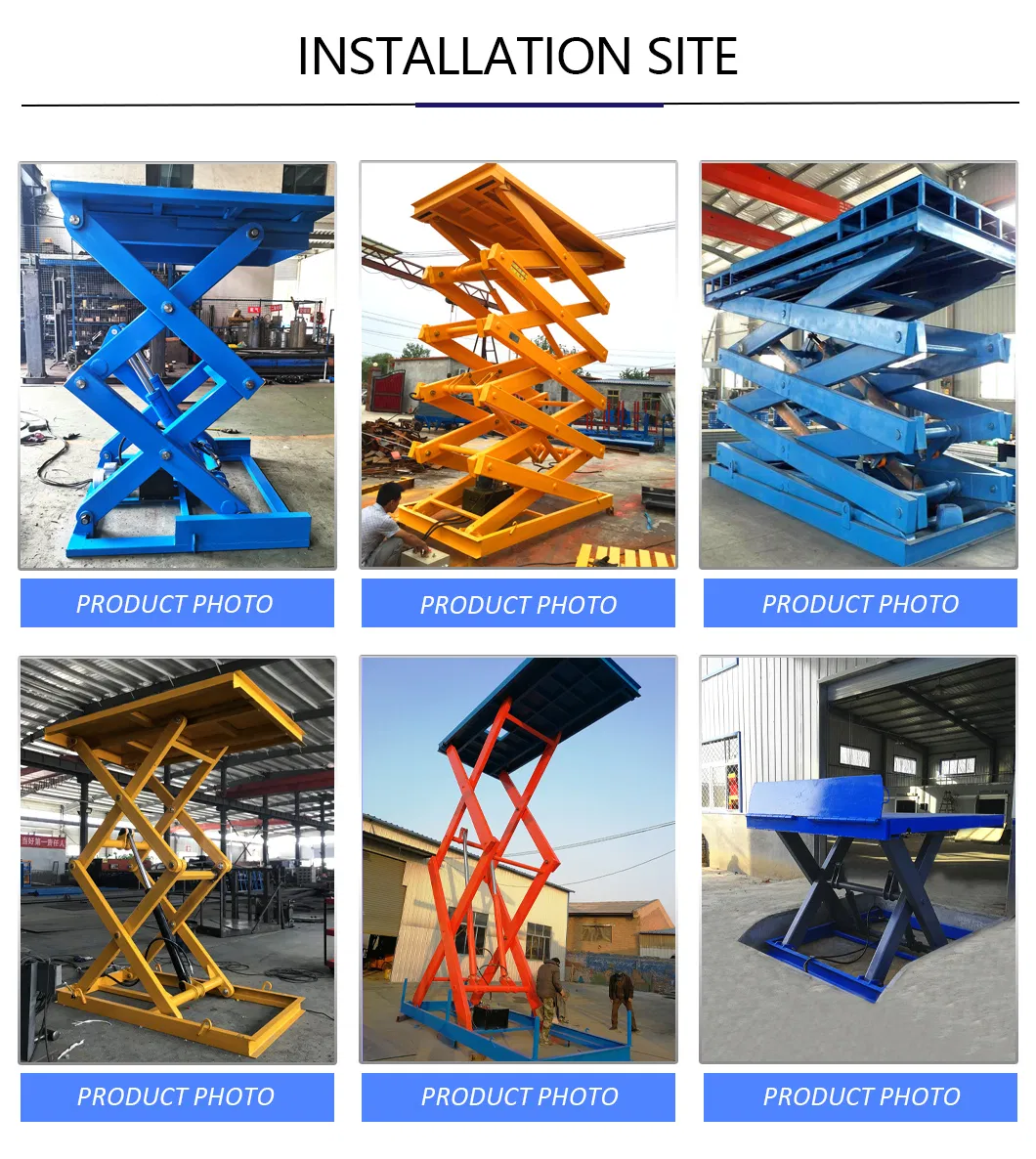

Installation Example

Installation Example
📦

Packaging & Shipping

Packaging
Shipping
❓

Frequently Asked Questions

What are the primary applications for this fixed hydraulic lift?
It is ideal for workshop loading bays, warehouses, building floors, and vehicle lifting in basement garages.
Can the platform size and load capacity be customized?
Yes, we provide fully customizable solutions where platform dimensions, lifting height, and bearing capacity are combined according to your environment.
What safety features are integrated into the equipment?
The lift includes an anti-pinch design, emergency descent valves for power failure, and a heavy-duty safety chain with 10x rated weight capacity.
What type of steel is used in the construction?
We use selected high-strength manganese steel, which offers 17% higher rigidity than ordinary steel for better structural stability.
Is the equipment compatible with international voltage standards?
Yes, the hydraulic pump station supports multiple voltage options including 220V, 380V, and 415V to suit local power grids.
How is the equipment protected during international shipping?
We use a robust combination of steel pallets, buffer sponges, bubble bags, and waterproof packaging to ensure safe delivery.
