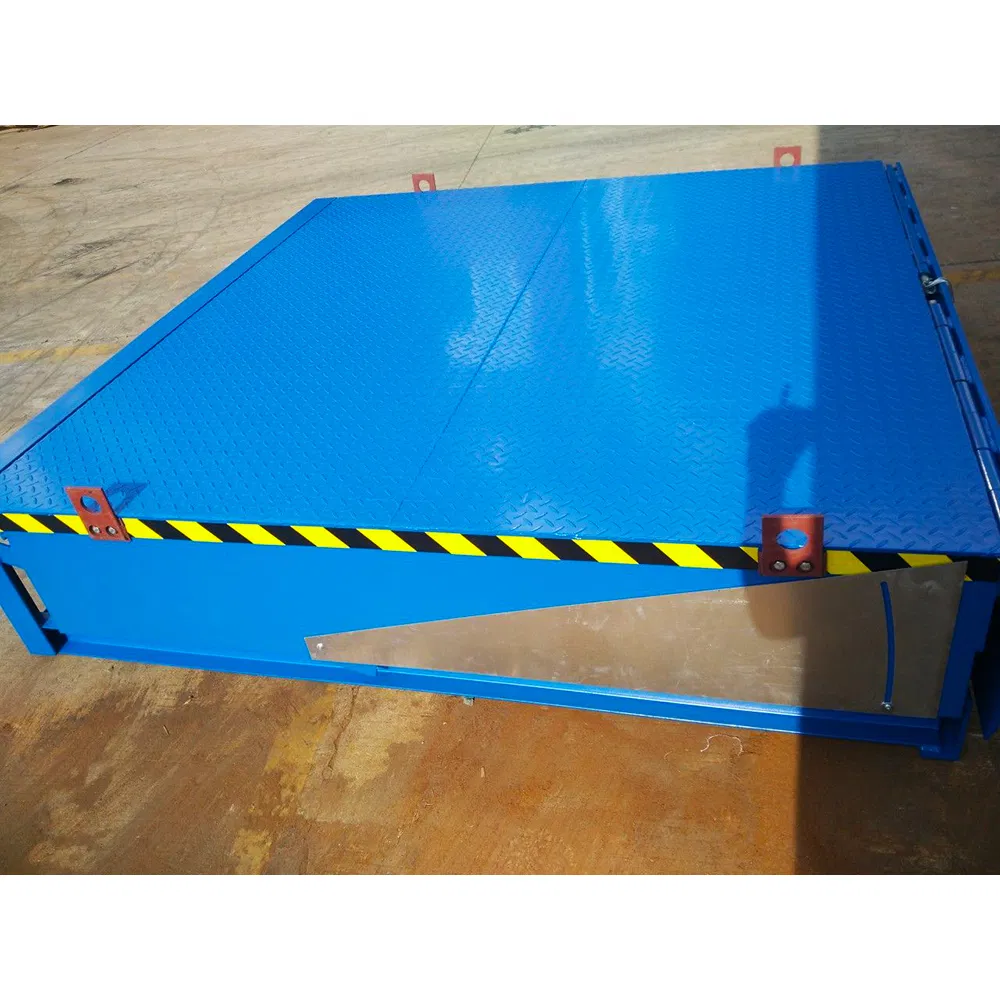

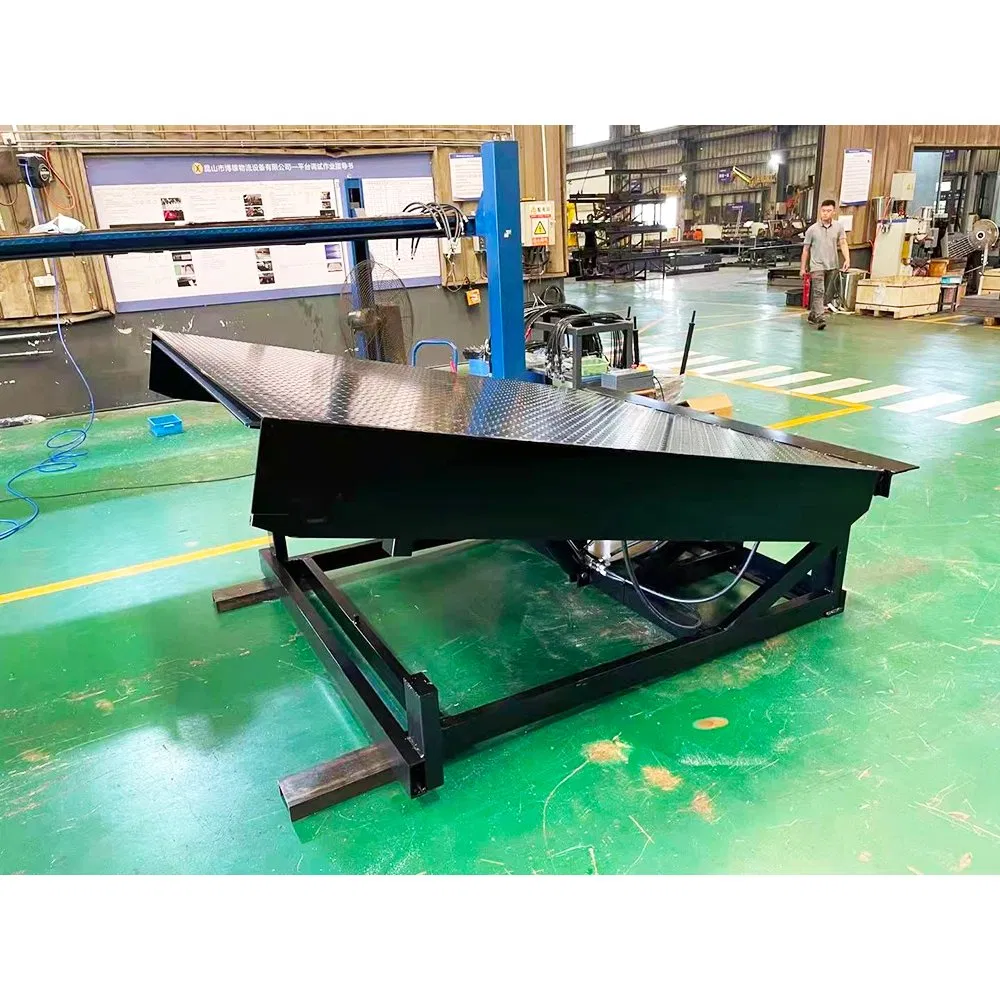

Manual Automatic Stationary Yard Ramp Fixed Loading Platform Hydraulic Dock Leveler Lifting Equipment

Customization:	Available
After-sales Service:	Yes
Warranty:	12 Months

Send Inquiry

Product Description

Basic Info

Model NO.

XF-O-2500

Lift Mechanism

Hydraulic Cylinder

Carrying Capacity

6t / 8t / 10t

Moves

Stationary

Driven Type

Hydraulic

Feature

Explosion-Proof

Certification

CE, ISO 9001

Voltage

220V 50Hz / 380V 50Hz

Power

0.75 Kw / 1.5kw

Specification

2000*2000*600 mm

Packaging & Delivery

Package Size

200.00cm * 200.00cm * 60.00cm

Package Gross Weight

1000.000kg

Product Description

TECHNICAL PARAMETERS

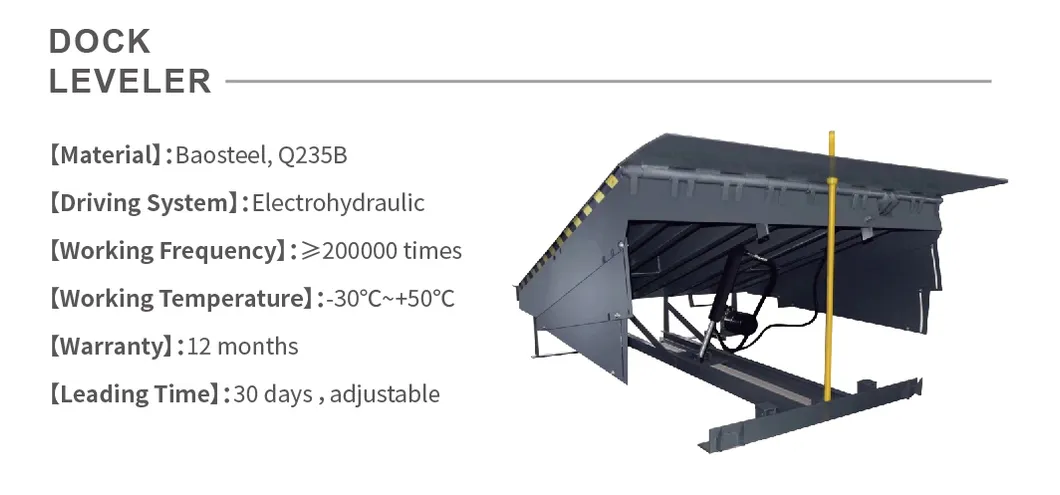

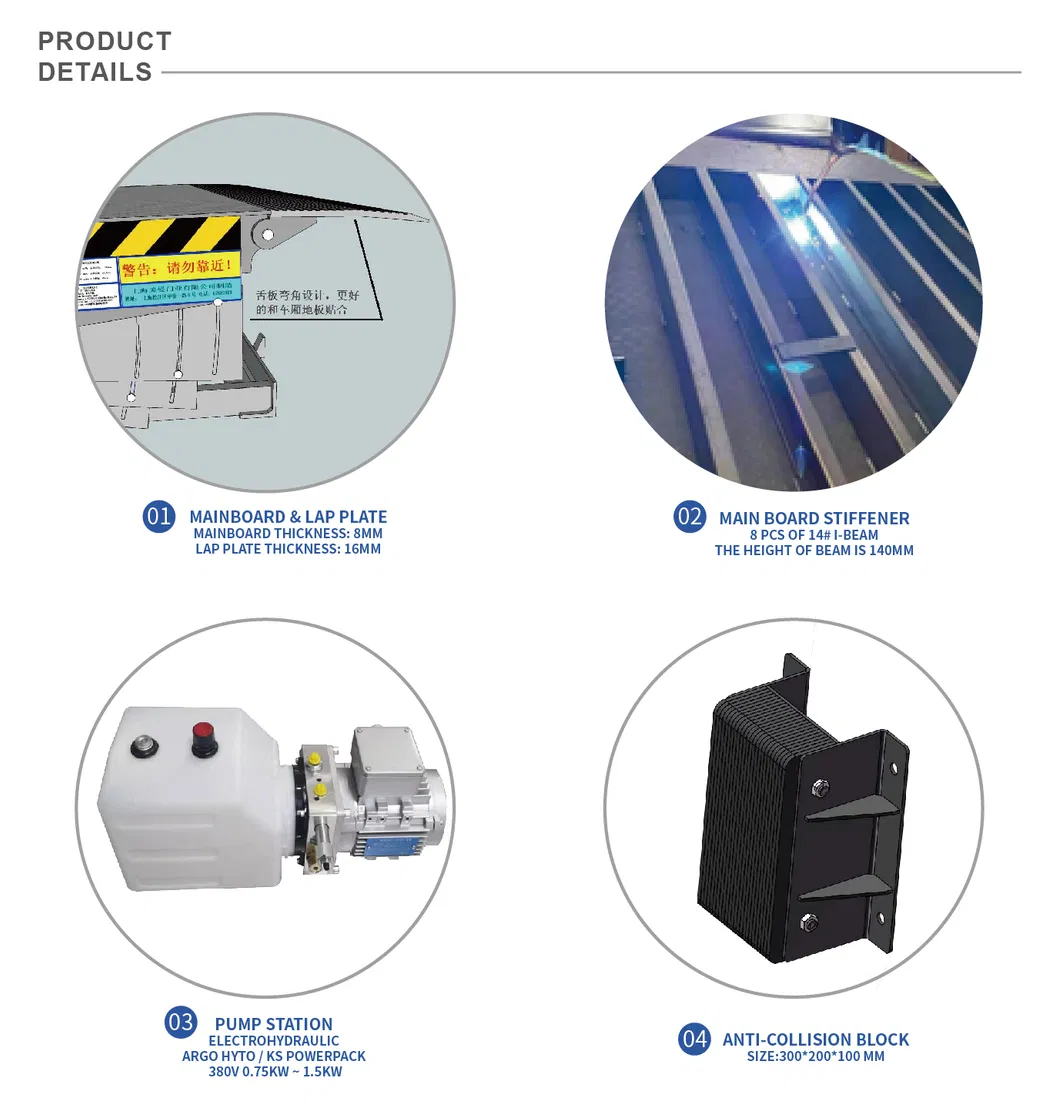

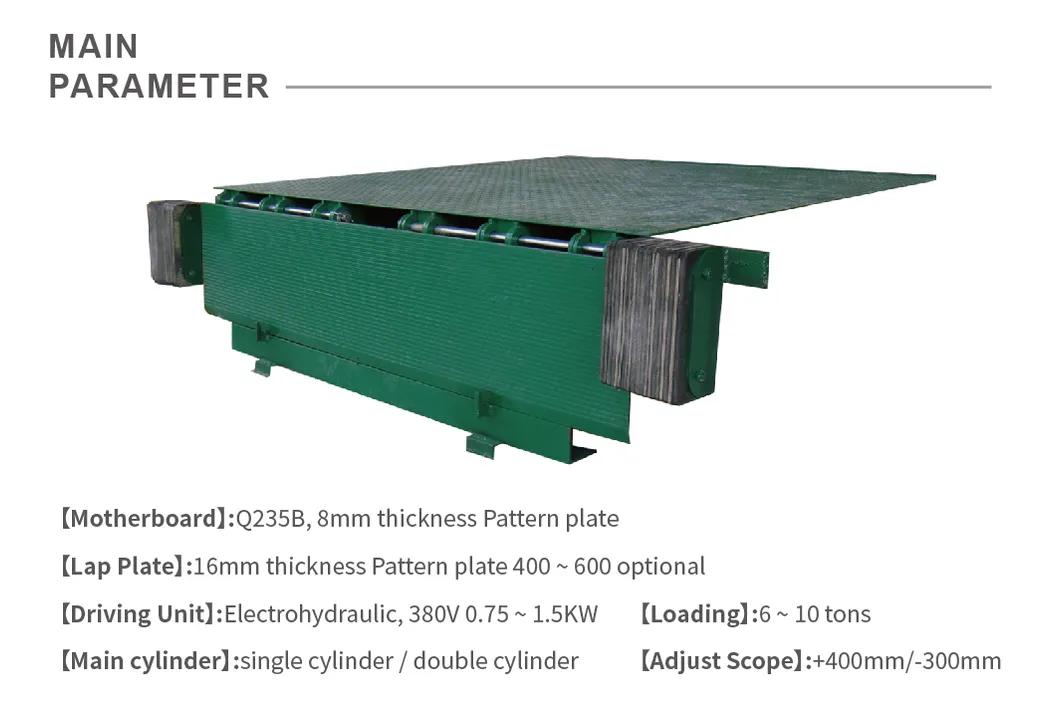

Main Board	Q235B steel plate with anti-slide pattern, thickness: 6 / 8 mm; blasting surface treatment and powder coating
Lap Plate	Q235B steel plate with anti-slide pattern, thickness: 14 / 16mm; blasting surface treatment and powder coating
Loading Weight	Dynamic load: 6T / 8T / 10T / 12T / 15T
Driving System	Electrohydraulic, Local brand / ARGO HYTO powerpack, 380V 0.75KW ~ 1.5KW
Adjust Scope	+400mm / -300mm
Sealing Parts	Brand: NOK A505 Complete set of seals for oil cylinder
Main cylinder	Single cylinder / double cylinders
Working Temperature	-30ºC ~ +50ºC
Safety Part	Explosion proof valve and automatic retraction side baffles
Working Frequency	≥ 200,000 times

Key Features & Notes:
1. Professional solutions for industrial door design, manufacturing, and installation.
2. Products are designed according to diverse logistical needs, utilizing advanced technology and high-quality materials.
3. Product range includes steel doors, fire doors, high-speed doors, sectional doors, and comprehensive logistic docking systems.
4. Certified quality management (ISO9001:2000) and CE Certification for international safety standards.

Frequently Asked Questions

What is the dynamic load capacity of this dock leveler?

The system supports dynamic loads of 6T, 8T, 10T, 12T, and up to 15T depending on the specific configuration.

What materials are used for the main platform?

The main board is constructed from Q235B steel plate featuring an anti-slide pattern with a thickness of 6mm to 8mm, finished with powder coating.

What is the height adjustment range?

The hydraulic platform offers an adjustment scope of +400mm upwards and -300mm downwards to accommodate various truck heights.

Can this equipment operate in extreme temperatures?

Yes, the hydraulic system and sealing parts are designed to operate efficiently in temperatures ranging from -30ºC to +50ºC.

What safety mechanisms are included?

Safety is ensured through explosion-proof valves, automatic retraction side baffles, and anti-collision bumpers (300*200*100 mm).

What is the expected service life of the unit?

The dock leveler is designed for heavy-duty use with a working frequency rated for more than 200,000 cycles.
