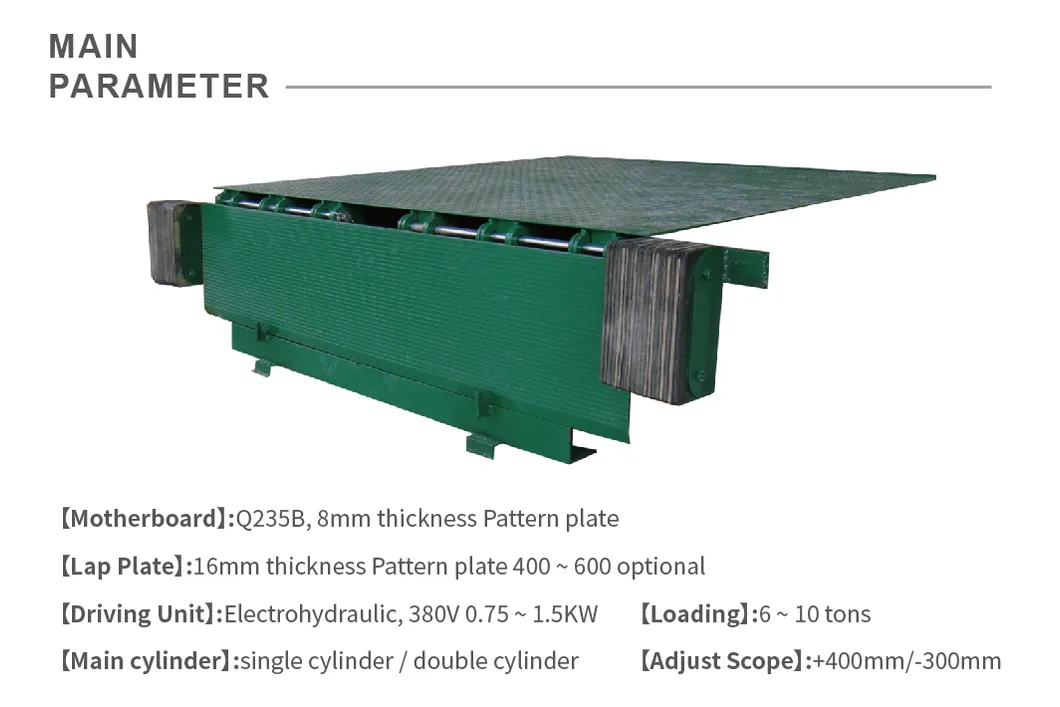

| TECHNICAL PARAMETERS | |
|---|---|

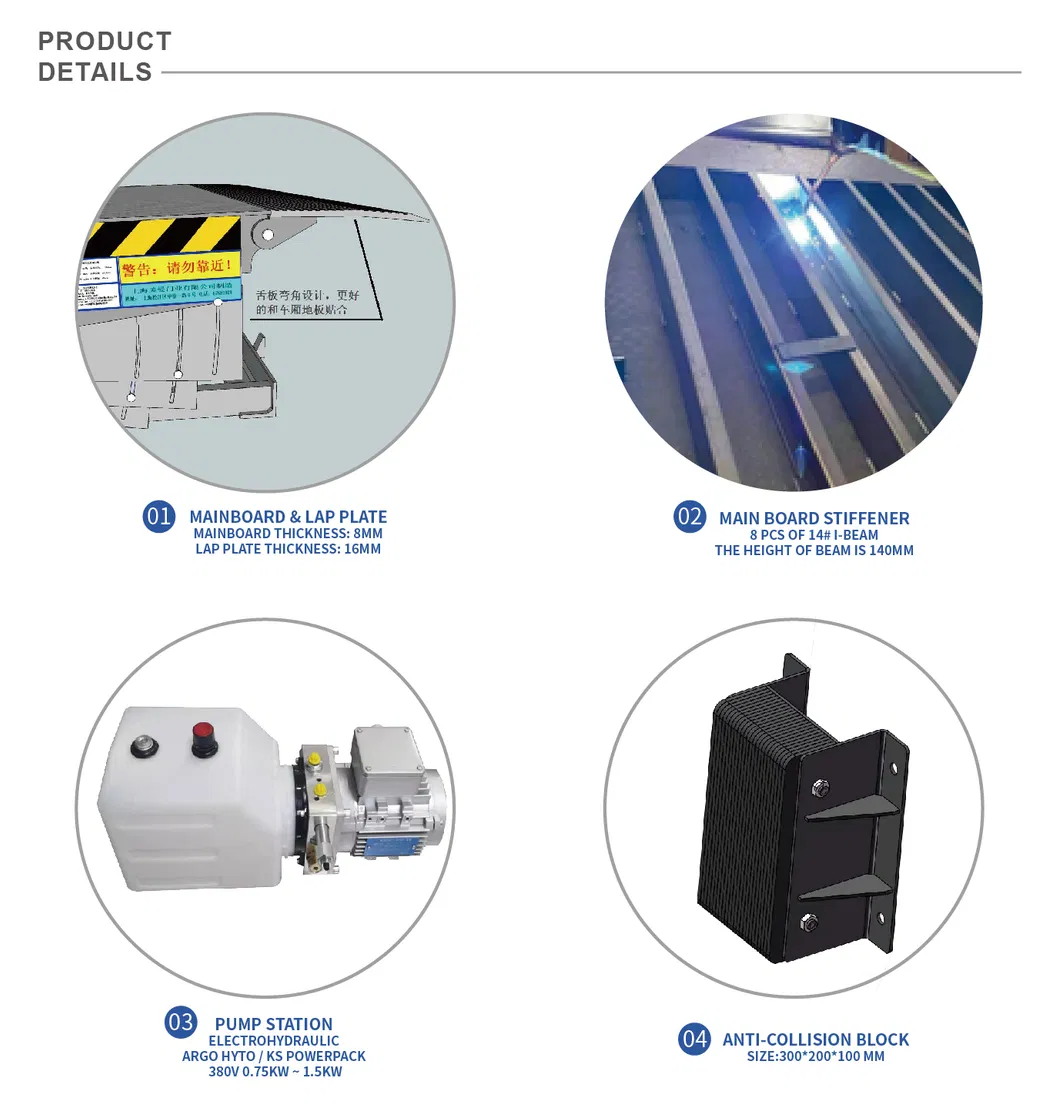

| Main Board | Q235B steel plate with anti-slide pattern, thickness: 6 / 8 mm; blasting surface treatment and powder coating |
| Lap Plate | Q235B steel plate with anti-slide pattern, thickness: 14 / 16mm; surface treatment is blasting and powder coating |
| Hinge | Open type, 8*150mm |
| Loading Weight | Dynamic load: 6T / 8T / 10T / 12T / 15T |
| Driving System | Electrohydraulic, Local brand / ARGO HYTO powerpack, 380V 0.75KW ~ 1.5KW |
| Control System | Standard 380V English interface |
| Adjust Scope | +400mm / -300mm |
| Adjust Time | Up ≤ 16S; Down ≤ 10S |
| Sealing Parts | Brand: NOK A505 Complete set of seals for oil cylinder |
| Main Cylinder | Single cylinder / double cylinders |
| Main Board Stiffener | 8 pcs of 14# I-Beam, height of Beam is 140mm |
| Support Rod | Fold at the bottom of the panel |
| High Pressure Oil Pipe | T3683-2001; 60mpa |
| Side Baffles | Automatic retraction to ensure safety |
| Hydraulic Oil | 32# Anti-wear hydraulic oil |
| Working Pressure | 8Mpa ±1Mpa |
| Oil Tank Capacity | 5-6L |
| Working Temp | -30ºC ~ +50ºC |
| Anti-collision Bumper | 300*200*100 mm |
| Base Frame | 10# channel steel welded frame structure |
| Safety Part | Explosion proof valve |
| Working Frequency | ≥ 200,000 times |
• China AAA Enterprise Standards
• ISO9001: 2000 Quality Management Certification
• CE European Safety Certification
