Home > Loading Dock Equipment > Electric Mechanical Boxed up Hydraulic Cylinder Telescoping Dock Leveler Garage Warehouse Ramp Equipment for Loading Bay
Electric Mechanical Boxed up Hydraulic Cylinder Telescoping Dock Leveler Garage Warehouse Ramp Equipment for Loading Bay
Electric Mechanical Boxed up Hydraulic Cylinder Telescoping Dock Leveler Garage Warehouse Ramp Equipment for Loading Bay
Electric Mechanical Boxed up Hydraulic Cylinder Telescoping Dock Leveler Garage Warehouse Ramp Equipment for Loading Bay
Electric Mechanical Boxed up Hydraulic Cylinder Telescoping Dock Leveler Garage Warehouse Ramp Equipment for Loading Bay
Electric Mechanical Boxed up Hydraulic Cylinder Telescoping Dock Leveler Garage Warehouse Ramp Equipment for Loading Bay
1 / 5
Electric Mechanical Boxed up Hydraulic Cylinder Telescoping Dock Leveler Garage Warehouse Ramp Equipment for Loading Bay
Electric Mechanical Boxed up Hydraulic Cylinder Telescoping Dock Leveler Garage Warehouse Ramp Equipment for Loading Bay
Electric Mechanical Boxed up Hydraulic Cylinder Telescoping Dock Leveler Garage Warehouse Ramp Equipment for Loading Bay
Electric Mechanical Boxed up Hydraulic Cylinder Telescoping Dock Leveler Garage Warehouse Ramp Equipment for Loading Bay
Electric Mechanical Boxed up Hydraulic Cylinder Telescoping Dock Leveler Garage Warehouse Ramp Equipment for Loading Bay

Electric Mechanical Boxed up Hydraulic Cylinder Telescoping Dock Leveler Garage Warehouse Ramp Equipment for Loading Bay

Customization: Available
After-sales Service: Yes
Warranty: 12 Months
Send Inquiry

Product Description

Basic Specifications

Model NO.
XF-O-2500
Lift Mechanism
Hydraulic Cylinder
Carrying Capacity
6t / 8t / 10t
Moves
Stationary
Driven Type
Hydraulic
Feature
Explosion-Proof
Certification
CE, ISO 9001
Voltage
220V 50Hz / 380V 50Hz
Power
0.75 Kw / 1.5kw
Origin
Made in China
HS Code
84254290
Production Capacity
10000/ Year

Packaging & Logistics

Package Size
200.00cm * 200.00cm * 60.00cm
Package Gross Weight
1000.000kg
Transport Package
Wrapping Film

Product Presentation

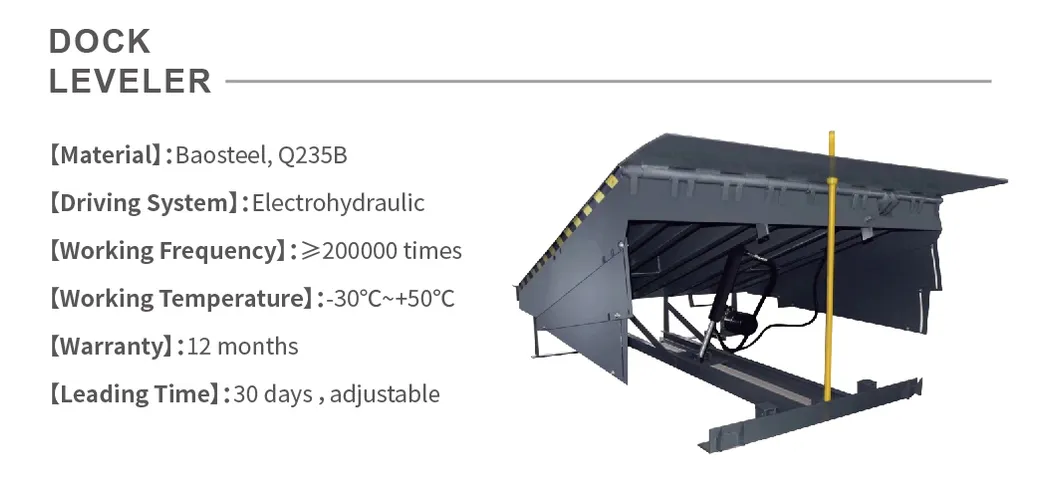

Dock Leveler 1

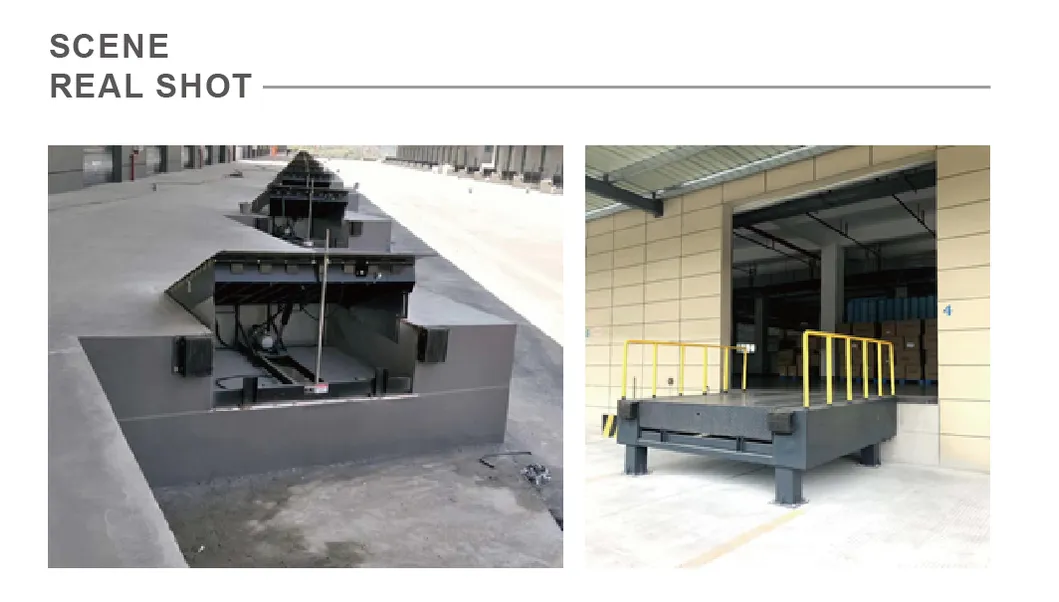

Dock Leveler 2

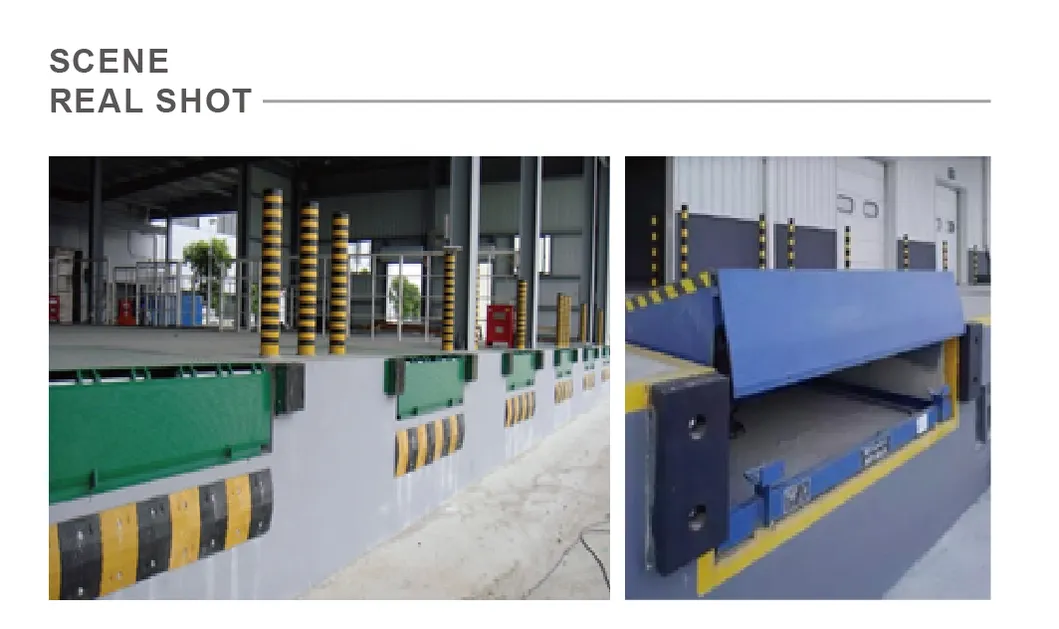

Dock Leveler 3

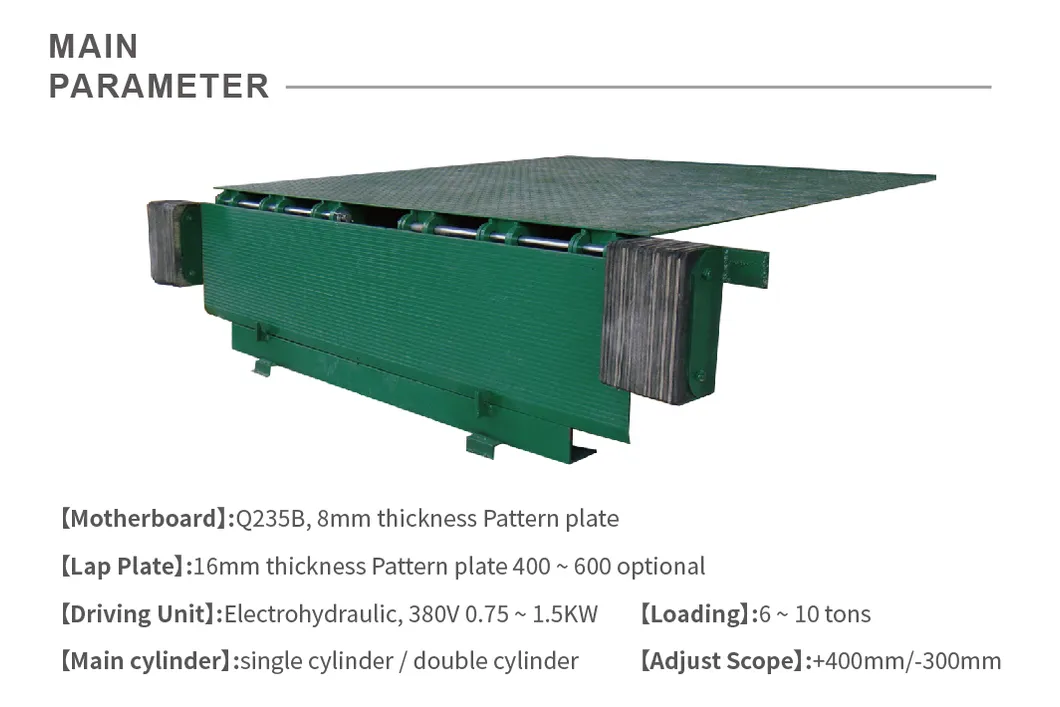

Dock Leveler 4

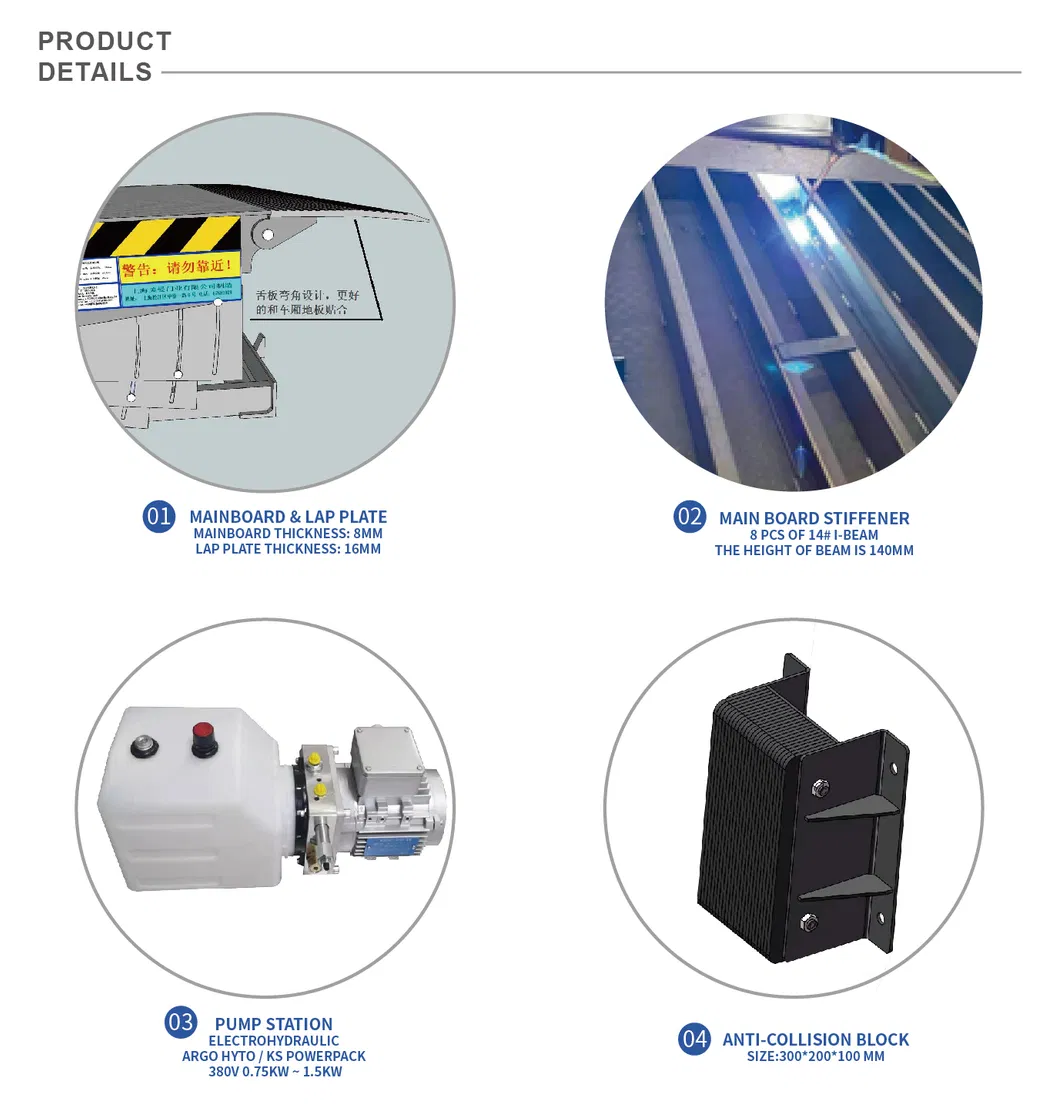

Dock Leveler 5
DETAILED PARAMETERS
Main BoardQ235B steel plate with anti-slide pattern, thickness: 6/8 mm; blasting surface treatment and powder coating
Lap PlateQ235B steel plate with anti-slide pattern, thickness: 14/16mm; surface treatment is blasting and powder coating
HingeOpen type, 8*150mm
Loading WeightDynamic load: 6T / 8T / 10T / 12T / 15T
DrivingElectrohydraulic, 380V 0.75KW ~ 1.5KW
Control SystemStandard 380V English interface
Adjust Scope+400mm / -300mm
Adjust TimeUp ≤ 16S; Down ≤ 10S
Sealing PartsBrand: NOK A505 Complete set of seals for oil cylinder
Main CylinderSingle cylinder / double cylinders
Main Board Stiffener8 pcs of 14# I-Beam, height of Beam is 140mm
Side BafflesAutomatic retraction to ensure safety
Working Temperature-30ºC ~ +50ºC
Anti-collision Bumper300*200*100 mm
Safety PartExplosion proof valve
Working Frequency≥ 200,000 times
Dock Leveler Detail 1
Dock Leveler Detail 2
Key Highlights:
1. Professional enterprise engaged in industrial equipment design, manufacturing, and installation.
2. Utilization of advanced technology to provide high-quality products and professional logistics solutions.
3. Wide range of products including steel doors, fire doors, high-speed doors, and advanced logistic docking systems.
4. Recognized with ISO9001:2000 Management Certification and CE Certification.

Frequently Asked Questions

What is the dynamic load capacity of this dock leveler?
The equipment supports a dynamic load range of 6T, 8T, 10T, 12T, up to 15T, depending on the specific model selected.
Can this equipment operate in extreme weather conditions?
Yes, the hydraulic system and components are designed to function reliably in temperatures ranging from -30ºC to +50ºC.
What safety features are integrated into the system?
It includes explosion-proof valves, automatic retraction side baffles, and anti-collision bumpers (300*200*100 mm) to ensure maximum operator safety.
What are the power requirements for installation?
The system is compatible with 220V 50Hz or 380V 50Hz power supplies, with a power output between 0.75Kw and 1.5kw.
What materials are used for the main structure?
The main board and lap plate are constructed from Q235B steel plate with an anti-slide pattern for durability and grip, finished with powder coating.
Is the product certified for international standards?
Yes, the product holds both CE certification and ISO 9001:2000 Management Certification, meeting rigorous international quality standards.
