📋 Basic Specifications
Application
Workshop, Shipboard, Warehouse, Building
Lift Mechanism
Scissor Lift
Certification
CE, ISO 9001
🚀 Product Description

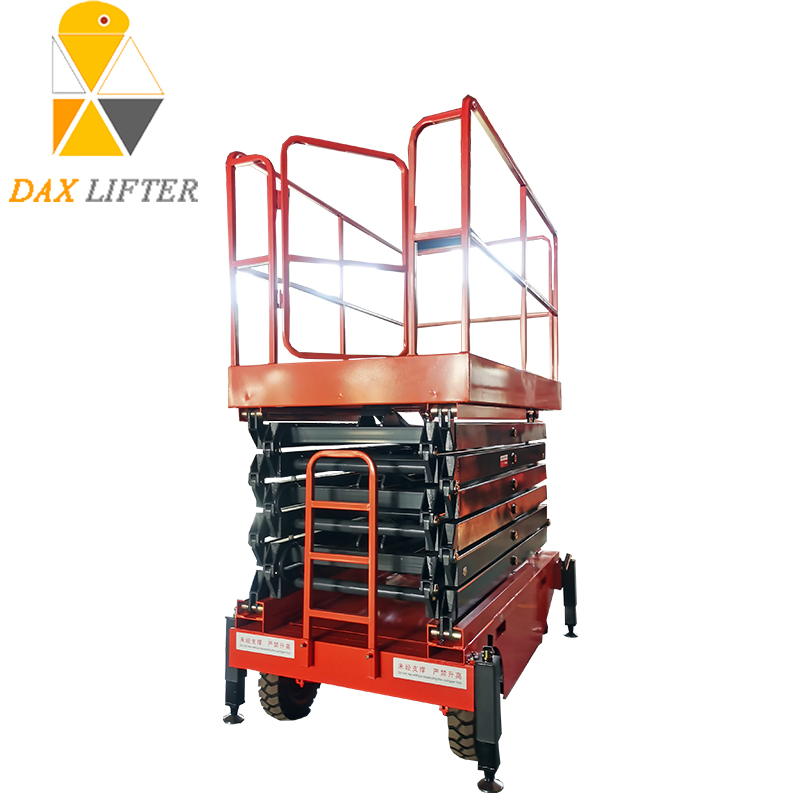

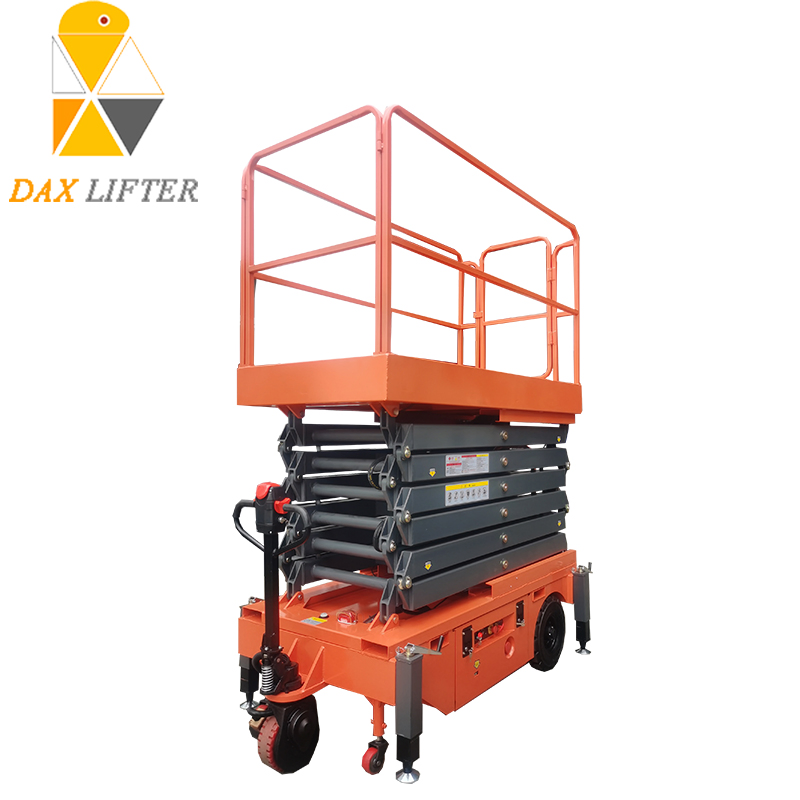

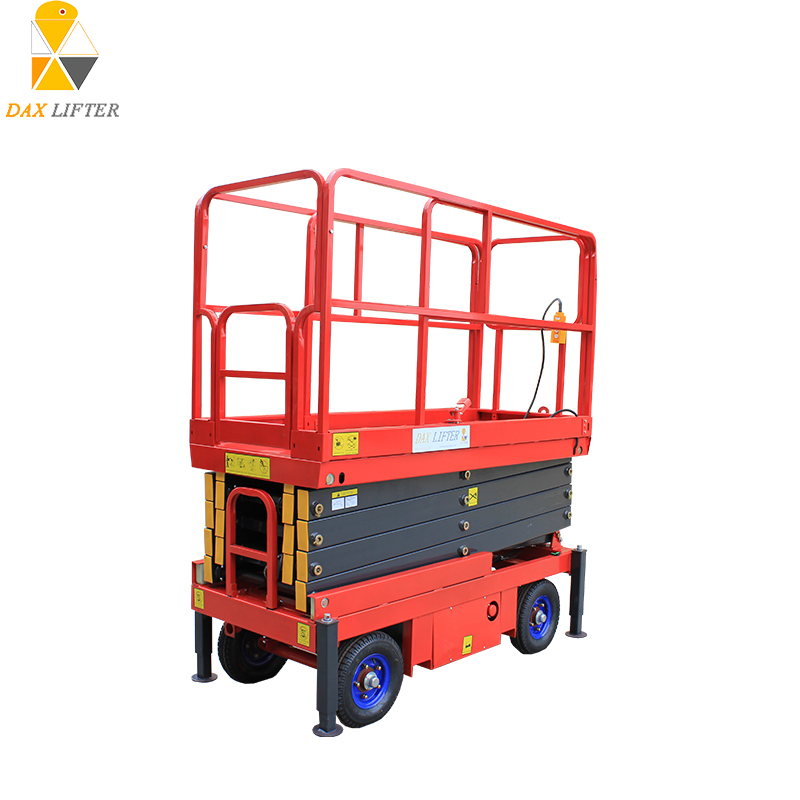

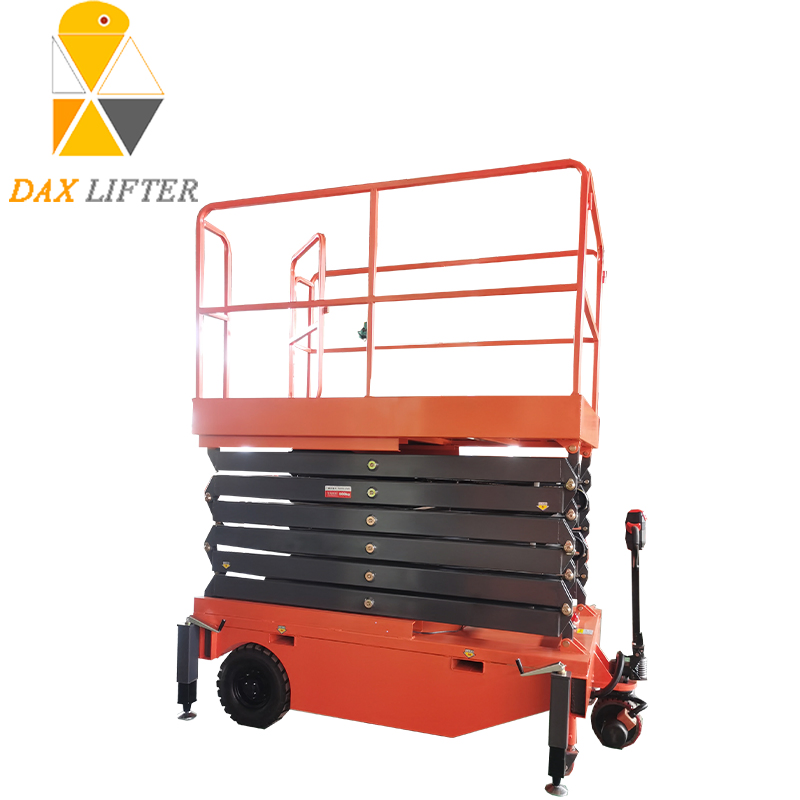

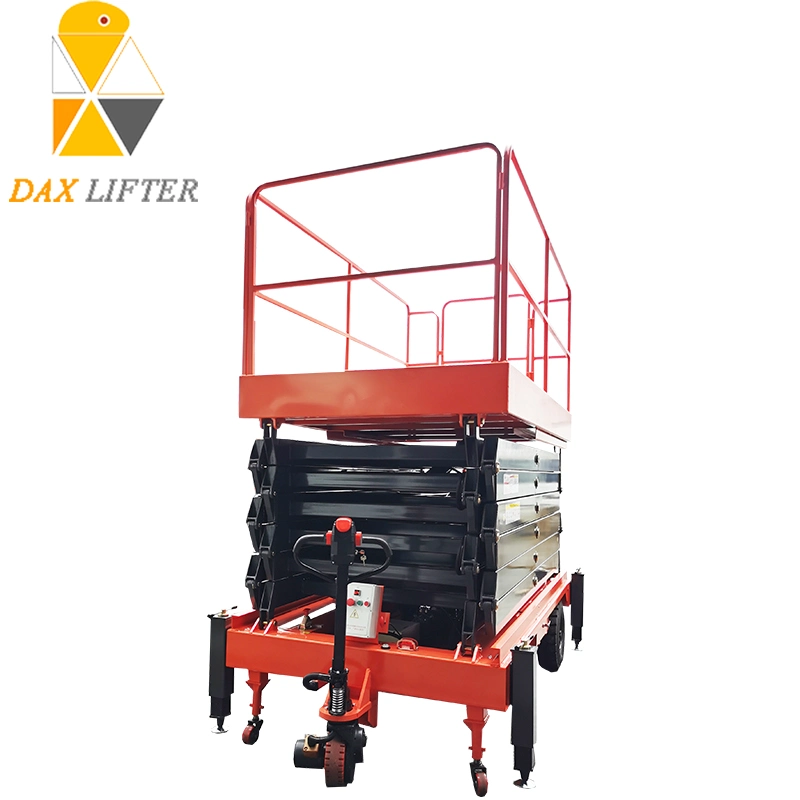

The Full-electric mobile scissor lift is upgraded on the basis of the manually moved mobile scissor lift. The manual movement is replaced by a motor drive, making equipment relocation time-saving and labor-saving. This upgrade significantly enhances work efficiency for high-altitude tasks. You can easily control the forward and backward movement through the control handle, making it a simple and practical solution for various work locations.
| Model No. |
FESL5006 |
FESL5009 |
FESL5012 |
FESL5016 |
FESL1006 |
FESL1012 |
| Load (kg) |
500 |
500 |
500 |
300 |
1000 |
1000 |
| Lift H (m) |
6 |
9 |
12 |
16 |
6 |
12 |
| Platform (m) |
1.85*0.88 |
1.8*1.0 |
2.45*1.35 |
2.75*1.35 |
1.8*1.0 |
2.45*1.35 |
| Net Weight |
600kg |
1260kg |
1850kg |
2680kg |
950kg |
2100kg |
💎 Key Advantages & Features
Operating handle:
Easy control on platform for lifting up and down, moving or steering with speed adjustable.
Supporting legs:
Equipped with four supporting legs to ensure maximum stability during high-altitude work.
Smart towable design:
Includes a trailer handle and trailer ball for automatic short-distance towing or truck-dragging for long distances.
Safety Systems:
Features overload protection, sturdy guardrails, and an emergency lowering valve for power failure situations.
❓ Frequently Asked Questions
What is the maximum lifting height of this equipment?
The Full Electric Scissor Lift series offers a lifting height range from 6 meters up to 16 meters, depending on the specific model selected.
Does the lift require assembly upon delivery?
No, the product is shipped as complete equipment. It is ready to use immediately out of the warehouse without the need for additional assembly.
How is the equipment moved between work sites?
For short distances, it uses an electric motor drive controlled by a handle. For long-distance transport, it features a smart trailer ball that can be attached to a truck.
What safety features are included?
Safety features include overload protection, platform guardrails, high-strength hydraulic cylinders, and an emergency lowering valve for power outages.
What are the power requirements for the lift?
The equipment is driven by an AC system and includes onboard batteries (ranging from 120Ah to 200Ah) with an integrated charger for cordless operation.
Is this scissor lift CE certified?
Yes, all our full mobile scissor lifts have obtained the CE certificate, ensuring the quality and safety standards are guaranteed.
