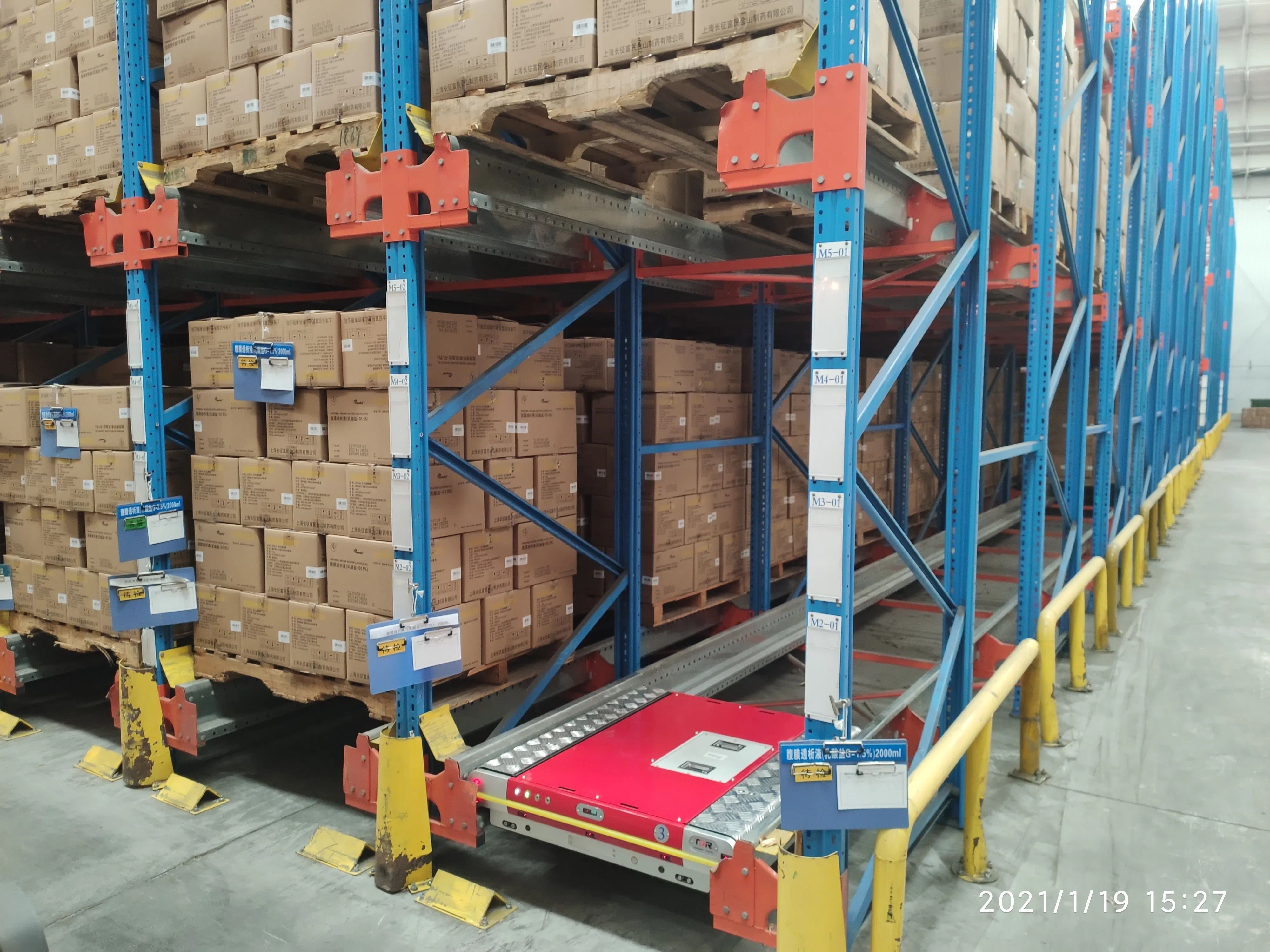

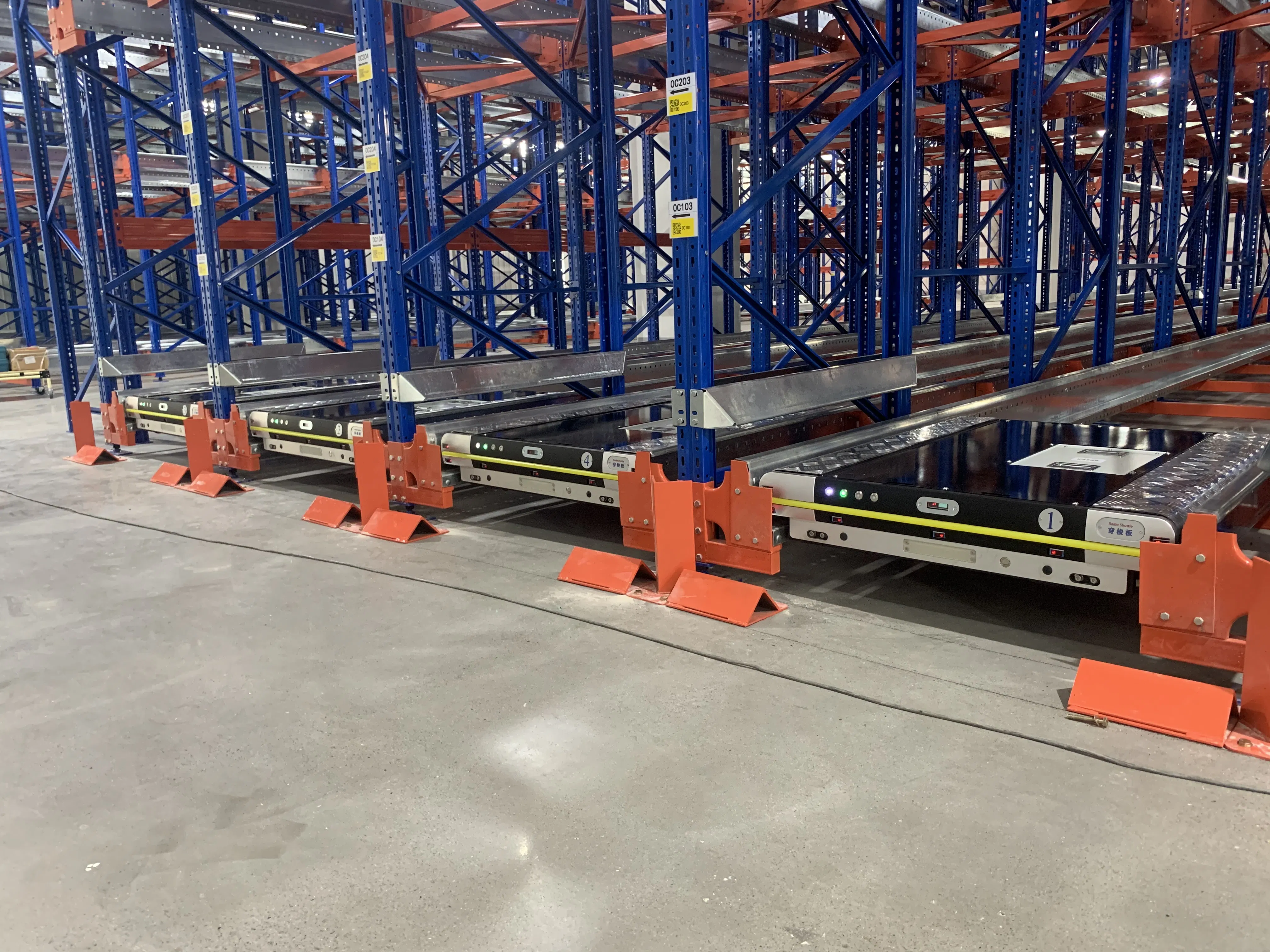

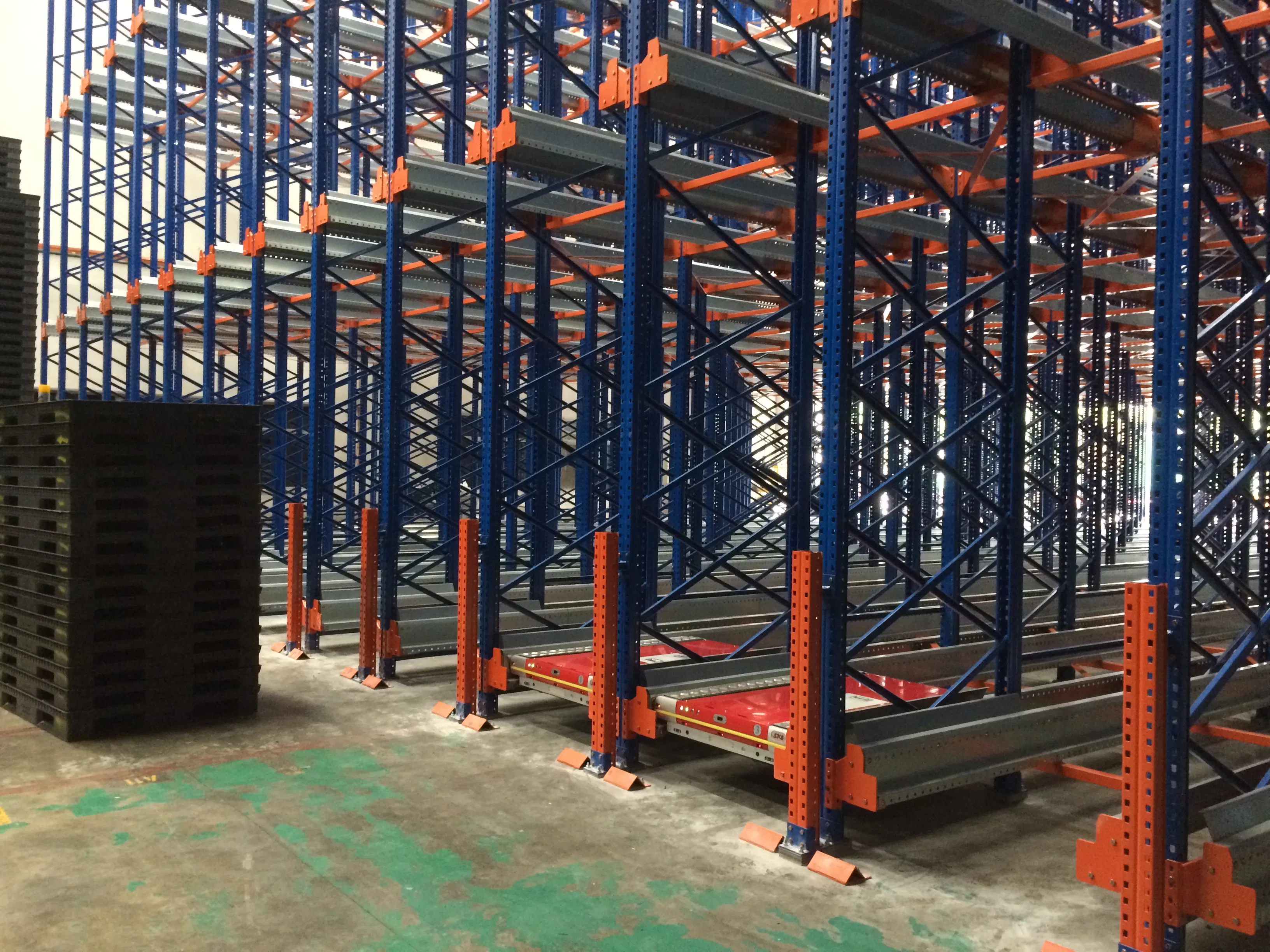

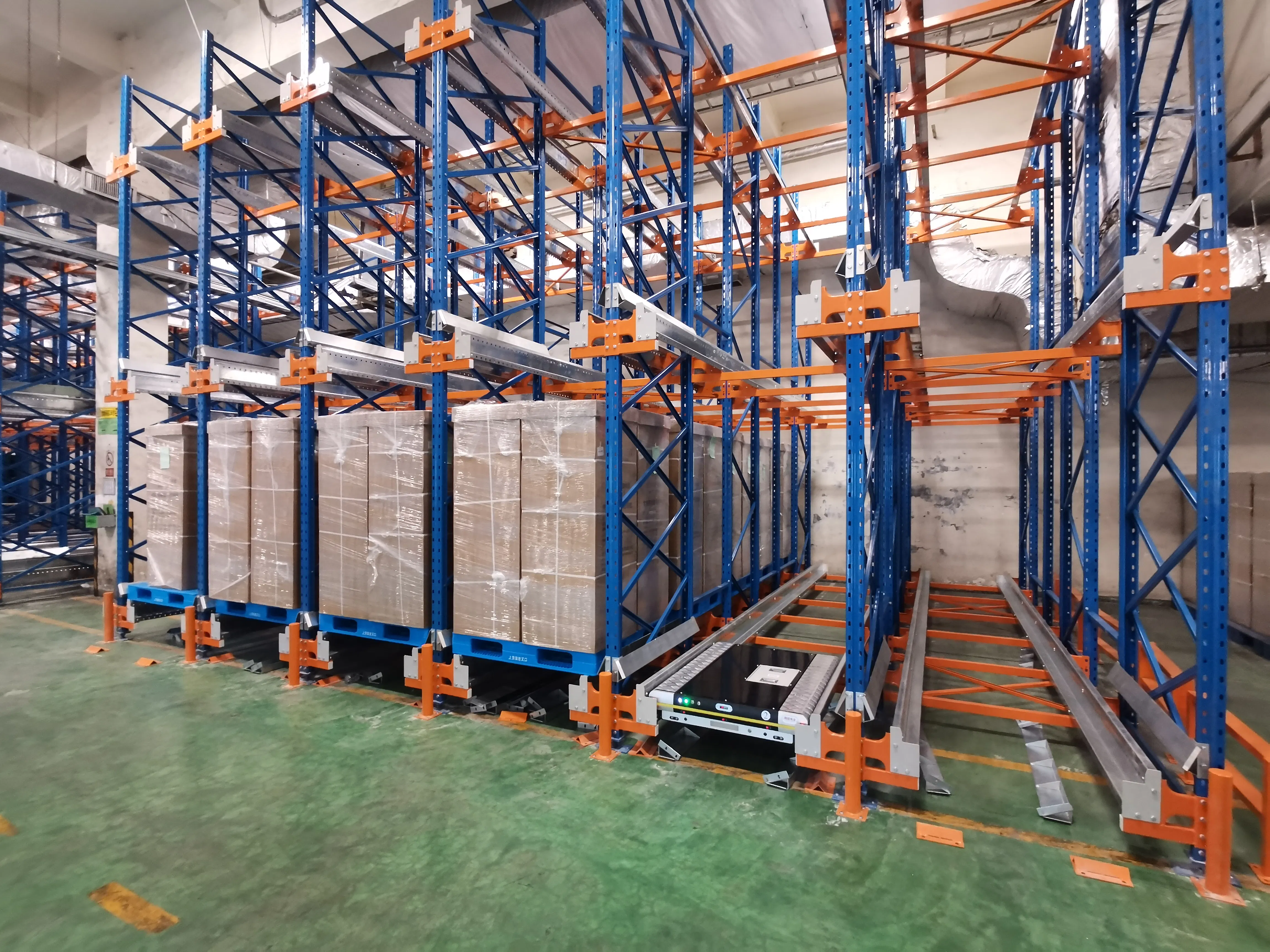

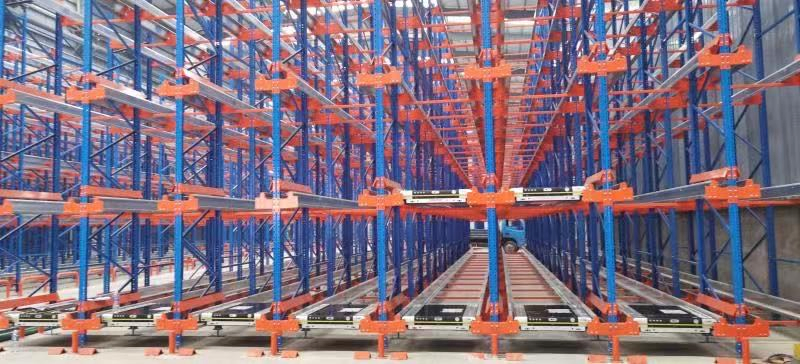

Introducing the pioneering two-way shuttle rack, an innovative solution in the realm of storage. This advanced system seamlessly integrates racks, shuttle trolleys, and forklifts, setting a new benchmark for efficiency in warehousing.
Often referred to as the linear shuttle rack, this cutting-edge system utilizes the sliding contact line method, offering a design that is both remarkably simple and incredibly effective. Experience the power of dense storage which significantly boosts storage capacity, adeptly handling first-in-first-out (FIFO), first-in-last-out (FILO), or random storage requirements with ease.
| Feature | Specifications | |||
|---|---|---|---|---|
| Used Scene | Package on Pallet, cargo types | |||
| Loading and Unloading | Forklift or AGV for Pallet, in side with Shuttle | |||
| Material | Steel Q355 or Q235 | |||
| Surface Treatment | Powder coating or Galvanizing (Blue, Orange, Grey) | |||
| No. | Component Item | Size (mm) | Production Process |
|---|---|---|---|
| 1 | Beginning Frame | Height x Depth | Punching- Roll forming-Cutting |
| 2 | Middle Frame | Height x Depth | Punching- Roll forming-Cutting |
| 3 | Single Post | Height | Punching- Roll forming-Cutting |
| 4 | Row Spacer | 50x30 / 60x40 | Cutting - Welding |
| 5 | Top Beams | 60x40x1.5 | Cutting - Welding |
