📋 Basic Specifications
Suction Cup Material
Strengthen Nitrile Rubber
Surface Treatment
Powder Coating
🚀 Product Description

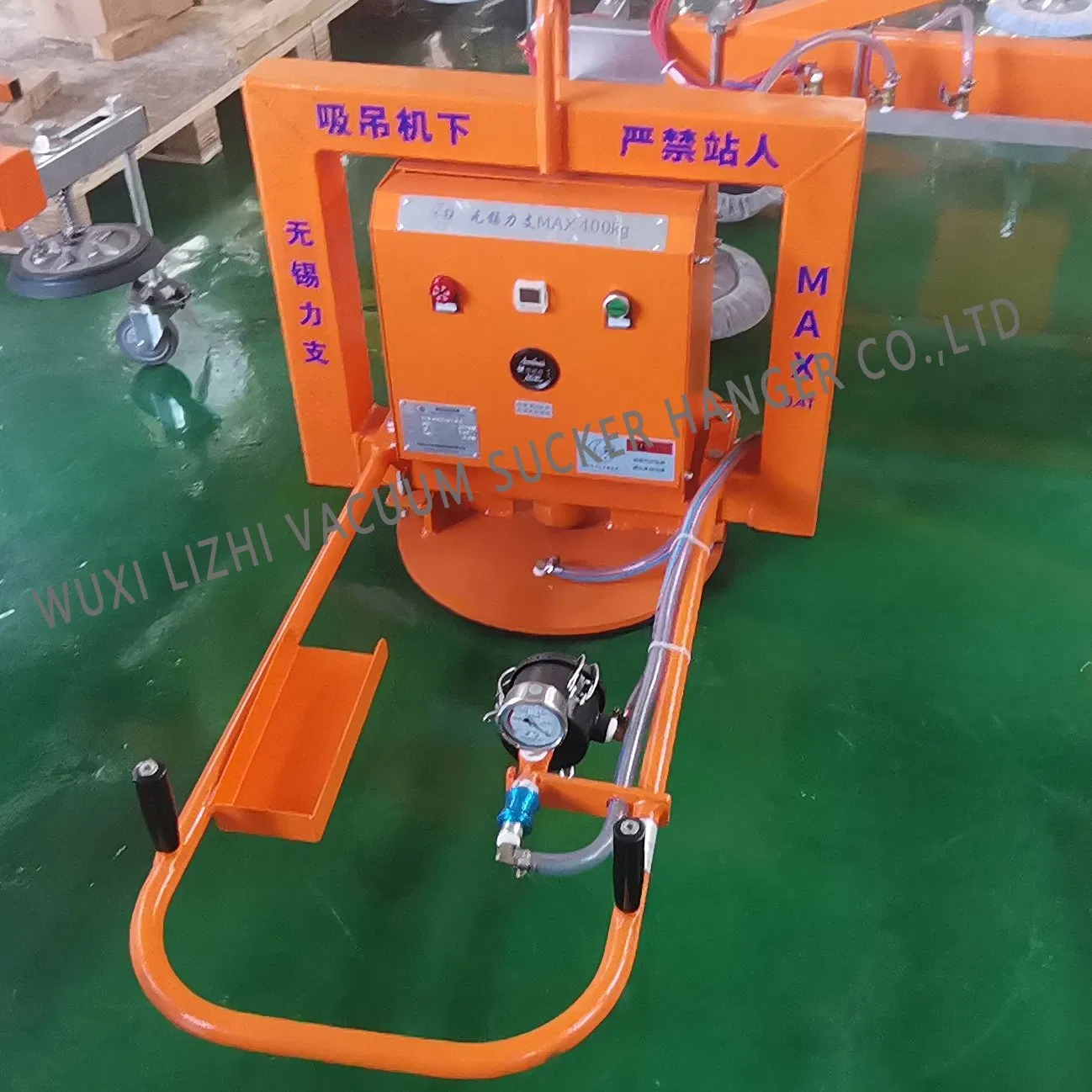

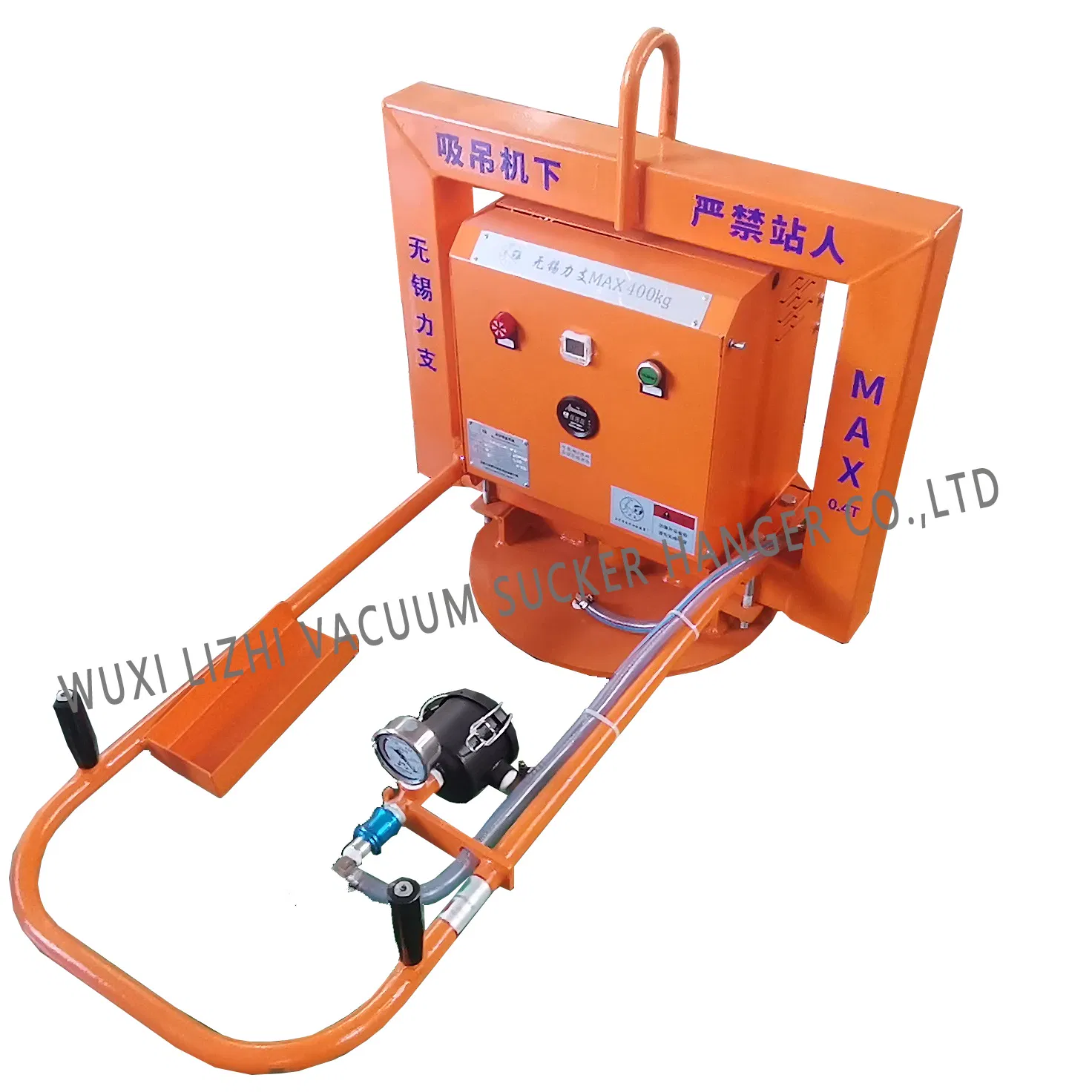

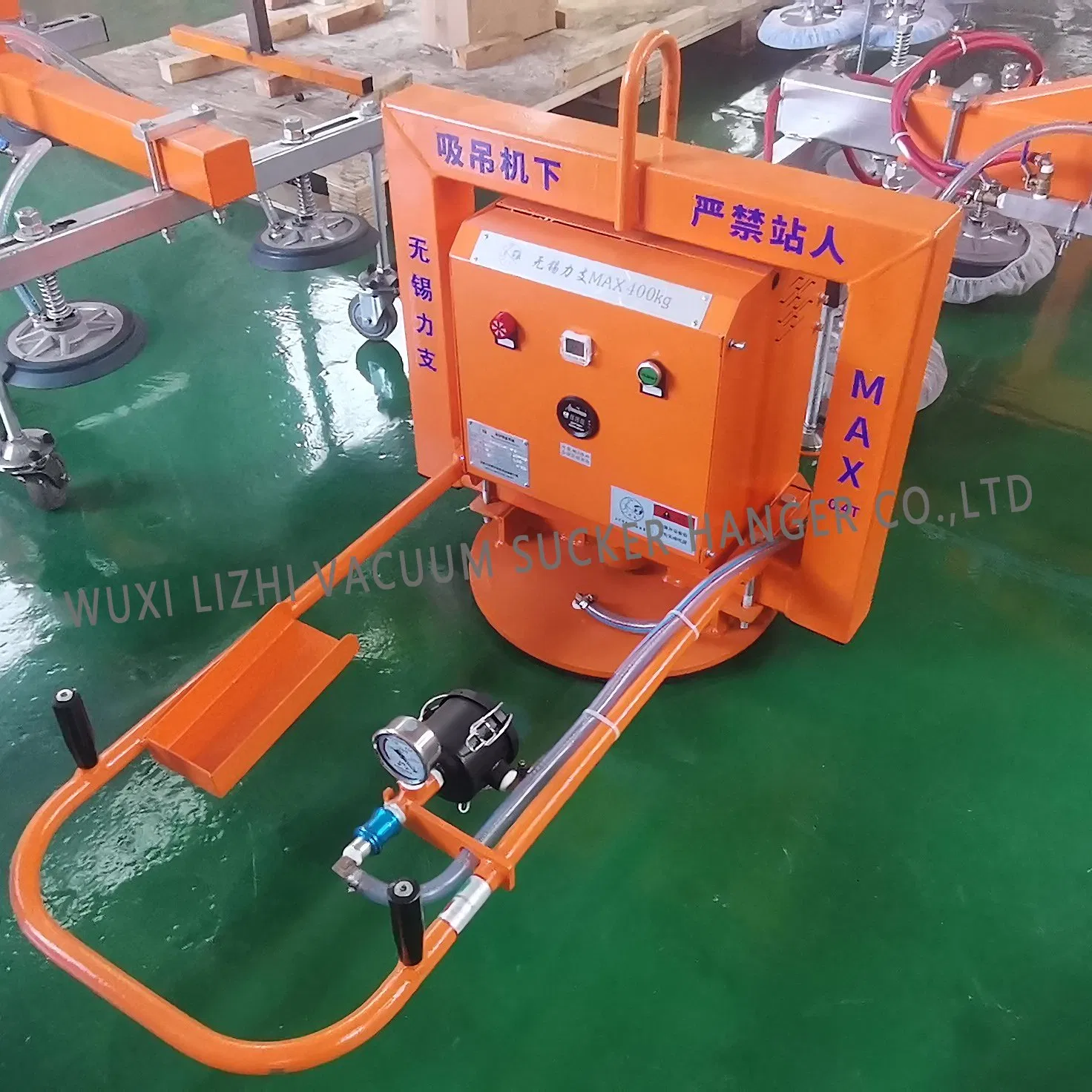

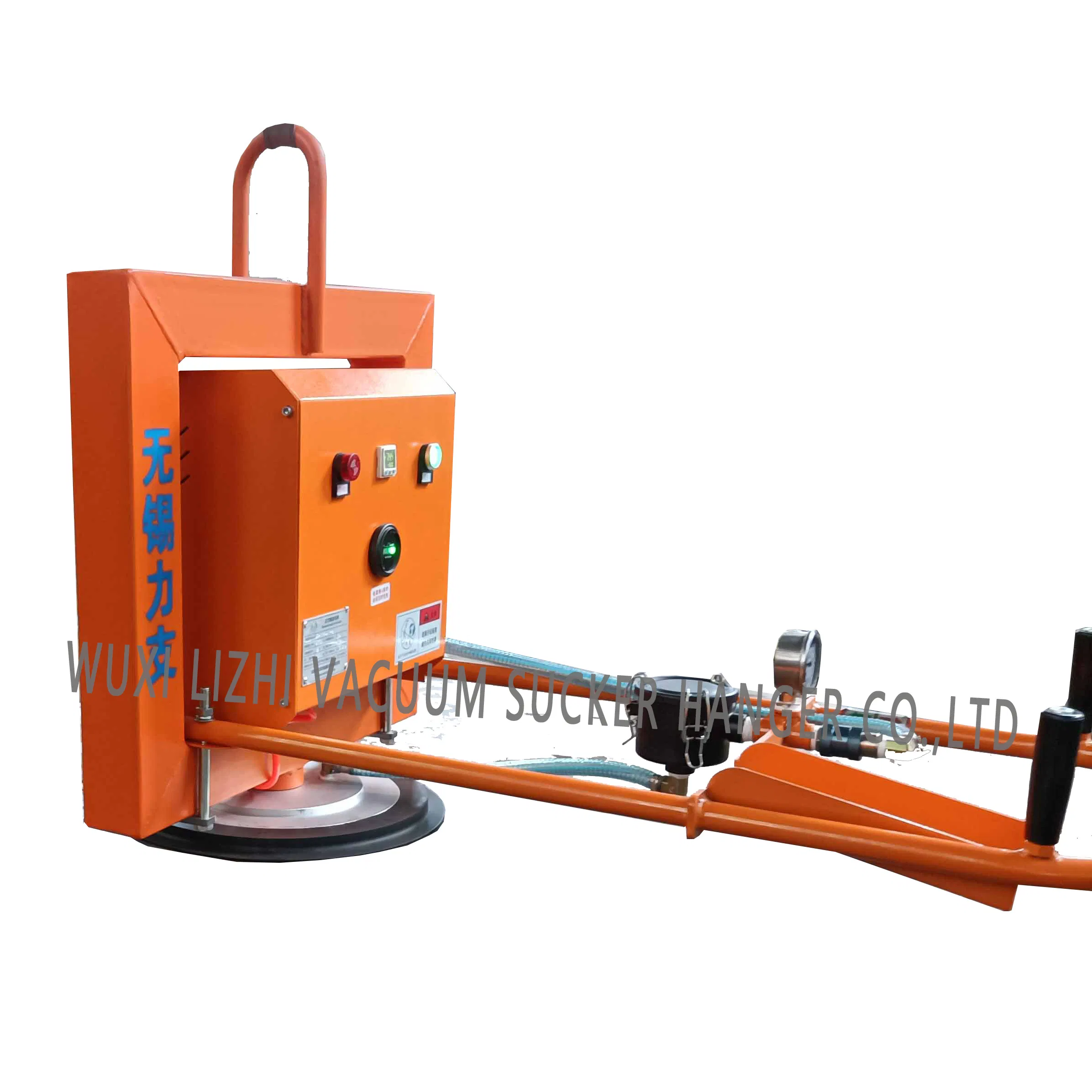

Suitable for steel plates of various characteristics with oil stains or rust of different sizes, the product adopts a manually designed handle: operating handle, simple and safe local galvanizing, and different lengths of main beams and crossbeams are configured according to different workpiece sizes.
The vacuum lifting equipment adopts modularization, operating handle, load and main beam, and vacuum suction cup can be customized according to the working conditions. The vacuum generating device provides the necessary suction for the handling operation and is transferred to the workpiece by the vacuum suction cup. To ensure safety, the aluminum load-bearing main beam is also used as a vacuum accumulator.
This suction hoist can be used on the on-site crane or can be additionally equipped with a simple column electric hoist. Configure main beams and crossbeams of different lengths according to the dimensions of different workpieces.

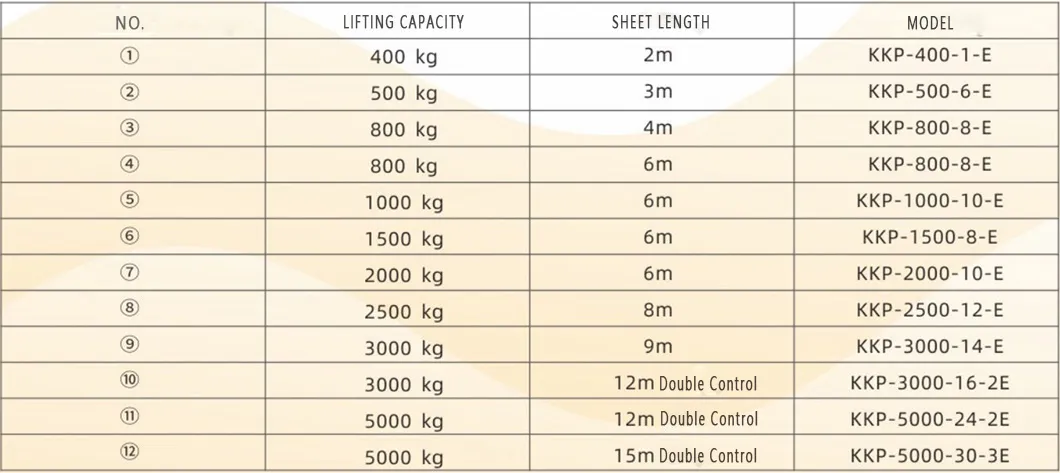

📊 Technical Data Sheet
| Model |

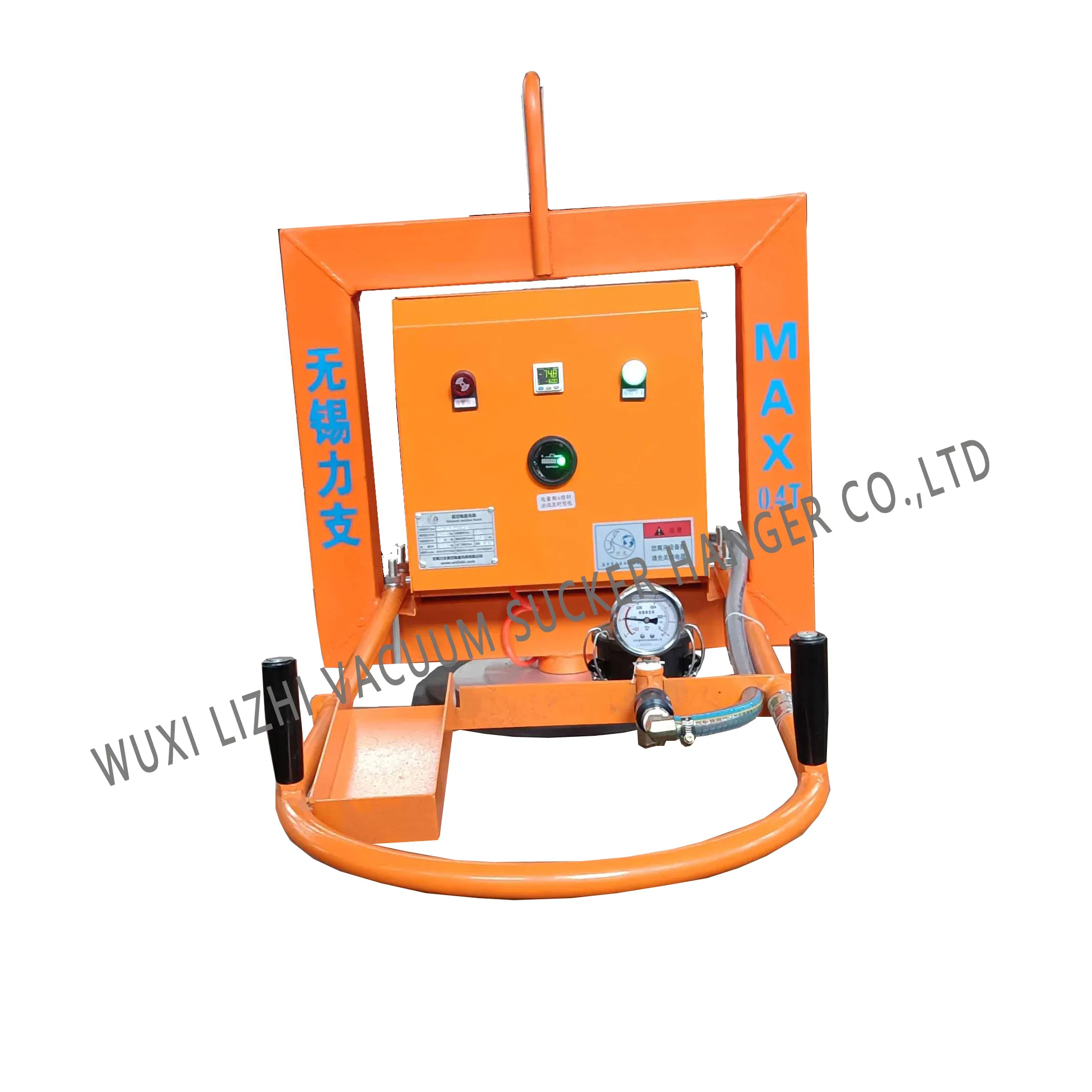

KKP-200-1-E |
KKP-400-1-E |

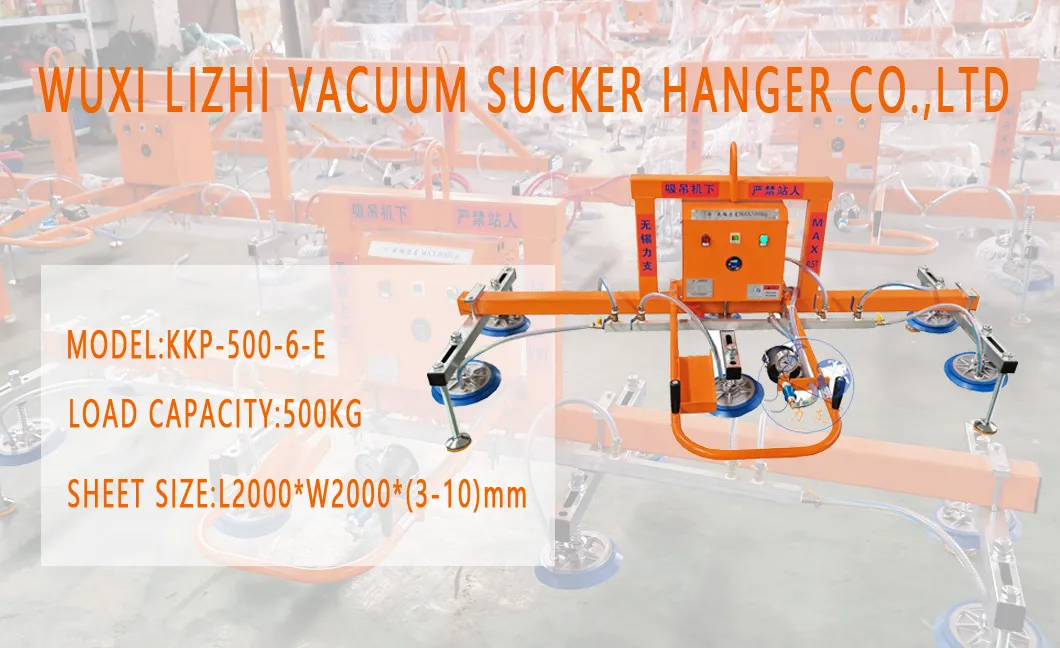

KKP-500-6-E |
KKP-800-8-E |
KKP-1000-10-E |
KKP-1500-8-E |
KKP-2000-10-E |
| Board Length |
L(800-6000)mm * W(500-1500)mm |
| Suction Capacity |
200kg |
400kg |
500kg |
800kg |
1000kg |
1500kg |
2000kg |
| Number of Suction |
1 |
1 |
6 |
8 |
10 |
8 |
10 |
| Suction Cup Size |
Φ230mm |
Φ230mm |
Φ230mm |
Φ230mm |
Φ230mm |
Φ300mm |
Φ300mm |
| Control Voltage |
DC12 |
DC12 |
DC12 |
DC12 |
DC12 |
DC12 |
DC12 |
🖼️ Product Gallery
❓ Frequently Asked Questions
Q1. Are you a factory or trading company?
We are a manufacturer specializing in the production of vacuum suction cups, vacuum suction cranes, column type cantilever cranes, robotic arms, palletizing robots, vacuum fixtures, and vacuum handling system integration equipment.
Q2. What load capacities are available for these suction cranes?
We produce various types of suction cranes, with capacities including 0.5t, 0.8t, 1t, 1.5t, 2t, 3t, 5t, 10t, and 20t to meet different industrial needs.
Q3. Can the equipment be customized for specific products?
Yes, we offer many types and specifications. If a standard model is not suitable, we can customize the vacuum lifter according to your specific workpiece requirements.
Q4. Does the equipment need to be assembled upon arrival?
No, it is not necessary. The equipment is fully debugged before leaving the factory, allowing you to use it directly with a crane hook.
Q5. Which is better, an unpowered or a rechargeable suction crane?
Unpowered cranes are suitable for whole board handling. Rechargeable cranes can handle both whole boards and parts, making them more versatile for the sheet metal industry.
Q6. What safety features are included with the suction crane?
The suction crane is equipped with safety measures such as pressure detection, pressure alarms, and suction/discharge load control to ensure safe operation.
