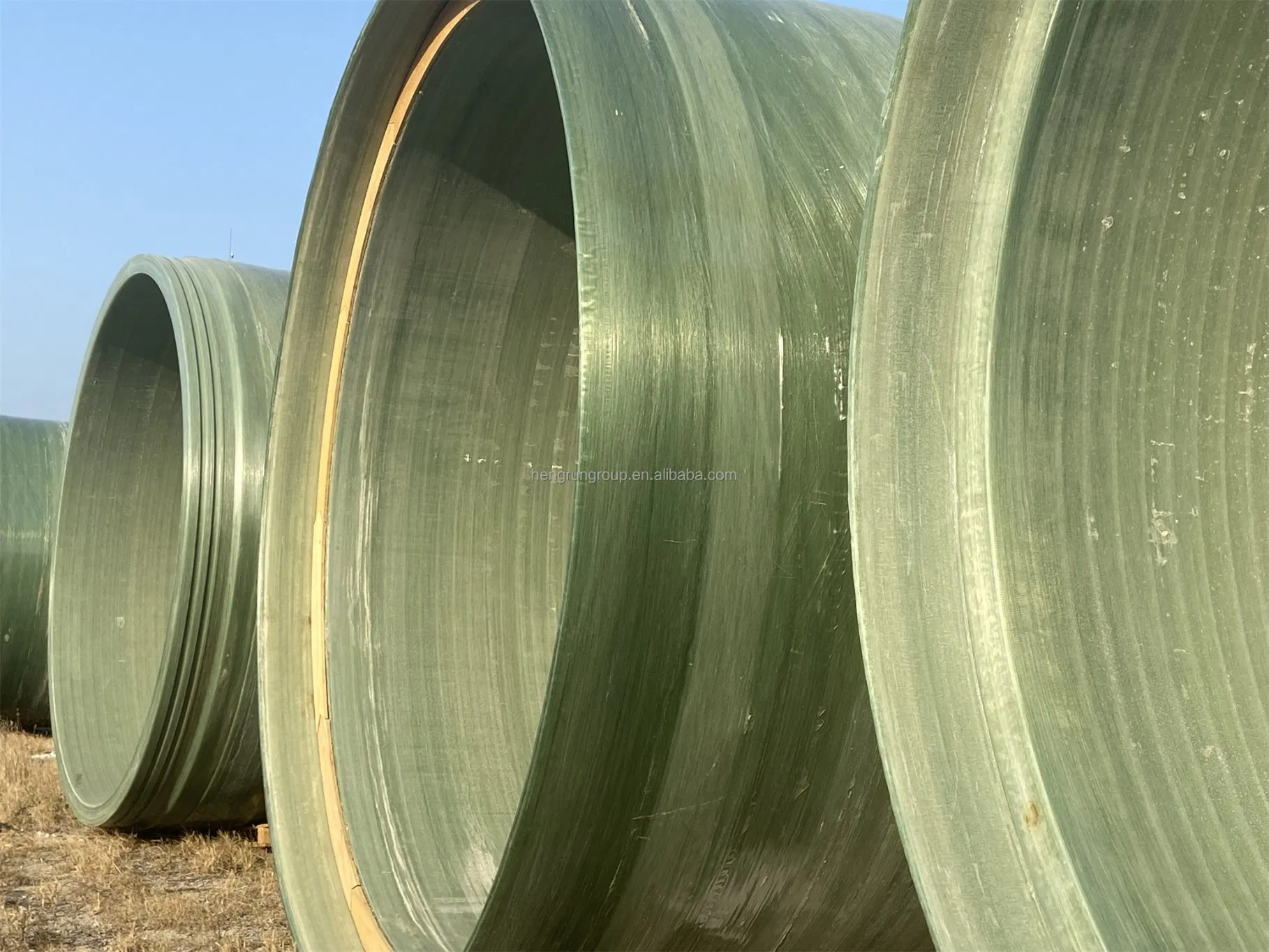

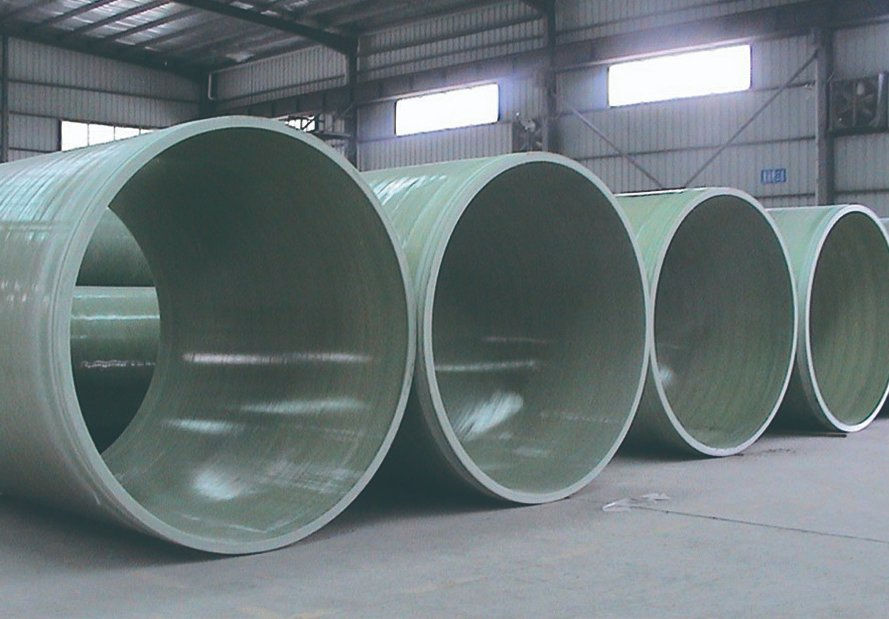

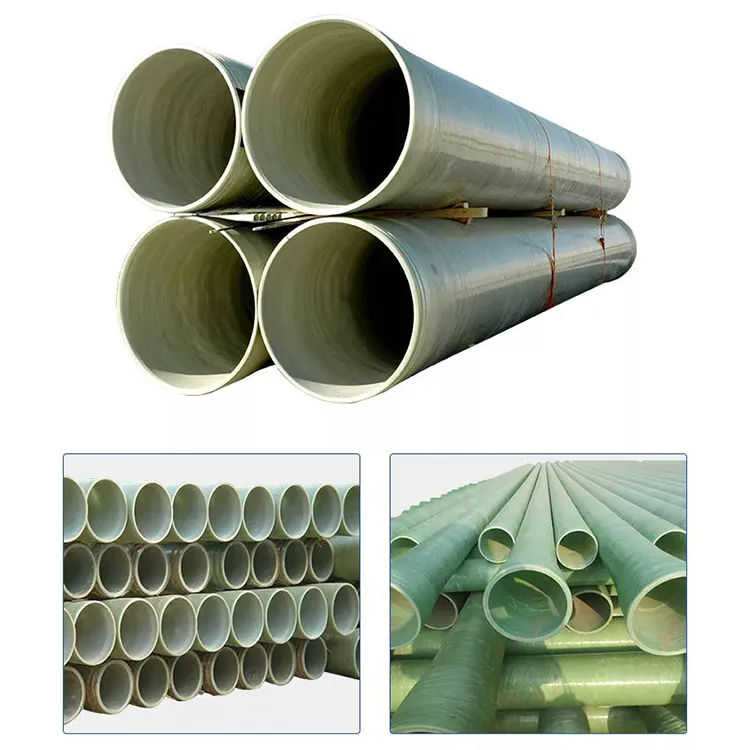

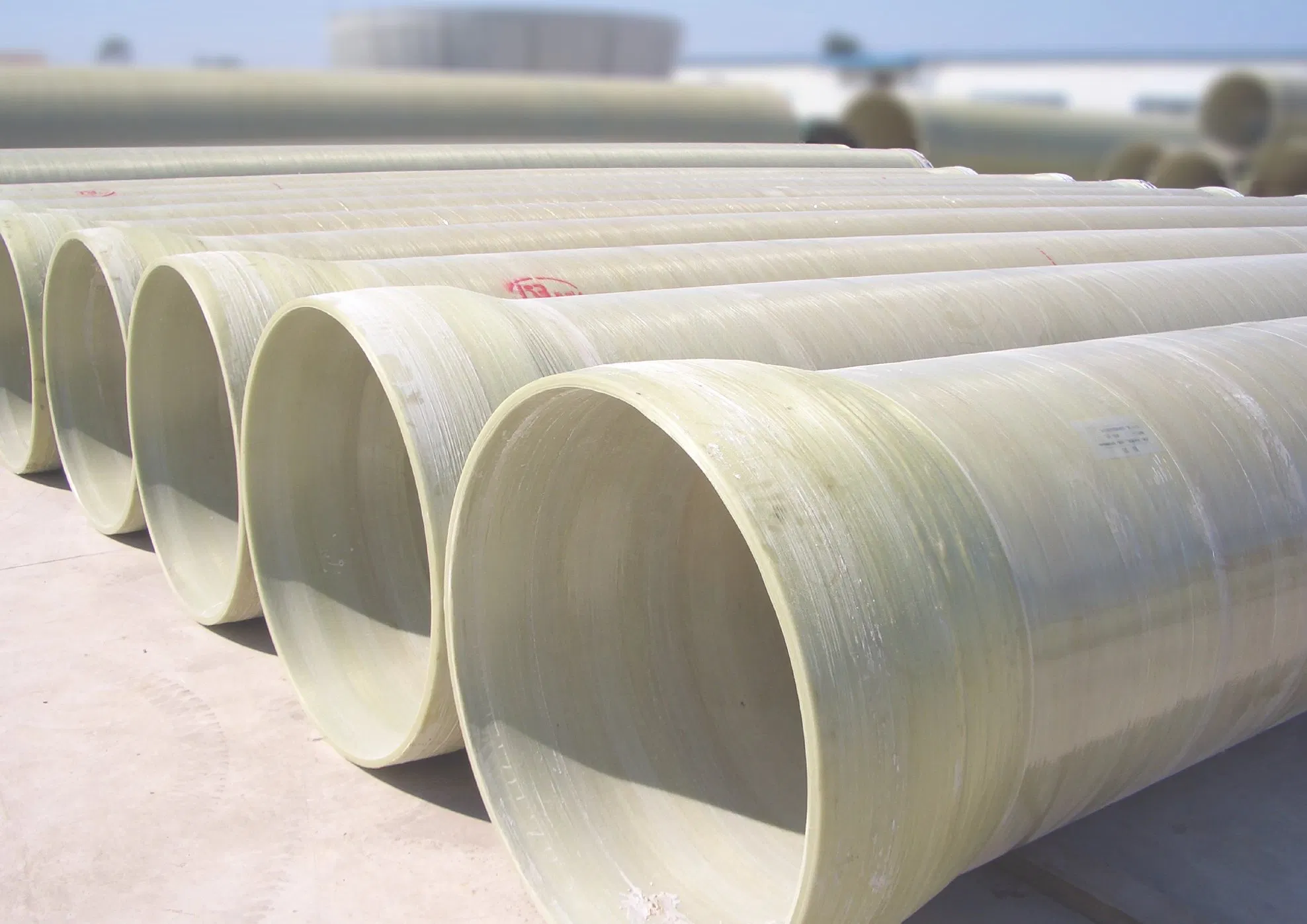

| Product Name | GRP/FRP PIPE |
| Material | frp/grp |
| Standard Length | 12m |
| Temperature | 80ºC |
| Thickness Range | 5-50 mm |
| Compressive Strength | 0.25-2.5 Mpa |
| Applications | Sewage, Drain, Preservative, Ventilation |

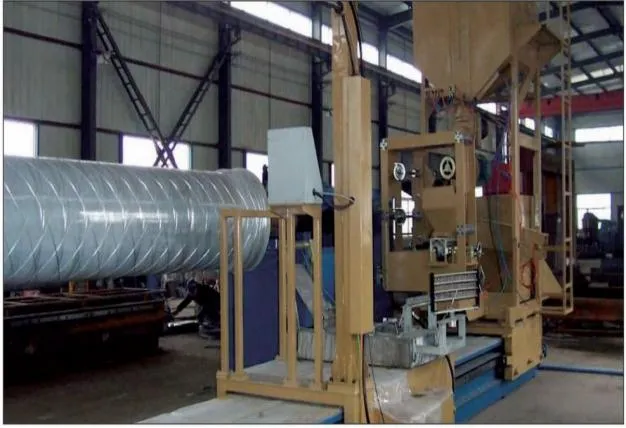

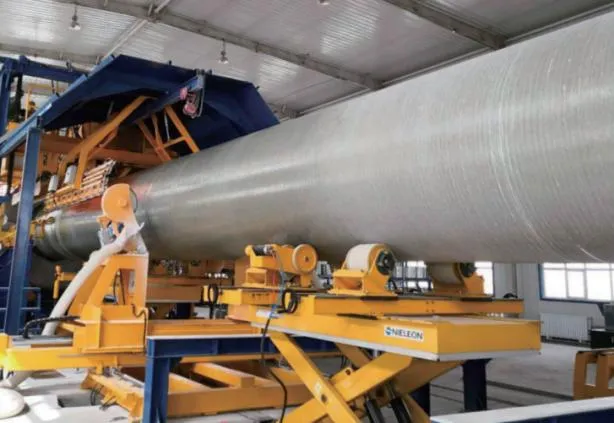

Various specifications of FRP sand-filled winding pipes and FRP winding process pipes with a diameter of 100-4000mm and a length of less than 18000mm can be produced. The working temperature of the pipeline is 40ºC - 80ºC. Pipelines with special ratios can withstand high temperatures of 110ºC, and the pipeline will not crack under freezing media. For large and medium flow pipelines, the construction cost of large-diameter quartz sand-filled pipelines is 30% lower than that of steel pipes, offering convenient transportation, low maintenance, and a service life of over 50 years.
| Diameter (mm) | DN50 to DN4000 |
| Pressure (MPa) | Gravity, PN0.25, PN0.6, PN1.0, PN1.2, PN1.6, PN2.0, PN2.5, PN3.2, PN10 |
| Stiffness (N/m2) | SN2500, SN5000, SN7500, SN10000, SN15000, SN20000, SN30000, SN50000 |

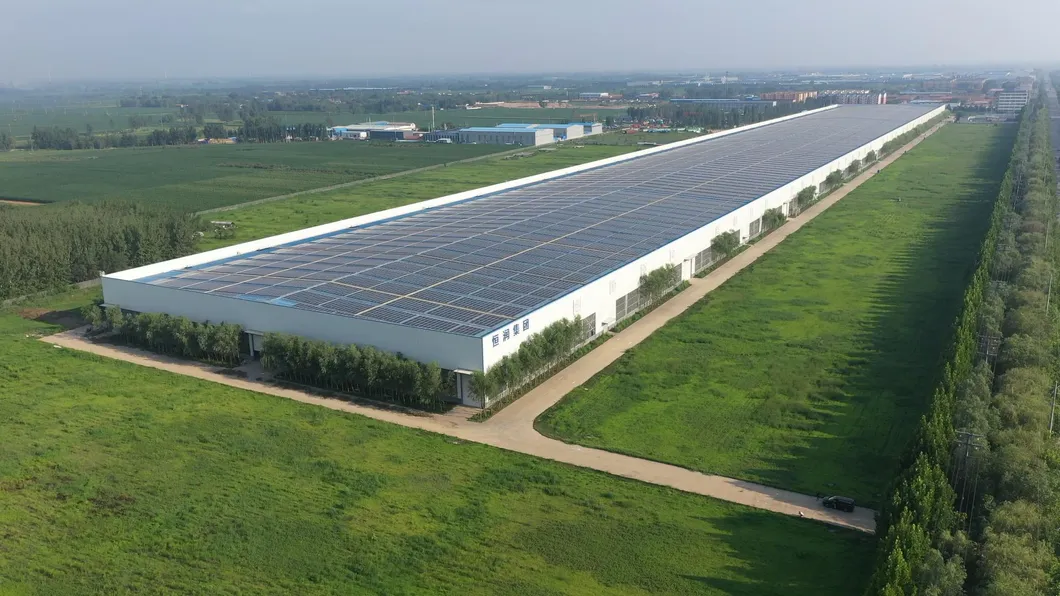

As one of the earliest manufacturers of FRP composite materials in China with a history of nearly 50 years, production is guided by science and technology. The facility holds 4 invention patents and 28 utility model patents. Quality and safety standards are maintained through ISO9001 quality management system certification, ISO14001 environmental management system certification, GB/T28001 occupational health and safety management system certification, and WRAS certification.
