Fortucky Smart Logistics Automation System for Streamlined Operations

Still deciding? Get samples of $ !
Order Sample

Product Description

📋

Basic Information

Model NO.: Logistics automatic loader
Transport Package: Well-Packed
Specification: Customized
Origin: China
Capacity: 50000 Pieces/Year
📦

Packaging & Delivery

Package Size: 200.00cm * 200.00cm * 200.00cm
Gross Weight: 300.000kg
🚀

Product Description

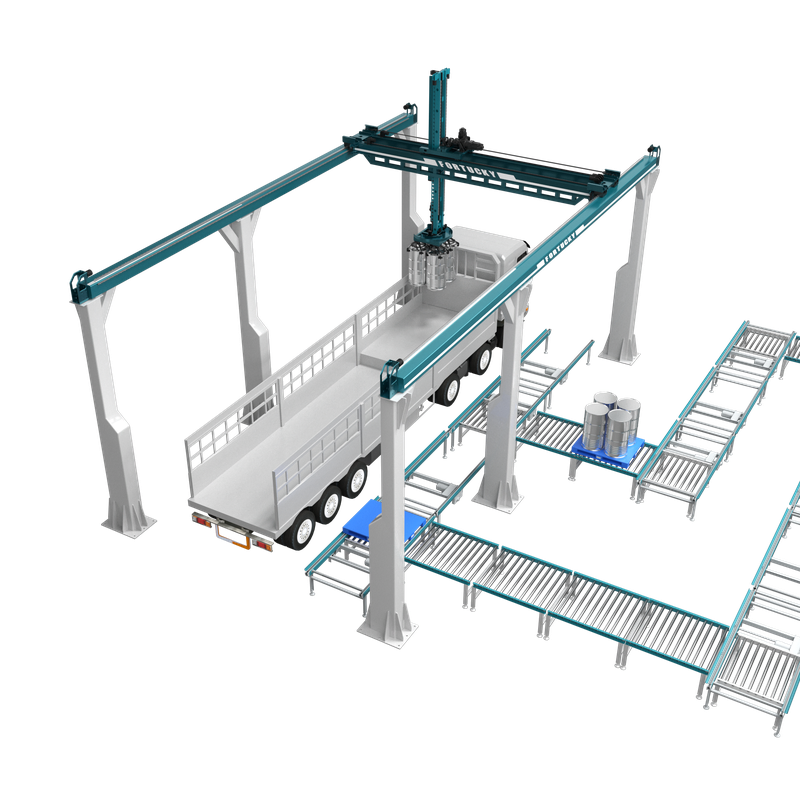

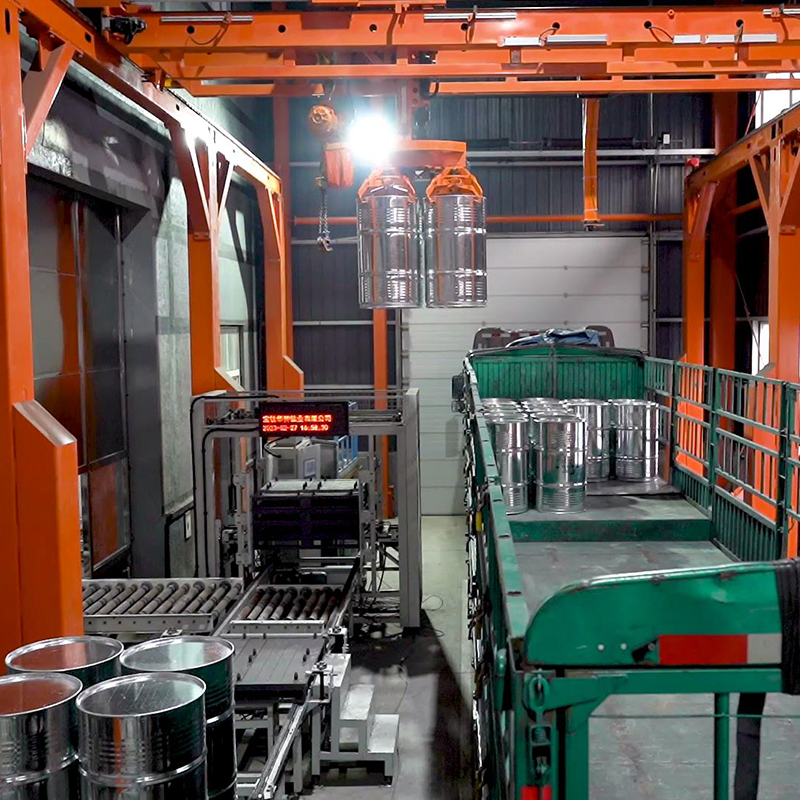

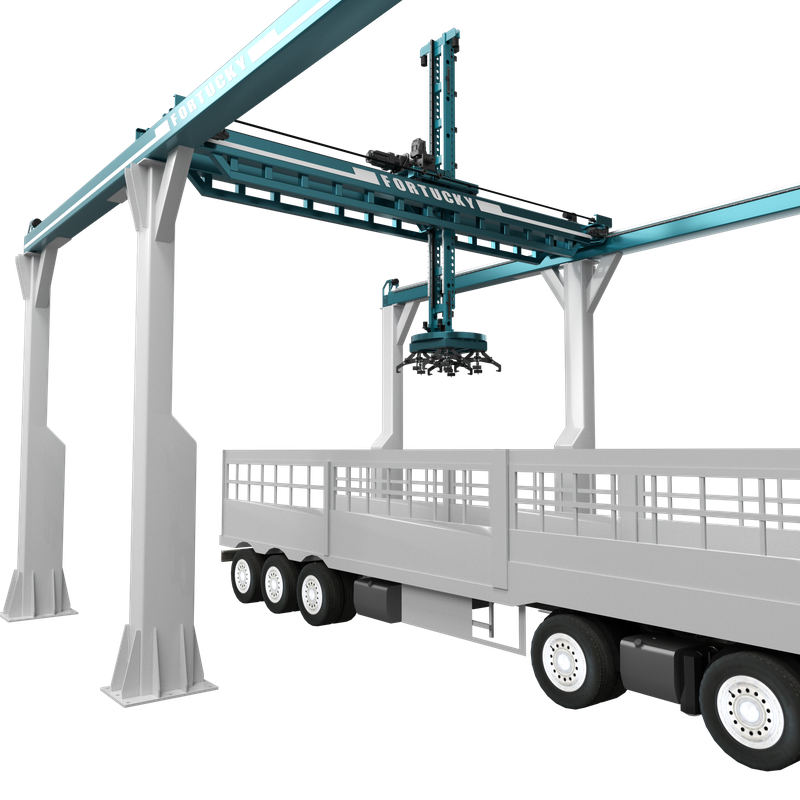

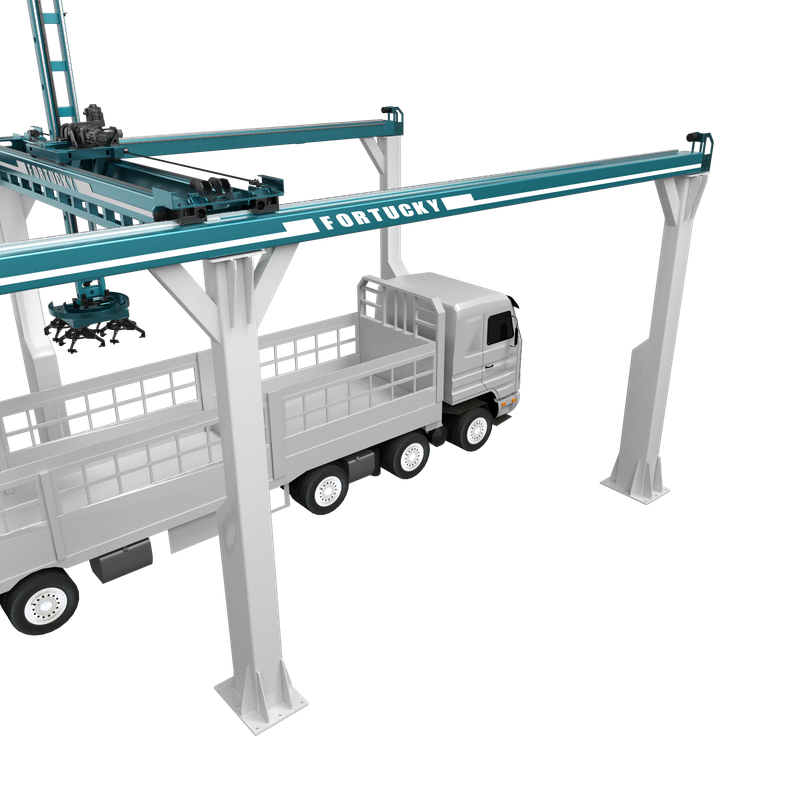

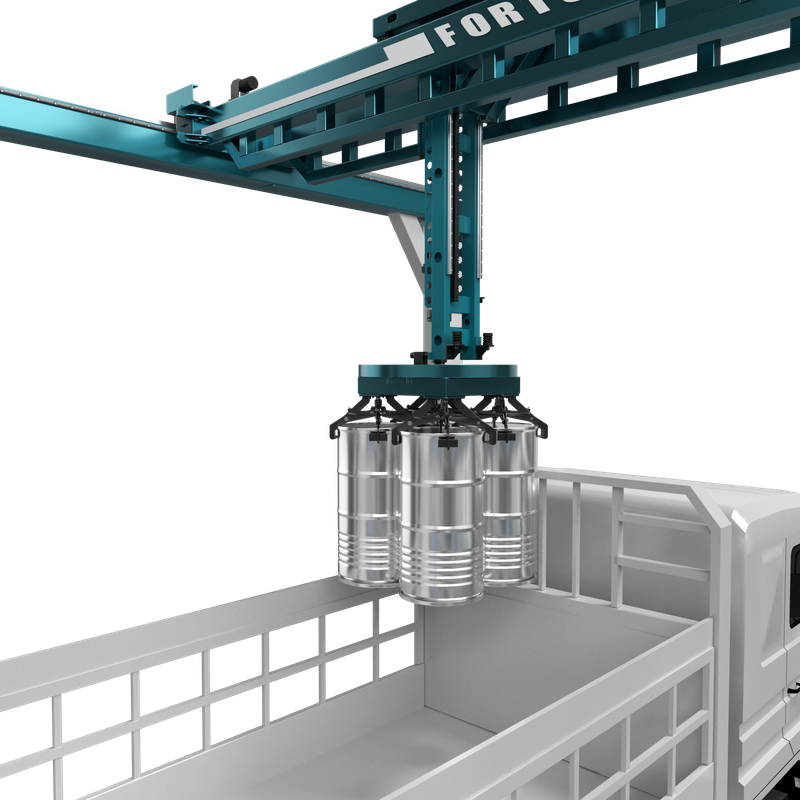

Introducing the Barrel Material Automatic Loading Machine - a groundbreaking, fully autonomous marvel crafted to transform the monotonous and labor-intensive manual loading process. Built with a resilient frame composed of multiple columns and beams, this cutting-edge equipment flawlessly automates the precise stacking of barrel materials, layer by meticulous layer, directly into transport vehicles. It intelligently streamlines item organization according to specific needs, substantially reducing labor requirements and associated costs. Embrace this pinnacle of modern innovation to significantly slash production expenses and elevate operational efficiency within your enterprise.
💡

Features & Advantages

  • Unparalleled Efficiency: A task that previously consumed 2 to 3 hours manually can now be completed in just 10 to 30 minutes with automatic precision.
  • Sophisticated Automation: Offers extensive application versatility, handling loading requirements for an expansive range of models and bag types.
  • Flexible Configurations: Meticulously crafted to fulfill diverse operational demands across dynamic environments.
  • Wide Industry Application: Used across manufacturing, FMCG, chemicals, construction, and the new energy sector.
📊

Technical Parameters

Technical Parameters Unit Typical range/value
Rated load kg 1200
Applicable Truck Types - 13M and 17M carriages
X direction running speed m/min 0~45
X direction running acceleration m/s² 0.4
Z direction lifting speed m/min 0-8
Z direction acceleration m/s² 0.2
Spinning speed r/min 0~3
Rotational acceleration rad/s² 0.1
Ejector ejection speed - 12
Positioning accuracy mm ±3
Loading efficiency min 30
Position type - Visual Identity
🖼️

Visual Display

Frequently Asked Questions

How much time can this automatic loader save compared to manual labor?
It significantly reduces loading time from the typical 2-3 hours required for manual labor to just 10-30 minutes, depending on the load.
What types of trucks are compatible with this system?
The system is specifically designed to work efficiently with standard 13M and 17M carriages.
Is the loading process accurate?
Yes, the machine uses Visual Identity for positioning, achieving a high positioning accuracy of ±3mm.
Can it handle different types of materials?
The loader is versatile and expertly handles various barrel materials and bag types across multiple industries including chemicals and FMCG.
What is the rated load capacity of the loader?
The typical rated load capacity for this automatic logistics loader is 1200kg.
Is the equipment customizable?
Yes, the specifications are fully customizable to meet the specific operational demands and configurations of your facility.
