Basic Information
Fork Width/Length
540*1150mm
Production Capacity
10000sets/Year

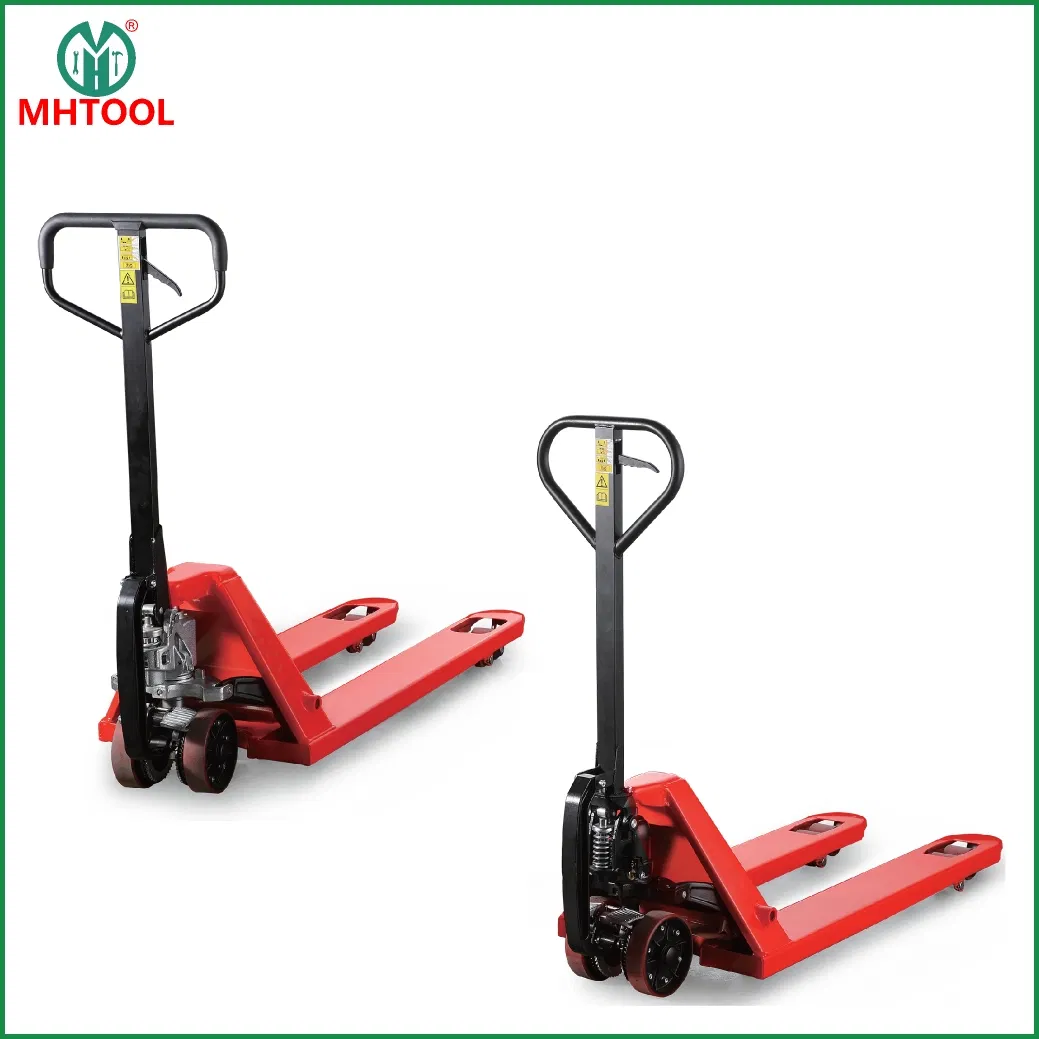

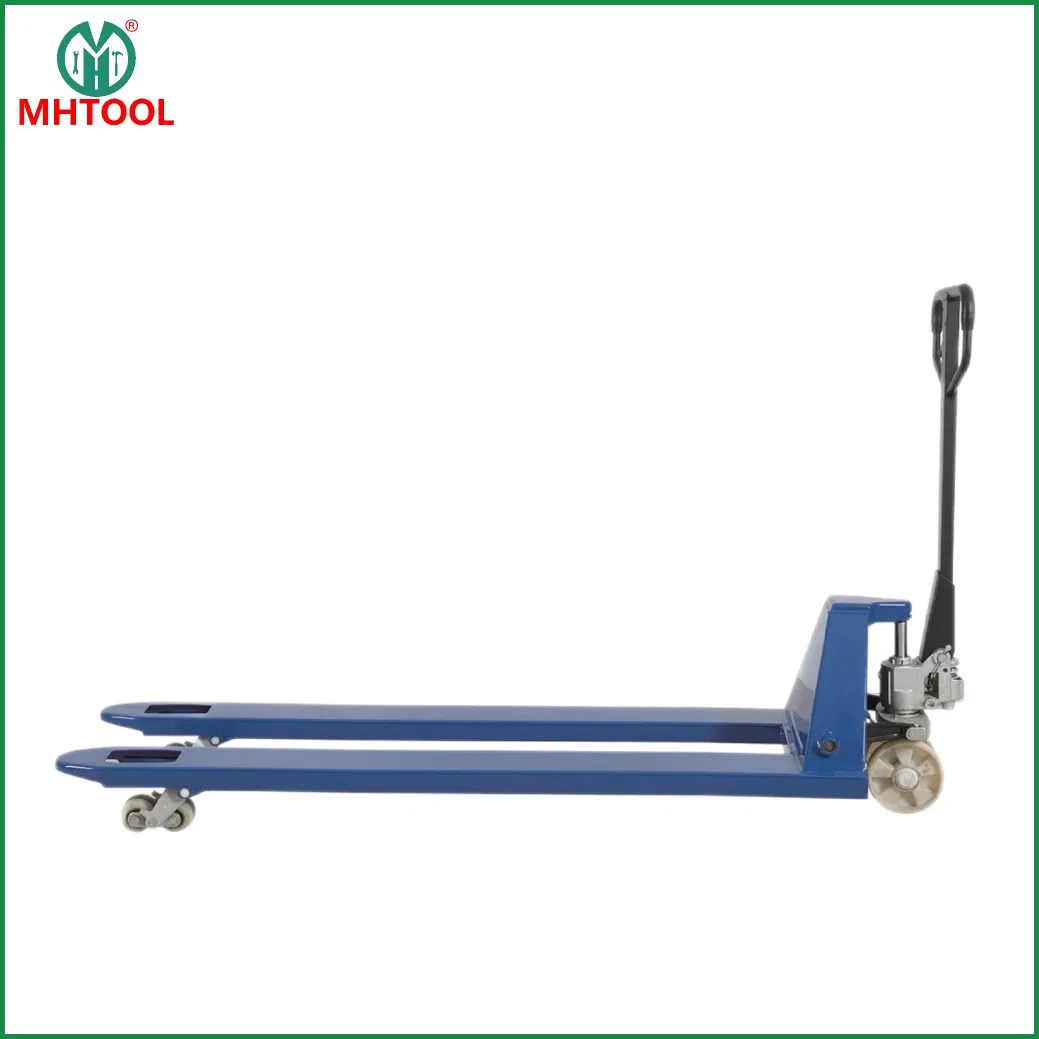

Manual Pallet Truck
Main Technical Data (Manual)
| Model |
Unit |
QF25 |
QF30 |
| Pump | - | BF | BF |
| Capacity | kg | 2500 | 3000 |
| Height of fork | mm | 75-190/85-200 | 75-190/85-200 |
| Width of fork | mm | 550/685 | 550/685 |
| Length of fork | mm | 1000/1150/1220 | 1000/1150/1220 |
| Steer wheel | mm | 180 | 180 |
| Material of wheel | - | Nylon / PU | Nylon / PU |
| N.W. | kg | 61-69 | 68-75 |

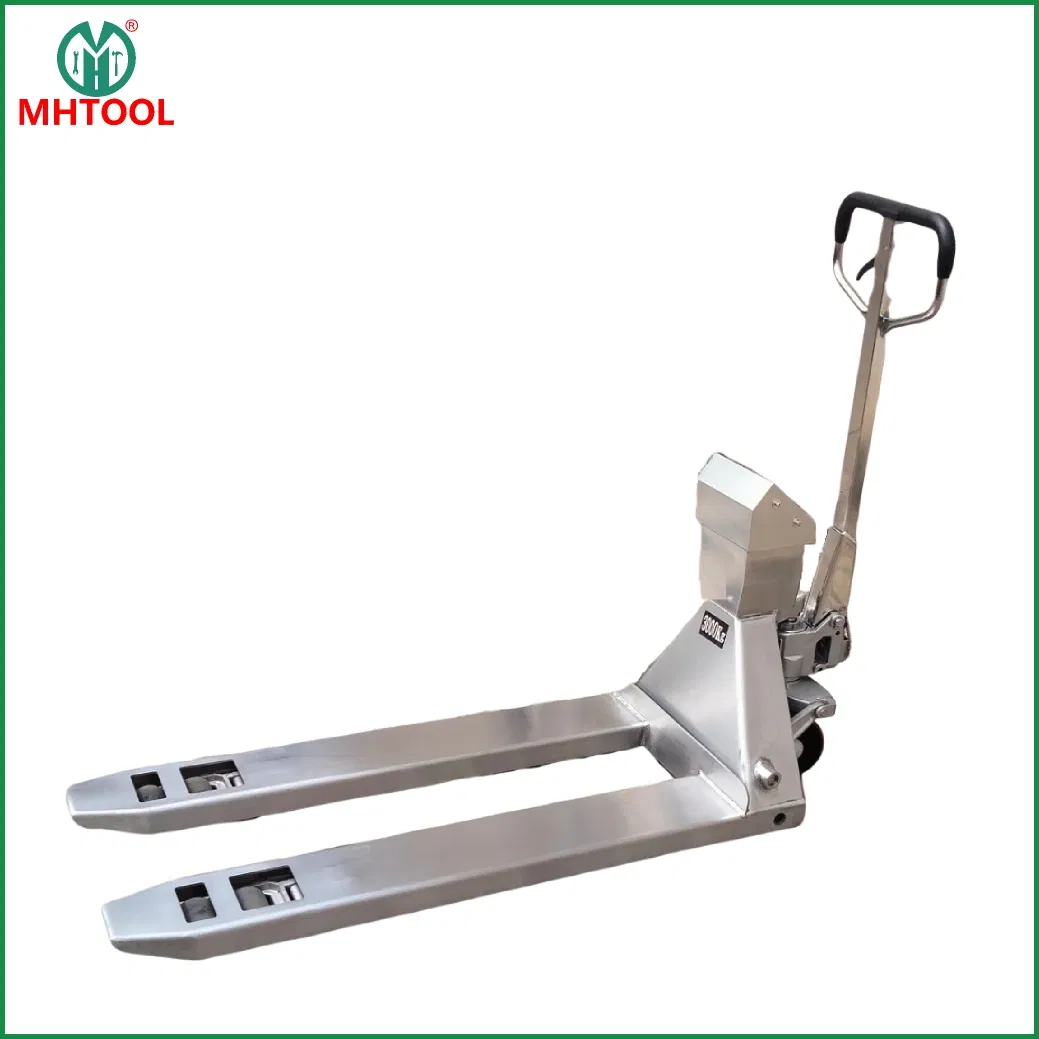

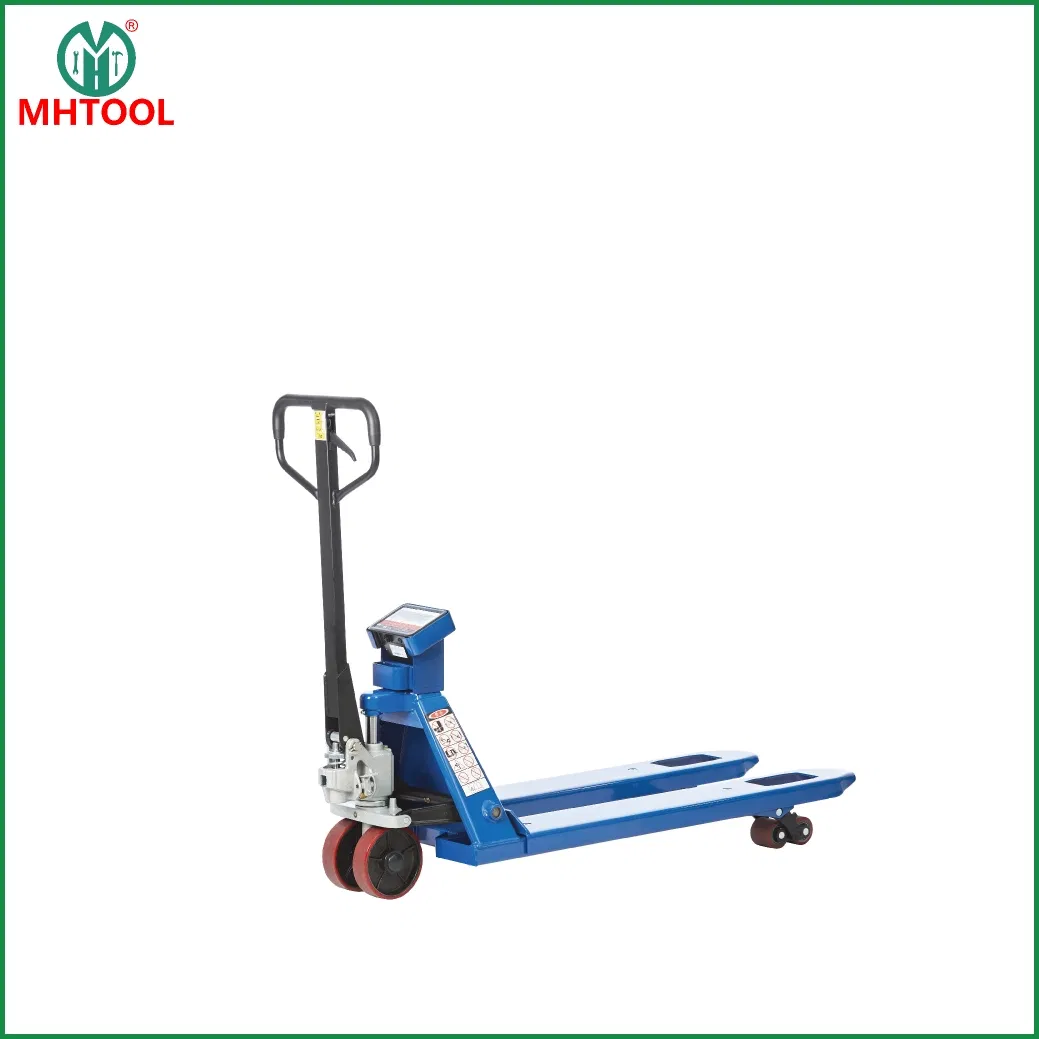

Electronic Scale Pallet Truck
Key Features
- ⚖️ Weighting accuracy ±0.2kg for 2000kg load
- 📊 Complete with built-in weighting scale
- 🔋 Rechargeable battery 6V 4.5AH with external charger
- 🛡️ Water and Dust proof to Norm IP54
- ⚙️ Four accurate load cells for precise measurement
Main Technical Data (Scale Truck)
| Model |
Unit |
SHPT20H |
SHPT25H |
| Capacity | kg | 2000 | 2500 |
| Fork height | mm | 85-200 | 85-200 |
| Width over forks | mm | 568/703 | 568/703 |
| Fork length | mm | 1150/1220 | 1150/1220 |
| Battery | - | DC 6V/4.5Ah | DC 6V/4.5Ah |
| Printer Paper | - | Thermal 57x50mm | Thermal 57x50mm |
| N.W. | kg | 105 | 105 |
Professional Service Commitment
Pre-Sale Service
- 01. Quality Control: Strict production based on contract.
- 02. Delivery: Guaranteed within contracted time.
- 03. Inspection: Photos of finished production and packing sent to customers.
- 04. Documentation: Full packing size tables and customs clearance documents via DHL/TNT.
After-Sale Service (Within 24 Hours)
- 01. Quick Reply: Fast response to all online, email, or telephone inquiries.
- 02. Quality Responsibility: Responsible for issues resulting from our manufacturing (free parts or compensation).
- 03. Safe Operation: Guidance based on Operating Manual to guarantee safety.
Frequently Asked Questions
What is the maximum load capacity for these pallet trucks?
Our pallet trucks range in capacity from 1 Ton up to 5 Tons, depending on the specific model selected.
Are the weighing scales on the trucks accurate?
Yes, the electronic scale pallet trucks feature four accurate load cells, providing an accuracy of ±0.2kg for a 2000kg load.
What wheel materials do you offer?
We offer both Nylon and PU (Polyurethane) wheel materials to suit different floor types and operating environments.
Is the electronic scale truck protected against water?
The scale and electronic components are water and dust proof according to the IP54 standard, ensuring durability in industrial environments.
What is the standard fork size for these trucks?
The standard fork size is 540*1150mm, but various widths (550/685mm) and lengths (1000/1150/1220mm) are available depending on the model.
How long does it take to get a response for after-sales support?
We guarantee a response within 24 hours for all after-sale inquiries, whether via email, telephone, or online chat.
