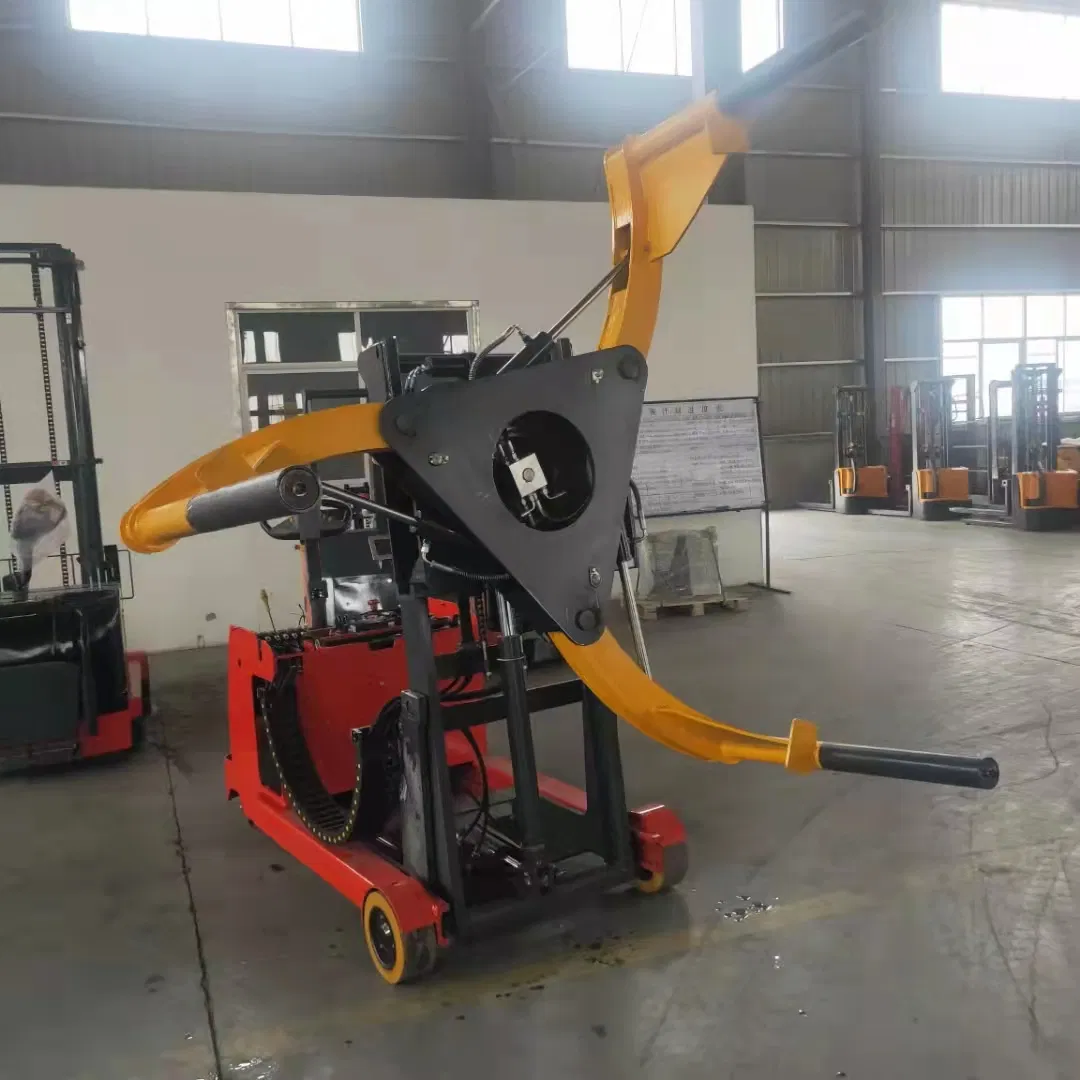

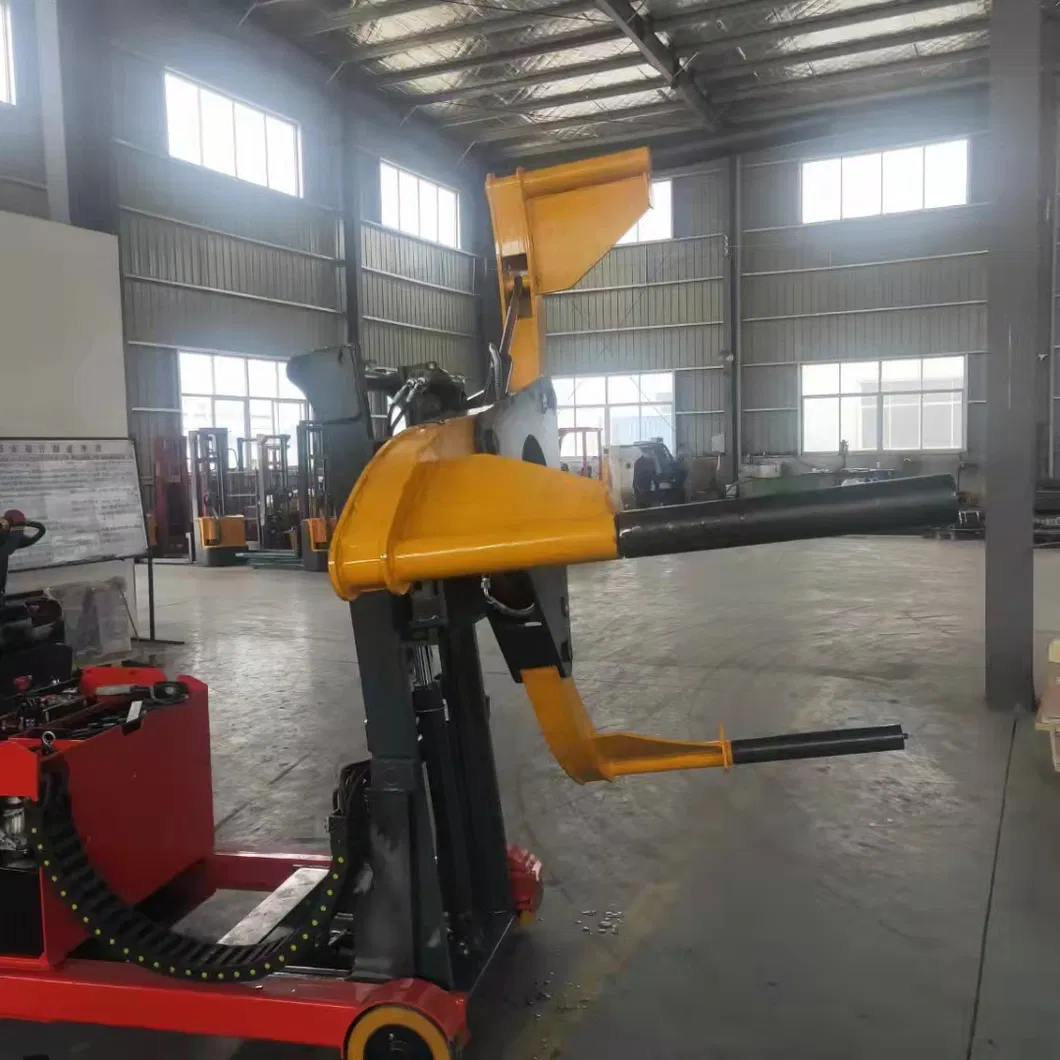

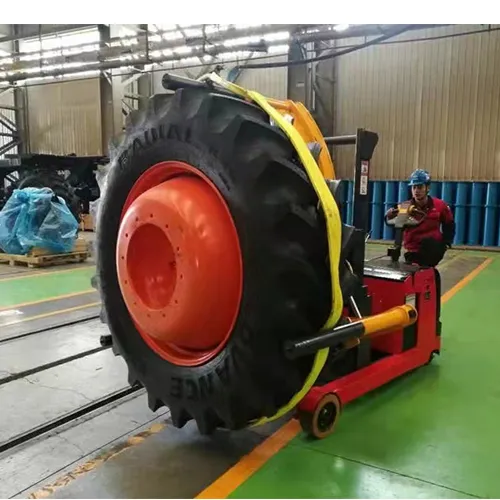

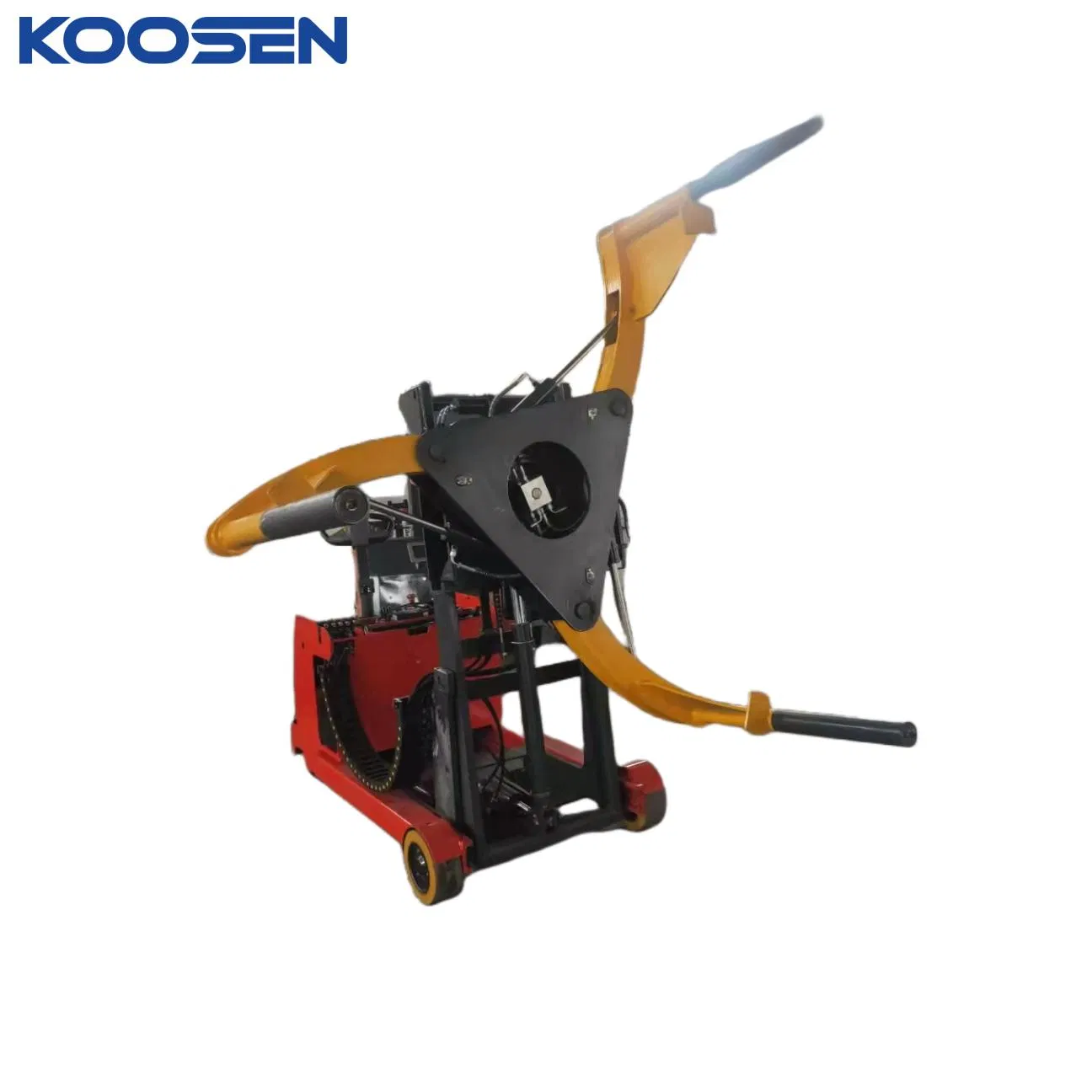

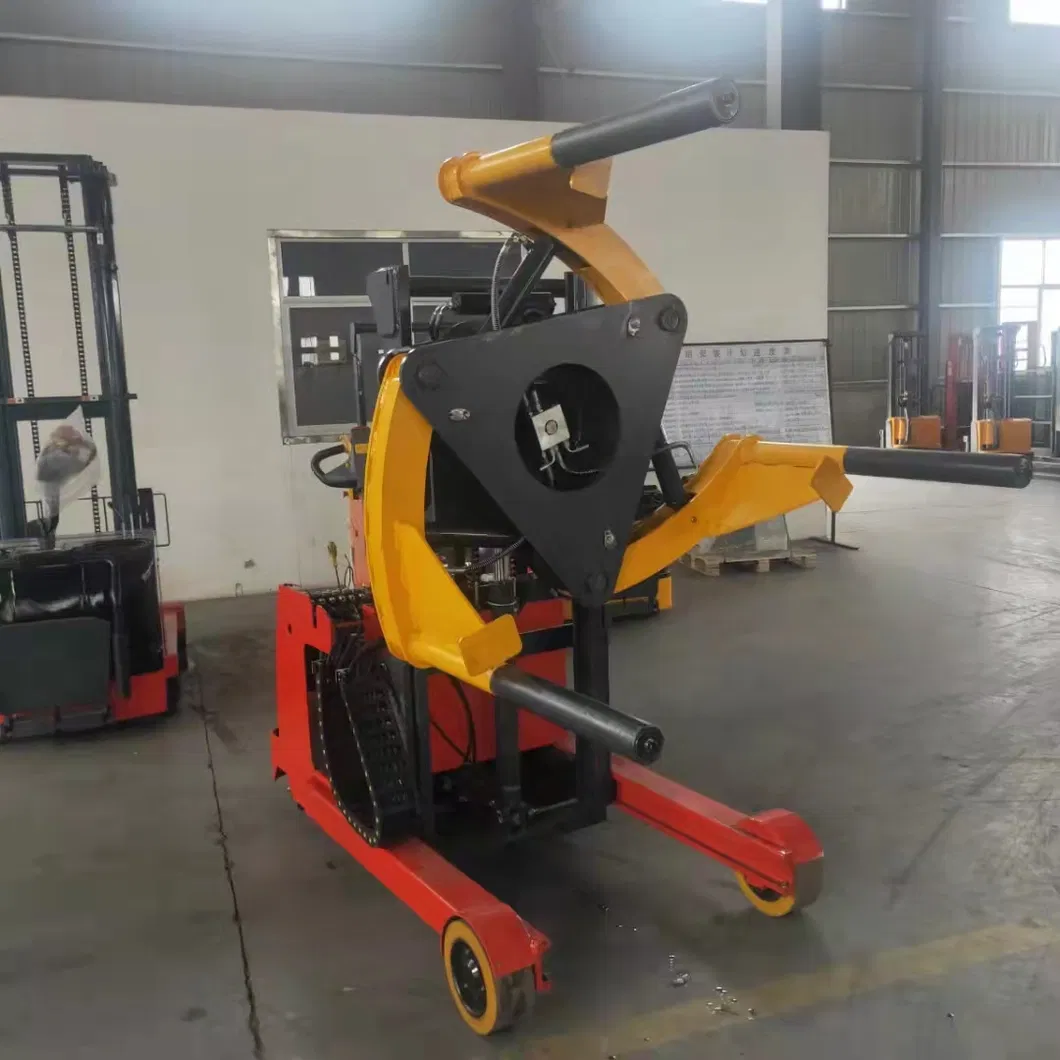

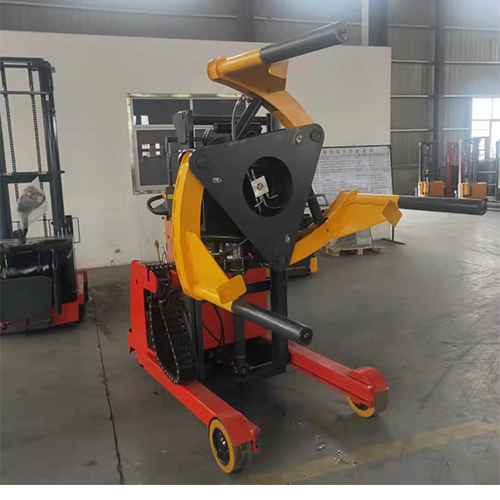

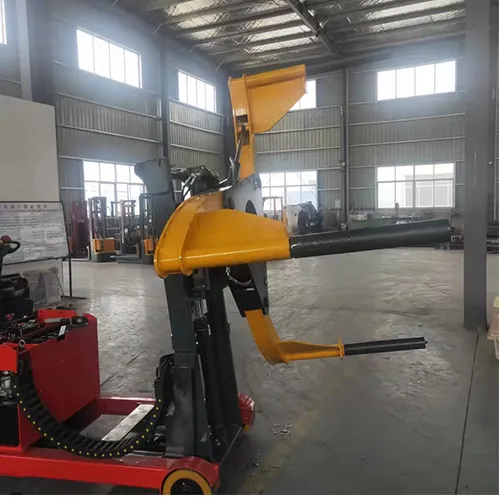

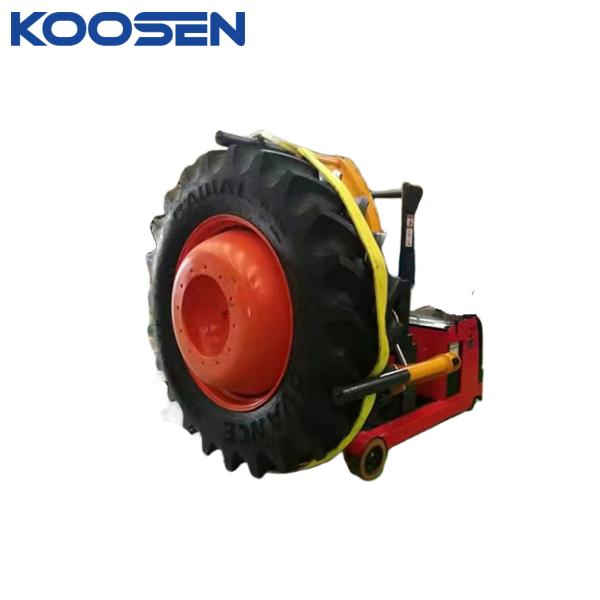

Tyre Handler is Revolutionary in its filed, using a unique and very effective 3-point gripping system to ensure safe handling and manipulation of large and expensive tyres&wheels. Ideal for open pit mins, construction site tyre manufacturers, tyres service and tyre storage company.
| Product model | - | Travel speed (loaded/unloaded) | 2/2.5 (km/h) | ||
| Load capacity | 8000kg | Lift speed loaded/unloaded | 28/40 (mm/s) | ||
| Load center distance | 825mm | Lowering speed loaded/unloaded | 45/40 (mm/s) | ||
| Wheelbase | 2074mm | Max gradeability loaded | 2.5/8% | ||
| Weight with battery | 1450kg | Service brake | Electromagnetic brake | ||
| Overall height | 1426mm | Controller | AC Curtis | ||
| Lifting height | 285mm | Driving motor rate | 3KW | ||
| Battery capacity | 24V/400AH | Battery weight | 300kg | ||
| Overall width | 1000mm | Tires | PU Tire | ||
