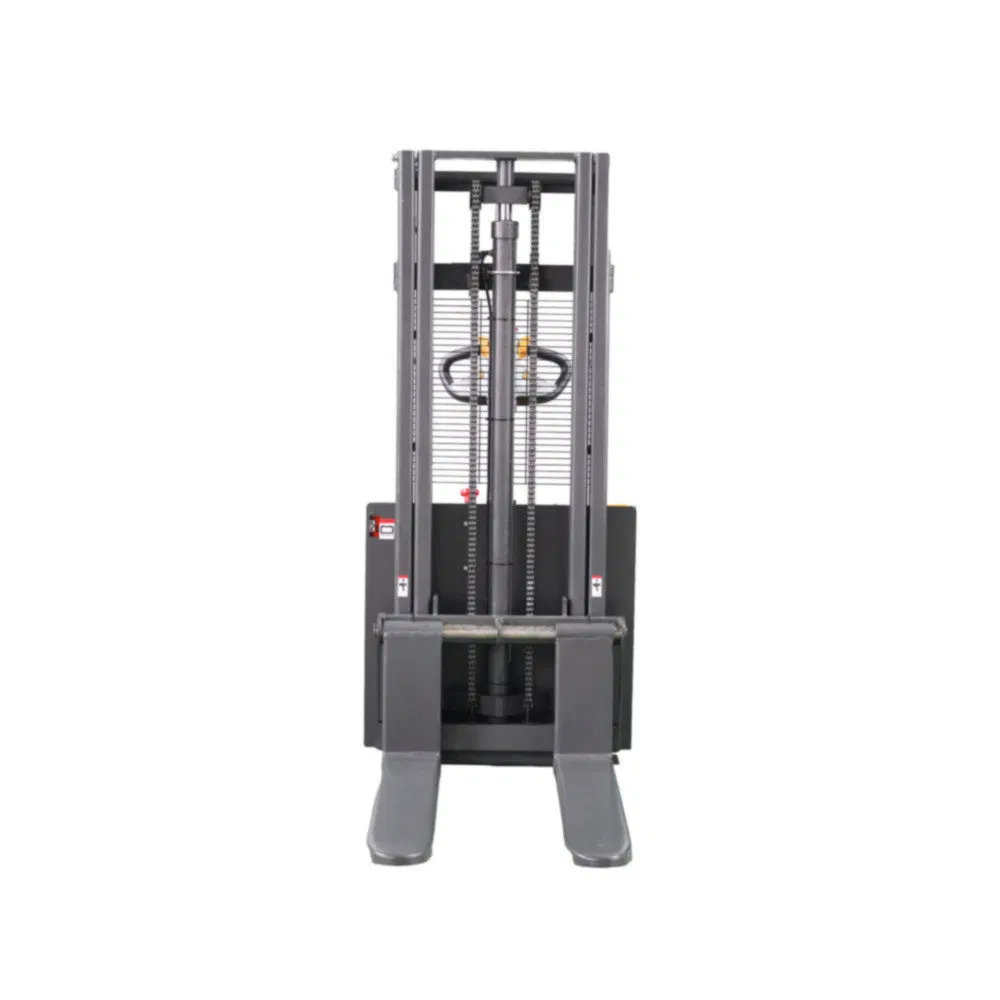

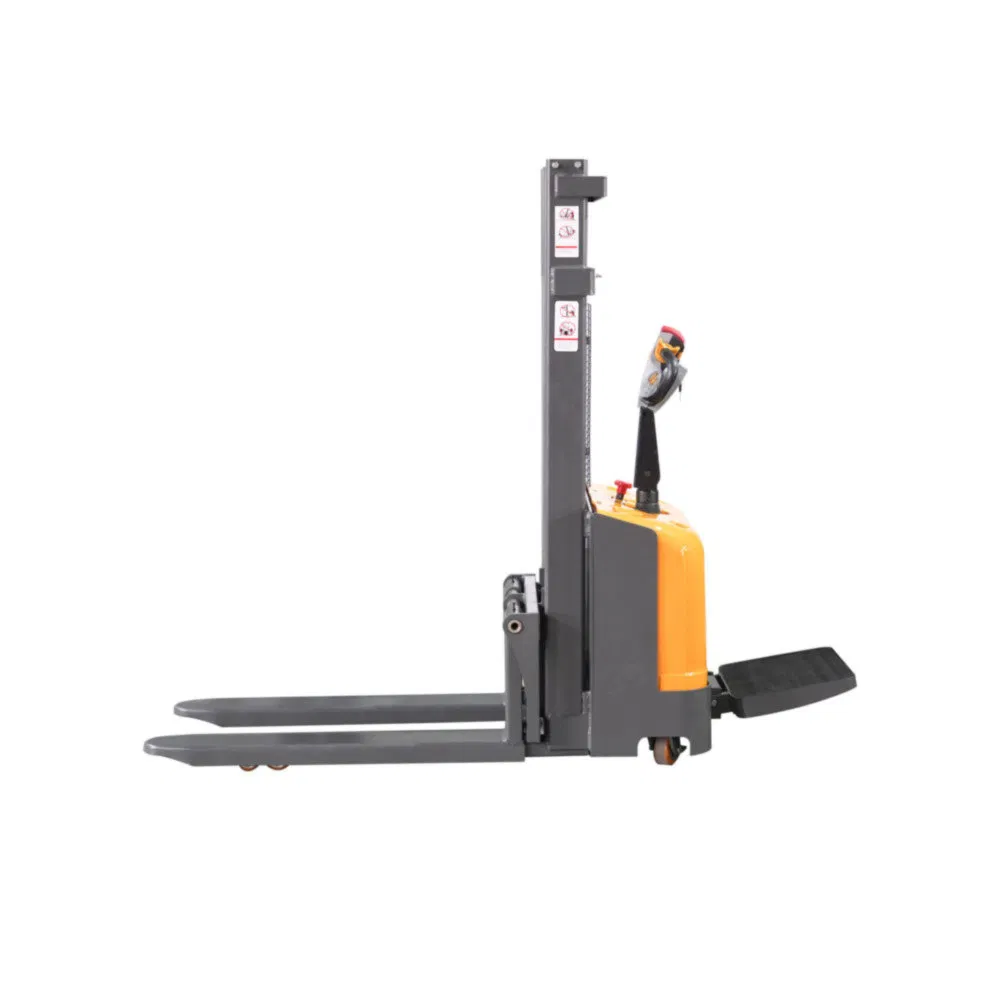

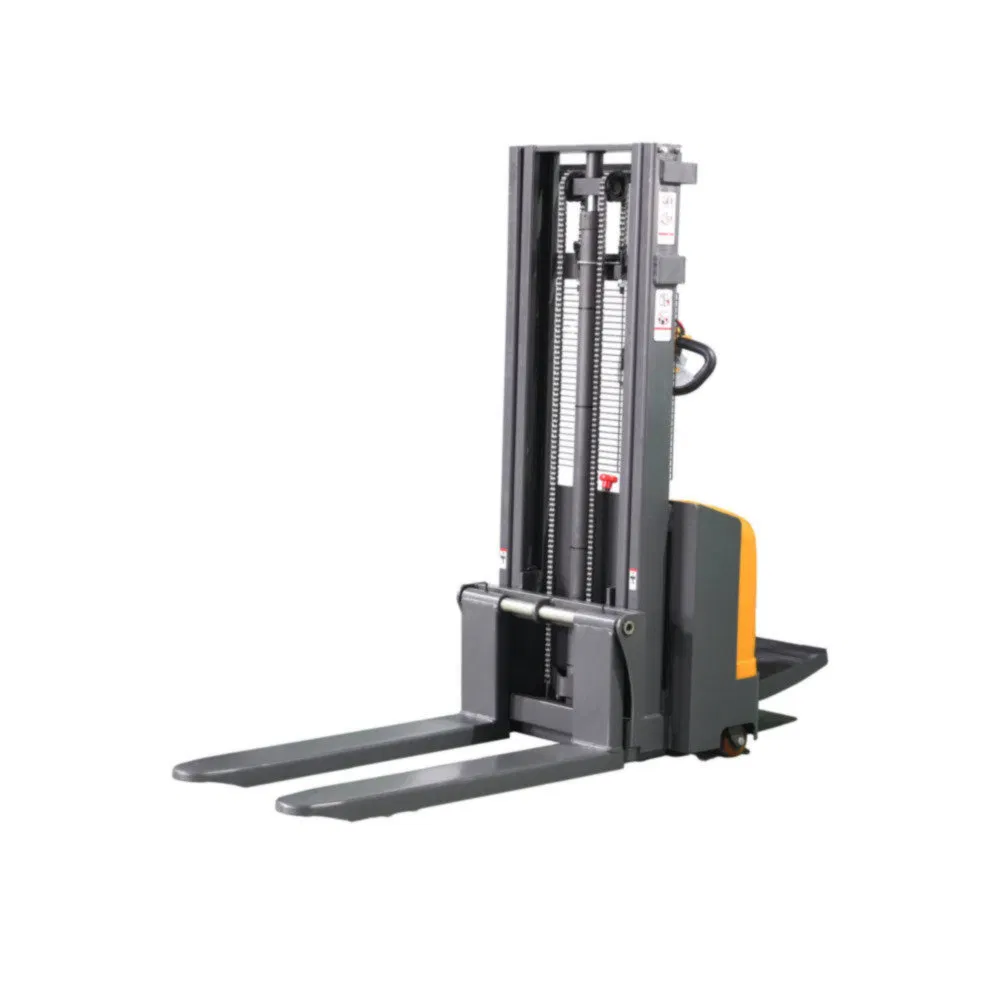

Featuring a robust AC driving motor, this battery-powered stacker delivers exceptional lifting capacity of 1,500kg to 2,000kg with adjustable fork heights ranging from 1.6m to 3.5m, making it ideal for diverse pallet stacking applications.

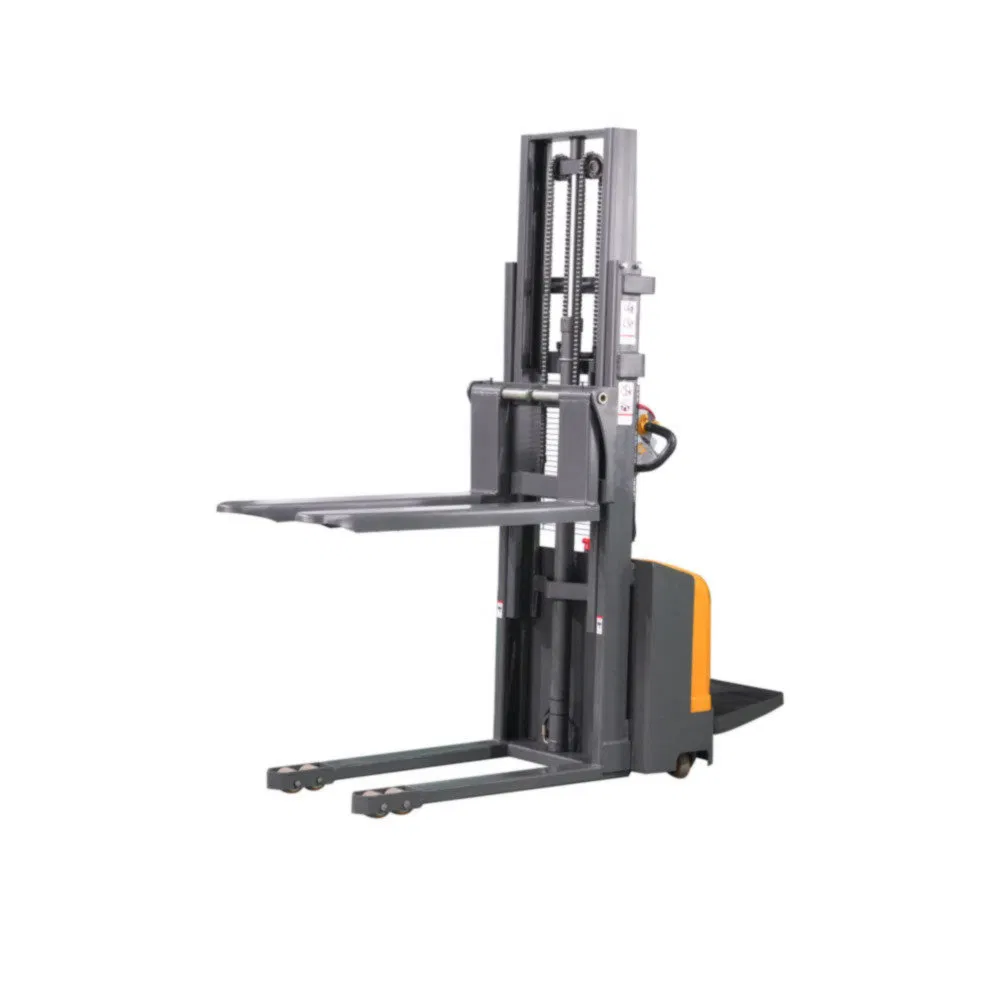

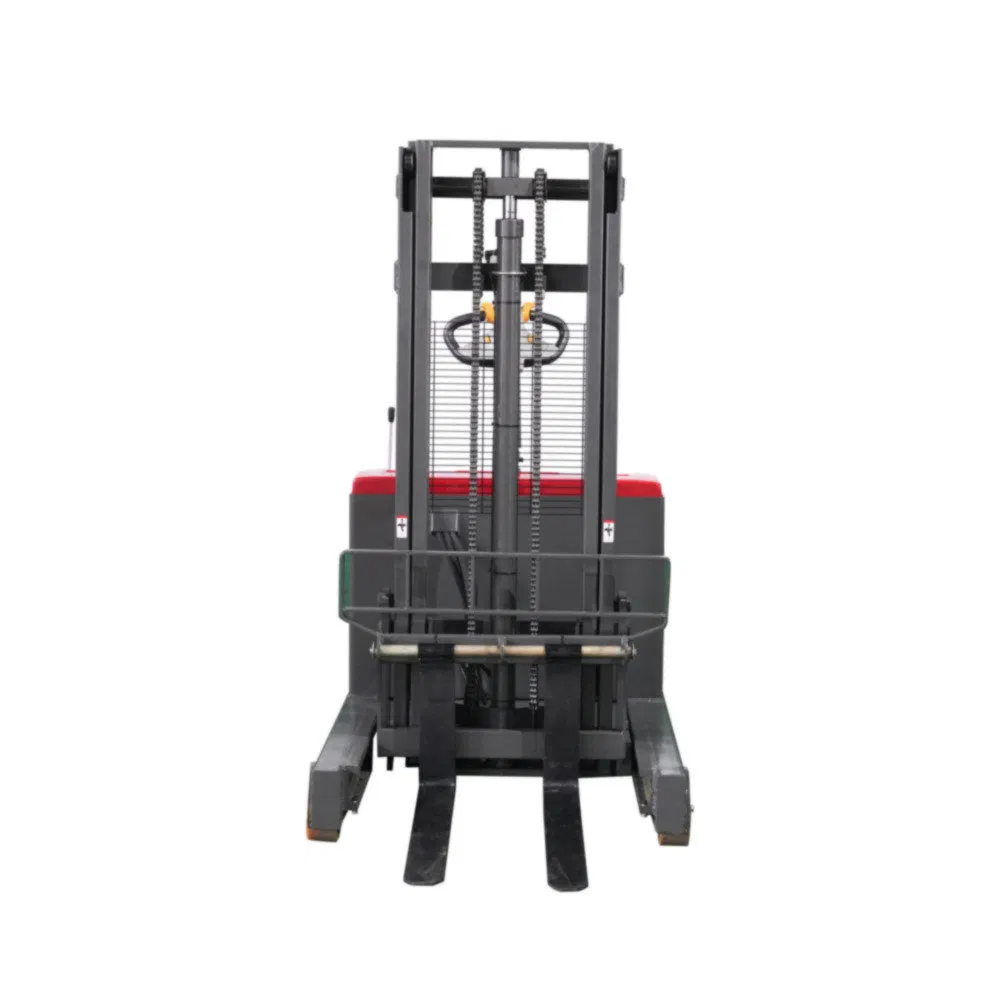

Engineered with a straddle leg design and adjustable forks, this electric lift stacker handles both open and closed pallets with ease. The compact footprint and tight turning radius of just 1,431mm allow seamless operation in narrow aisles and tight spaces — even inside shipping containers.
| Model | Unit | CDD-A15 | CDD-B15 | CDD-B20 |
| Rated Load | kg | 1500 | 1500 | 2000 |
| Load Center | mm | 500 | 500 | 500 |
| Lifting Height | mm | 1600-3500 | 1600-3500 | 1600-3500 |
| Weight (with Battery) | kg | 520 | 580-780 | 650-860 |
| Driving Motor | kw | 0.75 | 0.75 | 1.5 |
| Lifting Motor | kw | 2.2 | 2.2 | 2.2 |
| Brake Type | - | Electromagnetic Brake | ||

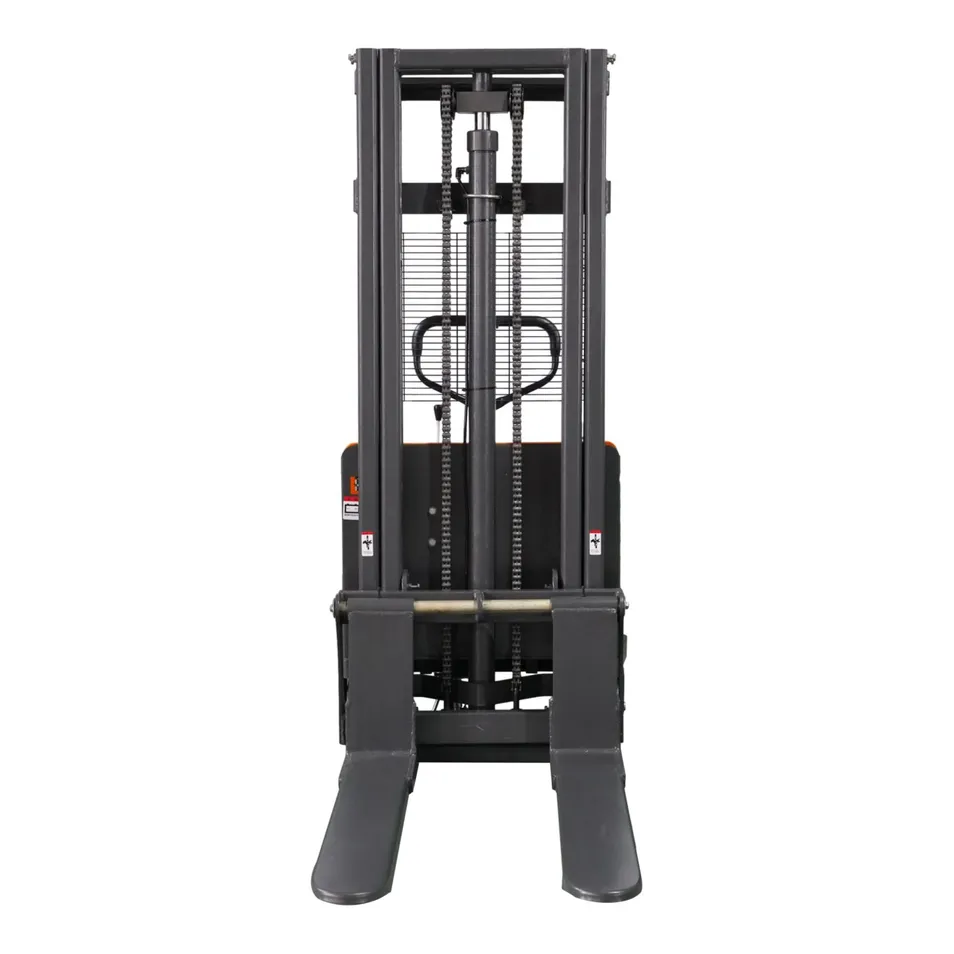

Equipped with a high-efficiency 0.75kW–1.5kW AC drive motor and 2.2kW lifting motor, delivering smooth acceleration, reliable power output, and reduced energy consumption.

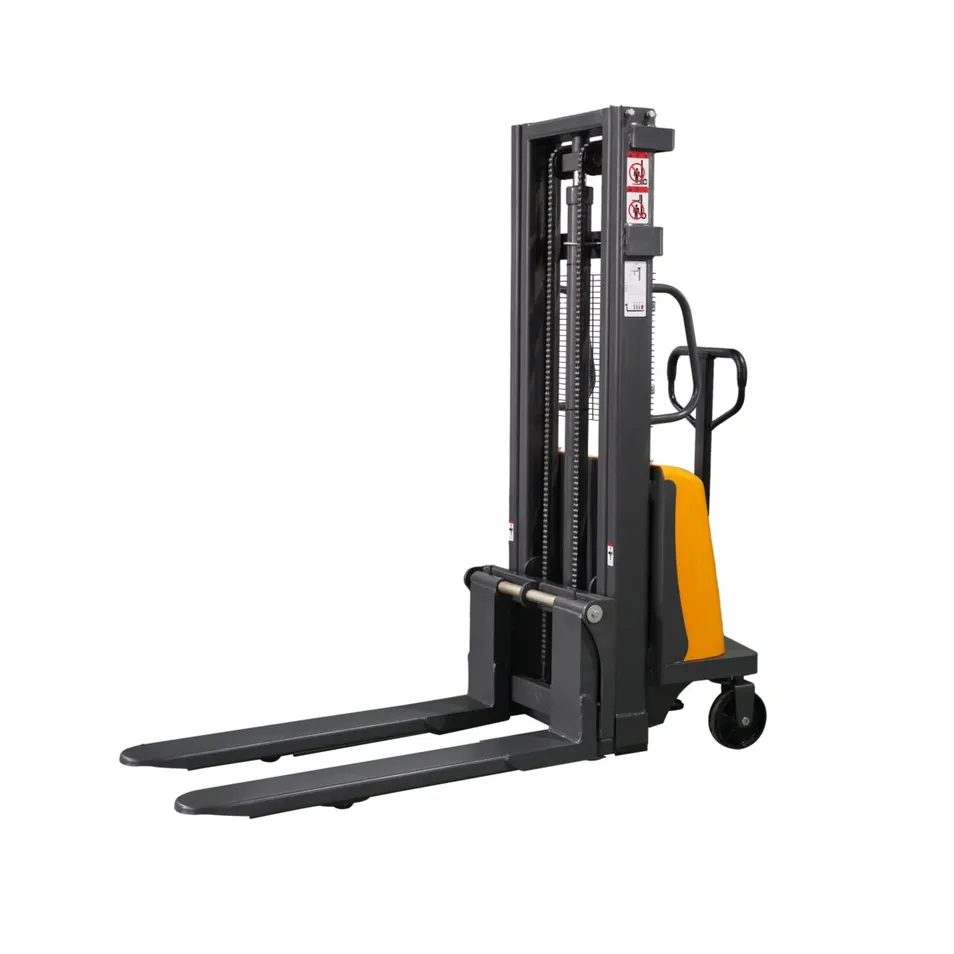

Built-in safety features include emergency reverse device, emergency power-off switch, turtle-speed slow mode, and overload protection valve.

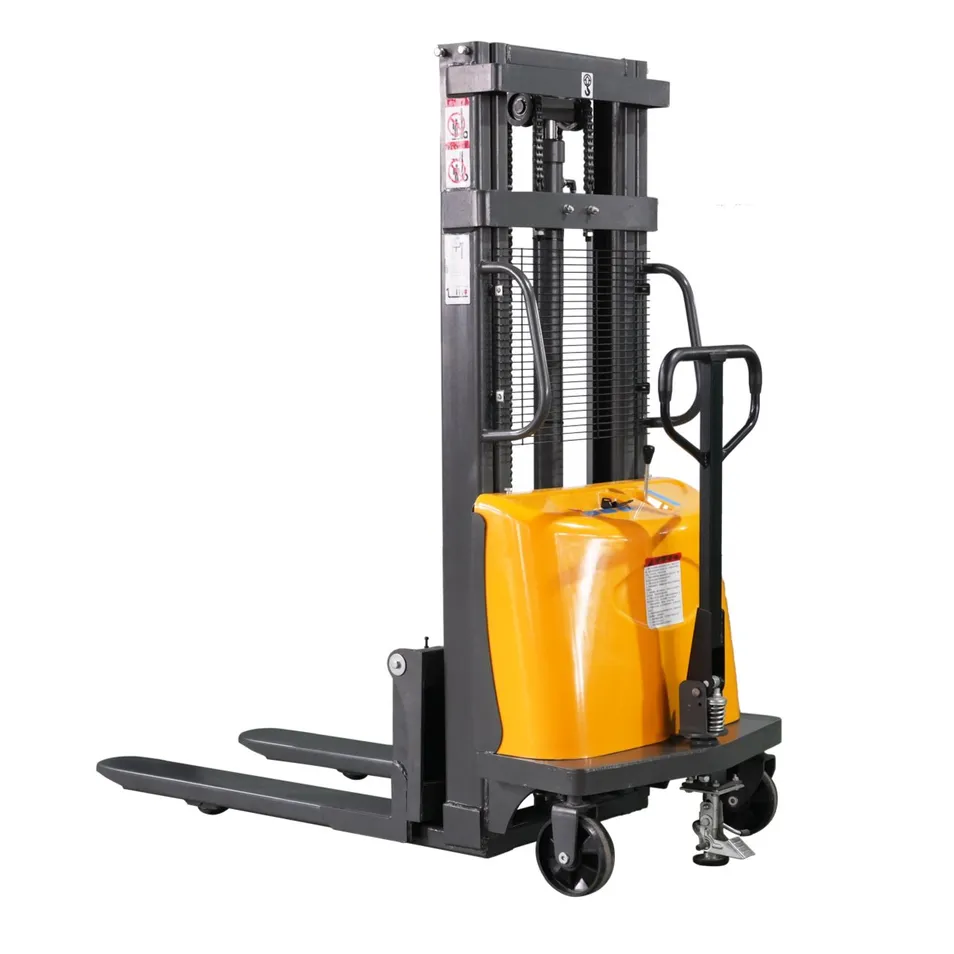

Foldable thickened pedals with protective guard bars offer superior comfort and safety during stand-on operation, reducing fatigue.
Ideal for stacking and organizing palletized goods on racking systems.
Streamline order fulfillment and cross-docking operations.
Efficiently move raw materials and finished goods between production lines.
Reliable operation in cold chain and pharmaceutical logistics.
