Basic Specifications
Usage
Food, Industrial, Warehouse Rack
Material
Steel and Reinforced Concrete
Motor
0.75kw, Sew or Sumitomo
Max Movable Load
12 Tons Per Bay
Production Capacity
10000 Per Year
General Introduction

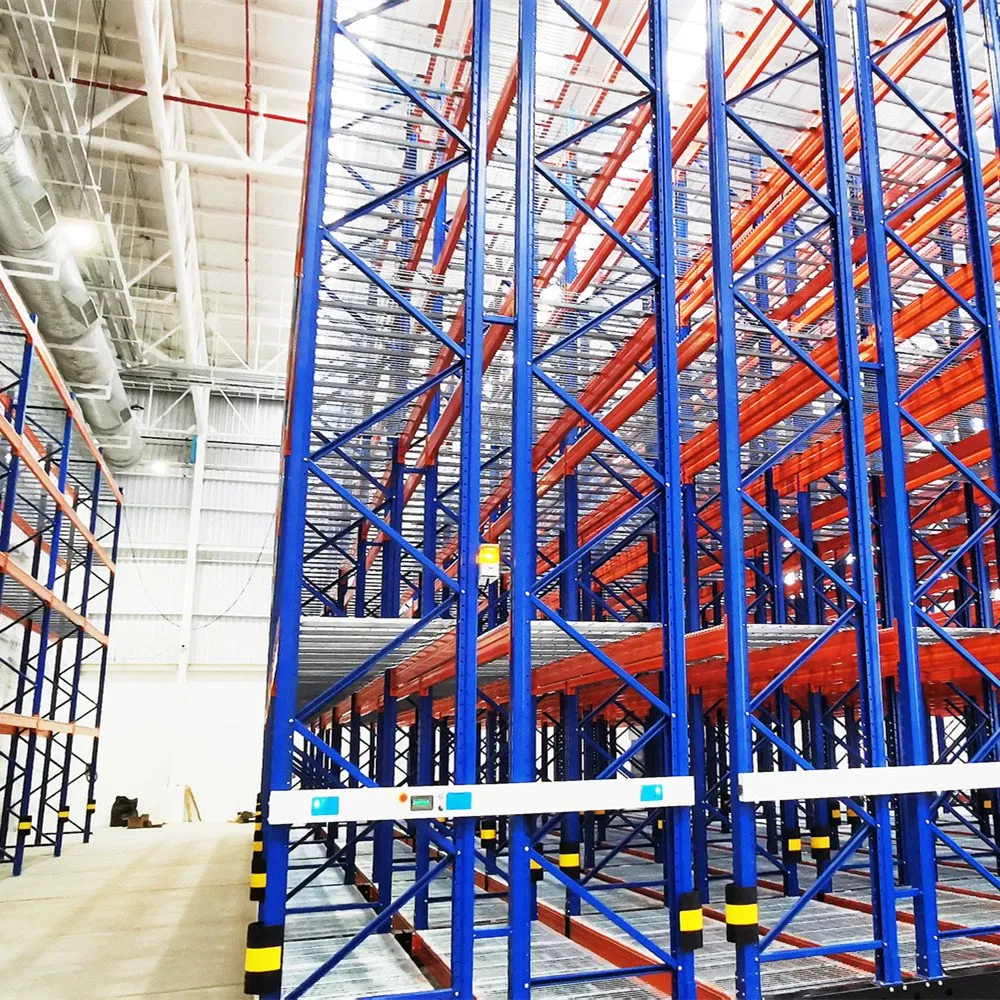

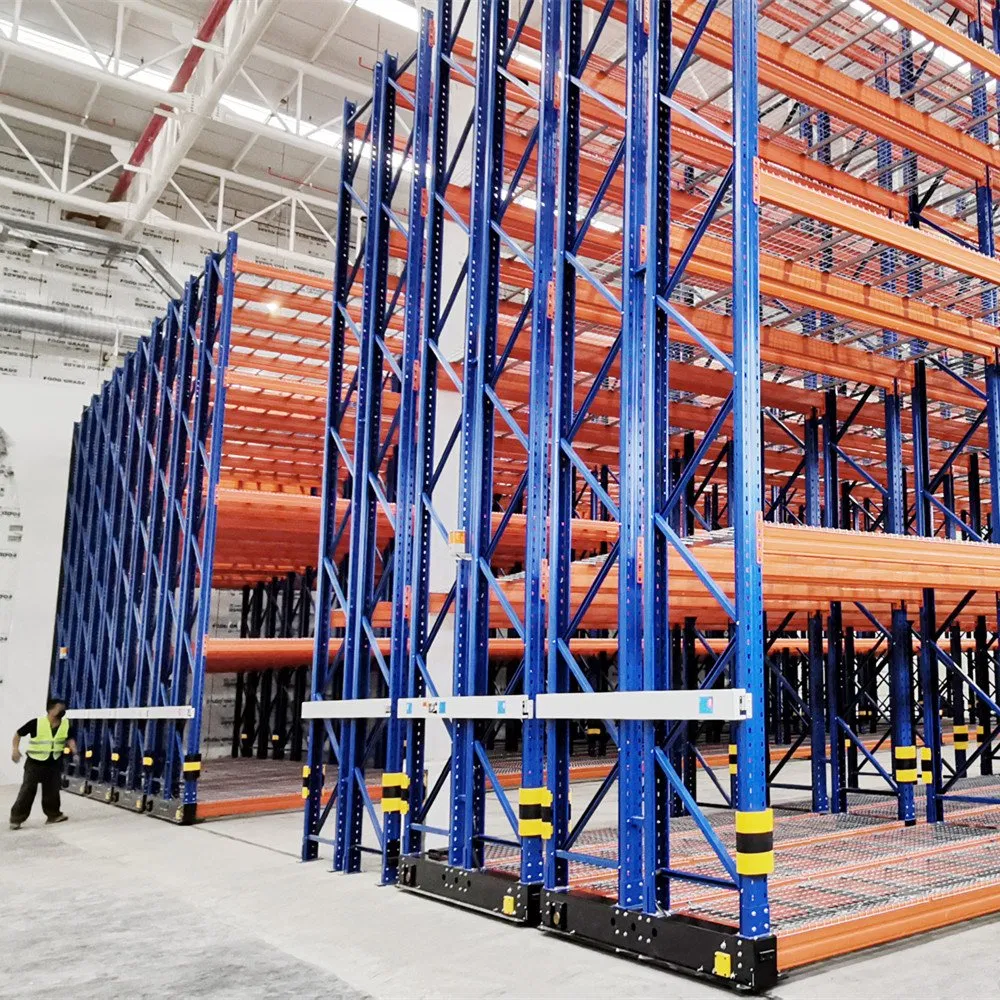

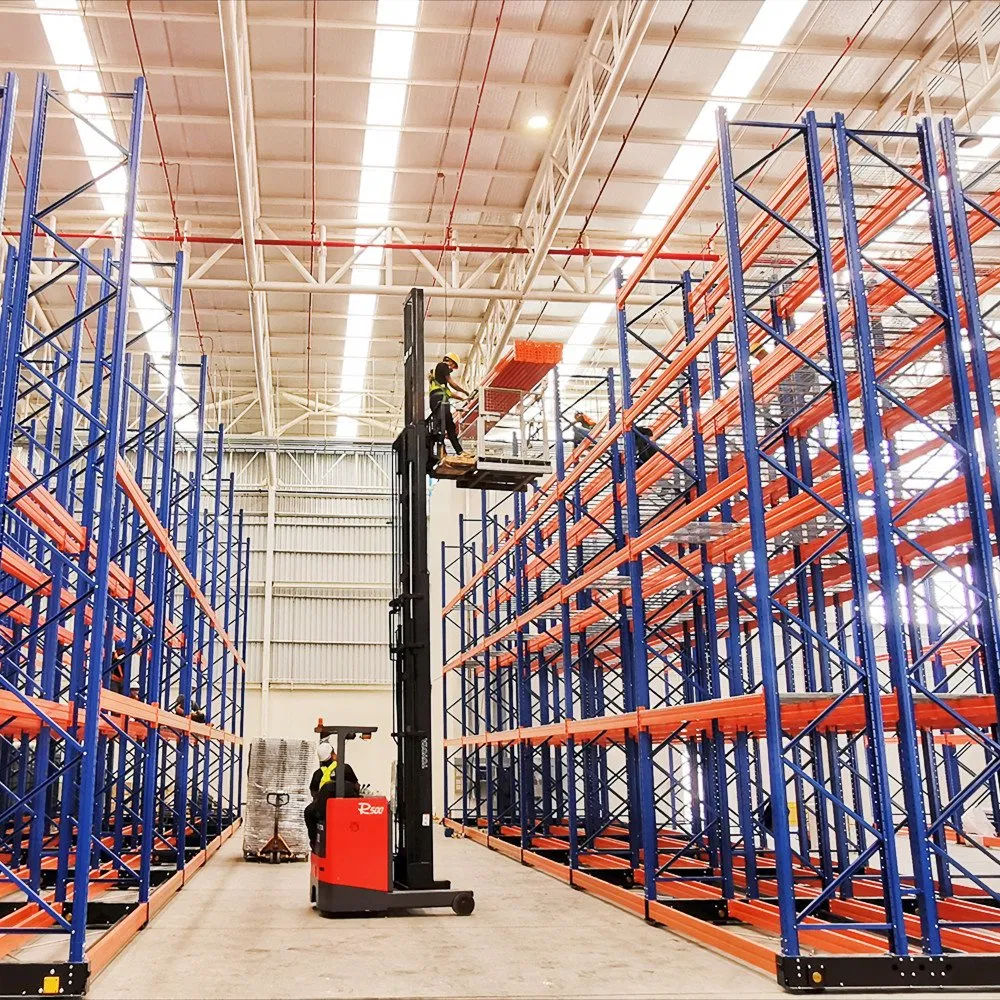

Warehouse electric powered motorized trackless mobile shelving solution

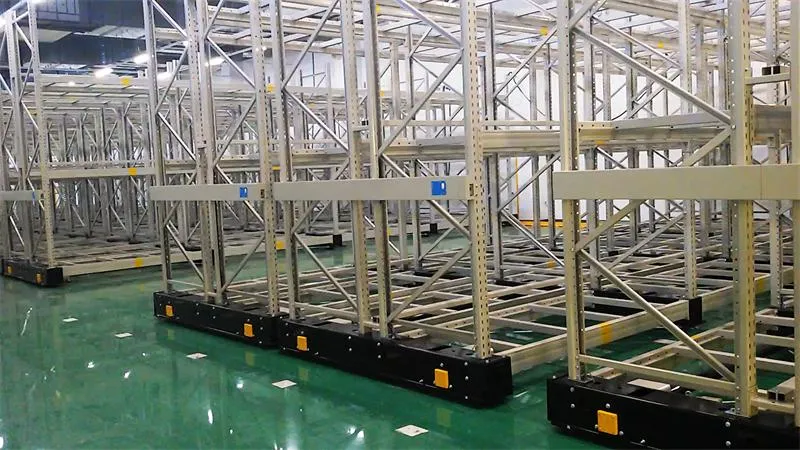

Mobile Shelving is a conventional shelving system mounted on carriages which moves to maximize the storage capacity. Aisles can be accessed via manual or remote control. The reduction in the number of aisles achieved by this system provides a high degree of both operational and cost benefits.

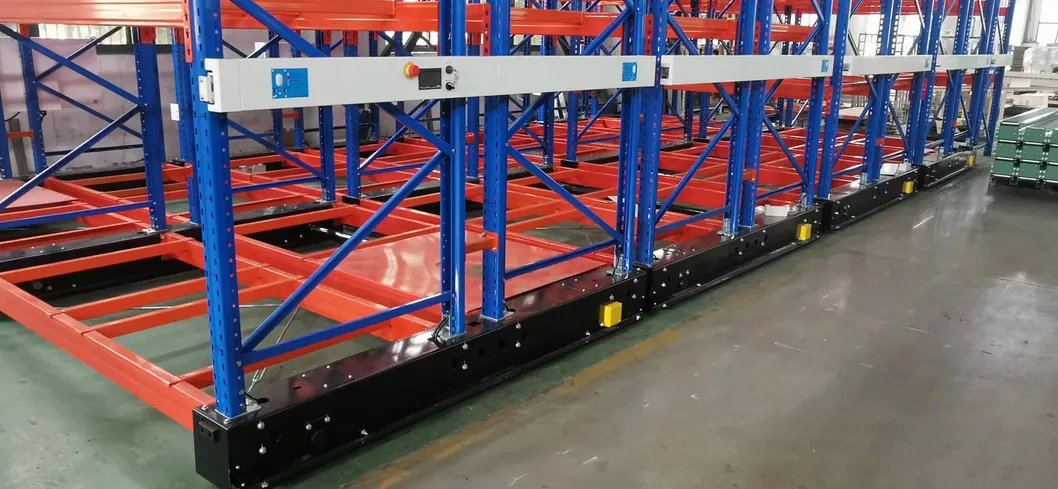

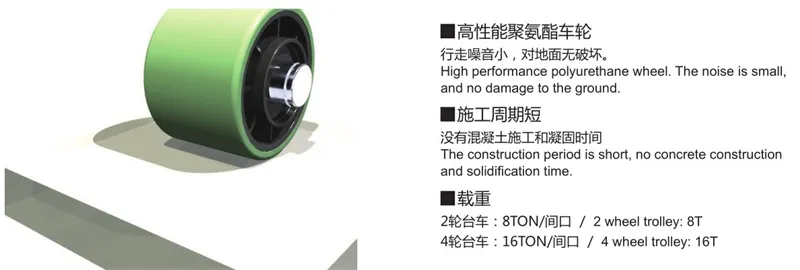

Trackless mobile shelving requires no ramps or infill floor, saves on assembly time, is cost-effective, and can be easily relocated when moved. The bases are moved manually with the aid of a crank and a gear ratio adjusted to the loads carried. Drive is provided directly by the castors on the floor.

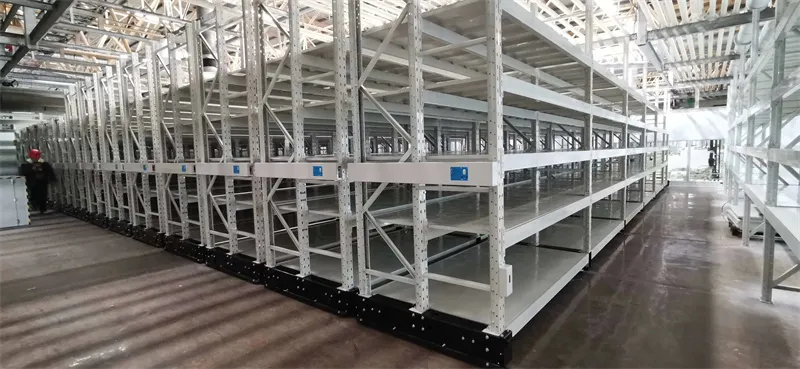

Features: The traditional static pallet rack needs a fixed aisle between two rows of racks, which occupies too much storage space, while the mobile rack only needs one aisle to produce higher warehouse storage capacity, and the warehouse utilization rate can reach about 80% to 90%.

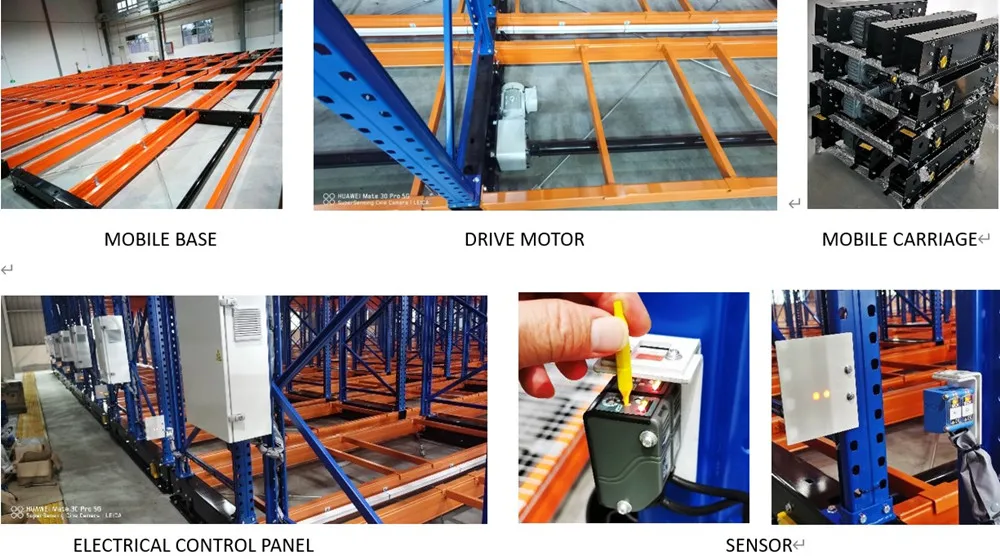

Working Principle
Two rows of back-to-back racks are installed on the mobile base in a group, in a multi-group arrangement, each base is equipped with multiple rollers and drive motors. Through the operation of the electronic control button control motor to drive the entire mobile base along the floor rail together to move, after moving to the operation aisle required by the forklift, you can access the goods.
Heavy-duty capacity makes it a natural choice for a number of storage challenges, from equipment and supplies to freezer and cooler storage. The ability to anchor this mobile shelving or racking system to existing concrete makes it a cost-effective solution for increasing capacity in any space.
Floor Guide System
On one side of the mobile shelving, there is one set of guided angle rail to keep the mobile shelving moving in line. Under each mobile base there is no more floor rail track required for the movement of the shelving rack.
Safety Protection & Product Features

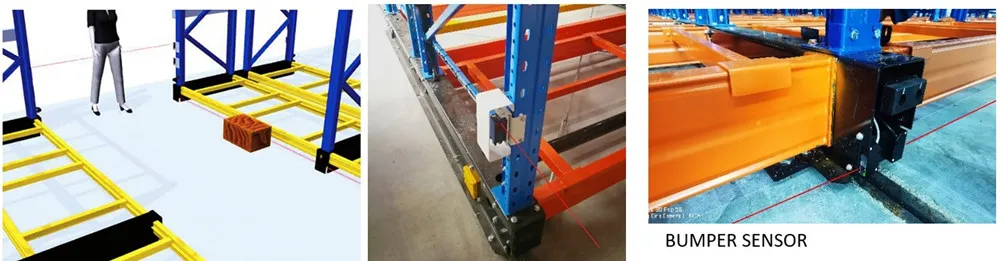

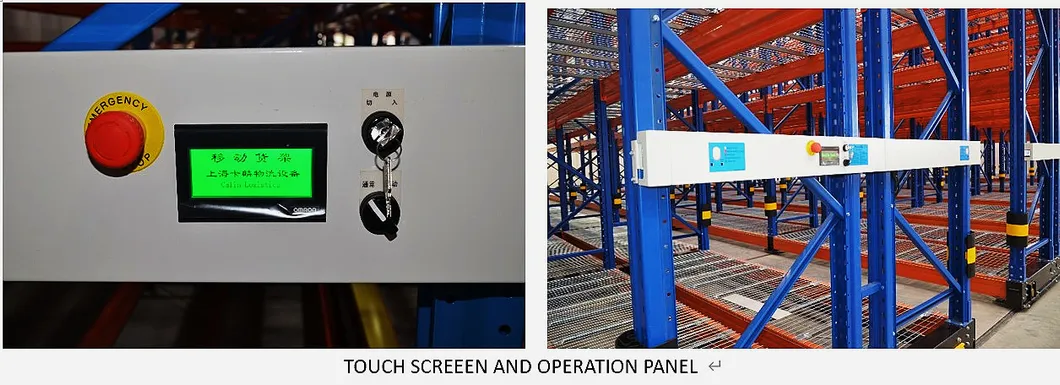

The mobile shelving is operated manually or automatically by means of an integrated PLC system. Safety is guaranteed by a photoelectric beam system mounted on mobile rack upright. Adding P&D locations may further increase the warehouse efficiency.
Trackless Mobile Shelving storage systems are an innovative way of increasing storage capacity. It is quick and simple to install as it only uses one guide rail along the rear of the system. This streamlined construction makes it easier to clean as grooves that catch dirt and dust are removed.
Manufacturing & Logistics
Packaging details: Standard export package. Long profiles are packed in bundles on plywood or steel pallets, covered by plastic films. Small accessories and fasteners are packed inside carton boxes.
Delivery time: For standard products, delivery time is 3 weeks after receipt of deposit. Special applications can be delivered within 4-5 weeks.
Project Reference & Services
We serve "Total Storage Solutions" through wide product categories ranging from Selective Pallet Racking to semi-automated and full automatic warehouse storage solutions. With over 20 years of expertise, our engineer team creates layouts using latest AutoCAD software to deliver tailor-made proposals that meet exact storage and logistics needs.
We provide a total package of services including consulting, planning, and maintenance. We value every project, ensuring orders are delivered on time with full satisfaction.
Frequently Asked Questions
What is the main advantage of trackless mobile shelving?
It requires no floor rails or ramps, making it faster to install, easier to clean, and simpler to relocate compared to traditional rail-based systems.
How much space can I save with this system?
By reducing multiple aisles into a single movable aisle, warehouse utilization can reach between 80% to 90%, significantly increasing storage capacity.
What safety features are included?
The system is equipped with an integrated PLC control and a photoelectric beam safety system mounted on the uprights to prevent accidents during operation.
Can the system handle heavy loads?
Yes, it is designed for heavy-duty use, supporting up to 12 tons per bay and individual pallet weights from 500kg to 2000kg.
What is the typical lead time for delivery?
Standard products are usually delivered within 3 weeks, while specialized or custom configurations may take between 4 to 5 weeks.
Is it compatible with existing warehouse floors?
Yes, the system can be anchored to existing concrete floors without the need for major renovations or expansion.
