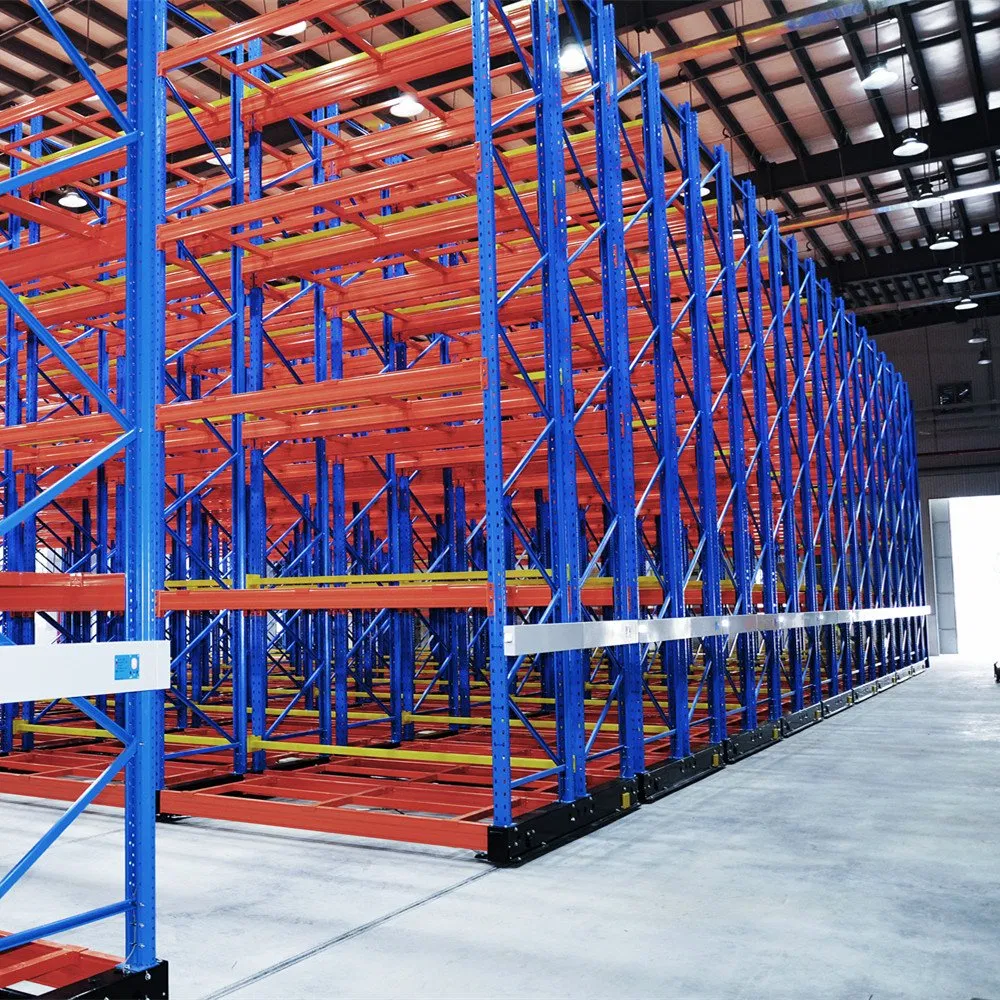

Electric Powered Heavy Duty Mobile Racking Solutions with Floor Rail Track

Customization: Available
After-sales Service: Techincal Support for Installatioin
Warranty: One Year Warranty

Product Description

Basic Information
Usage
Food, Industrial, Warehouse Rack
Material
Steel and Reinforced Concrete
Structure
Rack
Type
Pallet Racking
Mobility
Mobile
Height
5-15m
Weight
500kg-2000kgs
Moving Speed
7-10m/Min
Max Movable Load
36 Tons Per Bay
Certificate
CE
Remote Control
Yes
Origin
China
General Introduction

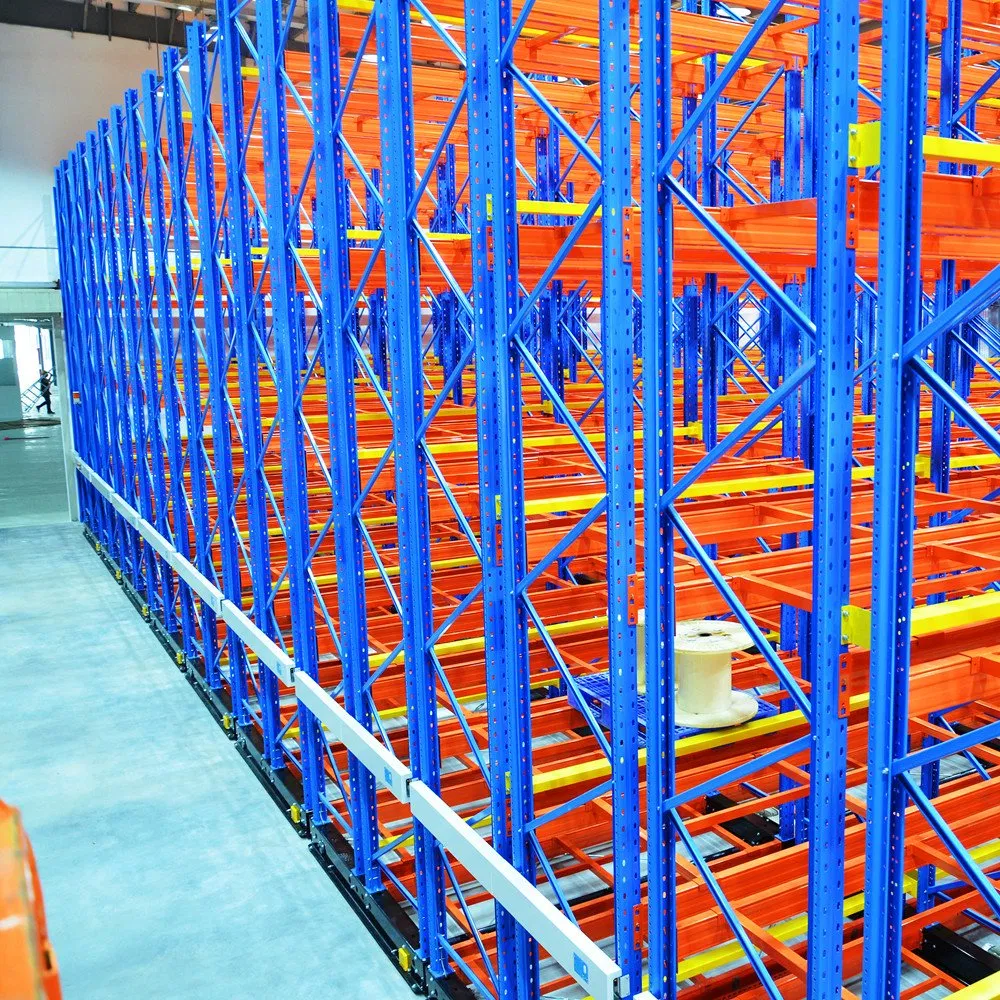

Electric powered heavy duty mobile racking solutions with floor rail track is a high-density storage system: standard pallet racking is put onto automated mobile carriages, allowing opening and closing of the aisles. The mobile system is the best logistical solution where a combination of compact storage and individual pallet accessibility is required.

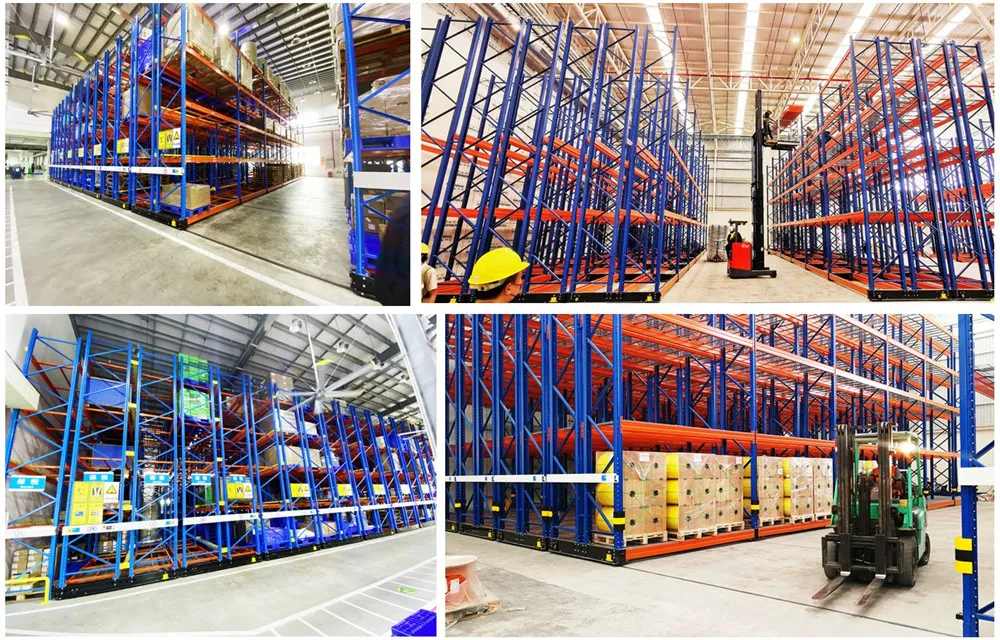

Mobile Racking Solution
🚀
Key Features: Traditional static pallet racks require fixed aisles, occupying significant space. Our mobile rack needs only one aisle, increasing warehouse utilization to approximately 80% - 90%.
Working Principle

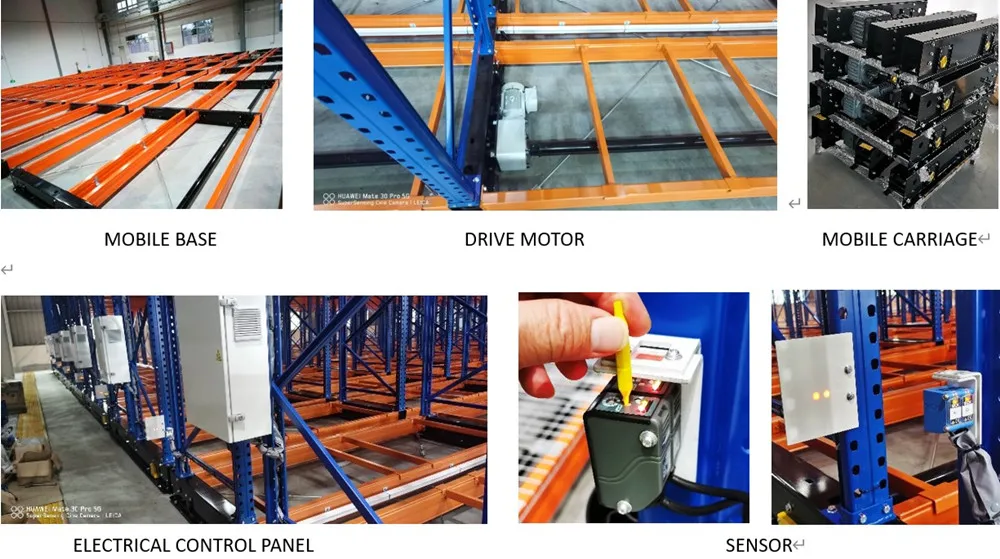

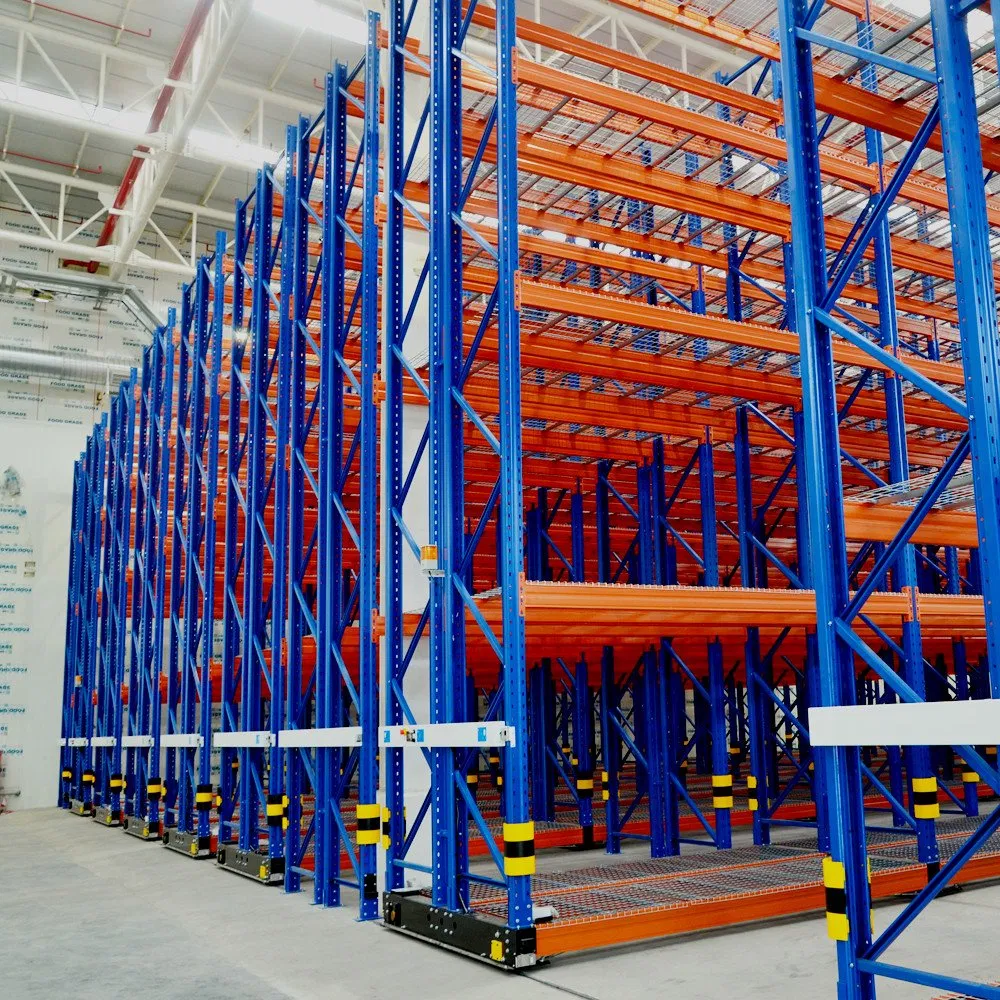

Two rows of back-to-back racks are installed on the mobile base. Each base is equipped with multiple rollers and drive motors. Controlled via electronic buttons, the motor drives the entire mobile base along the floor rails. Once moved to the required aisle, forklifts can access the goods.
Working Principle
Heavy-duty capacity makes it a natural choice for challenges ranging from equipment and supplies to freezer and cooler storage. It can be anchored to existing concrete, making it a cost-effective solution without requiring renovation.

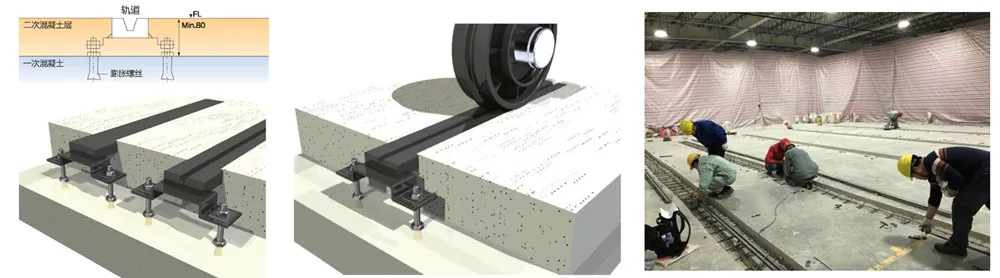

Floor Rail Installation
There are two primary ways to lay floor rails:
  1. Existing Ground: Laying rails in ground pits followed by secondary cement pouring.
  2. New Warehouse: Pre-burying rails during the initial floor construction to ensure a perfectly level surface.
Floor Rails

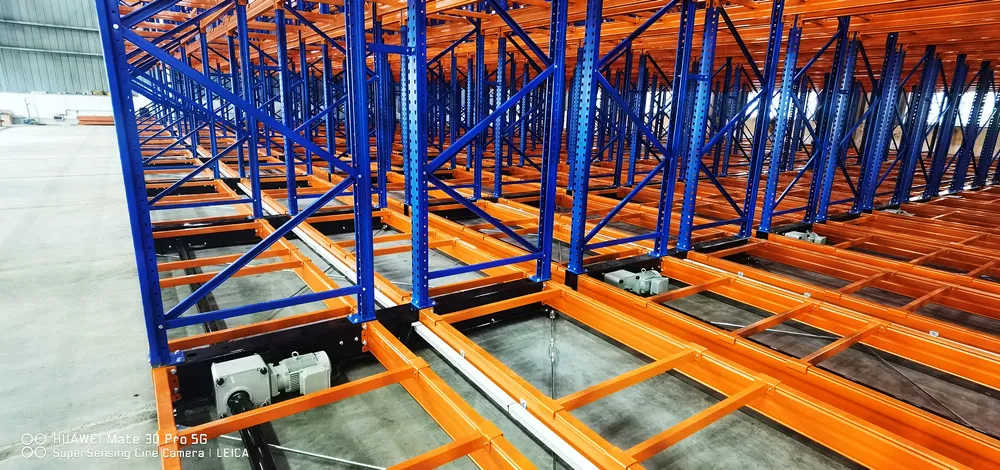

Safety Protection & Classification

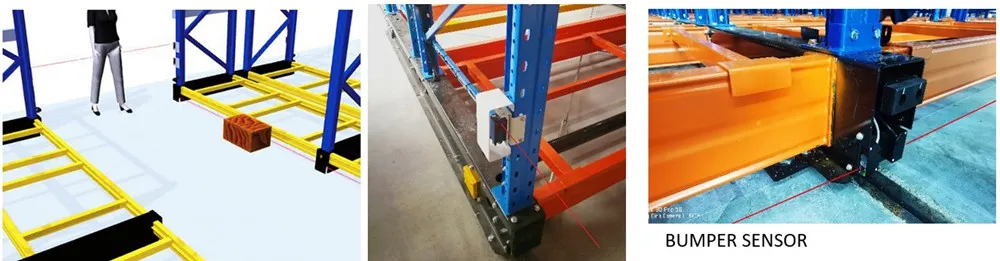

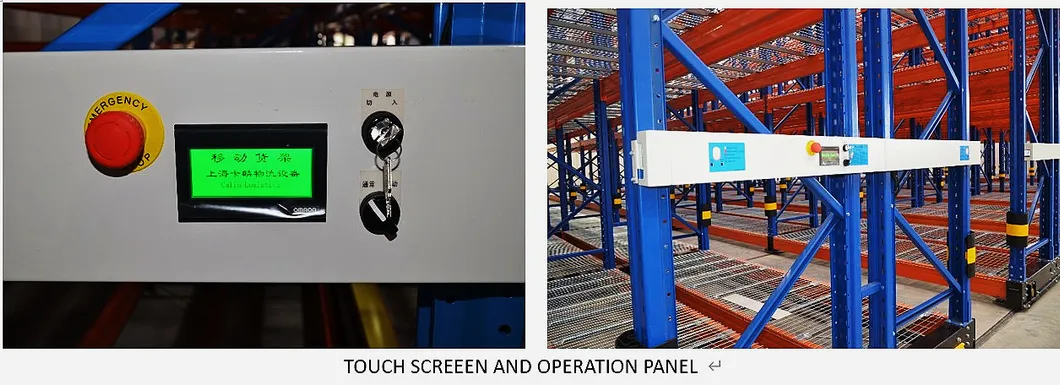

Safety is guaranteed by a photoelectric beam system mounted on the uprights. The system is operated via an integrated PLC which can be linked to a WMS.
We also offer trackless mobile racks using high-strength polyester wheels, as well as specialized versions for refrigerated and explosion-proof environments.

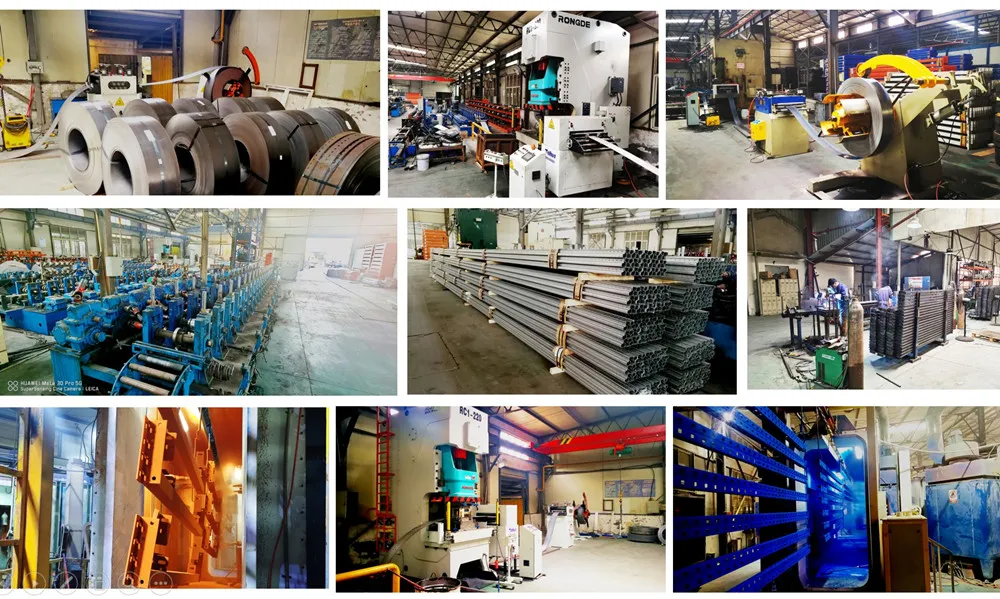

Manufacturing & Logistics

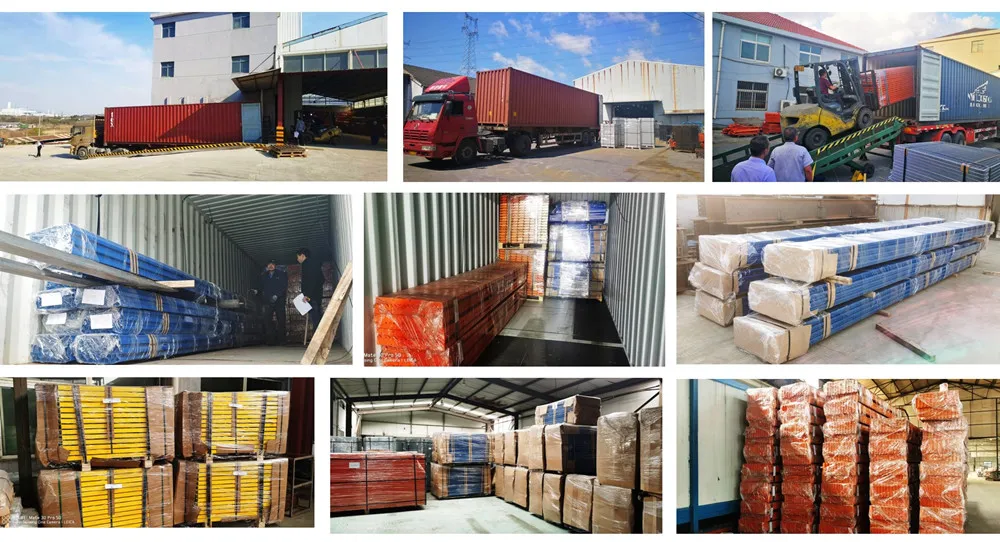

Packaging: Long profiles are bundled on plywood or steel pallets and covered in plastic film. Small accessories are packed in carton boxes.
Delivery: Standard products are delivered within 3 weeks of deposit. Special applications typically take 4-5 weeks.
Total Storage Solutions
With over 20 years of expertise, we provide semi-automated and fully automatic warehouse storage solutions. Our engineering team utilizes the latest AutoCAD software to deliver tailor-made proposals that meet exact logistics needs.

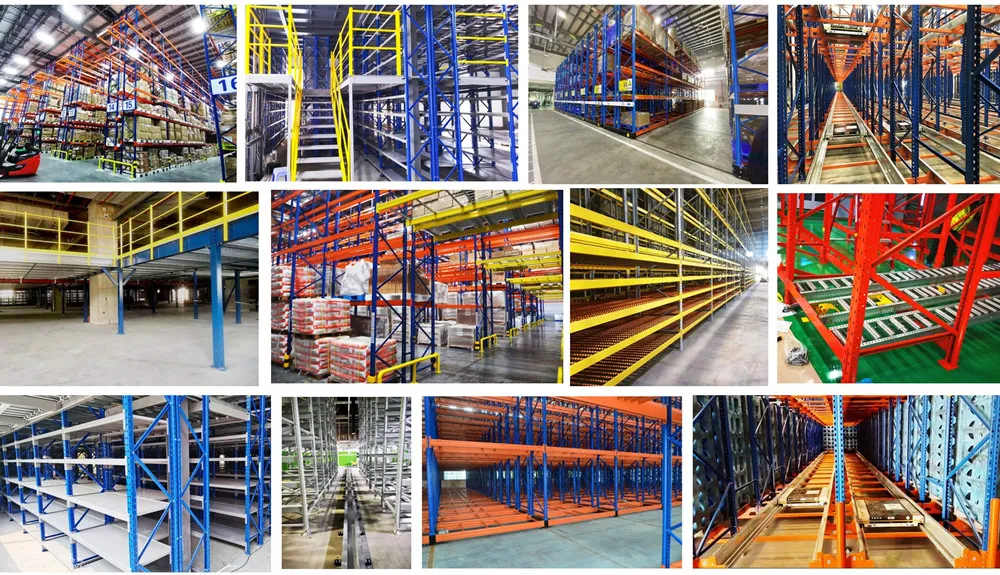

Project Reference
Frequently Asked Questions
How much space can mobile racking save?
By eliminating fixed aisles, mobile racking can increase warehouse storage utilization to between 80% and 90%, compared to traditional static racking.
What is the maximum load capacity for the mobile base?
The system is designed for heavy-duty use, supporting a maximum movable load of up to 36 tons per bay.
Are there different options for floor rails?
Yes, we provide both tracked solutions (with pre-buried or secondary poured rails) and trackless solutions using high-strength polyester wheels.
Can these racks be used in cold storage environments?
Absolutely. We offer specialized mobile racking systems designed specifically for refrigerated and freezer environments.
What safety features are included?
The system includes a PLC control unit and a photoelectric beam safety system to detect obstacles and ensure operator safety during movement.
How long does delivery usually take?
For standard products, the delivery time is approximately 3 weeks. Custom or special application projects typically take 4 to 5 weeks.
