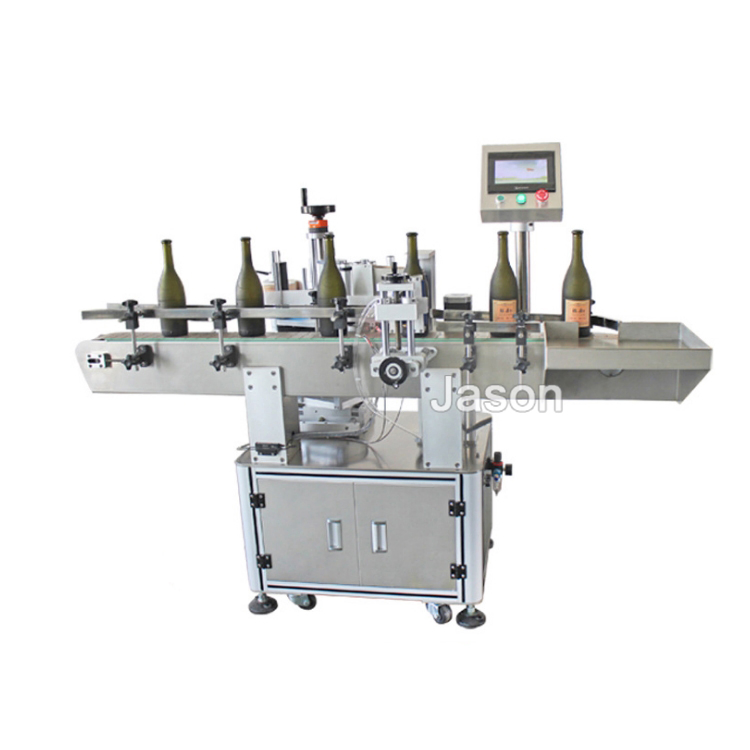

Efficient Labeling System for Oil Bottles and Containers

1 / 5

Efficient Labeling System for Oil Bottles and Containers

Customization:	Available
After-sales Service:	Online or Offline
Warranty:	One Year

Send Inquiry

Product Description

Overview & Basic Info

Model NO.HL-T-401

GradeAutomatic

TypeAutomatic Labeling Machine

Driven TypeElectric

Capacity50 P/M

ClassificationVertical Round Bottle Labeling

✔ Applications: Cosmetics, Drinks, Cleaning, Detergent, Skin Care Products, Hair Care Products, Oil, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning, Dairy Products.

Product Description

It can be applied to the labeling of circular objects such as cosmetics, food, medicine, disinfection of water and other industries. Single-label and double-label sticking on bottle-shaped objects are possible with just one device. For double-label sticking, space between the two labels can be adjusted. Optional circumferential positioning detection device can be achieved in the circular surface of the designated location labeling.

Optional ribbon printer and inkjet printer, printing on the label in the production date and batch number of information, to achieve labeling - code integration.

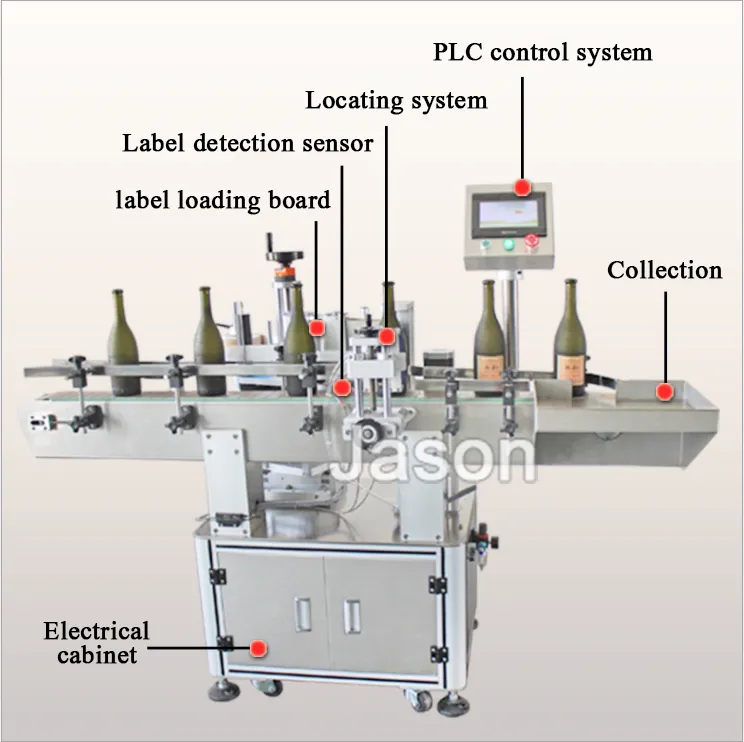

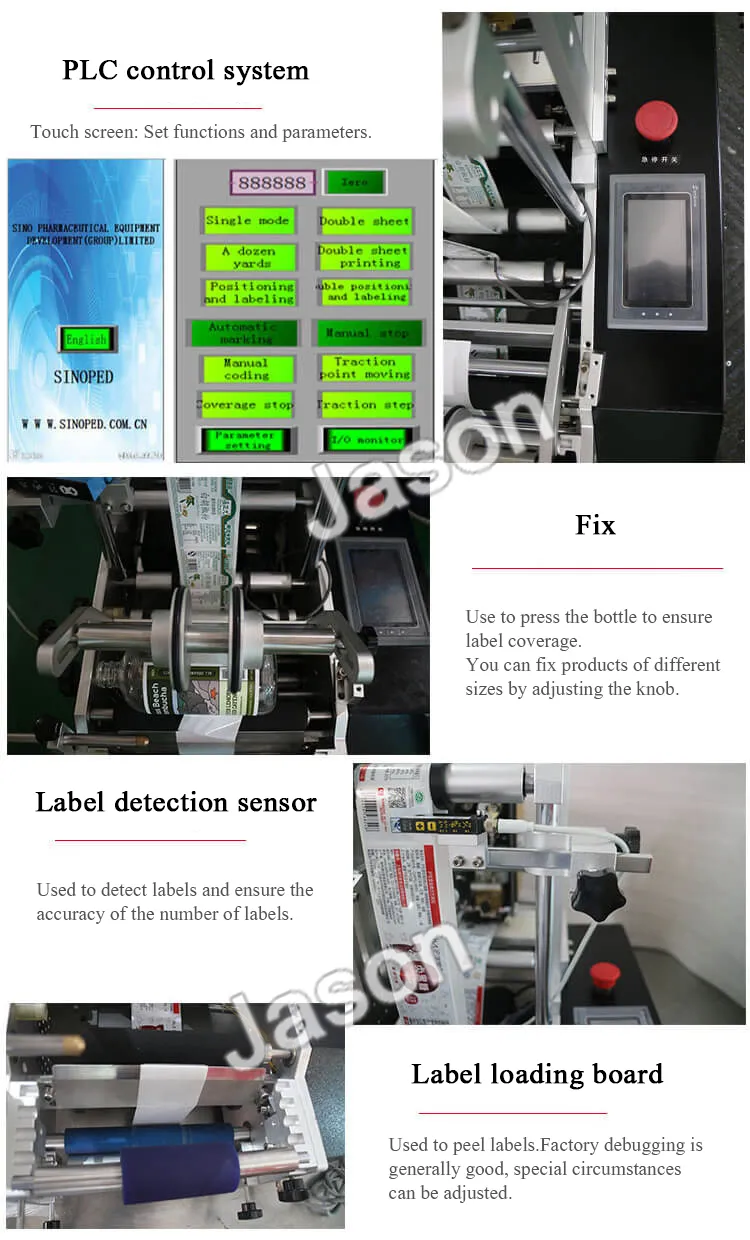

Detailed Photos

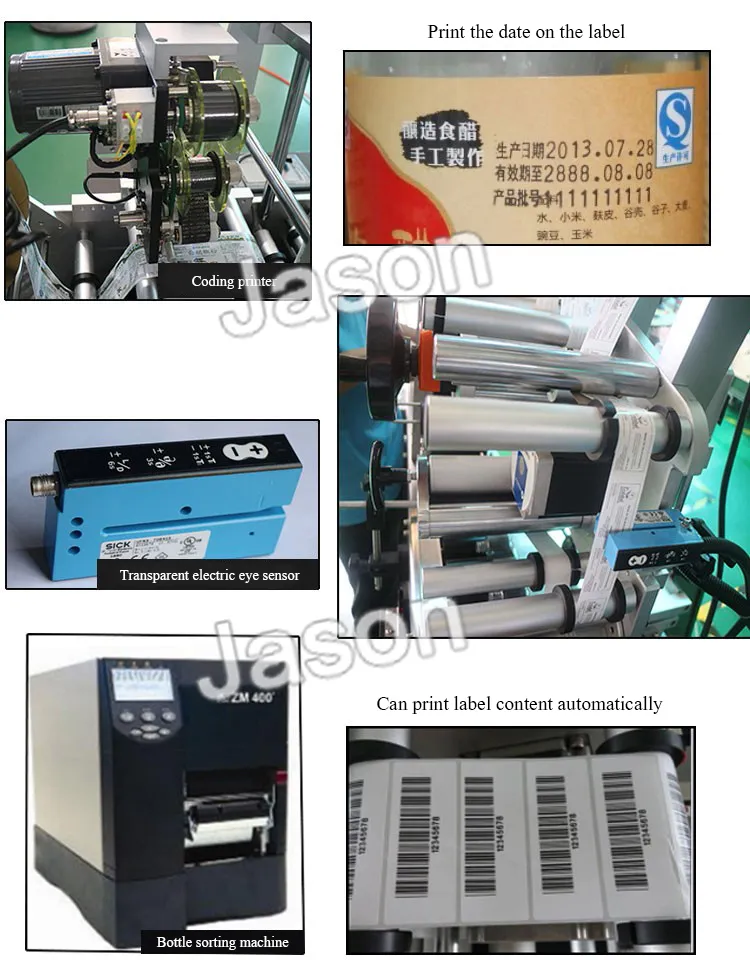

Optional Features & Functions

★Optional ribbon code printer for production date and batch number.

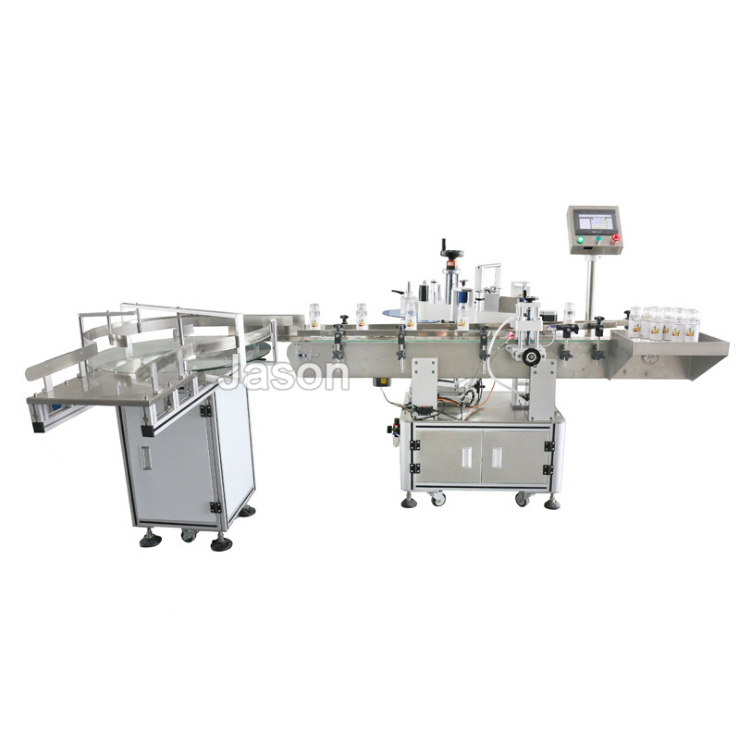

★Optional automatic turntable machine for seamless line feeding.
★Optional hot-stamping coder or inkjet coder.
★Automatic feeding and collecting functions based on product.
★Circumferential labeling through positioning.
★Customizable functions according to customer requirements.

Product Parameters

Model	HL-T-401
Labeling Accuracy	±1mm
Labeling Speed	Stepping: 25~55pcs/min; Servo: 30~65pcs/min
Applicable Dimensions	φ25mm ~ φ100mm
Applicable Height	25mm - 300mm
Applicable Label Size	15-16mm
Power Supply	220V/50HZ
Weight	180KG
Machine Size (LxWxH)	Approx. 1950mm x 1200mm x 1530mm

Product Application

Packaging & Shipping

Facility Display

Frequently Asked Questions

What types of products can this machine label?

The HL-T-401 is designed for circular objects across various industries, including cosmetics, food, medicine, and chemical products like detergents and oils.

Can it apply two labels to a single bottle?

Yes, the machine supports both single-label and double-label sticking. For double labels, the spacing between them is fully adjustable.

What is the labeling precision of the HL-T-401?

The machine offers high precision with a labeling accuracy of ±1mm, ensuring a professional look for your products.

Is the labeling speed adjustable?

Yes. Depending on the motor type, the speed ranges from 25-55 pcs/min (Stepping) to 30-65 pcs/min (Servo).

Can I print production dates during the labeling process?

Absolutely. You can choose an optional ribbon printer or inkjet printer to integrate date and batch number coding with the labeling process.

What are the power requirements?

The standard power supply required for this machine is 220V/50HZ.
