| Model NO. | DWS-M-60-3stage-top scanning | Structure | Conveyor System |
| Material | Carbon Steel (Q235) | HS Code | 8471419000 |
| Application | Dynamic Scenarios / E-Commerce Sorting | Condition | New |

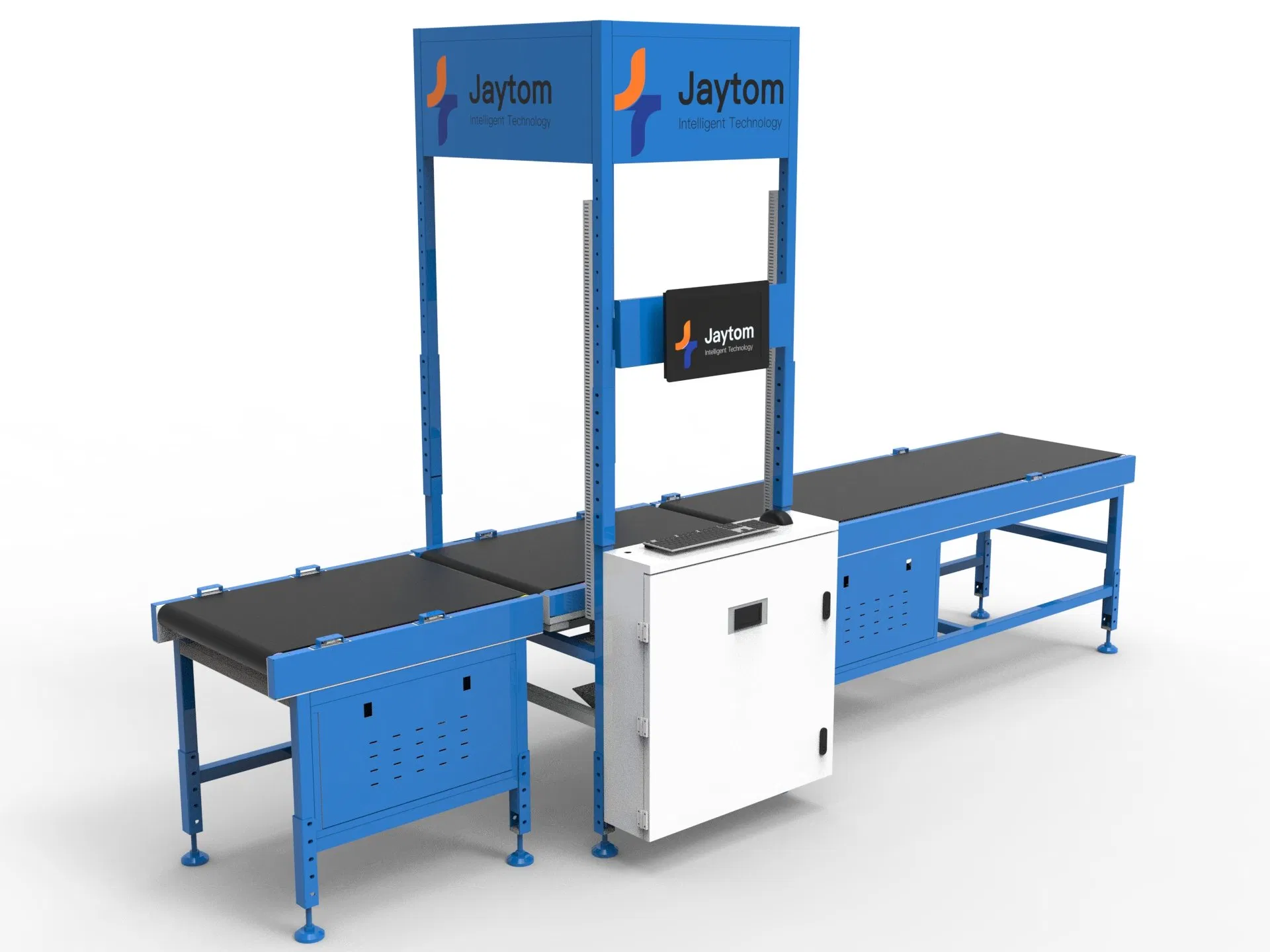

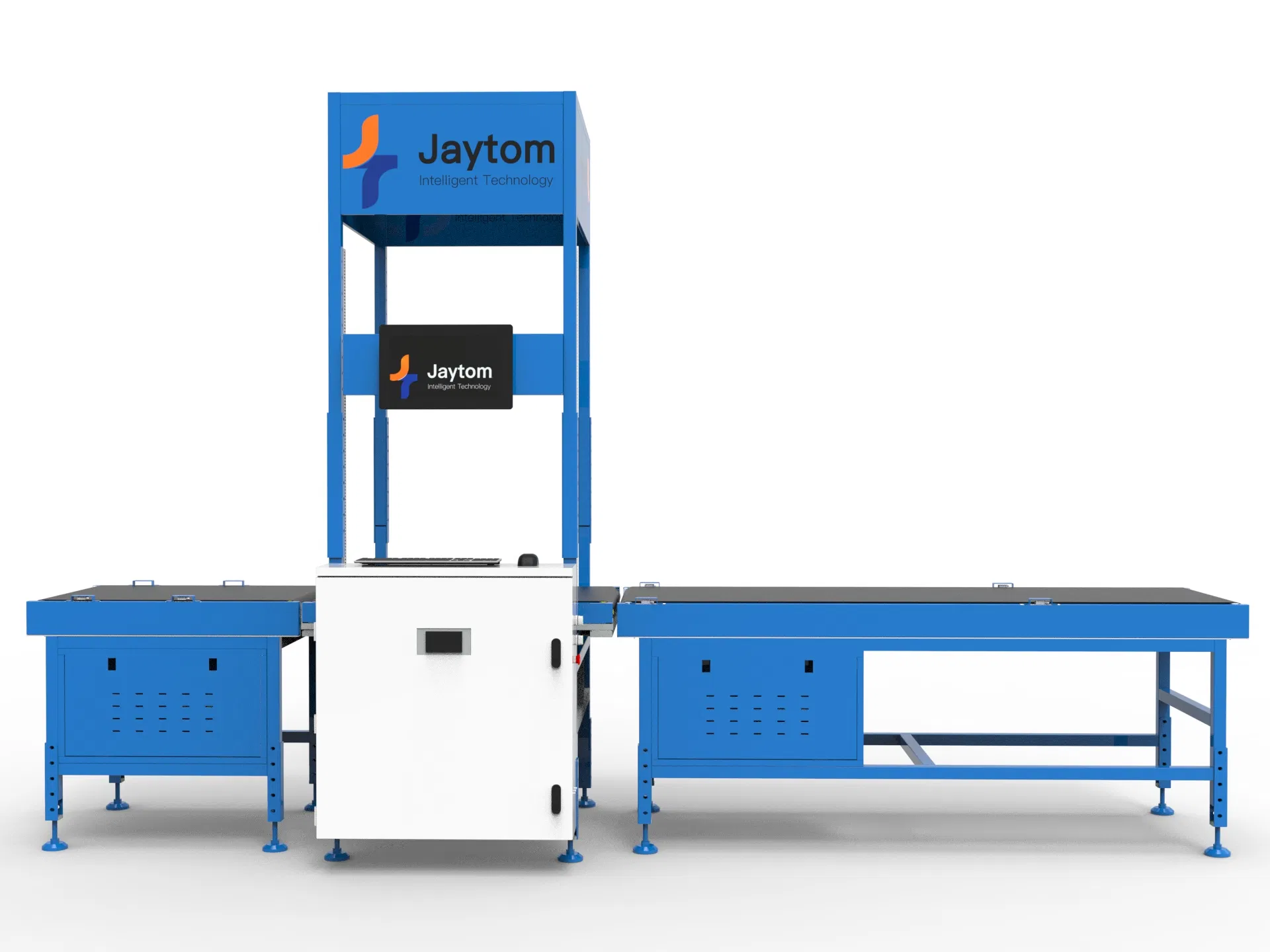

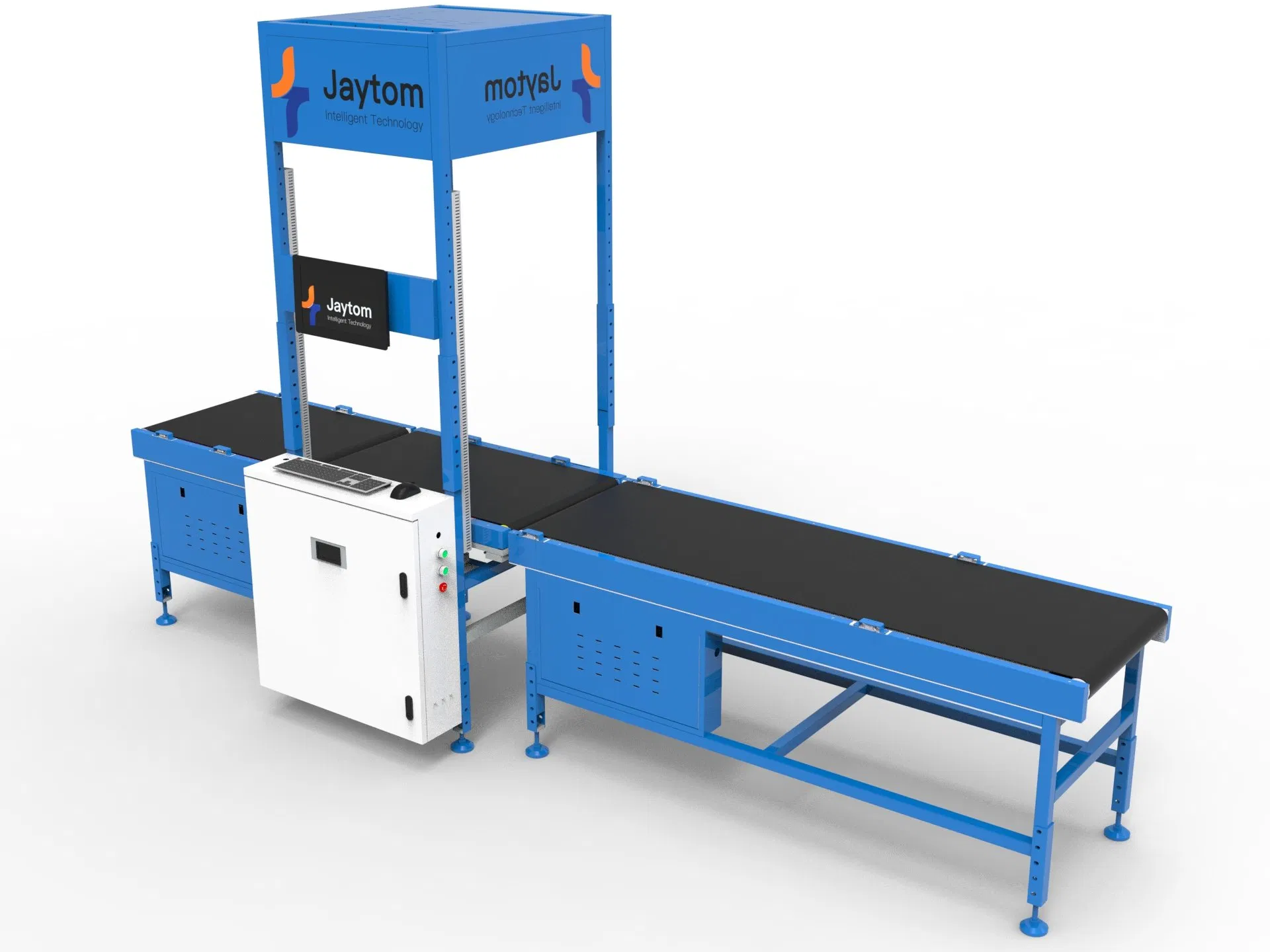

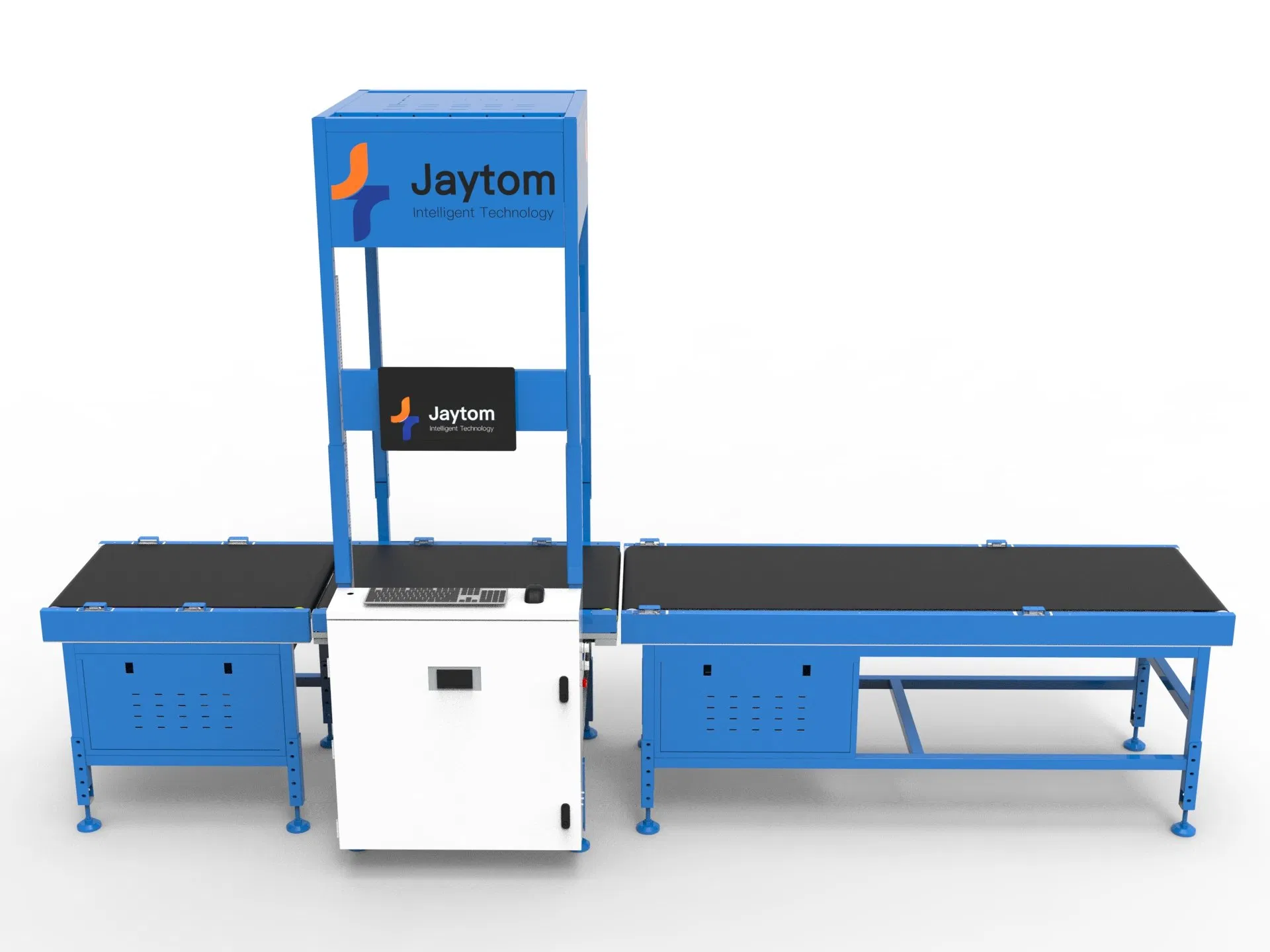

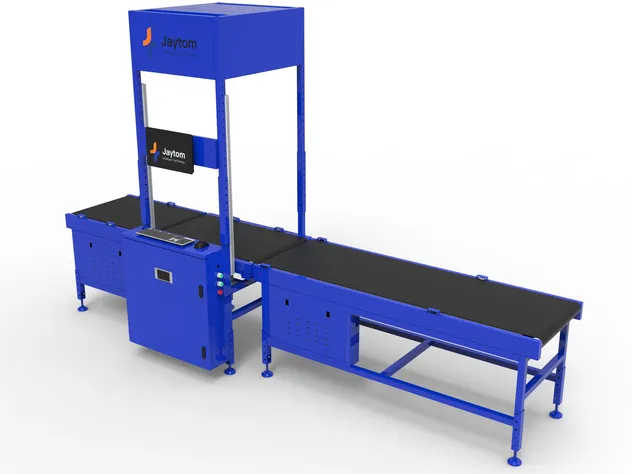

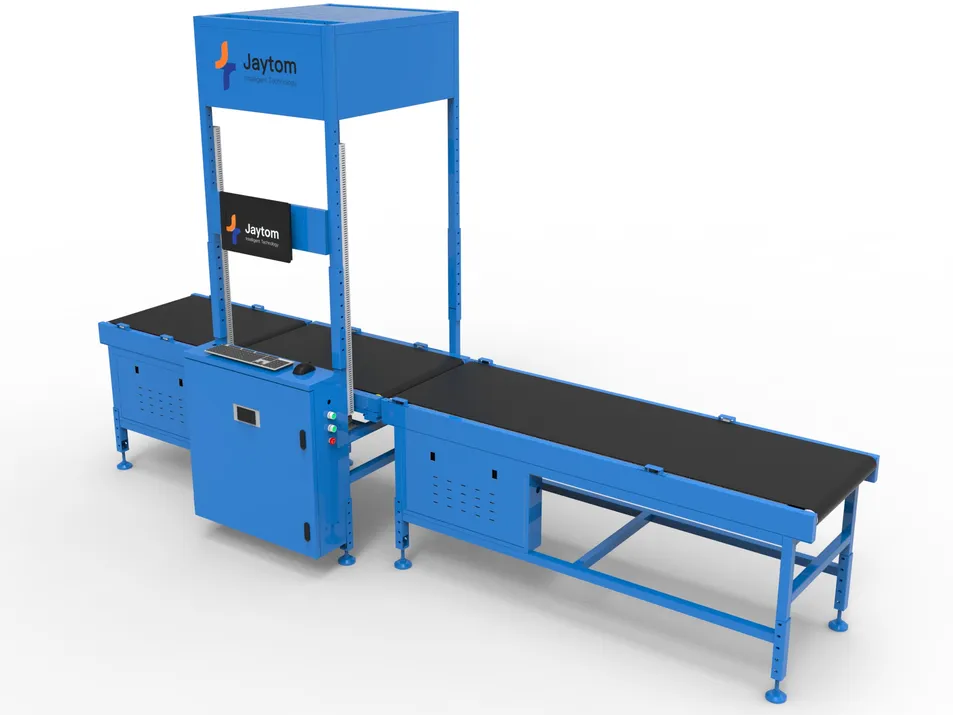

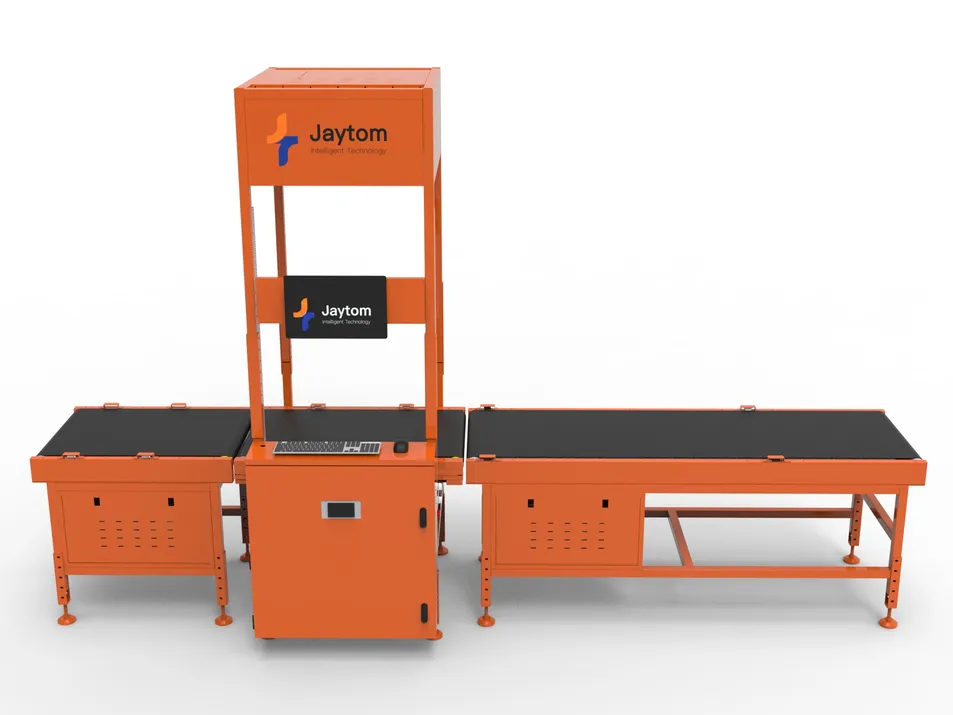

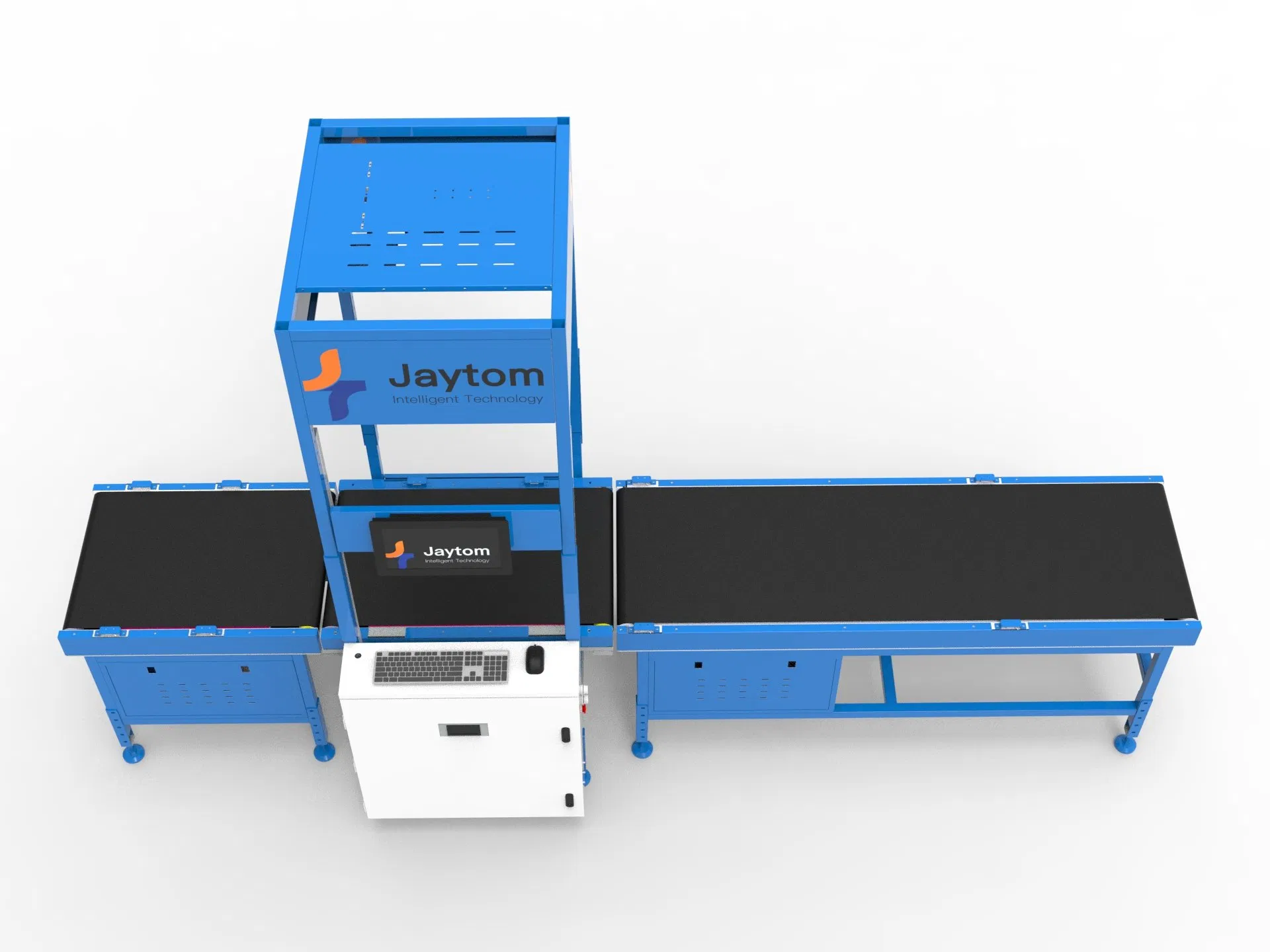

With a 600mm tabletop, it adopts a three-stage design: "pulling section + weighing & scanning section + buffering section". It synchronously completes data collection of weighing, dimension measurement, and barcode recognition, improving efficiency by over 3 times compared to manual operations.
| Category | Parameter | Specification |
| Weighing | Max Capacity | ≤30 kg |
| Accuracy | ±20 g | |
| Efficiency | 2500-4500 pcs/h | |
| Camera | Resolution | 20MP (4000×3000) |
| Barcode Types | 1D: Code128, Code39, EAN; 2D: QR, DM | |
| Reading Rate | ≥99% | |
| Optional | Volume Camera | Hikvision / Huarui (±10mm Accuracy) |
A specialized system integrator exploring the logistics industry, focusing on embedded control, barcode scanning, 3D visual measurement, and weighing technologies. Our R&D team consists of engineers from prestigious universities with deep experience in machine learning and automation control.
