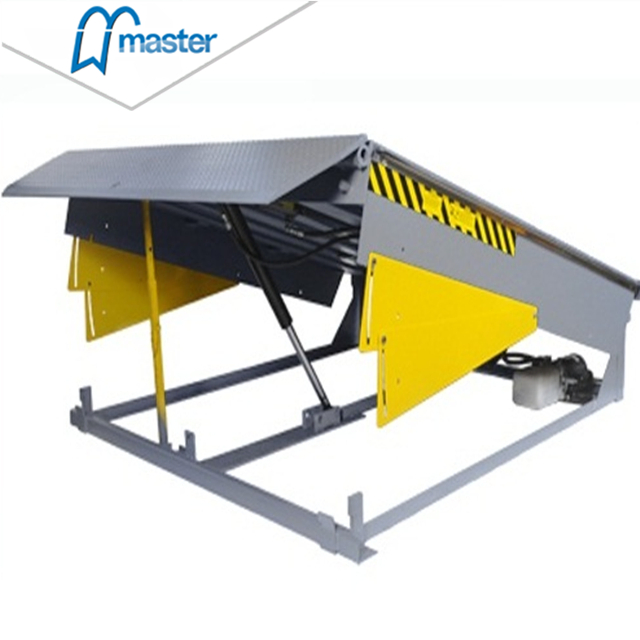

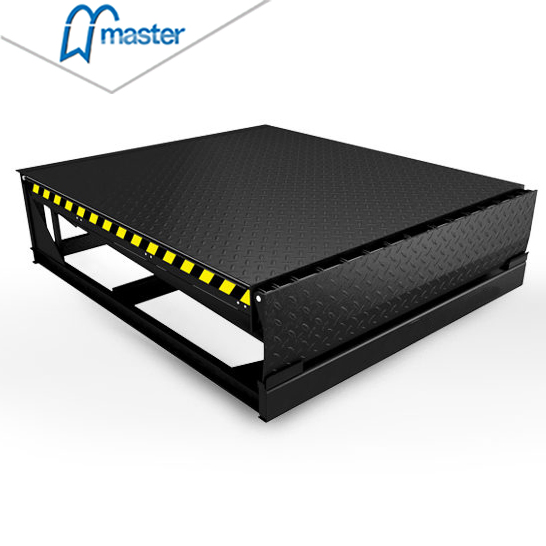

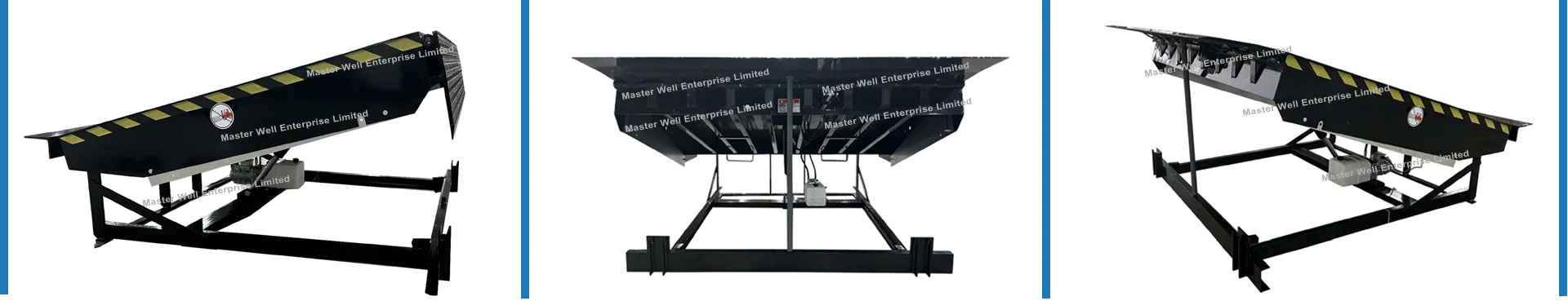

| Model | 6ft X 8ft | 2000x2500mm | 2000x3000mm |
|---|---|---|---|

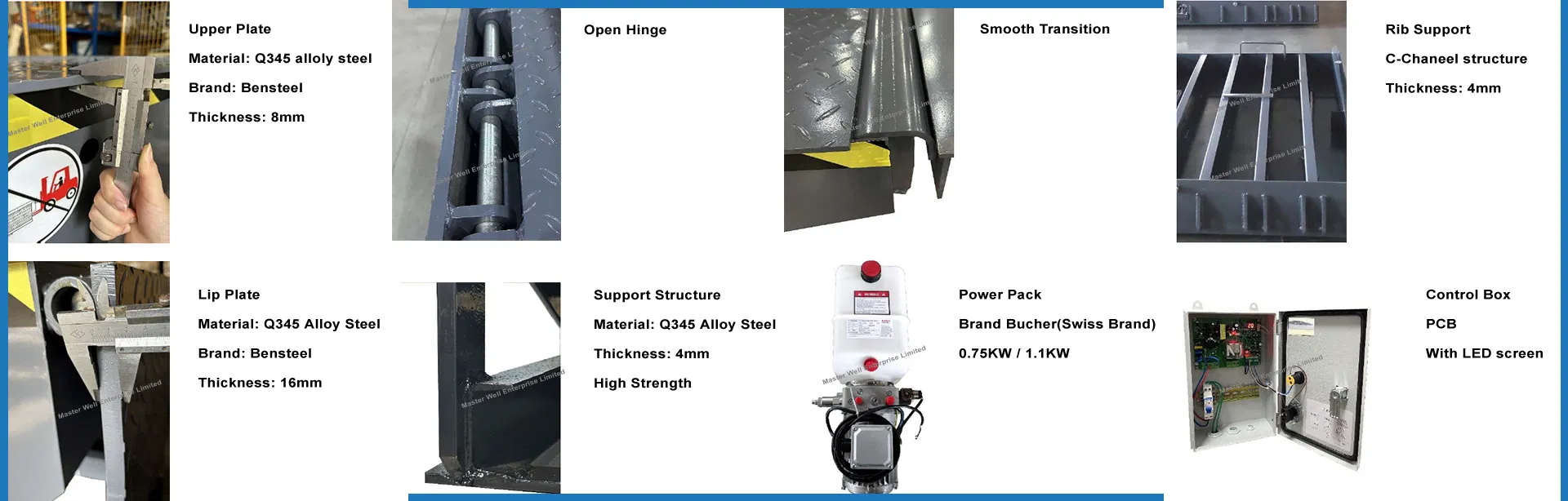

| Lift Mechanism | Articulated Lift | Articulated Lift | Articulated Lift |
| Power Pack | 0.75KW / 1.1KW | 0.75KW / 1.1KW | 0.75KW / 1.1KW |
| Upper Plate | 8mm anti-skate steel plate | 8mm anti-skate steel plate | 8mm anti-skate steel plate |
| Swinging Lip | 16mm X 400mm | 16mm X 400mm | 16mm X 400mm |
| Working Range | 300mm / 260-300mm | 300mm / 260-300mm | 300mm / 260-300mm |
| Dynamic Capacity | 13,250LBS | 6,000KG | 6,000KG |
| Static Capacity | 25,000LBS | 11,300KG | 11,300KG |
| Service Life | >200,000 times | >200,000 times | >200,000 times |
| Packing Material | PE film on surface with bubble wrap and carton sheet for protection |
| Loading Capacity | For 2000x2500x500mm, 8sets / 20GP, 16sets / 40GP |

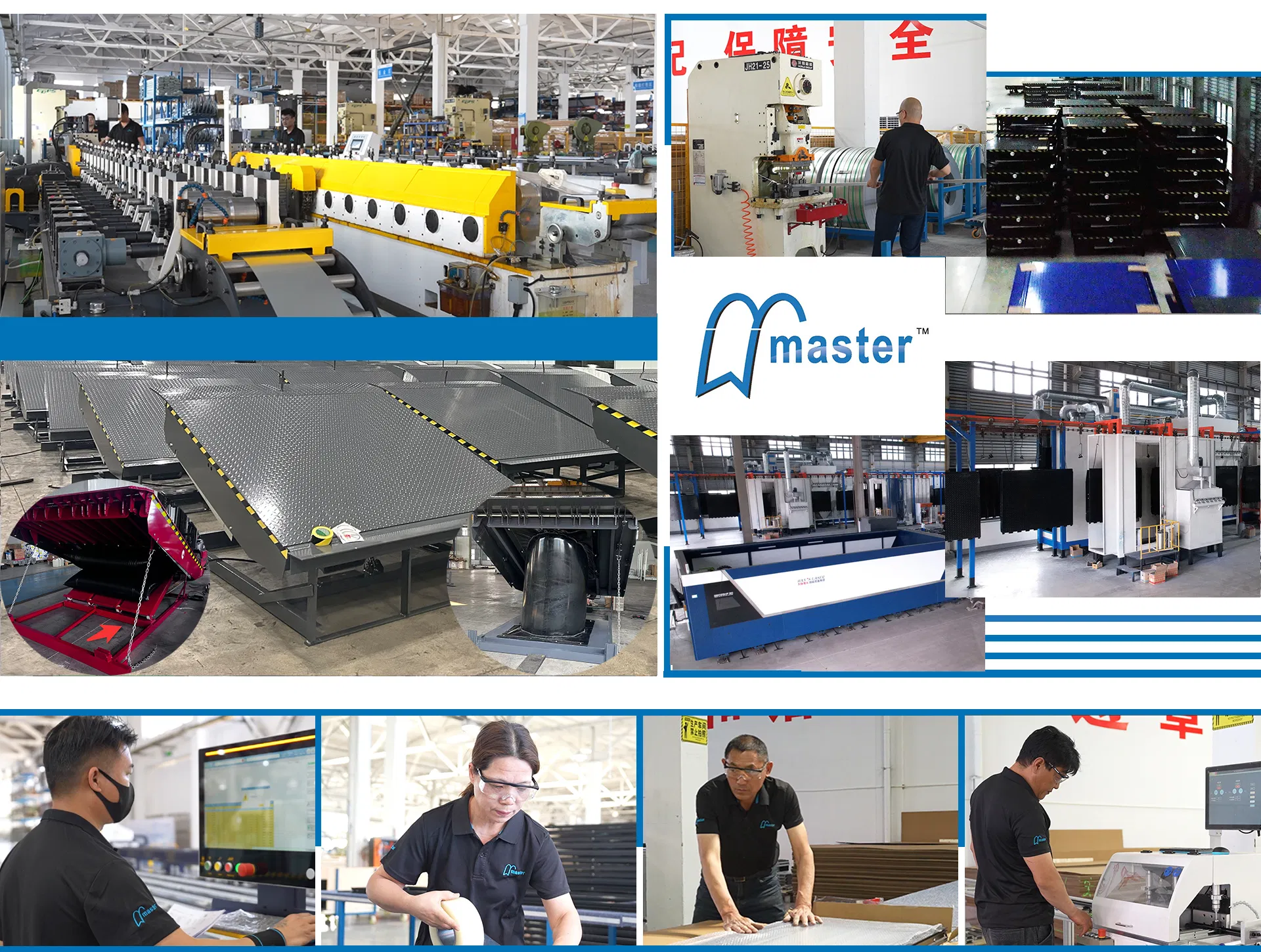

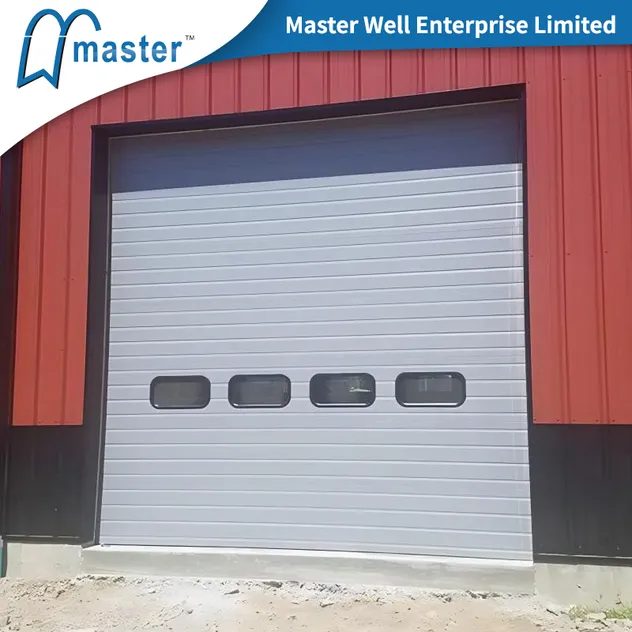

We are a professional manufacturer established in 2009, specializing in high-quality automatic doors and logistics equipment. With a strong focus on R&D, we provide quality products at competitive prices and professional technical service to a wide range of clients worldwide. Our products are exported to more than 60 countries every year. Our main product line includes sectional steel garage doors, all-glass garage doors, and advanced dock equipment.
