Basic Specifications
Model NO.TPR01
MaterialSteel
StructureRack
TypeDrive-In Pallet Racking
MobilityFixed
Height5-15m
Weight Capacity1500kg
FinishPowder Coated or Galvanized
BatteryLithium 48V
Production Capacity5000 Tons Monthly
HS Code730890
OriginChina
📝
Product Overview

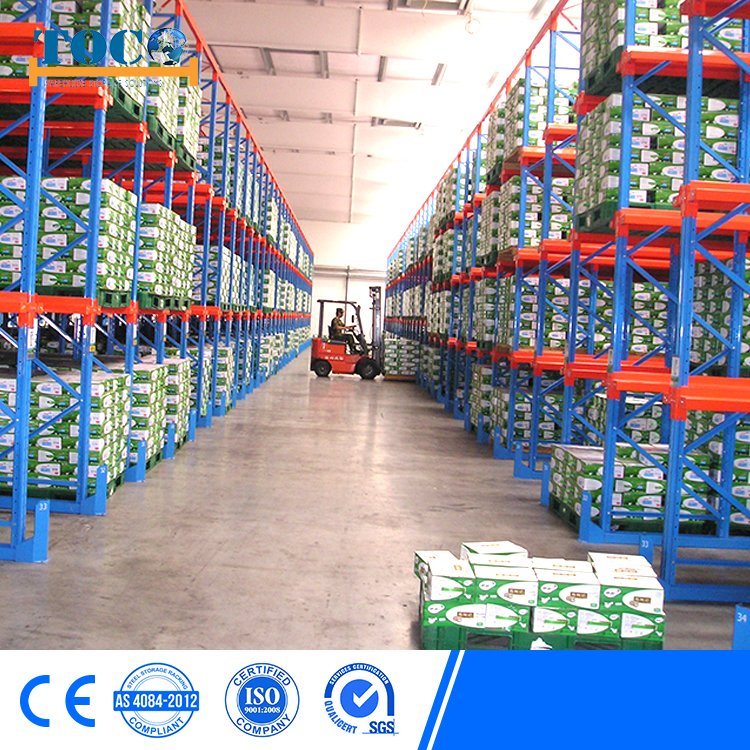

Drive In Storage Rack Pallet Racking is designed as a first in, last out (FILO) storage system. This racking is best used with a large quantity of like-products that are not time sensitive, in order to best utilize warehouse space. Warehouse access aisles are kept to a minimum, often allowing users to achieve double or more storage capacity.
| Name |
Drive In / Drive Through Pallet Racking |
Model No. |
TPR01 |
| Capacity |
Std. 1500kg/pallet |
Material |
Q235 or Q345 High Grade Steel |
| Certificate |
TUV, CE, ISO9000 |
Design Standards |
Meet FEM, AS4084 |
| Main Components |
Frame (Upright, Bracing, foot plate), Beam, Frame Tie, and accessories included |
| Optional |
Upright Protector, Frame Protector, Wire Decking, Support Bar, Back Mesh, etc. |
| Standard Color |
Blue RAL5015, Orange RAL2004, Orange RAL2008, Yellow RAL1003, Grey RAL7047, Dark Grey RAL7011, Green RAL6001. |
| Lead Time |
Standard 2-3 weeks |
⭐
Key Features
Maximum pallet storage density
Virtually unlimited depth of storage rack
Limited aisles for efficient space use
Guide rails to defend against forklift damage
High density over selectivity focus
Custom designed for pallets & forklifts
Cost-effective storage strategy
Push back pallet rack integration capable
❓
Frequently Asked Questions
What is the main advantage of Drive-In Pallet Racking?
The main advantage is high-density storage. By eliminating most aisles, it allows you to store up to 75% more pallets in the same area compared to conventional racking.
Is this system First-In, First-Out (FIFO)?
No, Drive-In Racking typically operates on a First-In, Last-Out (FILO) basis, making it ideal for non-perishable goods or large batches of the same SKU.
What materials are used in the construction?
We use high-grade Q235 or Q345 steel, ensuring the structure is robust and meets international standards like FEM and AS4084.
Can the racking be customized for specific pallet sizes?
Yes, the system is fully customizable. We design it according to your specific pallet dimensions (e.g., 800x1200, 1200x1200mm) and forklift requirements.
How do you protect the racks from forklift impact?
We offer optional safety accessories including upright protectors, frame protectors, and guide rails to minimize damage from forklift operations.
What is the typical lead time for an order?
Our standard lead time is approximately 2 to 3 weeks, depending on the scale and customization of the project.
