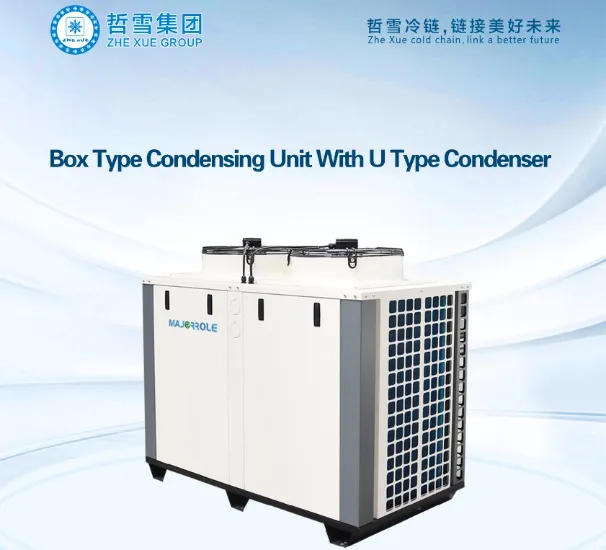

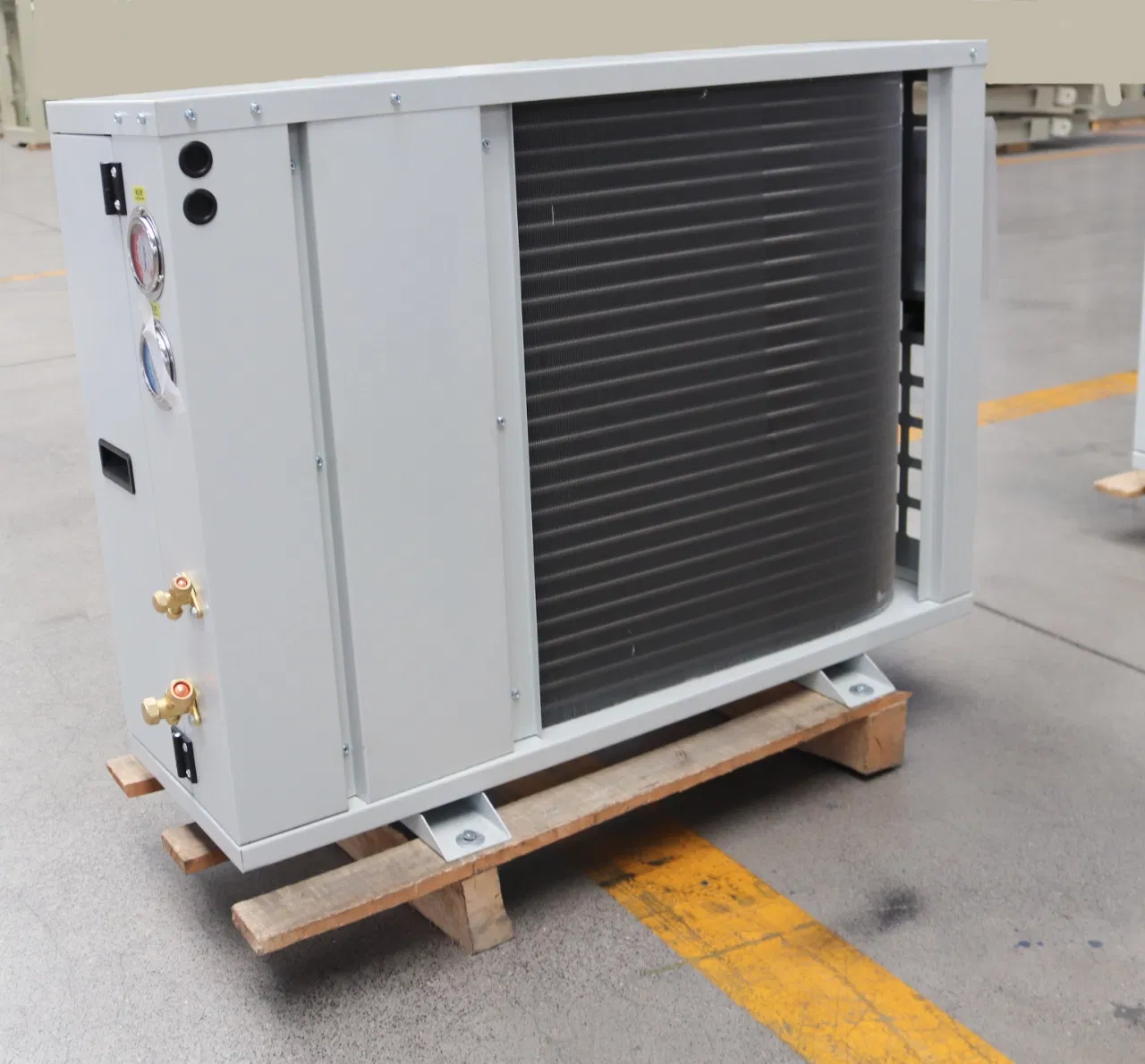

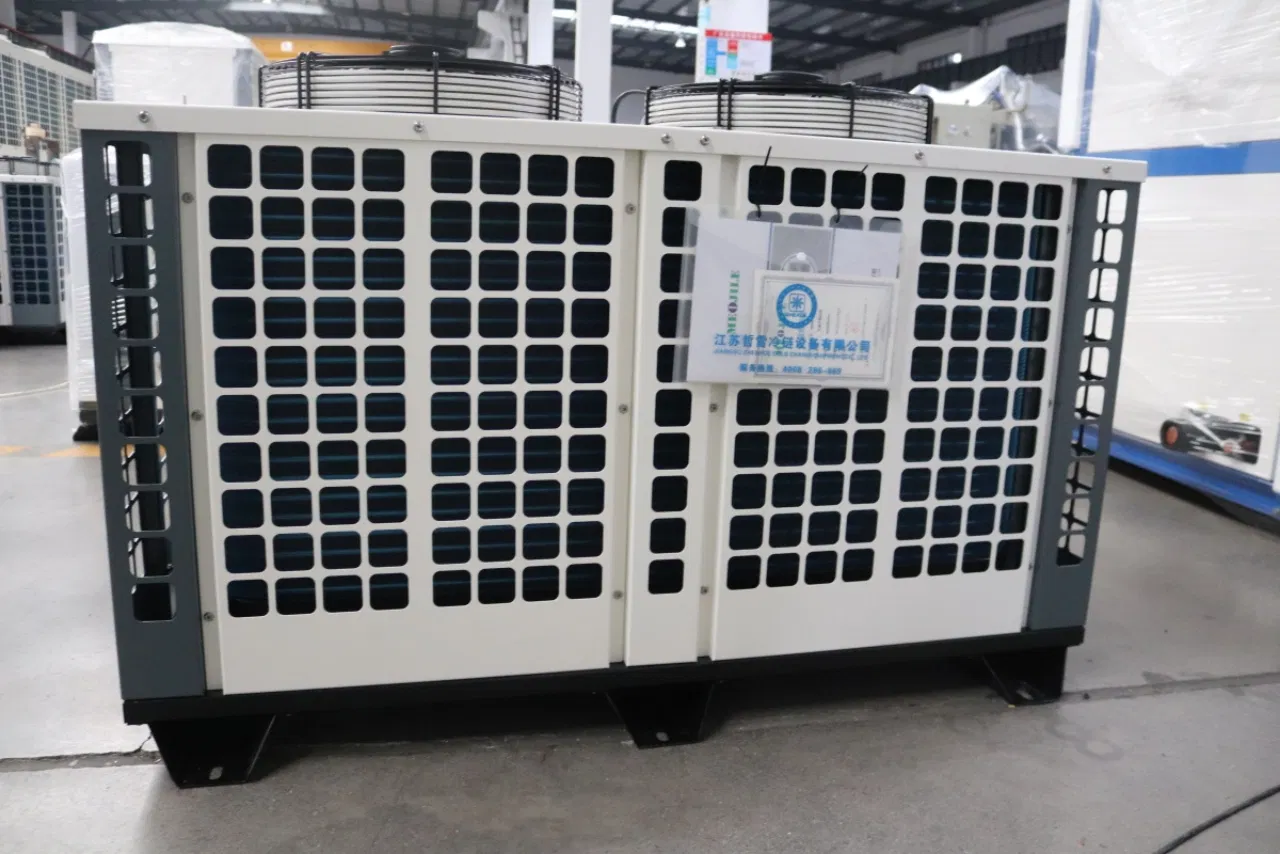

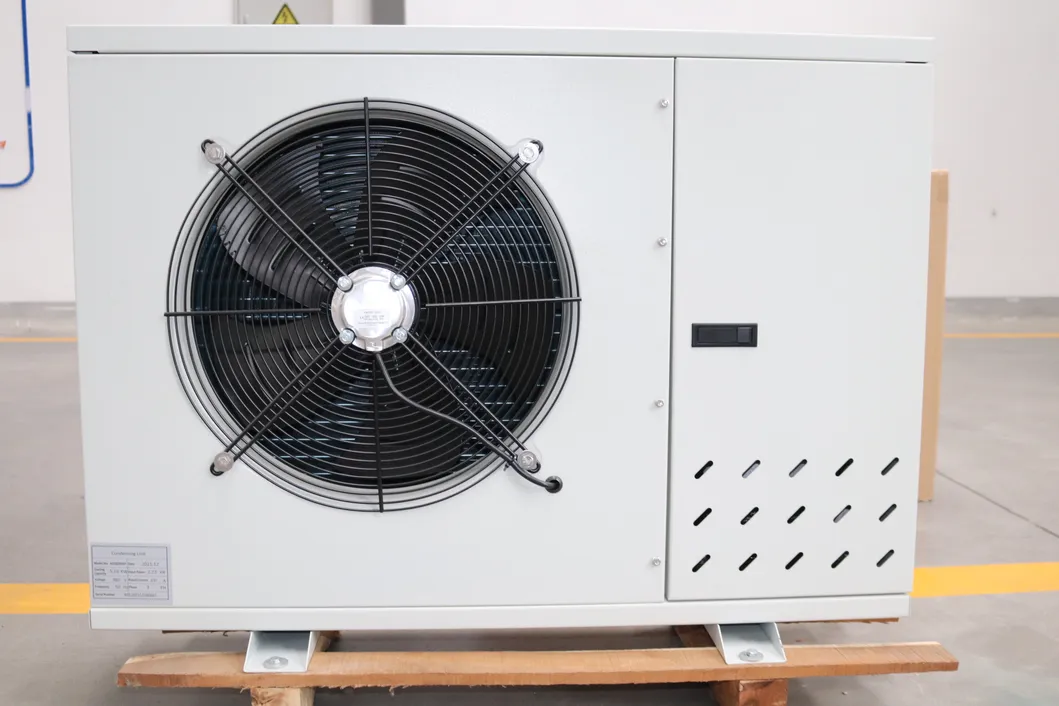

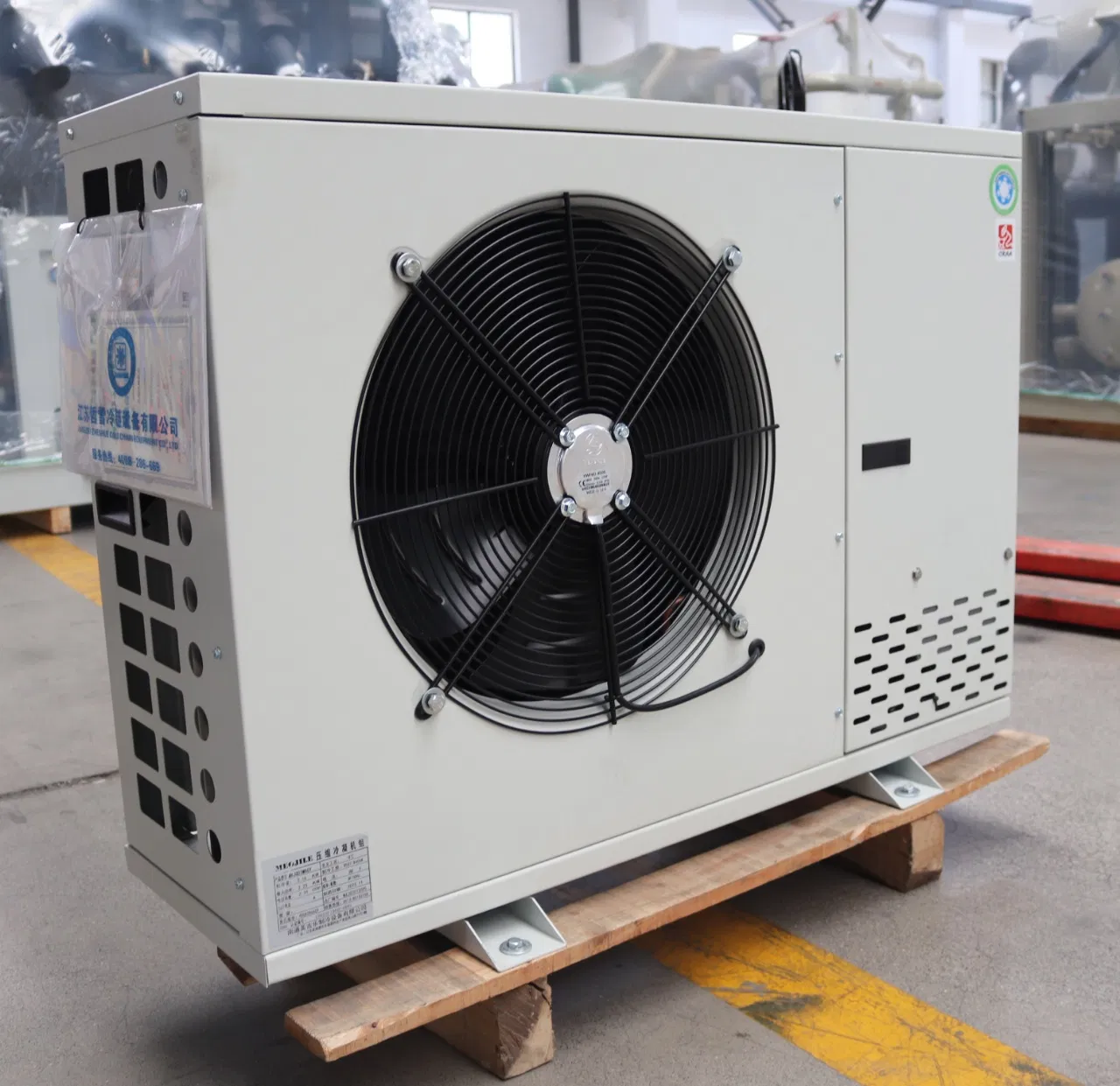

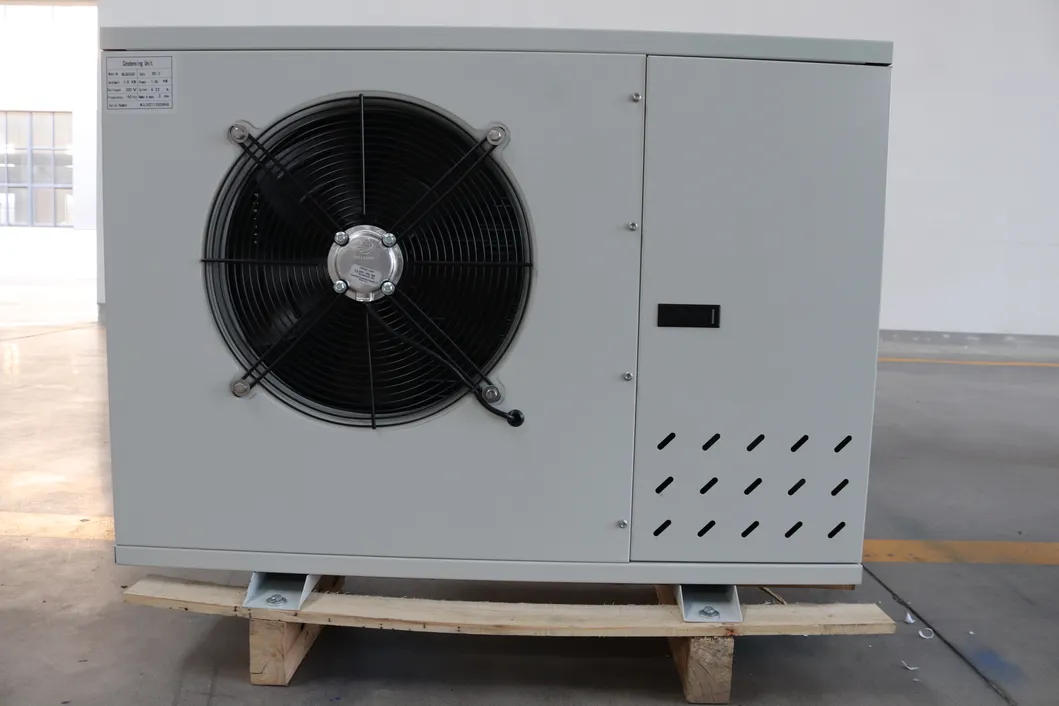

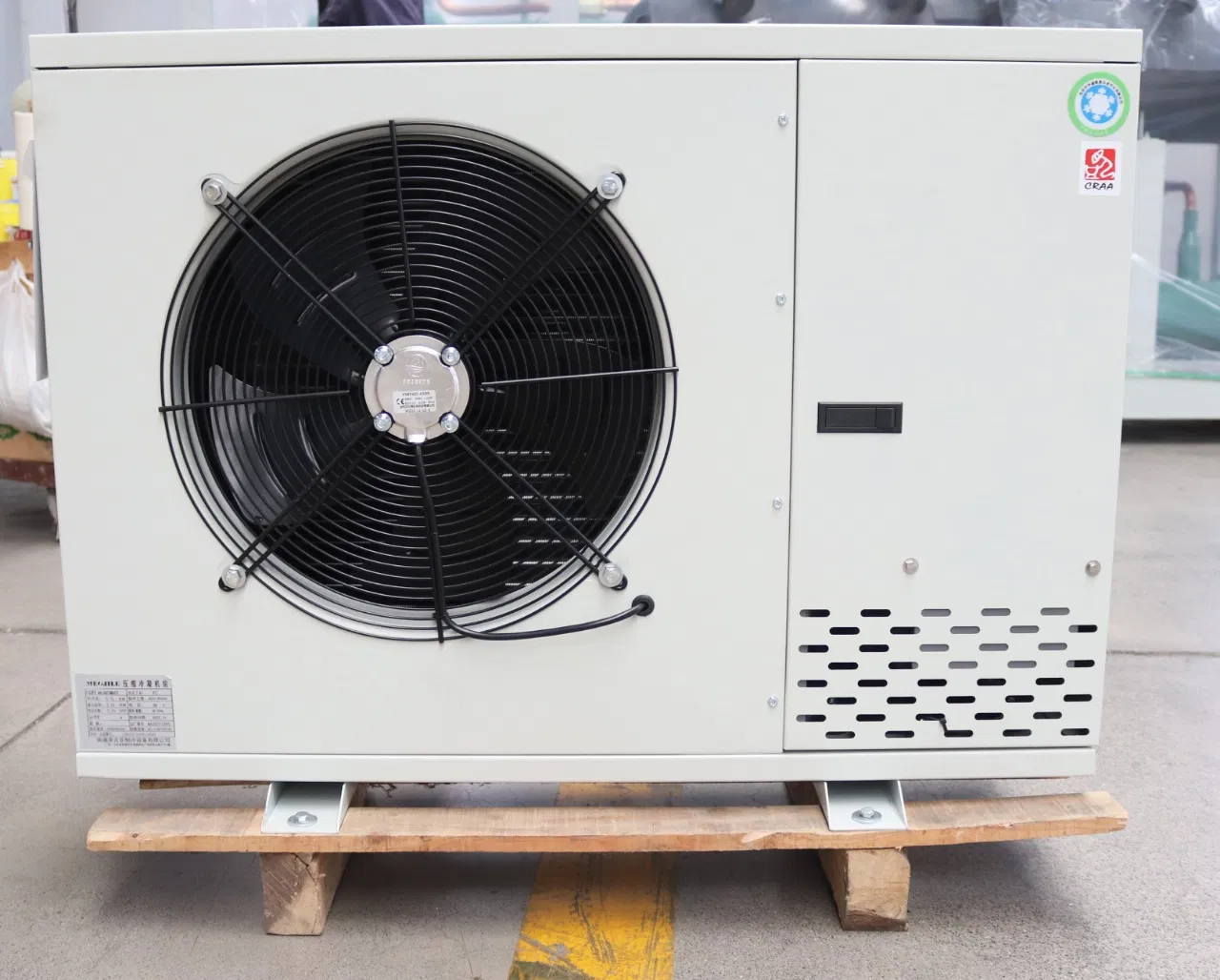

MXJQ series box type condensing unit with Copeland scroll compressor features a compact structure, cool appearance, and energy-saving capabilities. It can control room temperatures from -50°C to +15°C. It is designed for easy operation in industrial refrigeration, cold storage, food processing, hotels, and chemical industries.

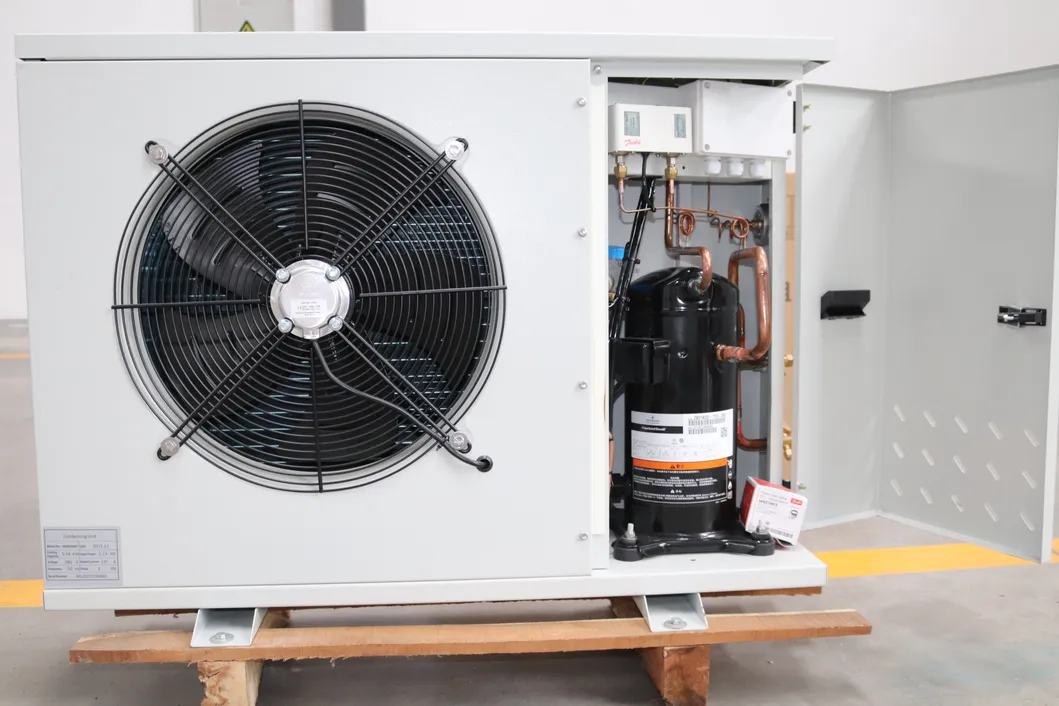

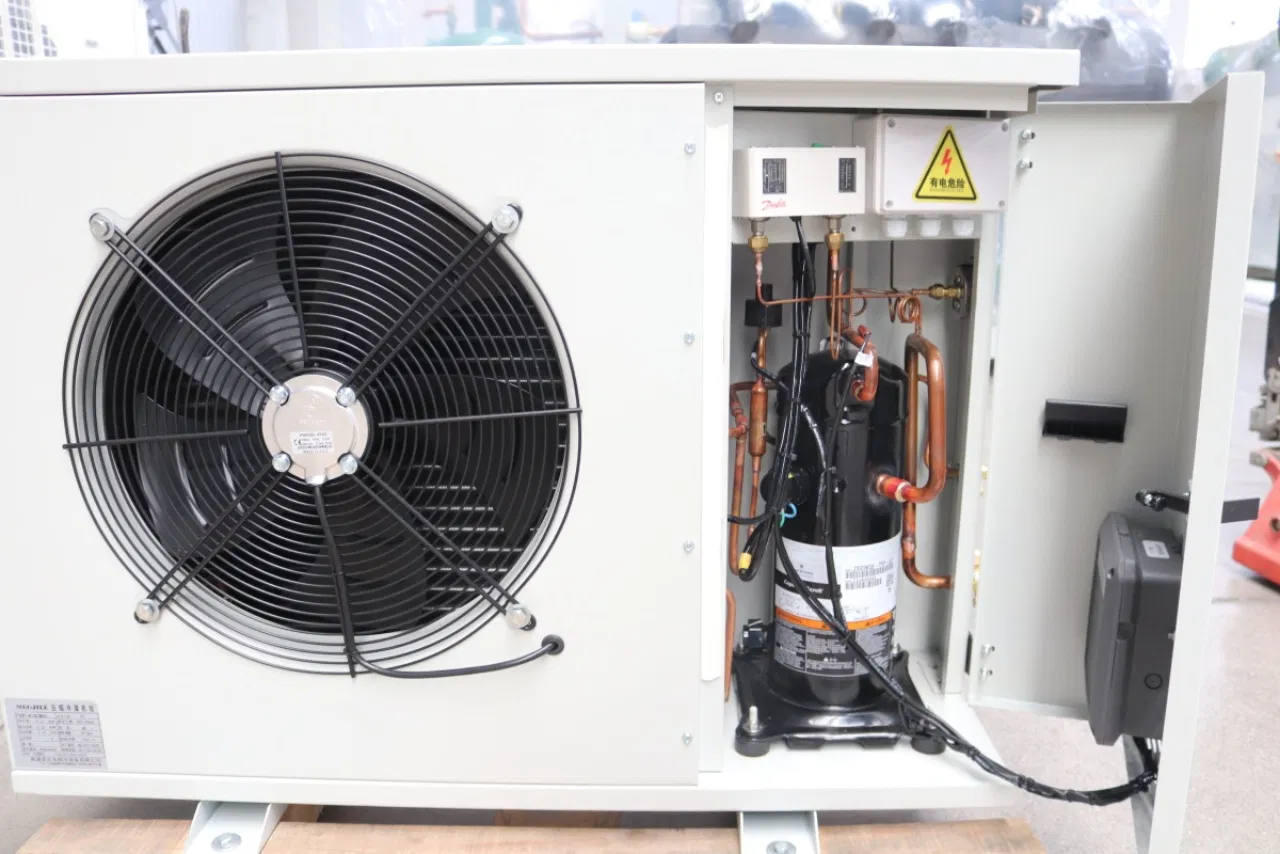

Adopt hermetic piston or scroll compressors with high stability. Uses integrated discharge/suction pipes and condensers to ensure compact recycling and low noise.
Saves more than 20% energy compared to separated compressors. Capacity can be adjusted via the controller to reduce power consumption.
Equipped with failure alarms and real-time monitoring to ensure units run safely at all times.
PLC controller and touch screen display running conditions, data settings, and failure alerts. Remote monitoring system compatible.
| Unit Model | MXJQ02MAG(Y) | MXJQ03MAG(Y) | MXJQ04MAG(Y) | MXJQ05MAG(Y) | MXJQ06MAG(Y) |
|---|---|---|---|---|---|
| Compressor Model | ZB15KQ | ZB21KQ | ZB29KQ | ZB38KQ | ZB45KQ |
| Power Supply | 380V/3P/50HZ | ||||
| Evap. Temp Range | -12ºC to +10ºC | ||||
| Cooling Capacity (KW) | 3.55 | 5.16 | 6.93 | 8.61 | 10.45 |
| Power Input (KW) | 1.51 | 2.23 | 2.84 | 3.58 | 4.19 |
| Fan Motor Power (W) | 190 | 230 | 230 | 420 | 420 |
| Size L*W*H (mm) | 1040 * 450 * 1000 | ||||
