Liquid nitrogen temperatures can reach minus -190ºC. When it is in contact with food, gasification will be able to take heat away more quickly. The ultra-low temperature and high heat exchange rate achieve a really quick frozen. Such rapid freezing, generating the smallest ice crystals, helps maintain food texture. This also prevents water loss, ensuring almost no loss of original color, flavor, and quality. These vaporized refrigerant nitrogen is directed to the front end of the refrigerating machine uniformly, completing the exchange of hot inverse, thereby improving the utilization of the nitrogen.

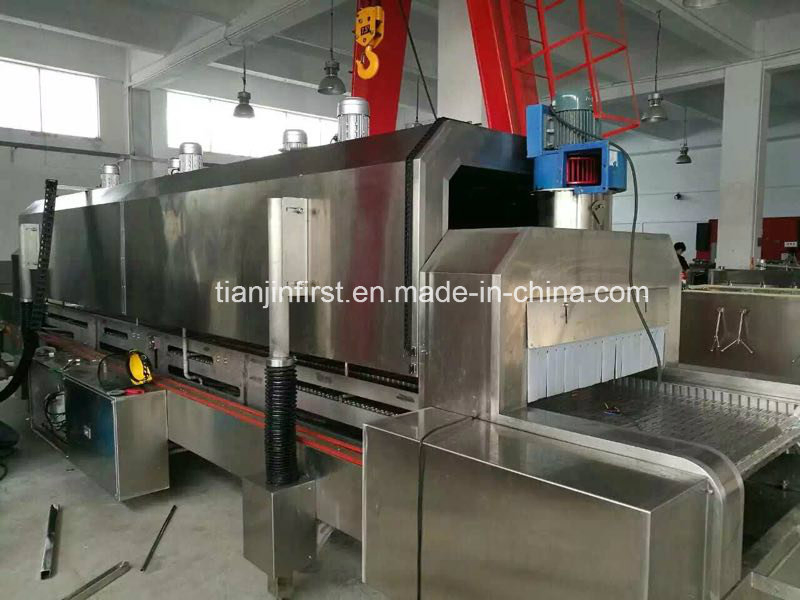

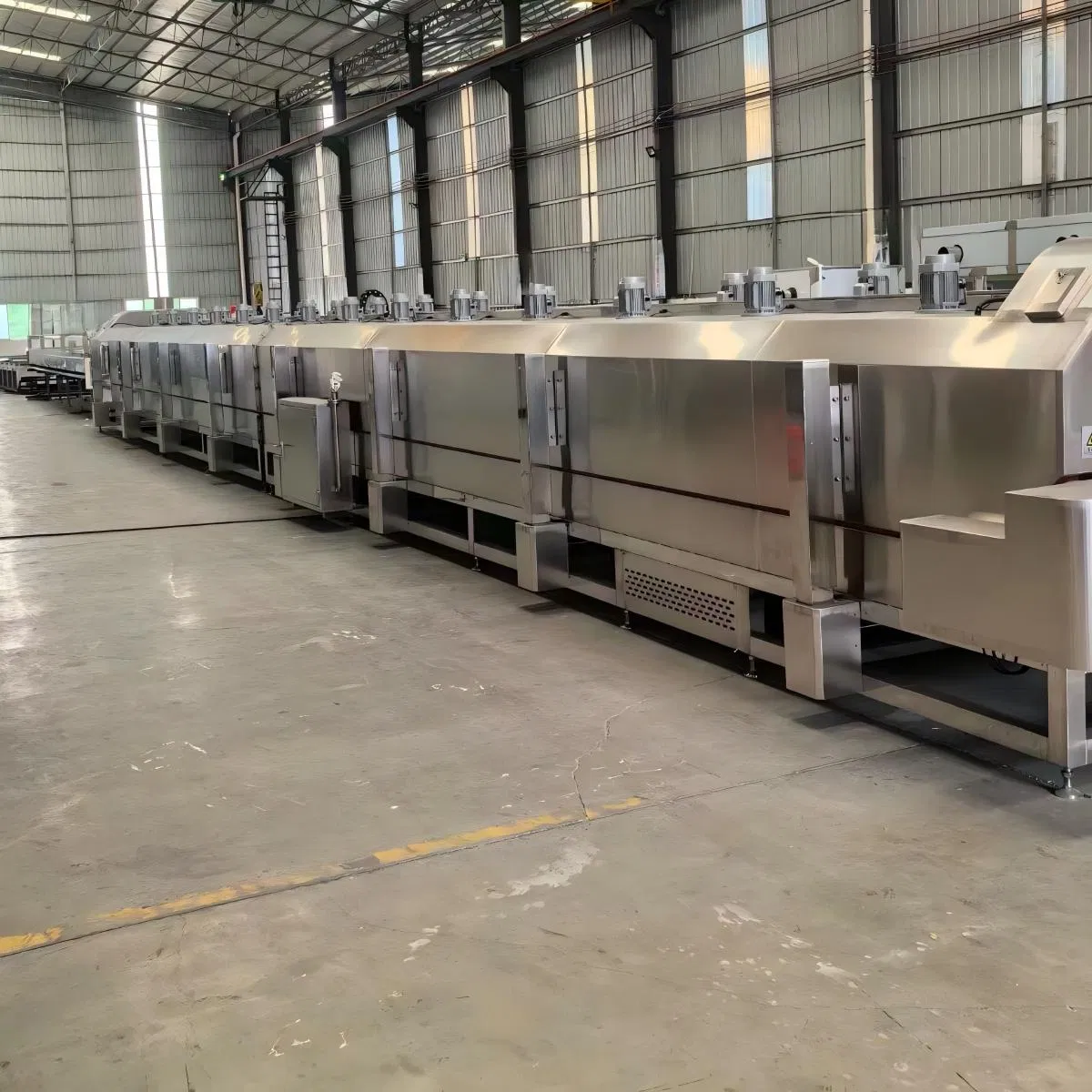

Liquid nitrogen quick freezing machine is suitable for food with high value, such as cooked wheaten food, fish, shrimp, roe, abalone, and more.
| NO. | Project | Parameters |
|---|---|---|
| 1 | Mesh belt size | 5500 mm(L) × 800 mm(W) | Capacity: 300KG/H |
| 2 | Outline dimension | 6500 mm(L) × 1700 mm(W) × 2050 mm(H) |
| 3 | Working temperature | -180ºC ~ 15ºC |
| 4 | Control accuracy | ±2ºC |
| 5 | Tunnel cycle time | 8 - 40 Min (Adjustable) |
| 6 | Cooling rate | 10ºC / Min |
| 7 | Supply power | 440V / 60HZ |
| 8 | Power | 8 KW |
| 9 | Refrigerant | 5-10BAR liquid nitrogen |
