Advanced Fingerless Adsorption Tool for Seamless Material Handling

Customization:	Available
After-Sales Service:	Engineers Avaiable to Service Machinery Overseas
Warranty:	1years

Send Inquiry

Product Description

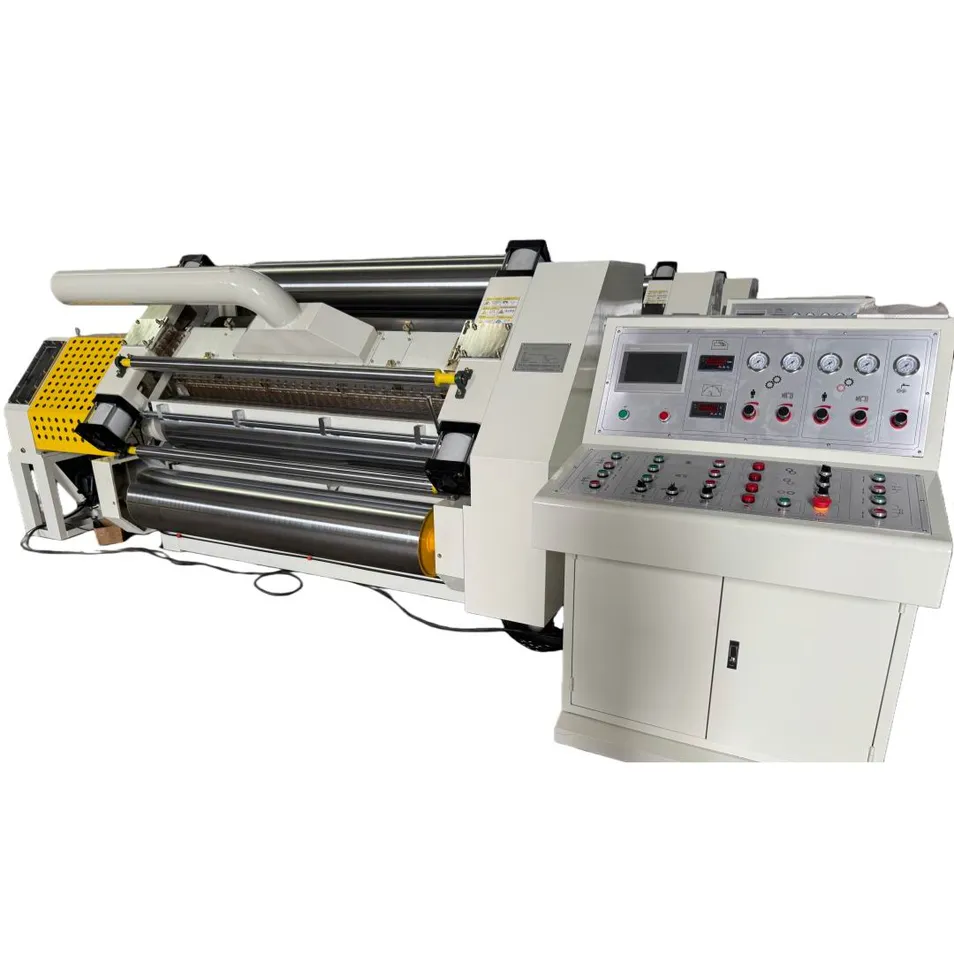

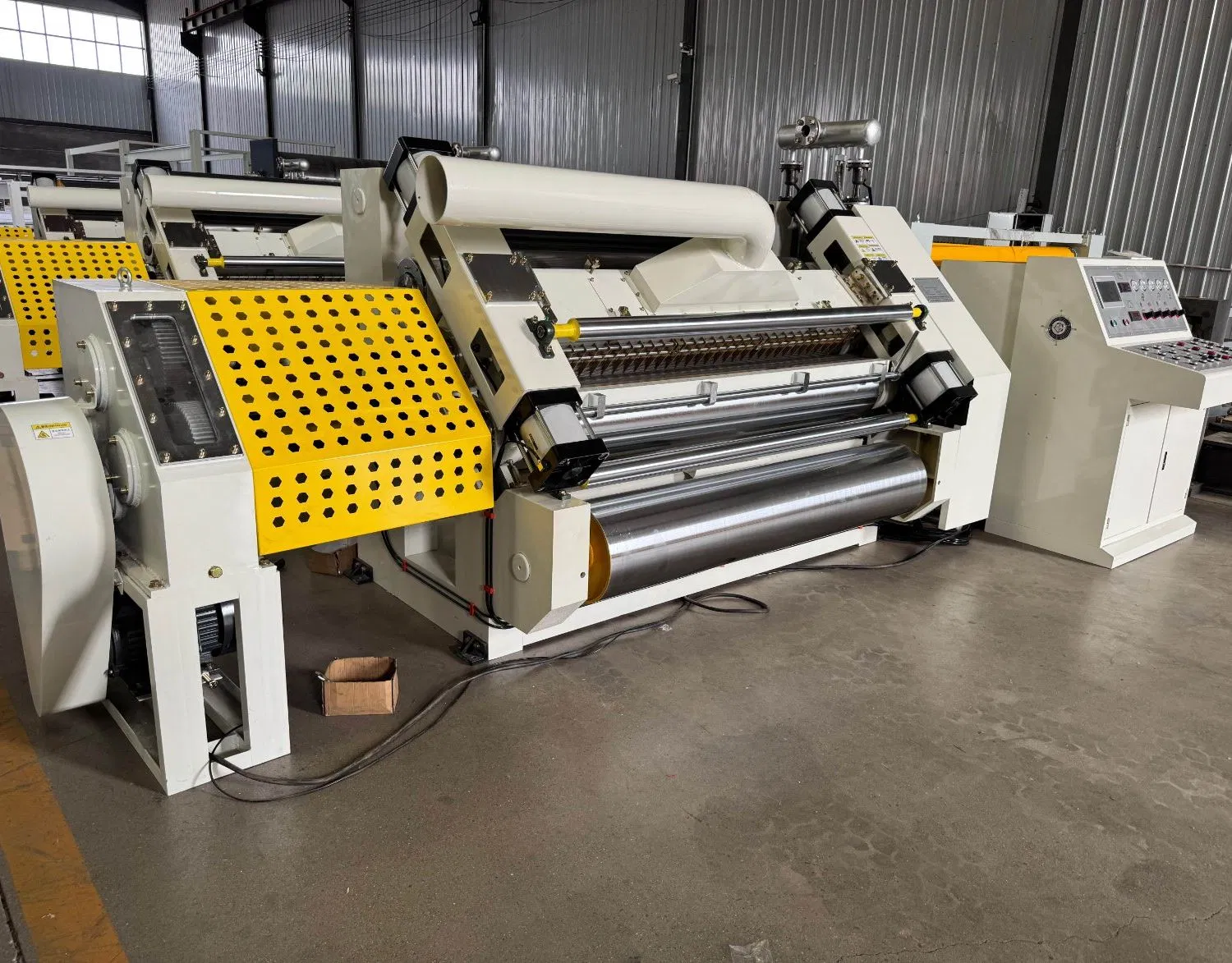

Fingerless Adsorption Single Facer Banner

📋

Basic Information

Model NO.	Fingerless Adsorption Single Facer
Working Width	1400-2000mm
Flute Type	A, B, C, D, E, F
Designed Speed	100m/Min
Economic Running Speed	80m/Min
Temperature Range	160—200℃
Steam Pressure	0.8—1.3MPa
Air Source	0.4—0.8MPa
Model Options	Sf320-1400/1600/1800/2000
HS Code	84413090

📦

Product Description

Vacuum Suction System: Paper feeding way is vacuum suction, ensuring perfect flute formation during high-speed production.
Stable Transmission: Drive uses universal joints to isolate vibration sources, making transmission more reliable.
Advanced Gearbox: Driven gearbox adopts immersion lubrication in oil to reduce noise.
Automatic Gluing: The glue coating part utilizes an automatic circulating feeding system with pneumatic adjustment control.
Integrated Air System: Equipped with a high-pressure powerful air fan with an adjustable wind capacity device and silencer.

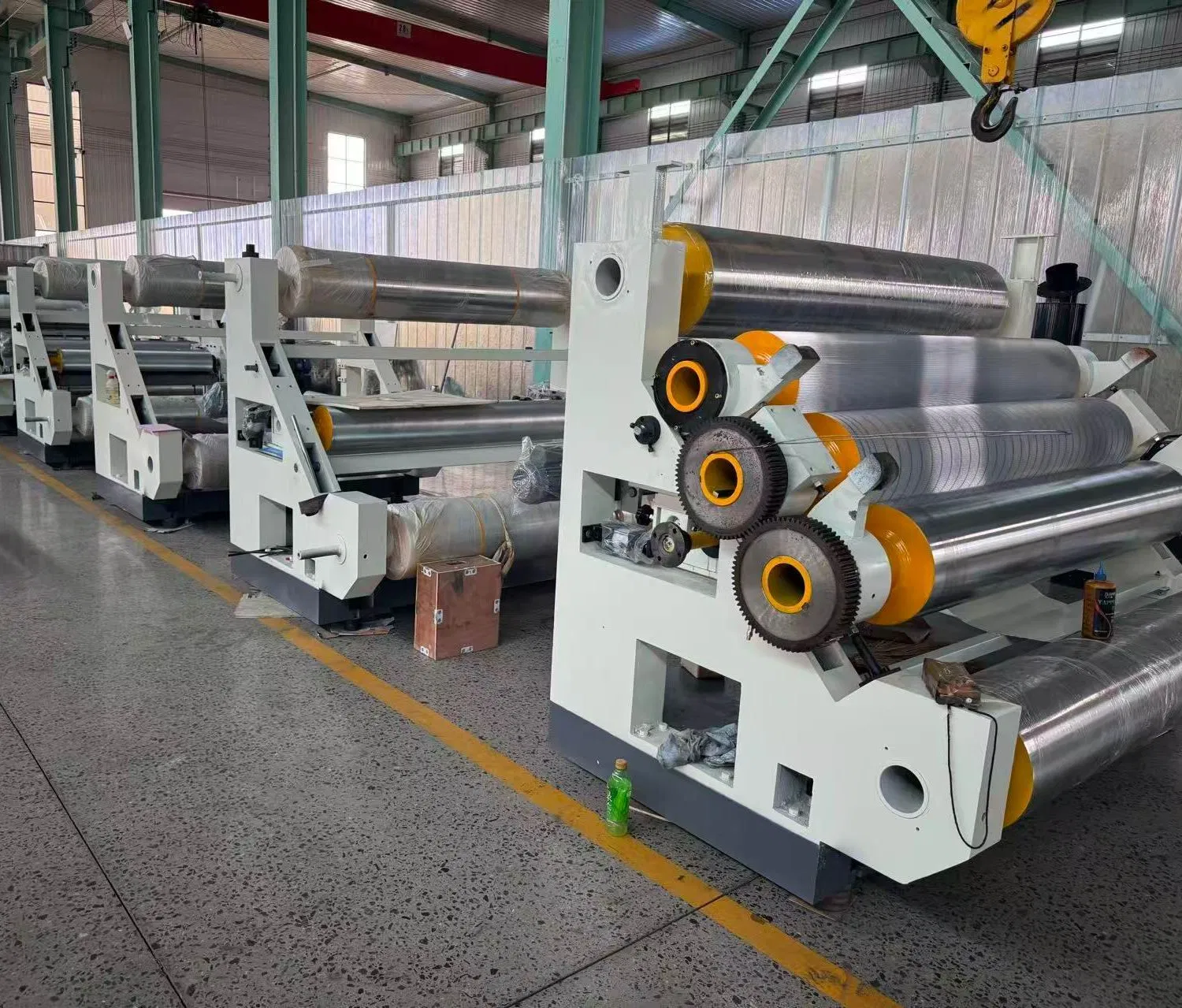

High-Quality Rollers: Corrugated rollers made of 50CrMo alloy with CNC polishing and fine grinding; surface hardness reaches above HRC60.
Durable Structure: Machine wall and base plate are constructed from 130mm thick cast iron for maximum stability.

🔬

Technical Specifications

Feature	Detail
Heating way	Steam / Electric
Operate direction	Left or Right according to factory requirements
Available Widths	1400 1600 1800 2000 2500 2800 3100
Package Gross Weight	5000.000kg
Package Size	2510.00cm * 1500.00cm * 1450.00cm

🏭

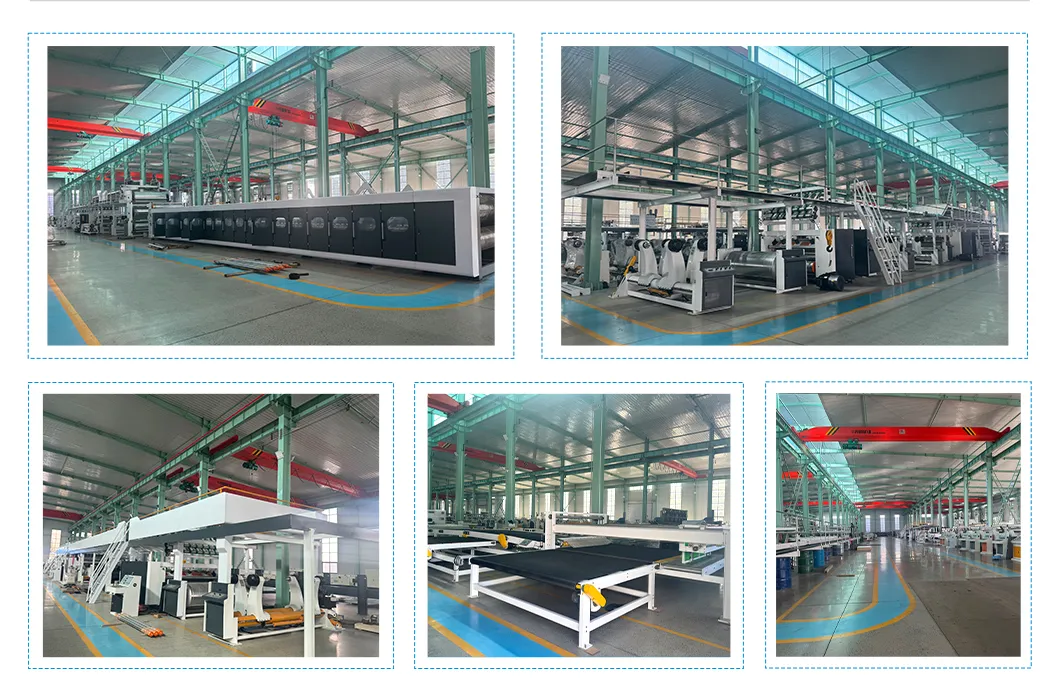

Manufacturing & Factory

As a professional manufacturer specializing in the research, development, and production of corrugated carton machinery, we focus on efficient, durable, and intelligent solutions. With a strong industrial foundation and a complete supply chain network, the company provides professional equipment and comprehensive services to domestic and global customers.

🚢

Packaging & Shipping

Machines are packed in protective film, trays, or wooden boxes to ensure safe transit to global destinations.

❓

Frequently Asked Questions

What types of machines do you manufacture?

We specialize in manufacturing corrugated carton production equipment, including fingerless adsorption single facers, printing slotting die-cutting machines, NC cutter machines, and stacker machines.

Are you a direct manufacturer?

Yes, we are a direct manufacturer with professional departments for R&D, machining, assembly, quality control, and after-sales service.

Can the machinery be customized?

Yes. We offer customized solutions based on your production capacity, carton size requirements, and specific layout preferences.

How do you ensure product quality?

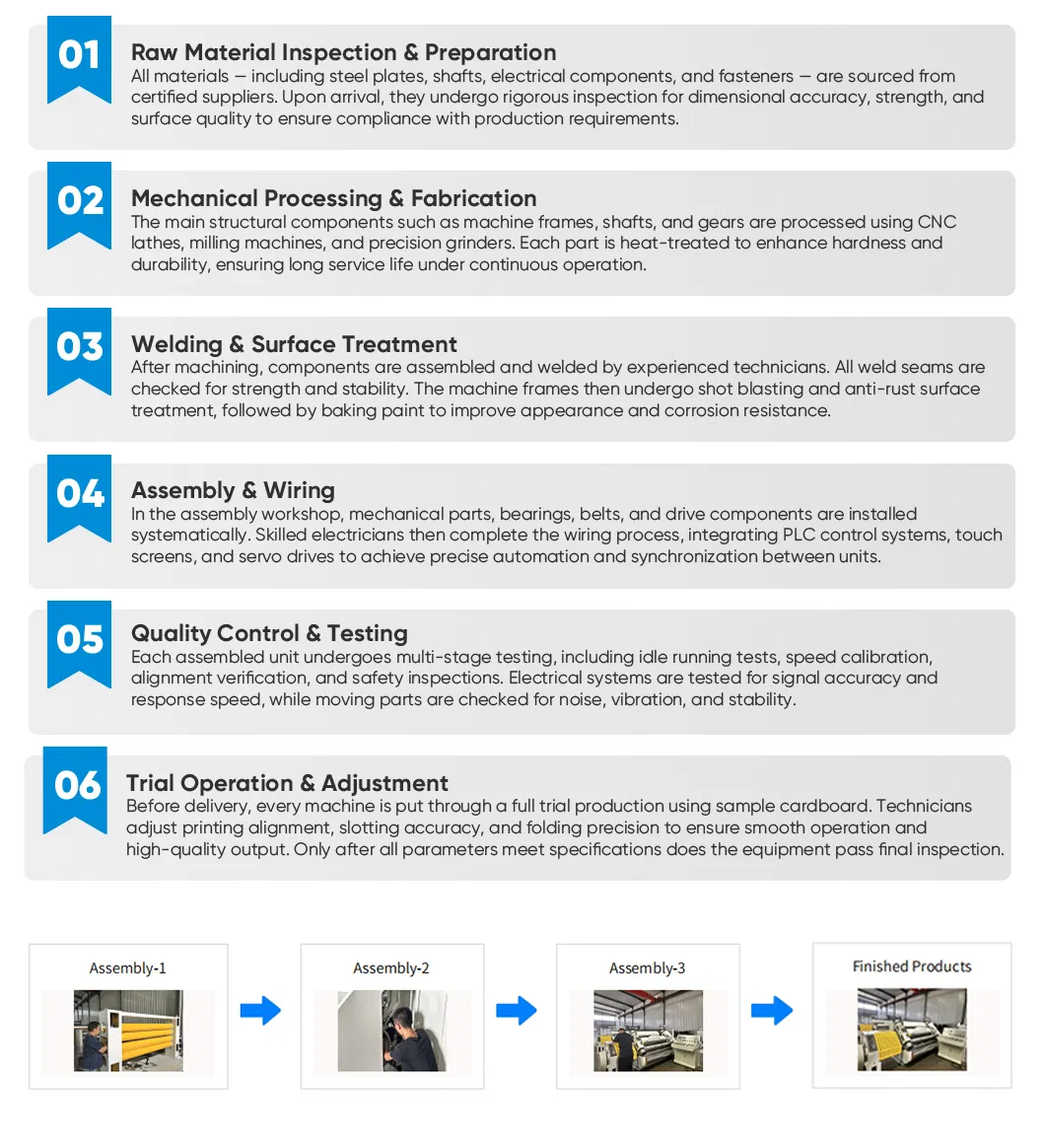

All machines are made with high-quality steel and branded electrical components (Siemens, Schneider, etc.). Each unit undergoes strict QC inspection and trial operation before leaving the factory.

What is the standard delivery time?

Standard models are typically delivered within 25–35 working days after deposit confirmation. Customized equipment timing may vary.

Do you provide installation and training?

Yes. We provide on-site installation and operator training by experienced engineers, as well as remote video guidance and detailed manuals.
