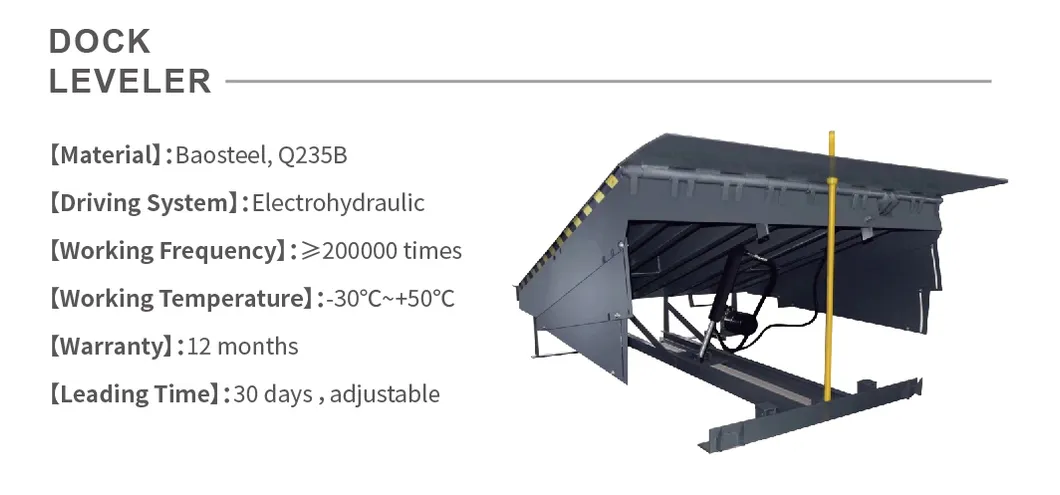

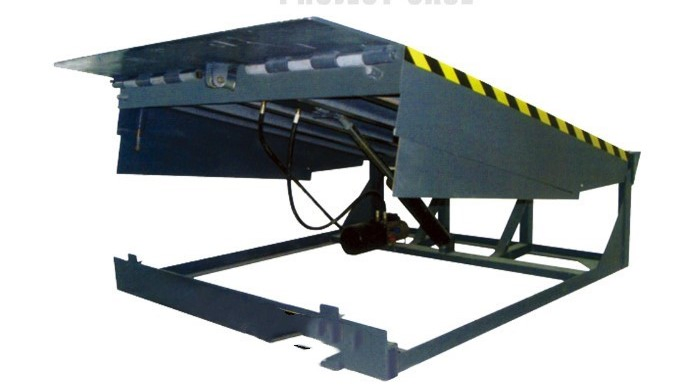

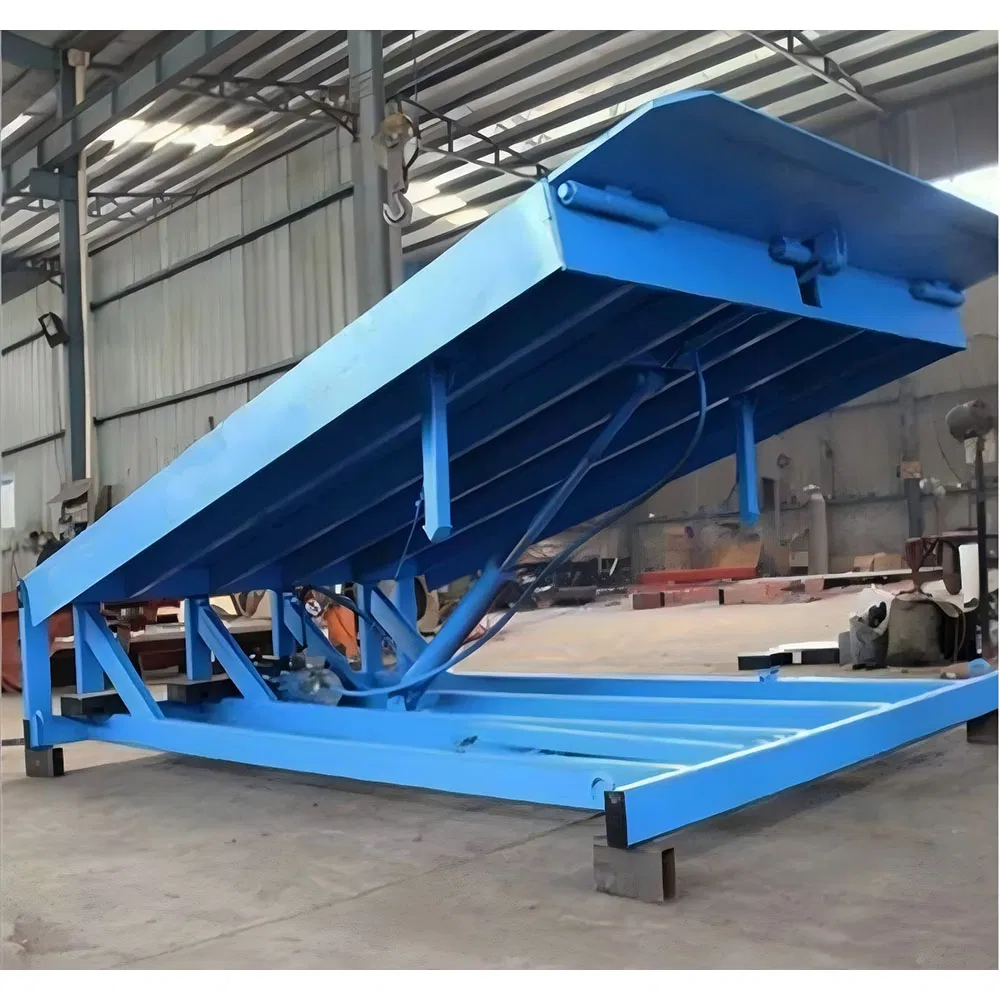

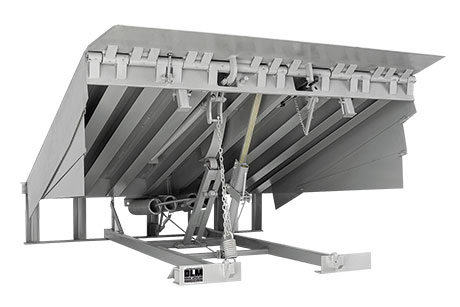

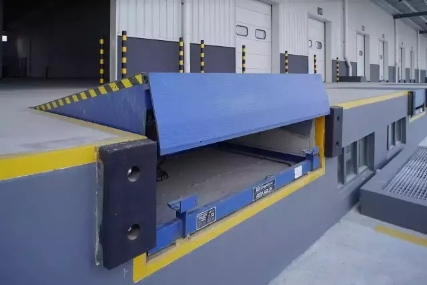

Swinging Lip Adjustable Loading Bay Dock Lift Telescoping Leveler Ramp Lifting Equipment for Car Loading

1 / 5

Swinging Lip Adjustable Loading Bay Dock Lift Telescoping Leveler Ramp Lifting Equipment for Car Loading

Customization:	Available
After-sales Service:	Yes
Warranty:	12 Months

Send Inquiry

Product Description

ℹ️

Basic Specifications

Model NO.

XF-O-2500

Lift Mechanism

Hydraulic Cylinder

Carrying Capacity

6t / 8t / 10t

Moves

Stationary

Driven Type

Hydraulic

Feature

Explosion-Proof

Certification

CE, ISO 9001

Voltage

220V 50Hz / 380V 50Hz

Power

0.75 Kw / 1.5kw

Specification

2000*2000*600 mm

HS Code

84254290

Origin

Made in China

📦

Packaging & Delivery

Package Size

200.00cm * 200.00cm * 60.00cm

Gross Weight

1000.000kg

Transport Package

Wrapping Film

🛠️

Product Description

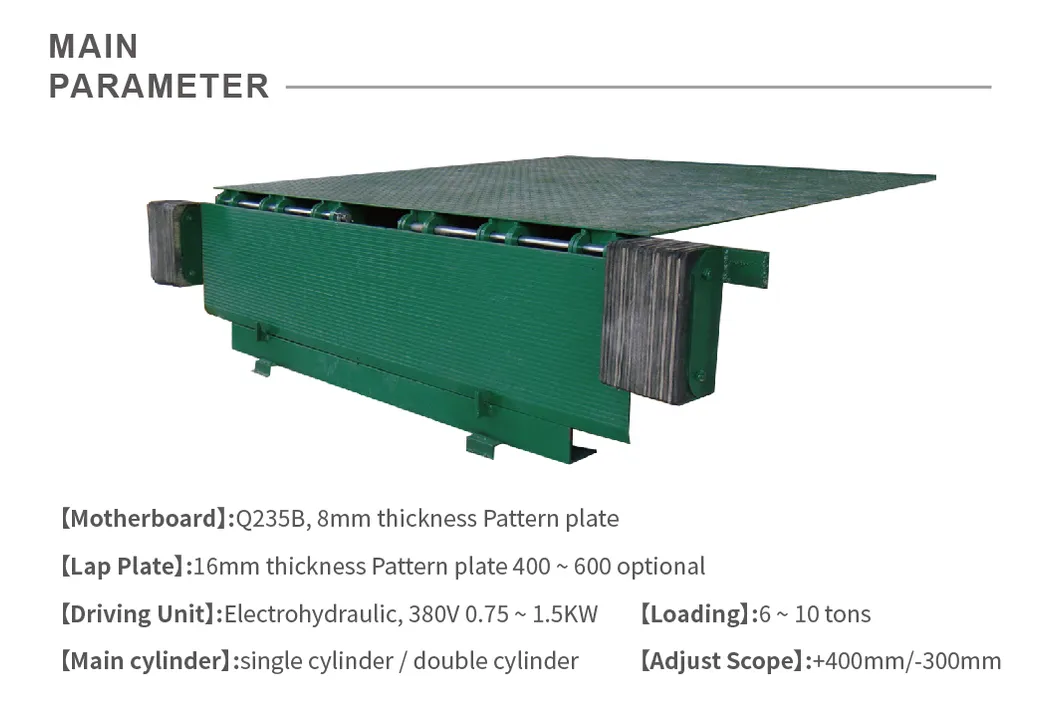

TECHNICAL PARAMETERS

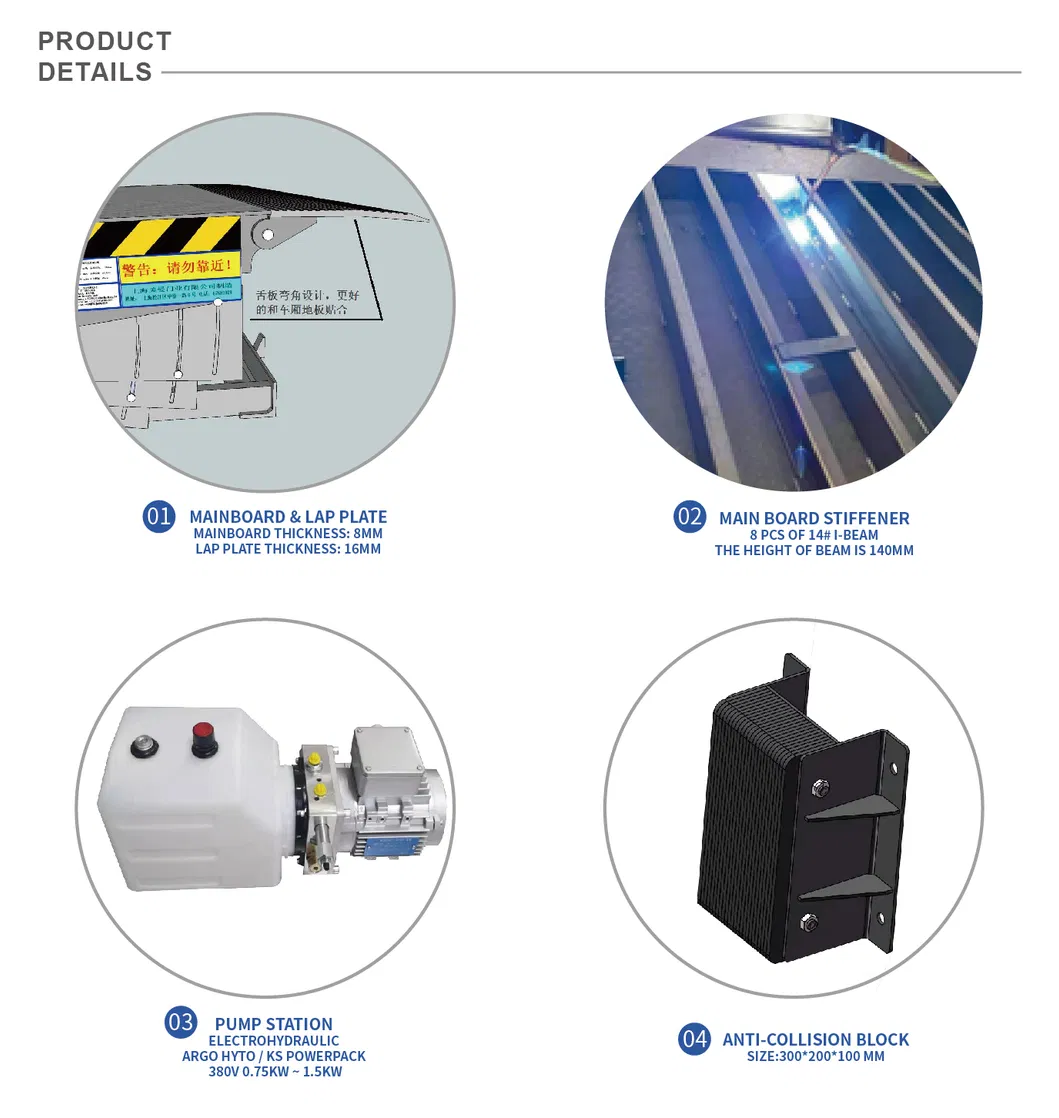

Main Board	Q235B steel plate with anti-slide pattern, thickness: 6/8 mm; blasting surface treatment and powder coating
Lap Plate	Q235B steel plate with anti-slide pattern, thickness: 14/16mm; blasting and powder coating
Hinge	Open type, 8*150mm
Loading Weight	Dynamic load: 6T / 8T / 10T / 12T / 15T
Driving	Electrohydraulic, 380V 0.75KW ~ 1.5KW
Control System	Standard 380V English interface
Adjust Scope	+400mm / -300mm
Adjust Time	Up ≤ 16S; Down ≤ 10S
Sealing Parts	Brand: NOK A505 Complete set of seals
Main Cylinder	Single cylinder / double cylinders
Main Board Stiffener	8 pcs of 14# I-Beam, height: 140mm
Safety Part	Explosion proof valve
Working Temperature	-30ºC ~ +50ºC
Anti-collision Bumper	300200100 mm

📝

Professional Features

✔ Specialized in industrial door design, manufacturing, and professional installation services.

✔ Advanced equipment and technology utilized to provide high-quality products and professional solutions.

✔ Wide product range: steel doors, fire doors, high speed doors, sectional doors, and logistic docking systems.

✔ Certified Quality: ISO9001: 2000 Management Certification and CE Certification compliance.

❓

Frequently Asked Questions

1. What is the maximum carrying capacity of this dock lift?

The equipment supports various dynamic loads including 6T, 8T, 10T, 12T, and 15T options to suit different loading requirements.

2. Does the equipment include safety features?

Yes, it is equipped with explosion-proof valves, automatic retraction side baffles, and anti-collision bumpers (300*200*100 mm) to ensure operational safety.

3. What are the materials used for the main board?

The main board is constructed from Q235B steel plate with an anti-slide pattern, featuring a thickness of 6mm or 8mm and a powder-coated surface.

4. Can this equipment operate in extreme temperatures?

Absolutely. The dock lift is designed to operate reliably within a wide temperature range of -30ºC to +50ºC.

5. What type of power supply is required?

The standard configuration requires a 220V/380V 50Hz power supply, with power output ranging from 0.75Kw to 1.5kw.

6. What is the adjustment range for the leveler?

The vertical adjustment scope is +400mm upwards and -300mm downwards, with a fast adjustment time of ≤16 seconds up and ≤10 seconds down.
